Product Overview

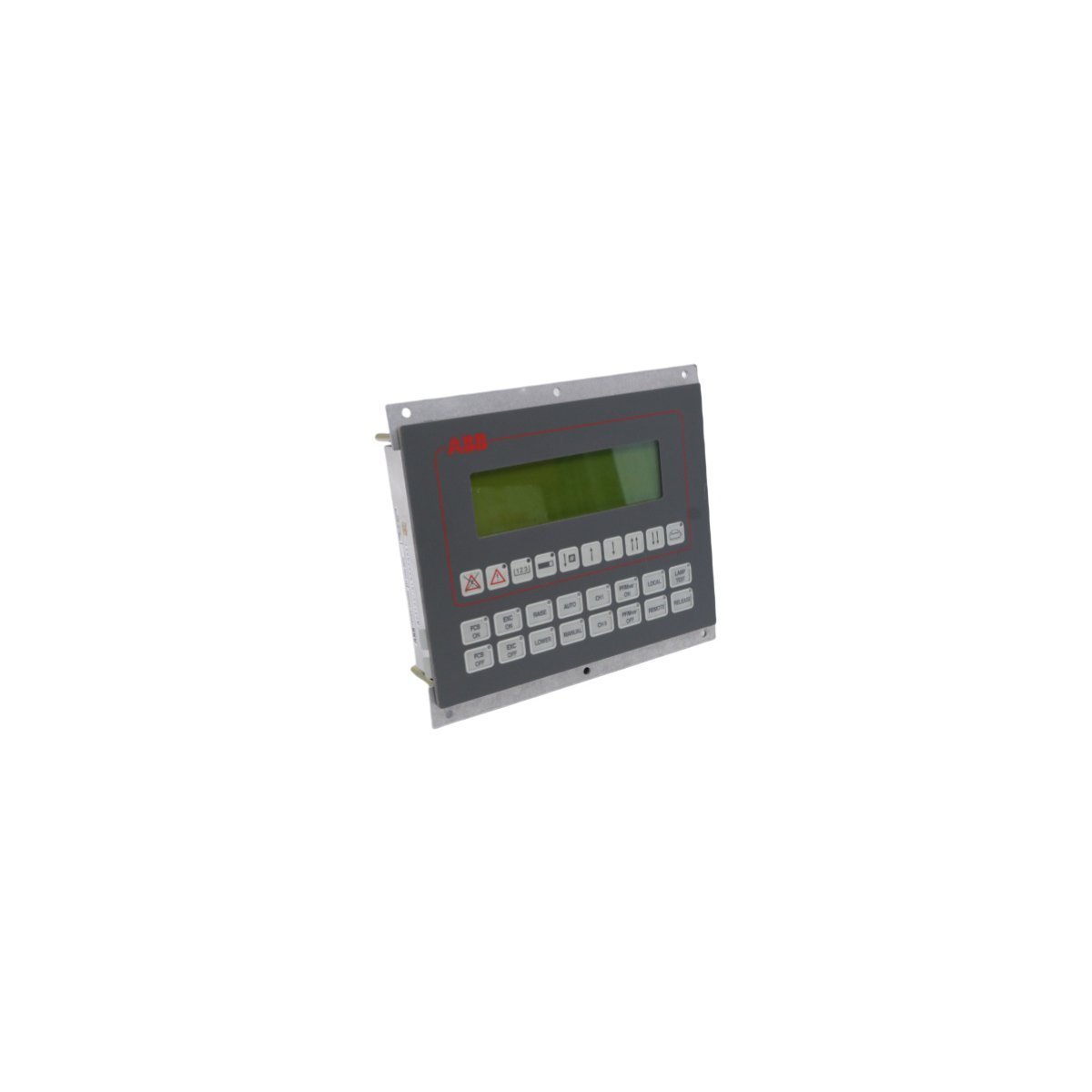

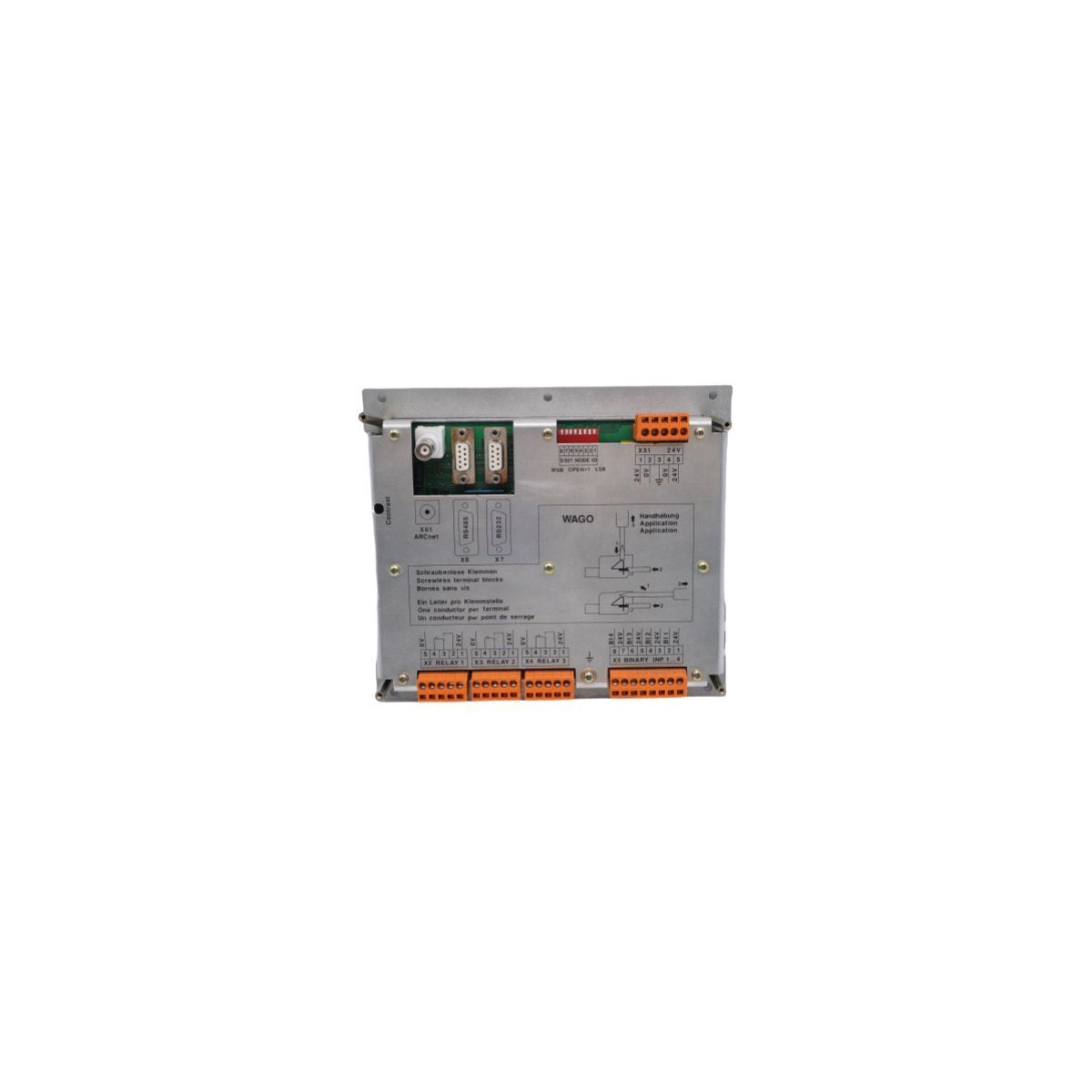

The ABB HIEE200130R0002, model AFC094AE02, is a specialized ARCnet Local Control Panel designed for the UNITROL® 5000 excitation system series. This interface module serves as a localized human-machine interface (HMI), allowing technicians and operators to perform direct configuration, real-time monitoring, and diagnostic troubleshooting of the excitation control logic. By utilizing the deterministic ARCnet protocol, the panel ensures high-speed, collision-free data communication within the Distributed Control System (DCS) architecture. Its ruggedized LCD display and integrated input interface provide a high level of visibility into system parameters, facilitating immediate response to process variables in critical power generation environments.

Core Hardware Parameters & Specifications

• Module Identification: AFC094AE02

• Part Number: HIEE200130R0002

• Display Technology: Industrial-grade LCD Operator Interface

• Protocol Integration: Native ARCnet communication support

• Input Voltage: 12V DC regulated power supply

• Thermal Endurance: Rated for operation from -10°C to +55°C

• Mass: 1.06 kg

• Physical Profile: 21.0cm x 18.3cm x 6.0cm

• Mounting Versatility: Suitable for DIN rail installation or console door mounting

• Certification Compliance: CE and UL listed for global industrial safety

• Manufacturing Origin: Sweden

Strategic Deployment & Industrial Utility

The AFC094AE02 is a staple in high-availability power sectors, specifically implemented within the local control cubicles of large-scale synchronous generators. In hydroelectric and thermal power plants, it functions as the primary point of local intervention for the UNITROL® 5000 system, allowing personnel to manage excitation current and voltage regulation without requiring a full engineering station. Its compact footprint is optimized for space-constrained electrical rooms and offshore platform control skids, where reliability is paramount. Furthermore, its ability to interface with Ethernet router services ensures that localized data can be bridged to plant-wide monitoring networks, supporting predictive maintenance and remote oversight in decentralized automation setups.
