Product Overview

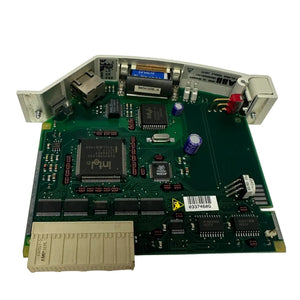

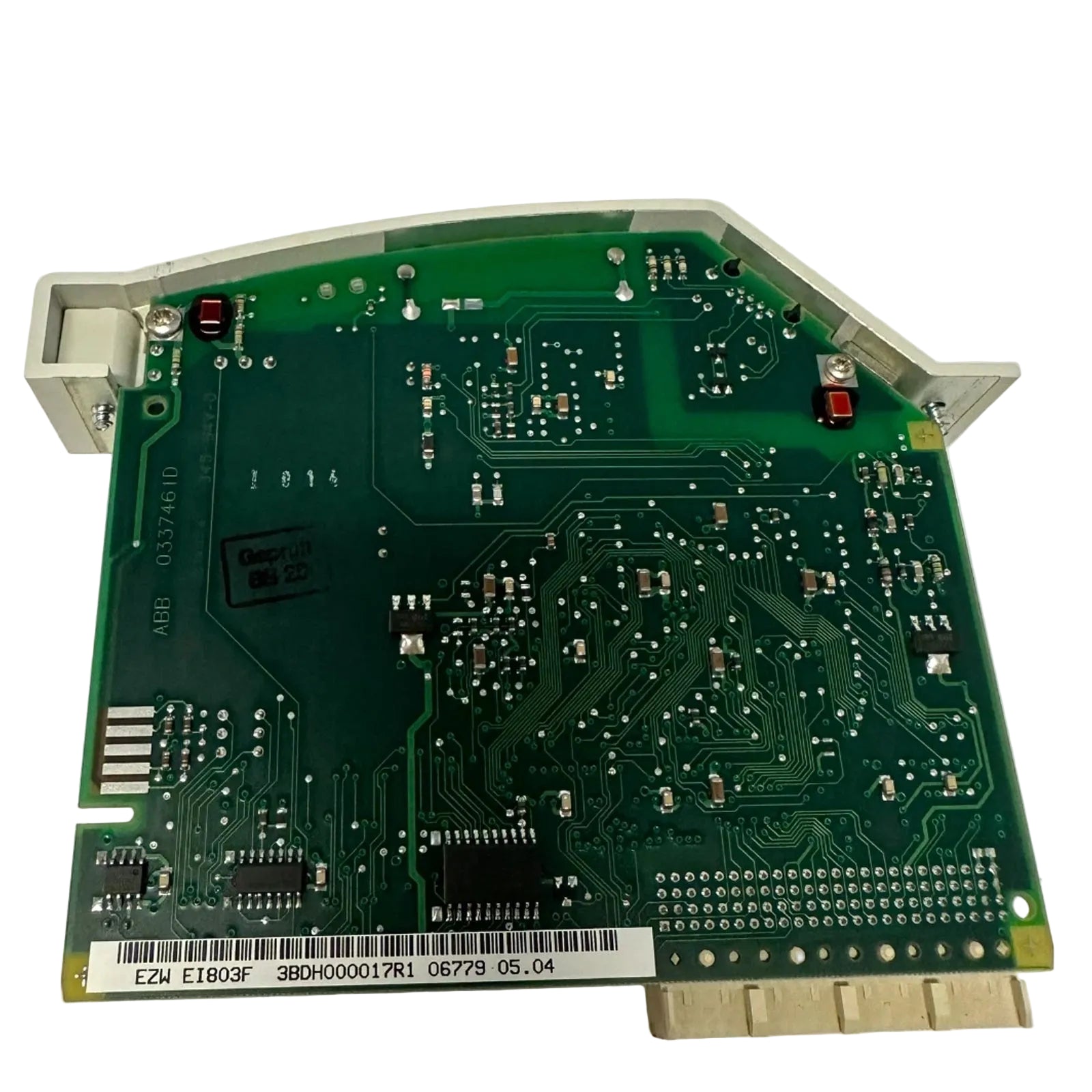

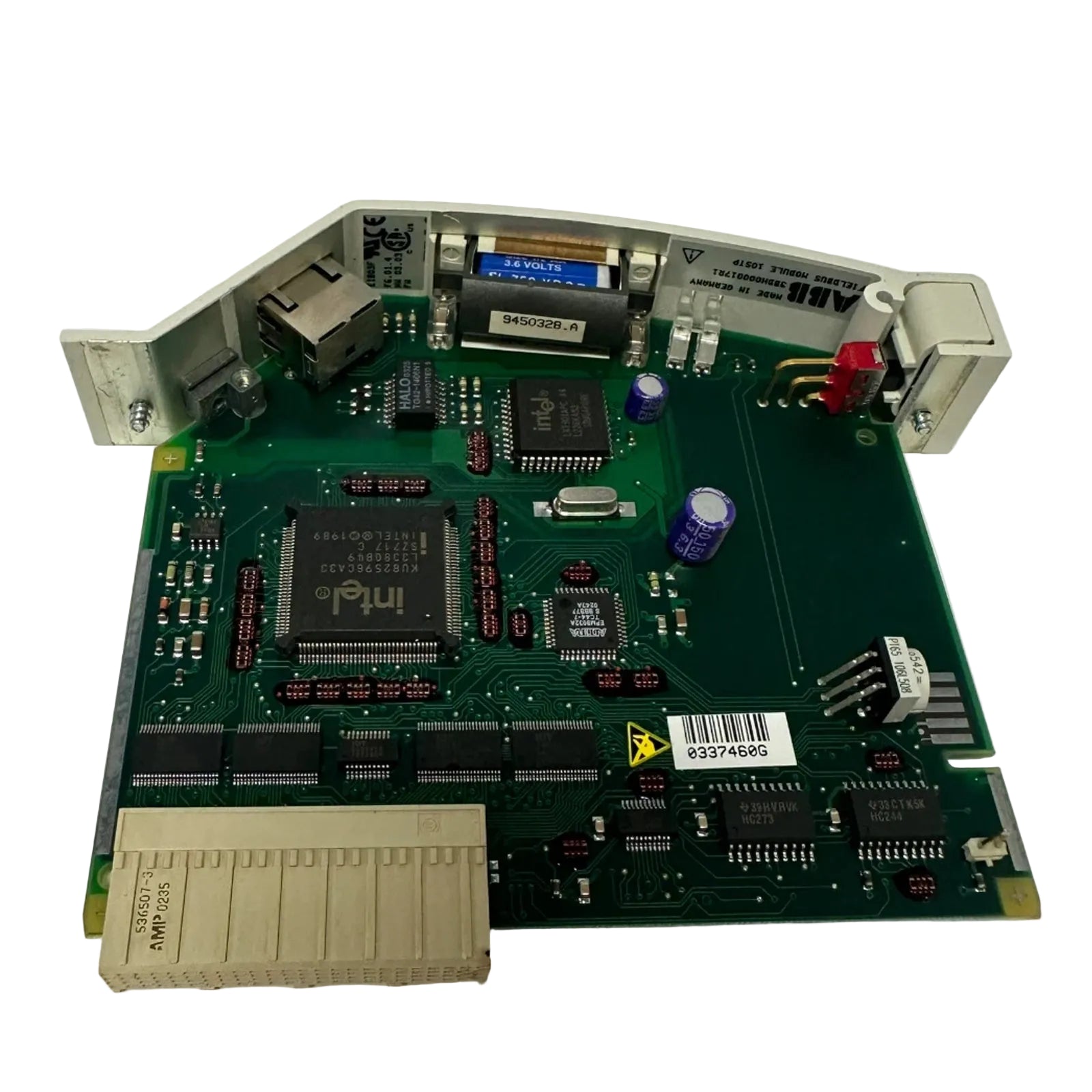

The ABB EI803F (3BDH000017R1) serves as a dedicated, high-stability Ethernet communication interface for the AC 800F field controller within the Freelance Distributed Control System (DCS) architecture. Engineered to maintain deterministic control-level networking, this module executes vital data exchanges between the controller CPU, operator stations (DigiVis), and engineering software environments. Despite its discontinued status from the OEM, the interface remains critical for sustaining running operations in major process industries such as chemical manufacturing, continuous emission monitoring systems (CEMS), and water treatment plants. It provides the essential 10Base-T twisted-pair physical layer connection that prevents communication dropouts and guarantees predictable control loop updates across the industrial plant backbone.

System Integration and Ethernet Architecture

The interface card integrates directly into the option slots of the compact AC 800F controller housing, interfacing instantly with the backplane bus. It utilizes a 10Base-T twisted-pair physical medium to manage standard IEEE 802.3 Ethernet frame traffic, facilitating deterministic industrial protocols like Modbus TCP or native Freelance system bus communications.

The onboard processor offloads communication stack handling from the main controller CPU, preserving processing cycles for critical control algorithms and interlocking logic. Integrated hardware diagnostics continuously monitor network collisions, frame alignment, and transceiver health, executing immediate status reporting to the diagnostic log of the engineering station.

Hardware Matrix and Physical Parameters

Deployment Protocols and Wiring Controls

Mounting the module requires fully powering down the host AC 800F controller rack before insertion into the designated option slot to avoid capacitive damage. Engineers must utilize high-quality Category 5e (Cat5e) or higher Shielded Twisted Pair (STP) cabling to satisfy rigorous industrial electromagnetic compatibility (EMC) standards.

Maintain a strict minimum cable bending radius of 40 mm inside the marshalling cabinet to eliminate structural stress on the copper cores. The RJ45 shield must bond securely to the cabinet common earth ground terminal block, preventing localized ground loop currents from injecting noise into the 10Base-T communication path.

Operational Lifecycle and Asset Longevity

The ruggedized design of the EI803F guarantees continuous operation across broad thermal environments inside enclosed control panels without requiring active fan cooling. Its architectural design ensures complete, seamless compatibility with older Freelance software versions, bypassing the need for expensive software migration paths or firmware rewrites. This seamless drop-in utility allows lifecycle management teams to secure aging legacy production lines, keeping critical process safety networks up and running with zero configuration modifications.

Ordering Logistics

(1) New-In-Box ABB EI803F Ethernet Communication Module (3BDH000017R1)

(2) Factory Original Installation Guide and Hardware Documentation

(3) Sealed Anti-Static Protective Enclosure

Express Global Fulfillment

We dispatch orders globally within 2 to 7 business days following finalized payment clearings through expedited express channels including DHL, FEDEX, and UPS. Each legacy module goes through a specialized multi-layer packaging routine, combining sealed anti-static ESD shielding bags with robust outer cushioning to guarantee total protection against shock and moisture during intercontinental transport.

Engineering Support FAQs

Q1: Can the EI803F negotiate 100 Mbps network speeds on modern industrial switches?

A1: No. The EI803F operates strictly on a legacy 10Base-T standard at 10 Mbps half-duplex or full-duplex. When interfacing with modern managed switches, you must manually configure the corresponding switch port to 10 Mbps Fixed speed to avoid duplex mismatch and subsequent packet loss.

Q2: What is the significance of the 3BDH000017R1 part number versus older revisions?

A2: The 3BDH000017R1 designation represents the fully tested, finalized hardware variant manufactured in Germany, replacing older legacy board layouts with improved component resilience against thermal degradation.

Q3: Does this module require specialized software drivers during replacement?

A3: No external drivers are necessary. The Freelance engineering environment recognizes the EI803F natively through standard hardware definition files. Inserting the module into the correct designated slot completes the hardware initialization automatically during the controller boot sequence.
