Product Overview

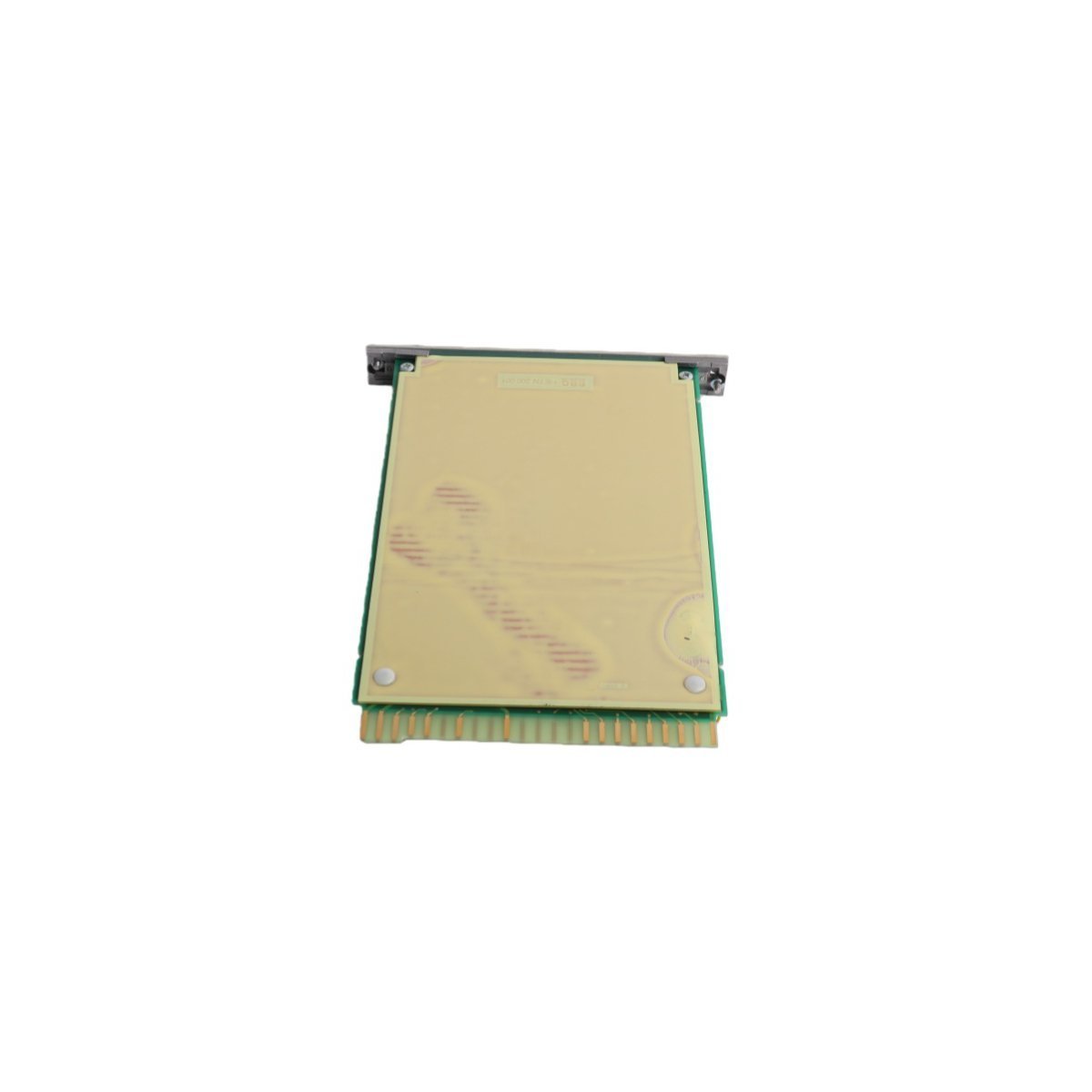

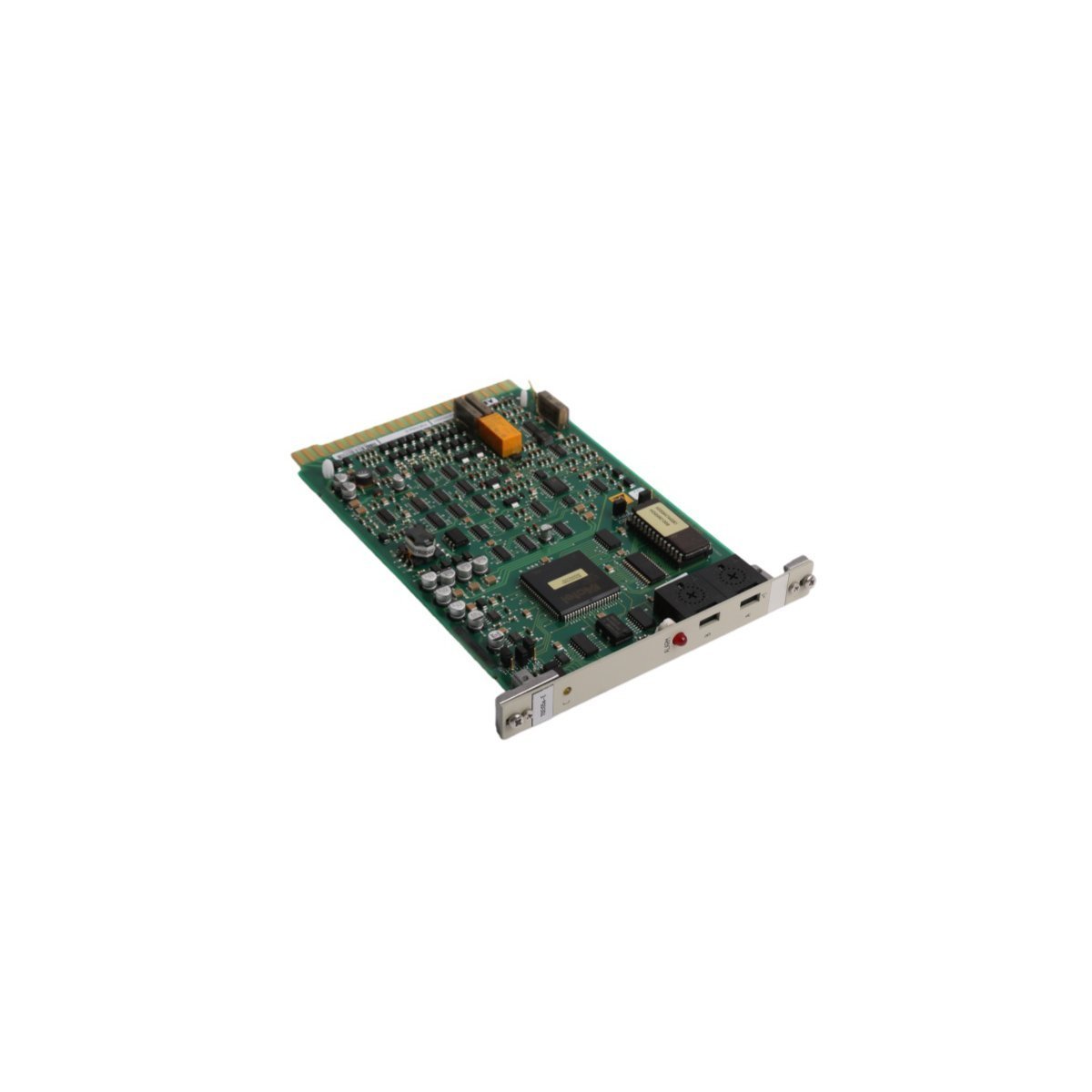

The ABB 70LR01A, identified by part number HESH447449R11, is a high-reliability relay output module specifically engineered for the Procontrol P13 distributed control system. This component serves as the critical electromechanical interface between the P13 digital logic and high-power field devices, enabling the secure switching of protection circuits, actuators, and industrial signaling equipment. Designed for mission-critical automation, the HESH447449R11 provides physical isolation between control electronics and field-side electrical loads, preventing transient interference from compromising the processor bus. Its robust Swedish construction ensures deterministic response times and long-term mechanical durability in continuous-duty industrial applications.

Technical Infrastructure and Hardware Logic

The 70LR01A HESH447449R11 is built to professional protection standards with the following engineering specifications:

• Hardware Identification: 70LR01A

• Order Designation: HESH447449R11

• Module Function: Relay Switching / Interposing Output

• System Pedigree: Procontrol P13 Series

• Physical Mass: 1.22 kg

• Casing Geometry: 24 x 19 x 5.3 cm

• Circuit Isolation: Galvanic separation between logic and relay contacts

• Mounting Integration: Procontrol P13 standard rack-ready format

• Operational Stability: Hardened against electrical noise and high-frequency interference

• Manufacturing Origin: Sweden

• Tariff Code: HS 8537101190

Industrial Protection Utility and Usage

In Power Plant Control and Safety Interlocks, the HESH447449R11 70LR01A is utilized to trigger critical protection devices and emergency shutdown sequences. The module’s relay contacts provide the high-integrity switching needed for turbine trip circuits and boiler safety valves. Because the Procontrol P13 system often operates in environments with high electromagnetic stress, the HESH447449R11’s robust signal processing ensures that only valid control commands result in contact actuation, preventing costly false trips while guaranteeing response when safety thresholds are breached.

Within Heavy Industrial Automation and Smelting, this relay module manages the activation of high-current motor starters and solenoid valves. The 70LR01A is valued for its ability to handle temperature variations and vibrations typical of metal processing facilities. By serving as an interposing relay layer, it protects the central DCS hardware from the back-EMF and inductive spikes generated by large field coils, thereby extending the lifecycle of the entire automation infrastructure and reducing the frequency of hardware maintenance.

For Substation Automation and Grid Monitoring, the HESH447449R11 provides reliable status signaling and remote control of switchgear. Its compatibility with the P13 architecture allows for seamless integration into large-scale electrical distribution networks. The module's precise timing and dependable contact closure are essential for synchronized switching operations, helping utility operators maintain grid stability and protect expensive transformers and busbars from fault conditions through reliable, isolated relay logic.
