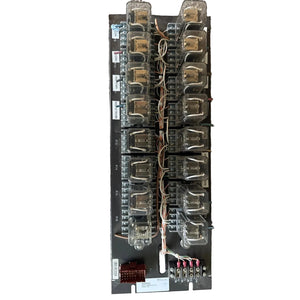

Configured for high-voltage discrete signal isolation and interposition in Infi 90 systems, the ABB 6639890A2 (6639890A2 Standard Relay Panel) provides direct physical/electrical execution. This horizontal mounting hardware assembly links low-power digital output (DSO) modules to field-level actuators, switching physical galvanic paths across distinct AC and DC distribution circuits based on control loop commands.

Physical and Electrical Parameters

I/O Density Scaling & Backplane Synchronization

Designed to align with standard I/O density scaling architectures, the relay panel interfaces directly with the system cabinetry infrastructure without modifying host module firmware flash compatibility profiles. The horizontal circuit board configuration routes low-voltage backplane bus communication velocity triggers into independent electrical relay coils. This construction isolates high-voltage plant line noise from synchronous transmission cycles, maintaining deterministic signal paths between the control rack and the final process devices.

Circuit Validation & Diagnostics

Q: Can the individual relays on this panel be serviced while adjacent DSO channels are actively switching?

A: No. Prior to performing maintenance or component extraction on specific relay circuits, power must be isolated from the associated AC or DC distribution rails to avoid transient inductive arcing across the panel plane.

Q: What mitigation actions occur if the ambient temperature drops down to the minimum limit of -5 deg C?

A: The panel remains within operational limits between -5 and +55 deg C. If the local envelope falls outside this range, mechanical relay response times may exhibit latency drift, affecting the deterministic execution of the linked DSO channels.

Q: Does the 6639890A2 incorporate on-board logic processors requiring firmware synchronization?

A: No. The board functions purely at the physical and electrical interposition layer. It converts raw electrical commands from the host DSO module into mechanical contact closure without utilizing processing software or firmware buffers.

Field Installation Guidelines

• Cabinet Orientation Mechanics: Mount the assembly horizontally onto the designated cabinet frame layout. Secure all structural installation screws to ensure low-resistance bonding with the central metallic equipment frame.

• Voltage Barrier Separation: Maintain physical separation between the low-voltage DSO input ribbon cables and the high-voltage 110/230 V AC terminal distribution paths to prevent inductive noise coupling.

• Shield Grounding Matrix: Field actuator cable shields must be grounded directly at the cabinet entry ground bus bar rather than being terminated onto the terminal strip of the relay panel.

Ordering Information

• 1 x ABB 6639890A2 Horizontal Standard Relay Panel

• 1 x Terminal Mapping Diagram Sheet

• Note: Interconnecting DSO interface cables and external plug-in fuses are excluded from this base package and must be specified separately.

Delivery Data

Delivery time: 2-7 days when payment finish verification is finalized in the system database. Dispatches route directly from Xiamen, China via global express lines including DHL, FEDEX, or UPS. The equipment ships inside heavy-duty anti-static industrial packaging complete with shock-absorbent structural inserts to eliminate external static fields and transport vibration degradation.
