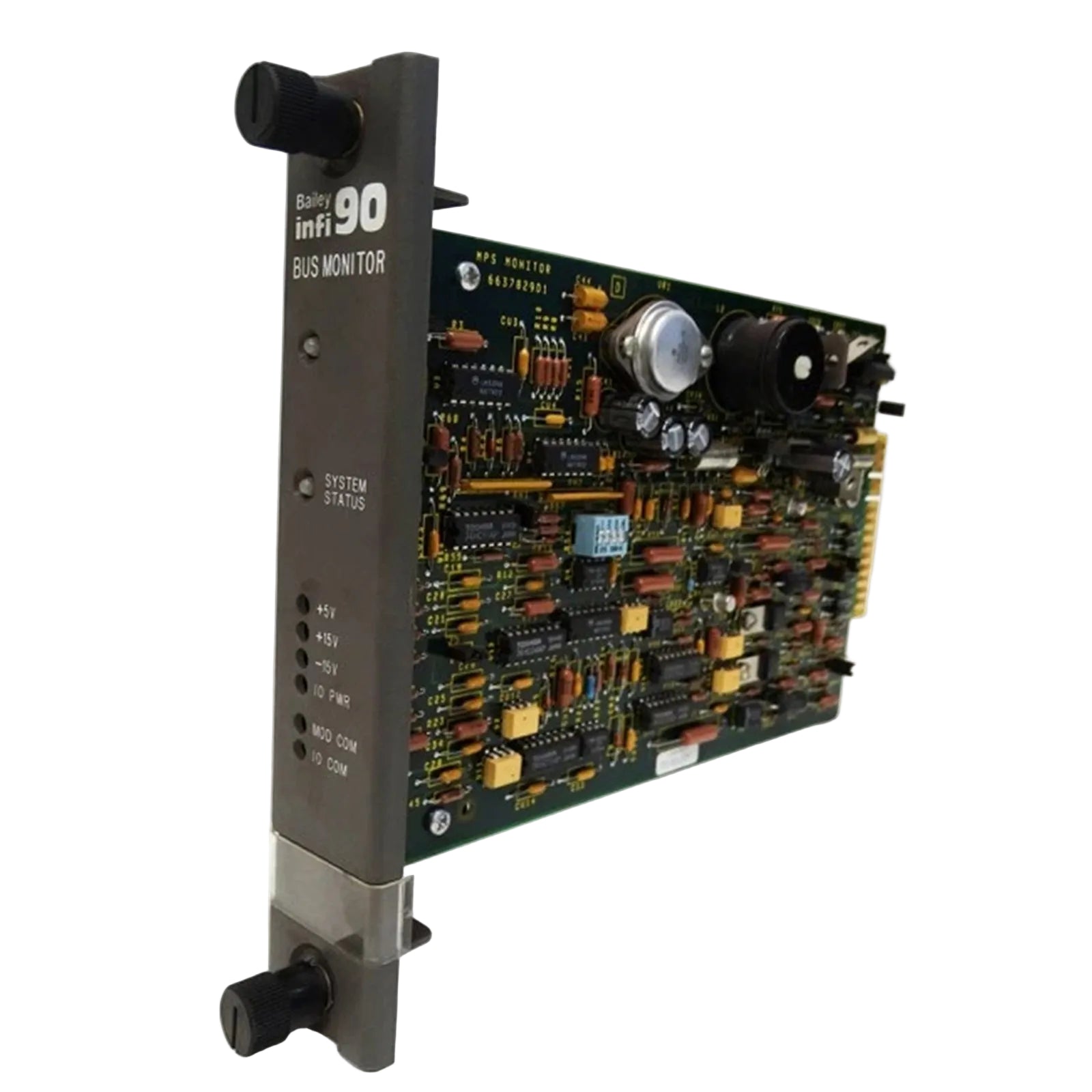

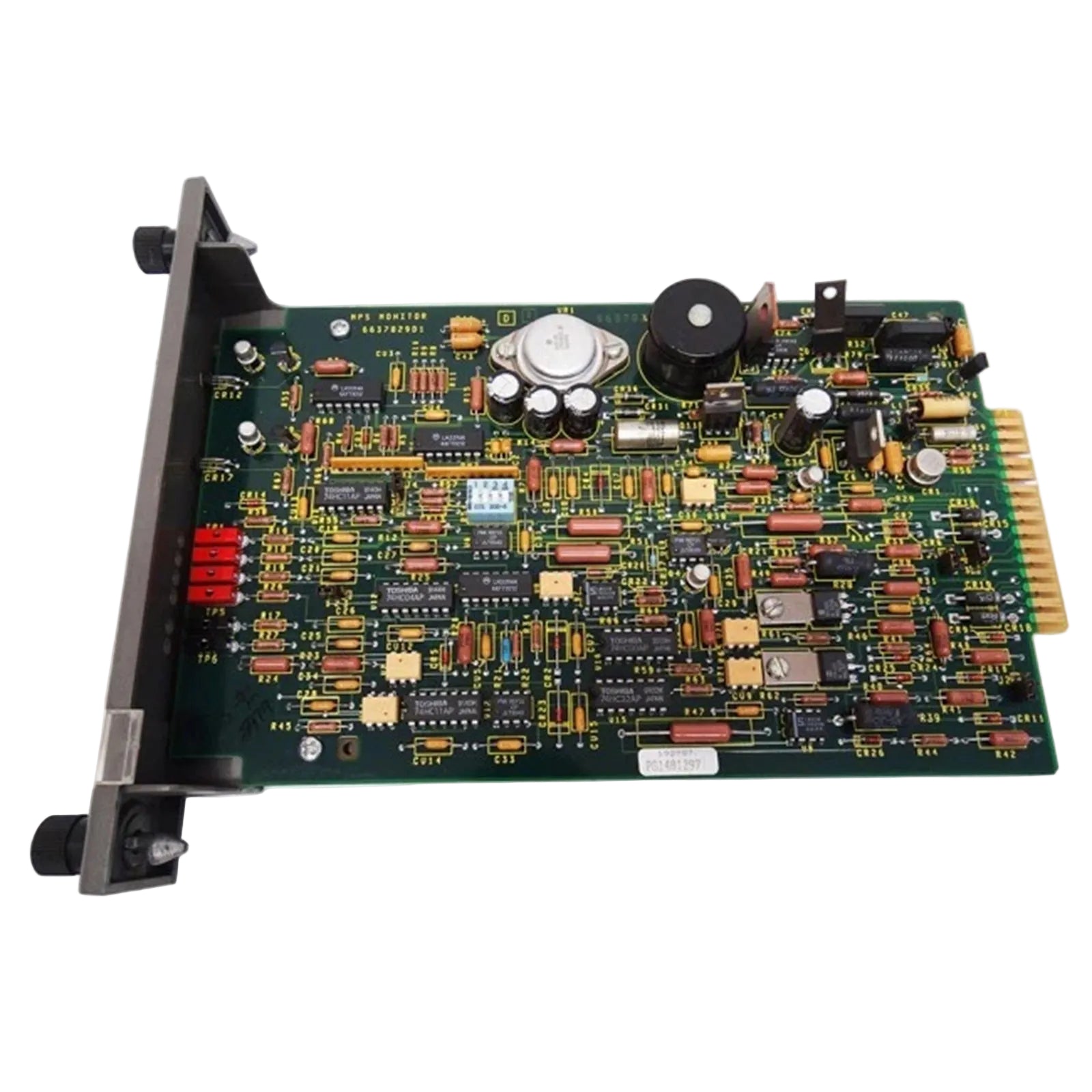

The ABB 6637830E1, also cataloged as the 6637830E1 Bus Monitoring Module, operates as a dedicated hardware component for continuous communication bus integrity validation within Infi 90 platforms. It interfaces directly with power entry panels including the IEPEP03, IEPEP04, and NPEP05 to evaluate physical layer signal metrics and execute hardware-level trip logic via onboard relays when signal-to-noise thresholds are breached.

Hardware Parametric Data

Deterministic Network Backplane & Firmware Synchronization

Operating within the ABB industrial control architecture, this module cross-references communication signal parameters against preset backplane bus communication velocity constraints. The hardware architecture tracks physical frame noise and maintains real-time synchronization with the synchronous transmission cycles of the DCS backplane. It evaluates signal degradation without altering the underlying firmware flash compatibility of adjacent processing units or introducing communication processing latencies onto the active tracking bus.

Technical Queries & Diagnostic Logic

Q: How do the 2 Form-A relay outputs respond when the signal-to-noise ratio drops below 18 dB?

A: The contact loops open automatically upon validation of a signal-to-noise ratio below 18 dB. This physical break provides a hardwired, deterministic trip signal to connected external emergency shutdown inputs or auxiliary monitoring systems without relying on software network commands.

Q: Is this card configured to support live hot-swap replacement within the power entry rack?

A: No. Removing this unit while the power entry panel (IEPEP03/04 or NPEP05) is energized risks dropping the local bus termination integrity, which can induce spurious noise faults and cause accidental shutdown commands across the active local segment.

Q: Does the module require an independent external power connection for internal logic processing?

A: No. The circuit topology utilizes standard loop power derived directly from the 24 VDC connection provided through the hosting backplane assembly interface, maintaining 500 VDC isolation boundaries between the bus elements and output contacts.

Field Installation Guidelines

• Chassis Attachment: Ensure the module is fully seated along the card guides of the IEPEP03/04 or NPEP05 subpanel assembly and that the structural securing screws are tightened completely to maintain continuous grounding contact with the system rack.

• Cable Separation: Route the hardwired contact output wiring through dedicated low-voltage wireways, keeping them isolated from high-current AC power lines to avoid induction of high-frequency noise fields into the monitoring module circuitry.

• Shield Continuity: Maintain unbroken shielding across all communication bus connections up to the point of entry on the subpanel assembly, grounding the common shield only at the single designated primary master ground point.

Package Component Breakdown

• 1 x ABB 6637830E1 Bus Monitoring Module Assembly

• 1 x Technical Installation Parameter Sheet

• Note: Matching subpanel connection elements and terminal blocks are not enclosed and must be specified as independent hardware items.

Shipping Logistics & Protocols

Consignments clear point of origin within 2-7 days when payment finish confirmation is logged. Consignments dispatch from Xiamen, China using global express networks via DHL, FEDEX, or UPS. Every unit is dispatched in specialized anti-static industrial packaging complete with custom molded ESD protection cells to prevent dielectric stress or physical shock degradation during long-distance transit.
