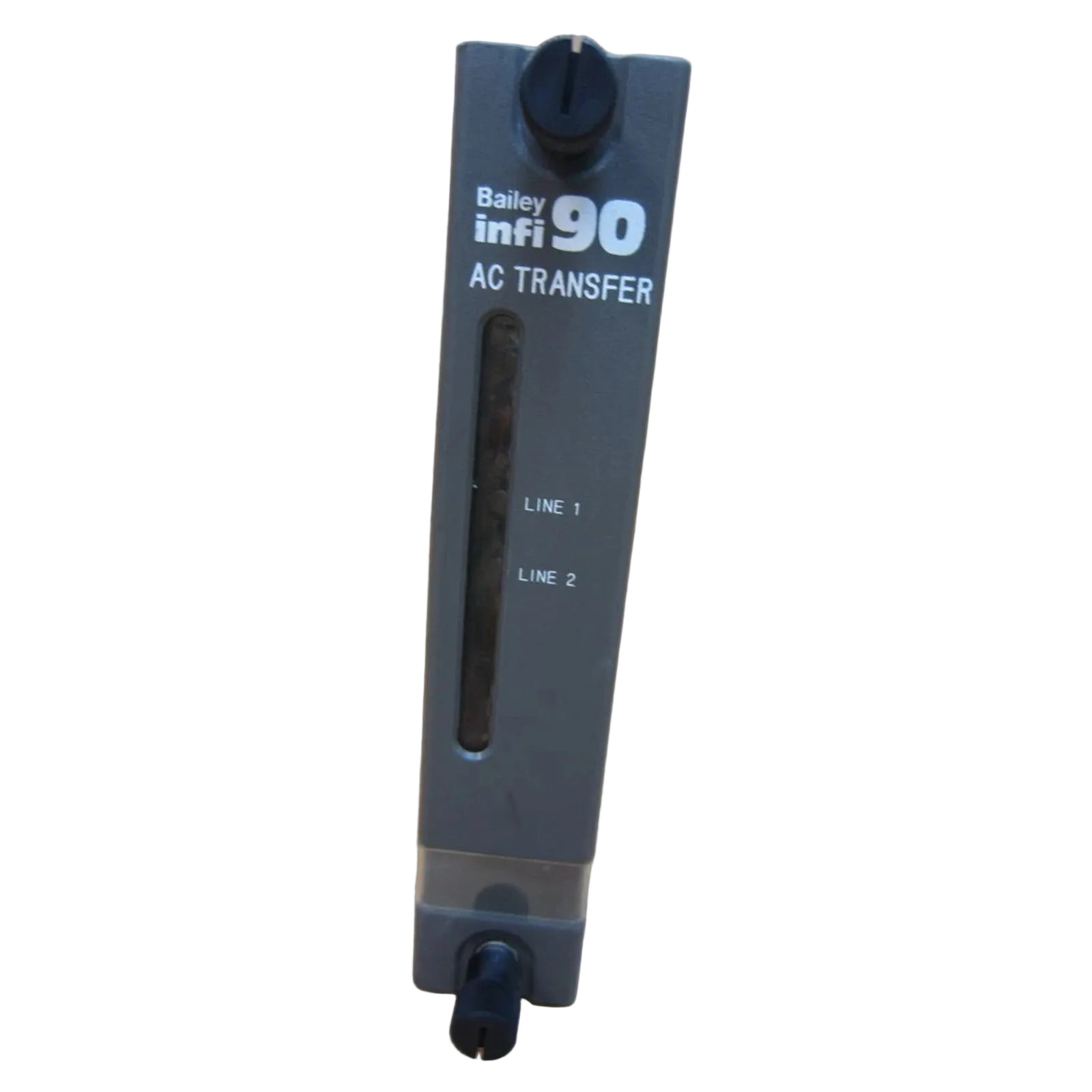

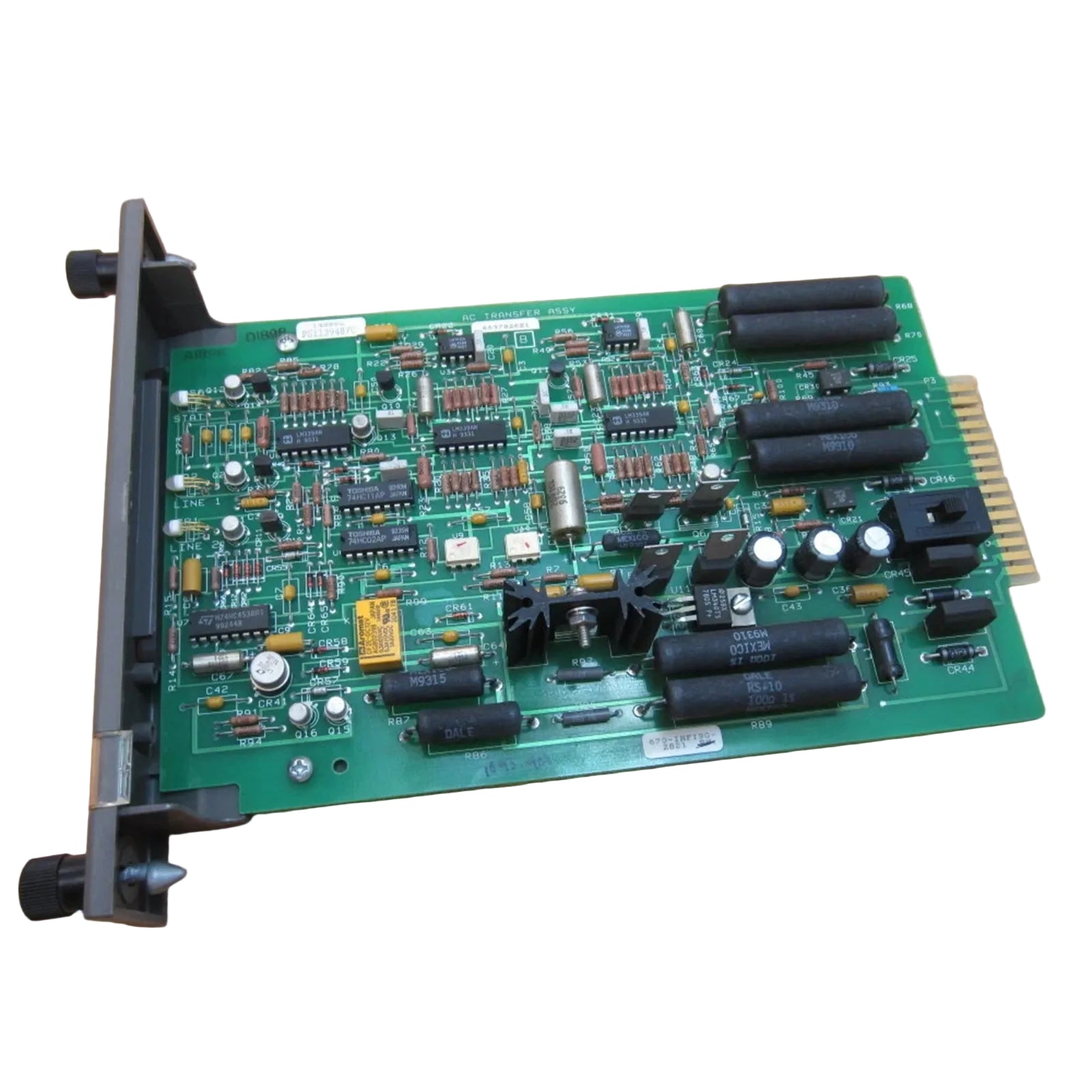

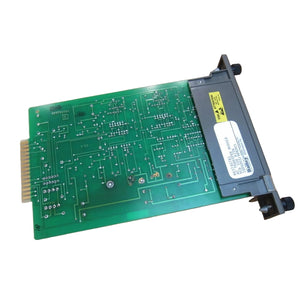

The ABB 6637826E1, also cataloged as the 6637826E1 AC Transfer Module, operates as a dedicated hardware component for AC power transfer execution within ABB Bailey Infi 90 rack-based control systems. The unit manages 120/240 VAC transfer paths and interfaces with rack-mounted power distribution logic to maintain controlled phase switching behavior under defined load conditions.

Suffix Interpretation Scope

No structured suffix segmentation is defined for 6637826E1. The identifier is treated as a single engineering part number without modular encoding.

Hardware Specifications

ABB Infi 90 Power Transfer and Backplane Electrical Behavior

The 6637826E1 integrates into ABB Infi 90 rack power architecture to execute controlled AC transfer switching between defined 120 VAC supply domains. Internal transfer logic is synchronized with system frequency reference at 50 / 60 Hz to ensure phase alignment stability during transition events.

Backplane interaction is limited to control and monitoring pathways, while load current is routed through dedicated AC transfer conductors rated up to 30 A per phase. The module maintains isolation between rack logic domains and high-energy AC switching paths to reduce electrical coupling between control electronics and power distribution circuits.

Thermal behavior is directly correlated with continuous current loading and cabinet ventilation conditions. Rack installation requires uniform airflow distribution to maintain stable junction temperature under sustained transfer operation.

Frequently Asked Questions

Q: Does the 6637826E1 support live load transfer under full current rating?
A: The module is rated for 30 A per phase continuous current, but transfer conditions depend on system configuration and synchronization state.

Q: Is backplane power used for load switching?
A: No. The backplane is used for control signaling only. Load switching occurs on isolated AC power paths.

Q: What frequency range is supported for transfer operation?
A: The module supports 50 Hz and 60 Hz nominal system operation.

Q: Can the module be inserted or removed under energized conditions?
A: Removal under energized conditions is not defined as a standard operation. System power isolation is required before handling.

Field Installation Guidelines

Install the 6637826E1 into a designated ABB Bailey Infi 90 rack slot with verified mechanical locking engagement. Ensure AC supply conductors are fully isolated before module insertion.

Use shielded and properly rated conductors for 120/240 VAC routing. Maintain physical separation between AC transfer wiring and low-voltage control signal lines to reduce electromagnetic coupling.

Verify phase alignment and system frequency stability prior to energizing transfer paths. Grounding continuity of rack enclosure must be confirmed before commissioning.

Ordering info

• ABB 6637826E1 AC Transfer Module

• Factory sealed anti-static packaging

• Industrial protective transport enclosure

• Rack installation interface documentation (system dependent)

Delivery Information

Delivery time: 2-7 days when payment finish, shipped via DHL / FEDEX / UPS. All units are packed using anti-static industrial packaging with reinforced mechanical protection for rack-mount transport stability and vibration resistance.
