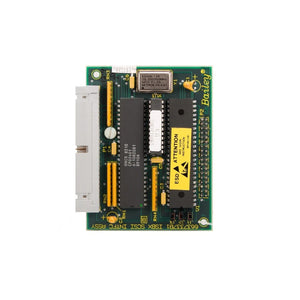

The ABB 6637337B1 serves as the primary 6637337B1 ISBX SCSI Interface Board utilized to execute parallel-to-serial bus translation across Net 90 platforms. Configured to mount directly via an extension slot, the board establishes deterministic data transfer pathways between the controller logic and SCSI-compliant storage or communication sub-components through hardwired DMA channels.

Physical and Electrical Parameters

Deterministic Network Backplane & Firmware Synchronization

This daughterboard maps its internal 64 kByte buffer space directly onto the host module register set to comply with backplane bus communication velocity constraints. The dual DMA channels allow high-throughput data stacking without causing processing bottlenecks within the primary synchronous transmission cycles of the controller. Firmware flash compatibility is managed by the host processor card, which coordinates the 96-pin DIN bus timing signals to prevent protocol-level latencies during block data writes.

Technical Queries & Diagnostic Logic

Q: How do the 2 onboard DMA channels affect the processing load of the host controller?

A: The DMA channels manage data block transfers directly between the 64 kByte buffer and the SCSI interface. This bypasses the host processor core for raw byte shifts, preventing degradation of the main control loop execution time.

Q: What operational faults result from a supply voltage drop below the +5 VDC \pm 5 % limit?

A: A voltage drop below the threshold destabilizes the onboard 64 kByte static RAM buffer logic. This results in data parity errors, unexpected bus disconnects, or a failure to assert SCSI line termination voltages.

Q: Is this interface card rated for hot-swap connection into the host processor assembly?

A: No. Connecting or disconnecting the 96-pin DIN ISBX interface while the host processor module is powered will cause transient current spikes across the logic tracks, which can corrupt data registers or cause physical damage to the transceiver components.

Field Component Installation Protocols

• Connector Alignment: Align the 96-pin DIN connector perpendicular to the host module pins. Apply even pressure until the board seats completely against the alignment standoffs to establish uninterrupted grounding continuity.

• SCSI Subsystem Cabling: Keep SCSI connection lengths as short as possible. Use high-frequency shielded twisted-pair media and verify that the active SCSI termination rules are applied to the end node on the physical bus segment.

• Static Discharge Control: This sub-assembly contains sensitive CMOS architecture. Ground all installation tools and wear a calibrated dissipative wrist strap connected to the cabinet frame before handling the card.

Procurement Manifest

• 1 x ABB 6637337B1 ISBX SCSI Interface Board

• 1 x Technical Configuration Layout Guide

• Note: Host processor modules, interface cables, and termination resistors must be itemized and acquired separately.

Logistics and Packaging Data

Consignments clear point of origin within 2-7 days when payment finish verification is logged in the system. Dispatches depart from Xiamen, China via prioritized transport networks handled by DHL, FEDEX, or UPS. The components travel enclosed within sealed anti-static industrial packaging matrices with moisture-absorbent packets to guarantee physical shielding and eliminate ESD degradation vectors during transit.
