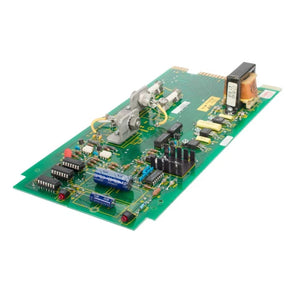

The ABB 6634175F1 serves as the primary 6634175F1 Single Phase Power Module utilized to execute regulated DC power generation and voltage stabilization across Bailey Net 90 platforms. This hardware component conditions variable AC or DC line inputs down to a regulated $+5\text{ VDC}$ primary rail level to drive processor logic and bus communication circuits. It provides isolated electrical regulation to protect backplane-mounted modules from input source dynamics and localized line variations within the system rack assembly.

Technical Performance Schedule

Deterministic Power Distribution and I/O Density Scaling

This single phase module regulates energy delivery to preserve continuous backplane bus communication velocity across high-density hardware structures. The internally derived $+5\text{ VDC}$ path supports immediate I/O density scaling requirements by delivering up to 25 A of stable logic current directly into parallel communication paths. This low-impedance trace distribution design maintains a clear signal profile during synchronous bus read-write operations, preventing voltage dips from disrupting firmware flash compatibility checks or halting active processor cycles. Built-in 500 VAC isolation circuits isolate input line noise from the internal logic bus, ensuring consistent, drift-free execution across all connected rack channels.

Engineering Technical Inquiries

Q: What are the exact structural hot-swap constraints regarding this power module?

A: This module must not be extracted or inserted while the primary input power lines are energized. Live hot-swapping introduces arc breakdown hazards across the backplane connectors, which risks interrupting power distribution to adjacent slots and causing system communication faults.

Q: How does the module react to input voltage drops below the 85 VAC threshold?

A: When the incoming power level drops beneath 85 VAC (or 100 VDC), the internal monitoring loop triggers a low-voltage shutdown sequence. This protective execution cuts off the $+5\text{ VDC}$ output rail instantly to prevent the processor from executing corrupted instructions due to insufficient logic power.

Q: What are the structural symptoms of excessive temperature drift on this hardware?

A: Thermal drift is managed strictly within a <= 0.01 % / deg C threshold. If operating temperatures exceed 70 deg C, the internal reference regulators can shift, causing the primary $+5\text{ VDC}$ output to drift outside its standard +/-2 % tolerance band and destabilize the connected bus networks.

Field Installation Protocols

• Chassis Alignment & Insertion: Insert the module assembly into the designated power slot using the internal card guides. Slide the unit inward until the heavy-duty rear connector blocks engage firmly with the backplane distribution sockets.

• Terminal Screw Securing: Fasten the integrated front panel retention screws to lock the housing into the rack chassis. Establishing a secure physical connection ensures a continuous path for the frame ground and dampens field-vibration forces.

• Wiring Separation Constraints: Route input AC/DC power lines through separate wire channels away from low-voltage I/O lines. Maintain standard industrial clearance spacing to prevent electromagnetic coupling from introducing noise into low-level analog measurement paths.

Order Logistics Package Elements

• 1 x ABB Bailey Net 90 6634175F1 Power Module

• 1 x Printed Channel Routing Layout Leaflet

• 2 x Panel Intrusive Retention Fasteners

Material Delivery Matrix

Delivery time: 2-7 days when payment finish steps are fully validated by our processing department. Freight dispatch is coordinated from our fulfillment location in Xiamen, China using express networks including DHL, FEDEX, or UPS. All parts are packed inside customized anti-static industrial packaging sleeves with dense multi-layer cushioning protection inserts to shield the electronics from structural impact and static discharge during transit.
