Product Overview

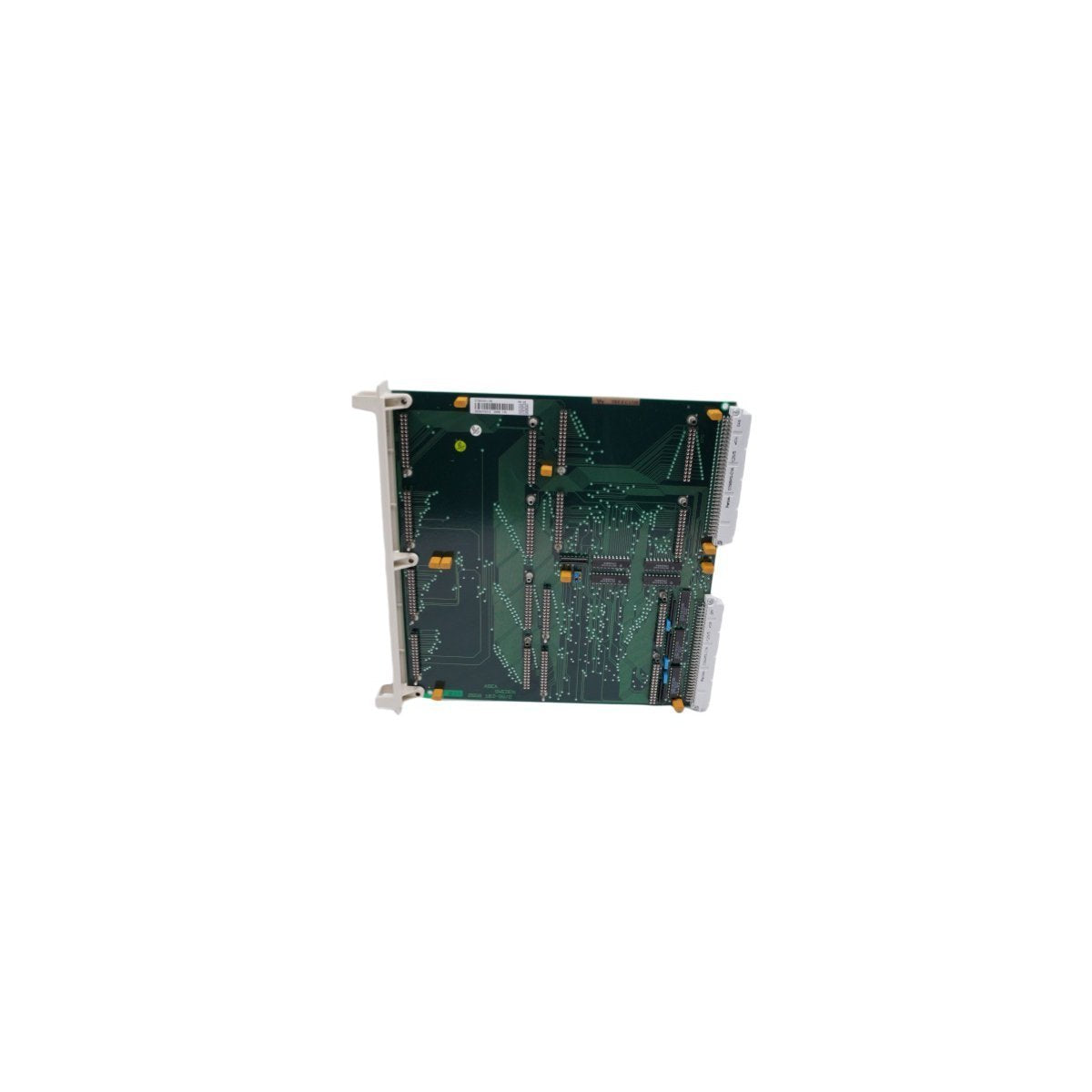

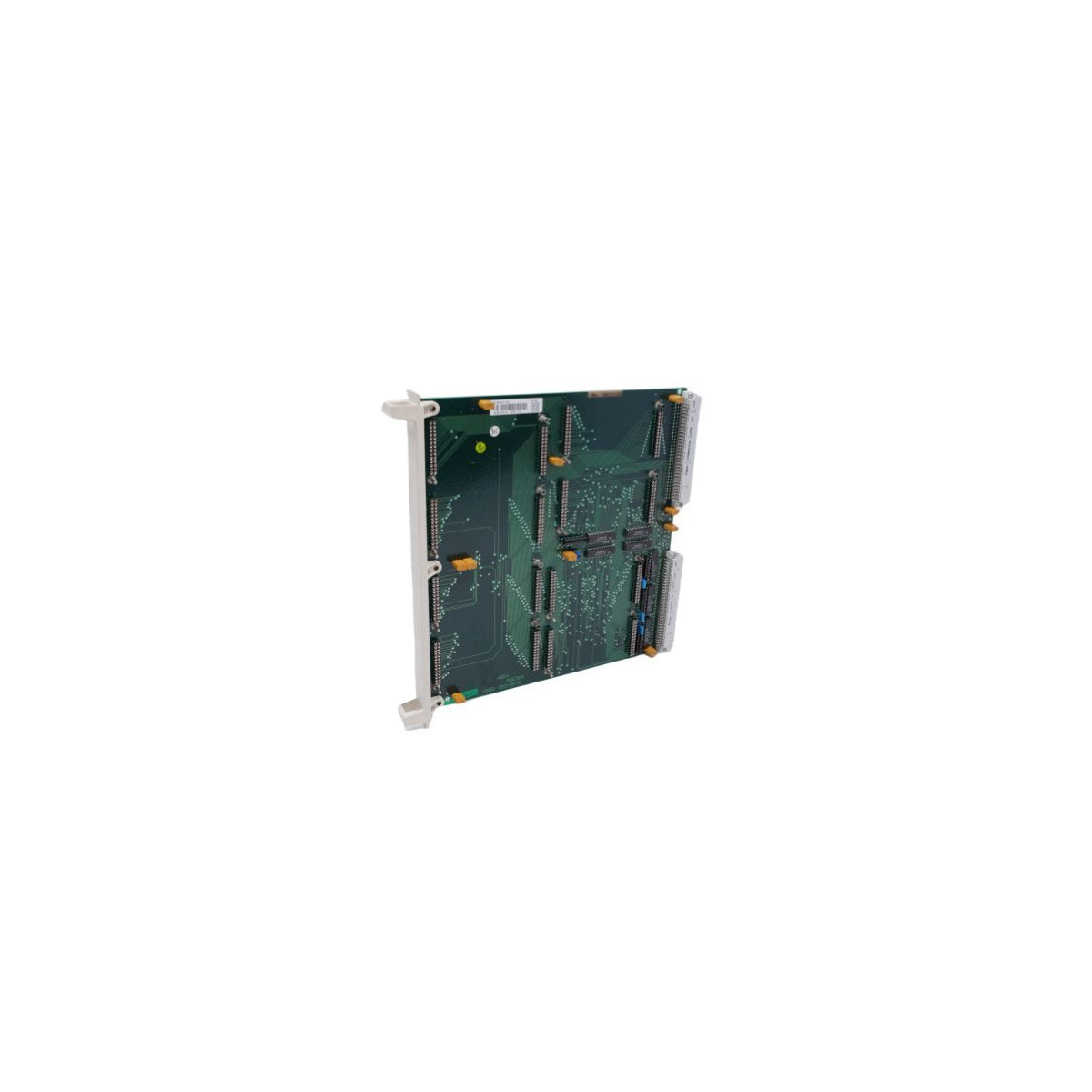

The ABB DSMB176, part number 57960001-HX, is a high-density memory storage solution engineered for the MasterPiece series of distributed control systems. This module serves as a critical data repository, facilitating the storage of complex control logic, process parameters, and historical event logs required for real-time industrial automation. By providing a stable environment for volatile and non-volatile data, the DSMB176 ensures that PLC operations remain deterministic and responsive. Its architecture is specifically optimized to interface with the Master Bus, allowing for high-speed data retrieval and write-cycles essential for maintaining the integrity of sophisticated automation loops.

Component Architecture and Hardware Specifications

• Model Identification DSMB176

• Order Reference 57960001-HX

• Product Family MasterPiece / Master Bus

• Unit Weight 0.4 kg

• Module Dimensions 25.4 x 2.5 x 25.4 cm

• System Category Distributed Control System (DCS)

• Manufacturing Origin Sweden

• Interface Protocol Master Bus compatible communication

• Data Protection Integrated circuitry for signal stability and error correction

• Hardware Status Active and available for mission-critical support

Industrial Applications and Deployment Scenarios

The DSMB176 module is indispensable in large-scale industrial frameworks that demand high-speed data processing:

• Centralized Process Control Deployed in MasterPiece 200/1 setups to store extensive logic programs for chemical and pharmaceutical processing.

• Network Data Buffering Acts as an intermediate memory buffer within Ethernet routing and communication segments to prevent data loss during high traffic.

• Legacy System Optimization Provides the necessary memory overhead for upgrading control software in existing MasterPiece infrastructures.

• High-Reliability Power Plants Utilized in energy generation facilities where memory failure could lead to catastrophic system downtime, benefiting from the module's robust Sweden-engineered thermal stability.

FAQ

Q: What is the primary role of the DSMB176 in an ABB MasterPiece system?

A: It functions as the dedicated memory expansion for the controller, allowing for the storage of larger application programs and complex data tables that exceed the capacity of standard onboard CPU memory.

Q: Is the 57960001-HX compatible with high-temperature industrial environments?

A: Yes, the module is manufactured with industrial-grade components designed to operate efficiently across a broad temperature range, ensuring consistent data retention even in harsh cabinet conditions.

Q: Can this memory module be replaced while the system is under power?

A: While the hardware is robust, it is standard practice to follow OEM guidelines for the specific MasterPiece controller rack, which typically requires a controlled shutdown or specific bus isolation before removing memory boards.

Q: How does this module improve system responsiveness?

A: By providing high-speed access to stored parameters on the Master Bus, the DSMB176 reduces the time the CPU spends waiting for data fetches, thereby decreasing the overall control loop cycle time.

Q: Is the DSMB176 57960001-HX a current or obsolete product?

A: This module remains an active part of our inventory, supporting the long-term lifecycle of MasterPiece DCS installations worldwide.
