Product Overview

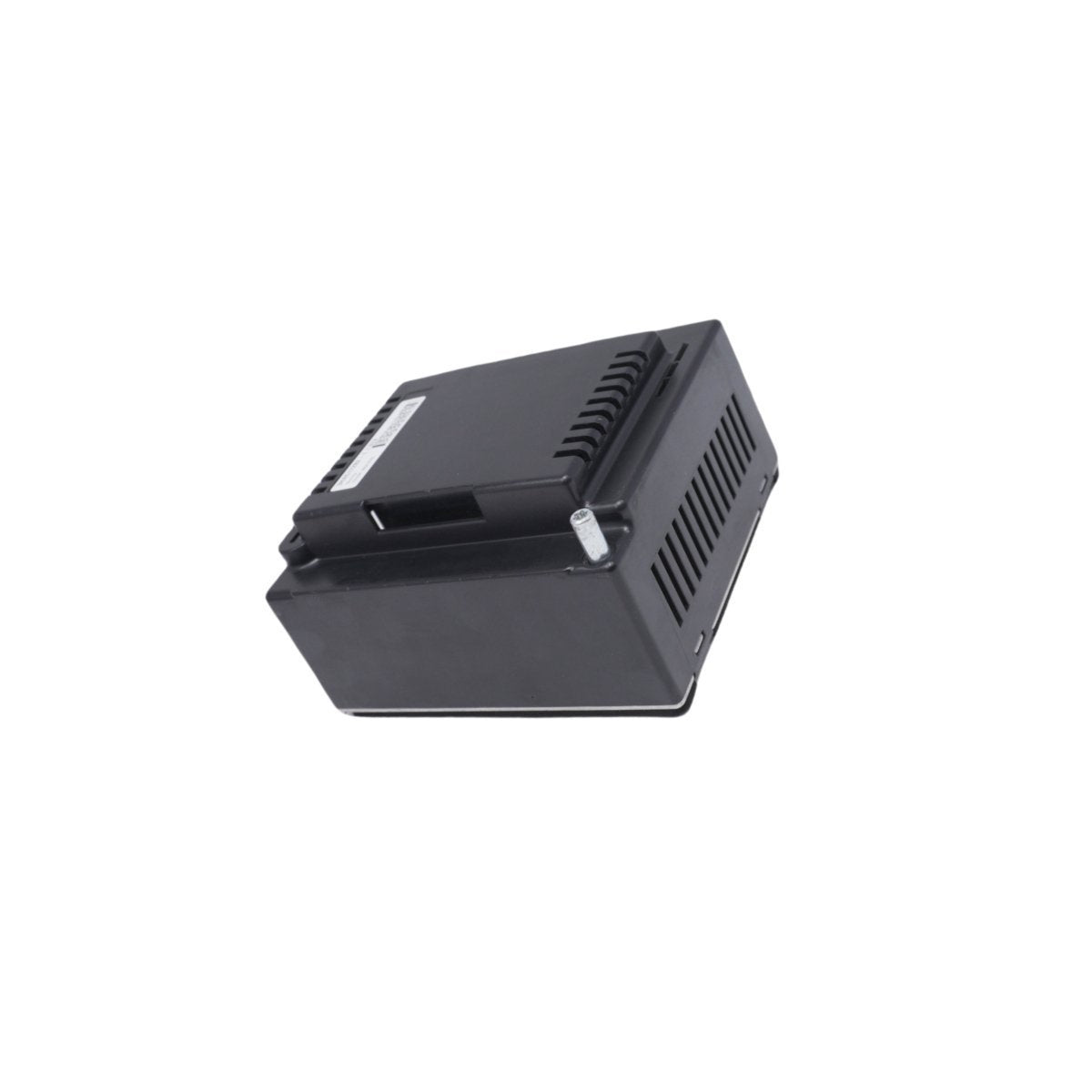

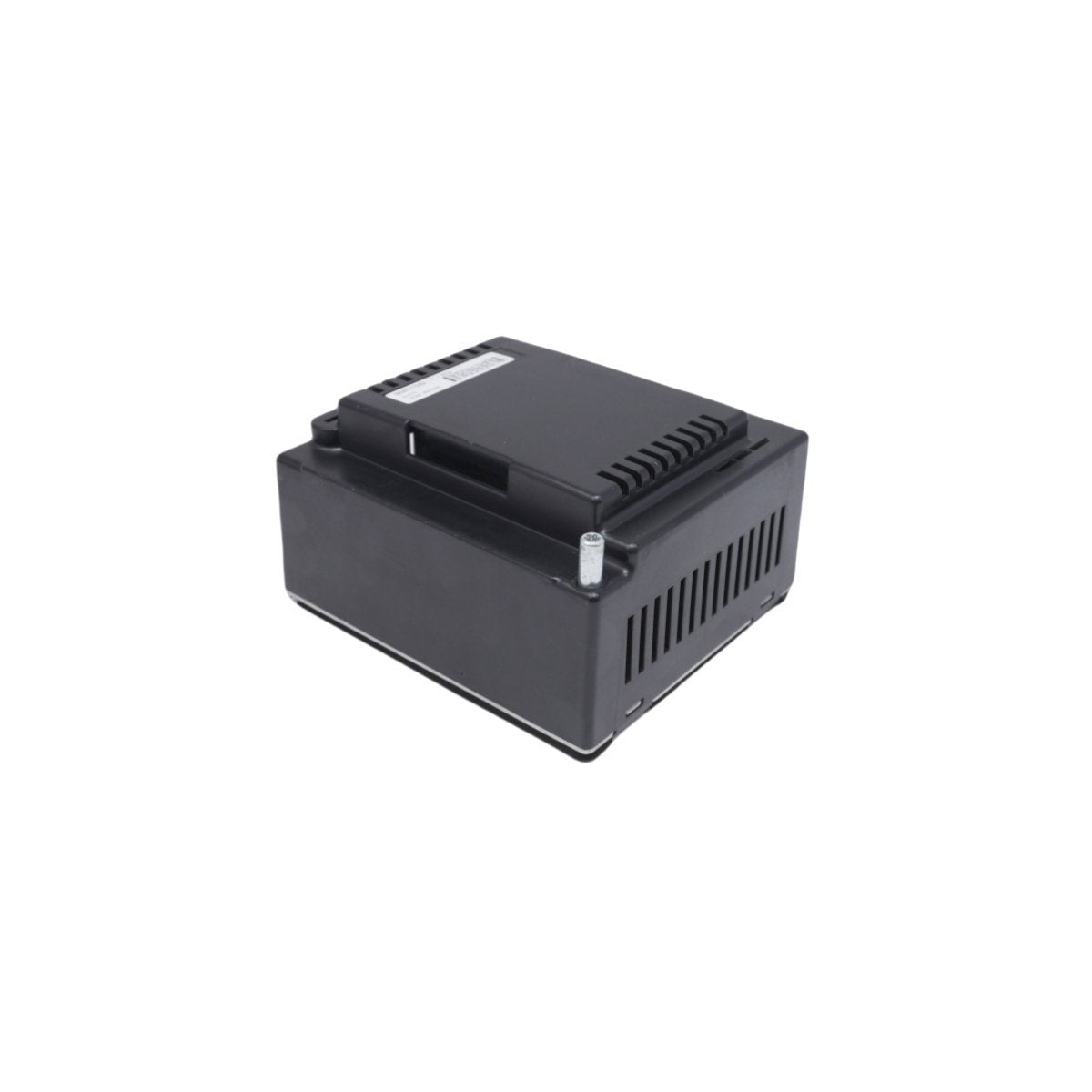

The ABB 3HAC17282-1 07A is a specialized Dummy Servo Drive Module engineered for the IRC5 robot controller and Procontrol P13 architectures. This component serves a critical role in system configuration and diagnostic testing, acting as a physical and electrical placeholder within a drive lineup. By populating an unused drive slot, the 3HAC17282-1 ensures the integrity of the communication backplane and maintains proper thermal airflow within the controller cabinet. It is an essential hardware solution for modular robotic systems where specific axes may be omitted or for bypass testing during troubleshooting, ensuring the system logic recognizes a complete hardware loop without generating "missing hardware" faults.

Technical Construction and Hardware Benchmarks

The 3HAC17282-1 is built to the exact physical specifications of active ABB drive units, ensuring a seamless mechanical fit and high resistance to industrial vibrations.

• Model Number: 3HAC17282-1 07A

• Category: Dummy / Placeholder Servo Drive

• System Lineage: Procontrol P13 / ABB Robotics IRC5

• Chassis Profile: 1.5 x 20 x 30.2 cm

• Unit Weight: 0.41 kg

• Function: Communication loop termination and thermal management

• Durability Rating: High-grade industrial polymer and alloy construction

• HS Classification: 8537101190

• Manufacturing Site: Sweden

• Standard Compatibility: ABB S4C+ and IRC5 Drive System variants

Industrial Applications and System Utility

This placeholder module is a vital asset for maintenance teams and system integrators working with complex multi-axis robotic cells.

• System Debugging and Maintenance: Allows technicians to isolate specific active drives by replacing them with the dummy module, facilitating localized troubleshooting without breaking the system communication chain.

• Modular Robot Configuration: Used in manufacturing lines where a standard 6-axis controller is deployed for a 4-axis or 5-axis application, ensuring the controller remains operational despite the reduced motor count.

• Cabinet Thermal Regulation: Prevents bypass airflow in drive racks, ensuring that cooling fans effectively direct air across the heat sinks of active neighboring drive modules.

• Hardware Loop Termination: Closes the electrical circuit for the drive bus in the Procontrol P13 system, preventing "Open Loop" errors during startup.

• Prototyping and Commissioning: Enables the pre-configuration of complex control cabinets before all active servo drives are physically delivered or installed at the site.
