Product Overview

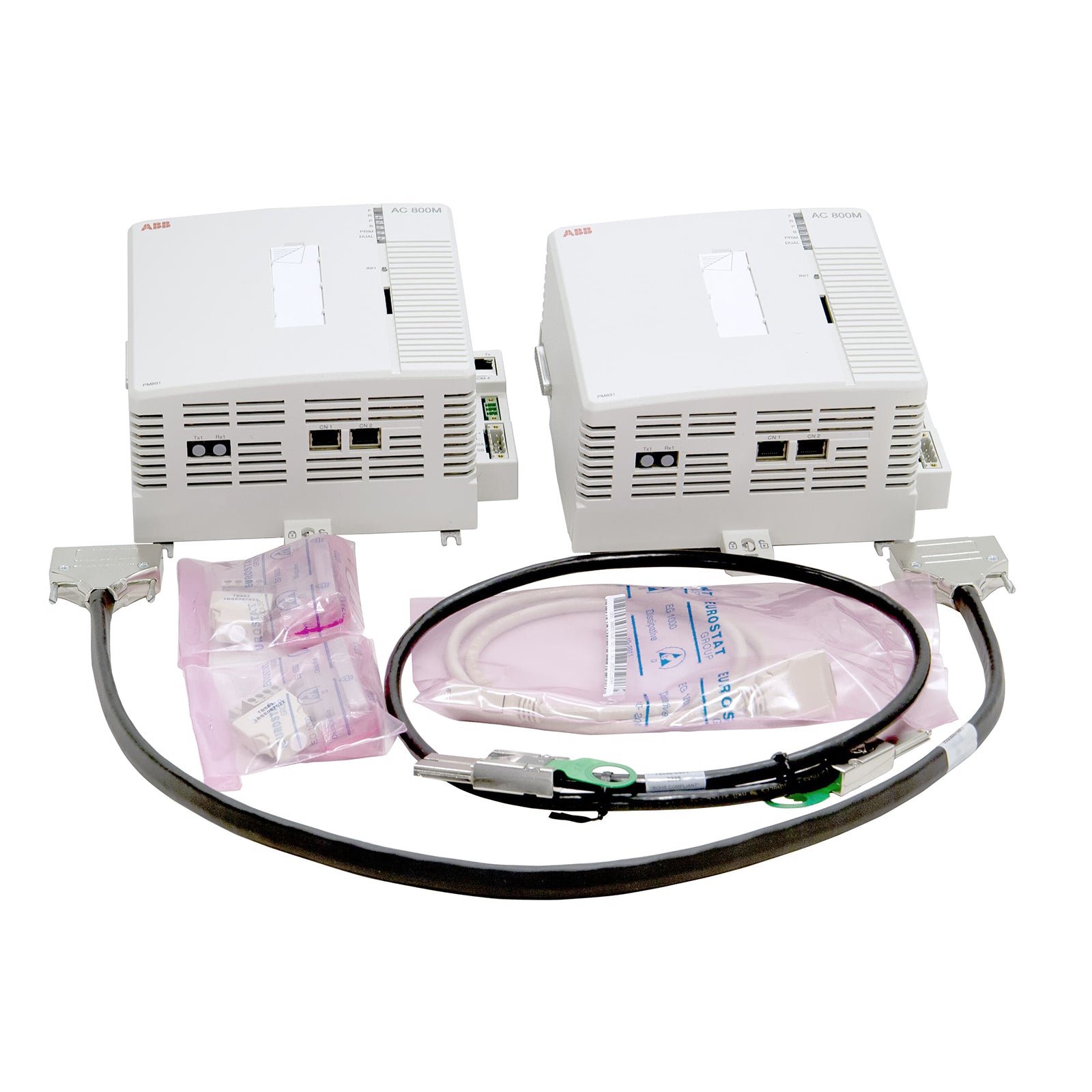

The PM867K01 is a premium processing module within the ABB Ability System 800xA family, specifically engineered for "High Integrity" (HI) environments. This controller serves as the central intelligence for complex automation tasks where functional safety is a non-negotiable requirement. Certified for SIL 3 applications, it provides a secure execution environment for both process control and safety-related logic. The unit is designed to work in tandem with other AC 800M components, utilizing its 133 MHz clock speed to deliver deterministic performance. By integrating dual redundant communication and high-speed execution, the PM867K01 ensures that critical industrial systems remain under precise control even in the event of hardware or network disturbances.

Advanced Architectural Parameters and Hardware Metrics

The hardware profile of the 3BSE076355R1 highlights its capability for rapid data processing and high-availability networking.

• Internal diagnostics provide continuous health monitoring of the CPU and memory.

• The modular chassis supports effortless vertical or horizontal mounting within 800xA racks.

• Hot-standby redundancy capabilities allow for bumpless transfer during CPU failover.

• Full compatibility with a wide spectrum of S800 I/O modules for flexible system scaling.

Targeted Deployment and Safety Applications

The PM867K01 is predominantly utilized in sectors that demand the highest levels of risk mitigation, such as petrochemical processing, nuclear power regulation, and hazardous chemical management. Because of its SIL 3 rating, it is the primary choice for Emergency Shutdown (ESD) systems and Fire and Gas (F&G) monitoring. In typical industrial scenarios, this processor manages safety interlocks and critical control loops that prevent equipment overpressure or environmental leakage. Its ability to run on the 800xA OS allows engineers to integrate safety and standard control within a single engineering environment, streamlining the maintenance of complex plant architectures.

Q: What does the "High Integrity" designation mean for the PM867K01?

A: High Integrity indicates that the processor is designed and certified to meet stringent functional safety standards, specifically SIL 3. This means it has higher diagnostic coverage and built-in safeguards to ensure safe operation during internal faults.

Q: Can the PM867K01 be used for both safety and standard process control?

A: Yes, the AC 800M High Integrity controllers are designed to handle integrated control where safety logic and standard process logic coexist in the same unit while maintaining the necessary hardware separation for safety certification.

Q: Does this unit support network communication redundancy?

A: The PM867K01 features dual Ethernet ports that support redundancy protocols, ensuring that the controller remains reachable by the HMI and other peer controllers if one network path fails.

Q: What is the benefit of the 0.09 ms execution speed?

A: This rapid execution time allows the controller to process complex logic and safety algorithms with minimal latency, which is vital for high-speed shutdown sequences in critical industrial processes.

Q: Is the 64 MB RAM sufficient for large scale plant applications?

A: 64 MB is a substantial memory allocation for a dedicated processor unit, allowing it to store extensive application code, historical trends, and complex safety matrices without performance degradation.
