Product Overview

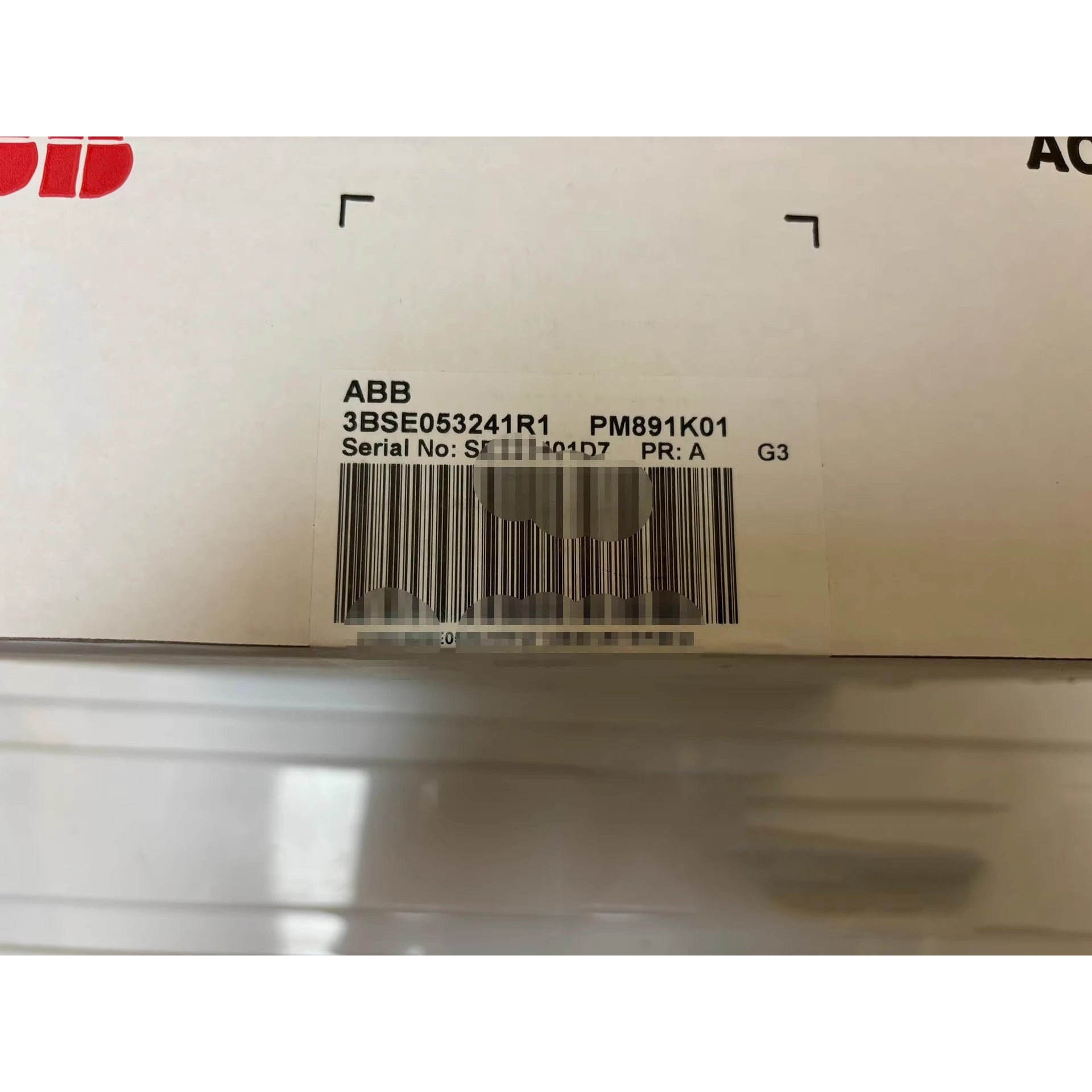

The PM891K01 is a high-performance central processing unit designed for the ABB Ability System 800xA architecture. Functioning as the core of the AC 800M controller family, this module manages complex control logic, data processing, and communication tasks. It is engineered as a monolithic unit, which integrates the processor board, power supply circuitry, and unit termination into a single hardware footprint. This design minimizes the required rail space while maximizing processing density for large-scale industrial automation projects. With its 450 MHz clock speed and substantial onboard memory, the PM891K01 provides the computational overhead necessary for high-speed loops and extensive peer-to-peer networking.

Core Hardware Parameters and Specifications

• Built-in internal power supply for streamlined installation

• Integrated diagnostics for real-time hardware health monitoring

• ATEX Zone 2 and IECEx certification for hazardous area deployment

• Modular flash memory support for firmware and application backup

Strategic Industrial Deployment

The PM891K01 is primarily utilized in sectors requiring high availability and precise process control, such as oil and gas, chemical processing, and power generation. Its ability to handle large volumes of data makes it a preferred choice for supervisory control and data acquisition (SCADA) within the System 800xA environment. Engineers deploy this unit in scenarios where downtime is not an option, leveraging its dual Ethernet ports for redundant network architectures. Furthermore, its compliance with explosive atmosphere standards allows for placement in midstream and upstream oil applications where standard controllers would require additional protective housing. It seamlessly integrates with the AC 800M Engineering Studio for lifecycle management and the AC 800M Historian for long-term data logging.

Q: What is the primary difference between the PM891K01 and lower-tier AC 800M processors?

A: The PM891K01 offers a significantly higher clock speed at 450 MHz and larger memory capacity compared to units like the PM861, allowing it to execute more complex control logic and manage a larger number of I/O points without latency.

Q: Does the PM891K01 support redundant configurations for mission-critical tasks?

A: Yes, this processor unit is fully compatible with redundant CPU setups where two identical units work in tandem to ensure seamless bumpless transfer in the event of a hardware failure.

Q: Can this processor be installed in environments with a risk of explosion?

A: The PM891K01 carries ATEX Zone 2 and IECEx certifications, making it suitable for installation in hazardous areas where flammable gases or vapors may occasionally be present.

Q: What software is required to configure the PM891K01 hardware?

A: Configuration and programming are performed using the ABB Ability System 800xA Engineering Studio, which provides the necessary environment for IEC 61131-3 compliant programming and hardware definition.

Q: Is the power supply unit separate from the processor module?

A: No, the PM891K01 features a monolithic design that integrates the processor, the power supply, and the termination unit into a single physical block for easier maintenance and installation.
