Product Overview

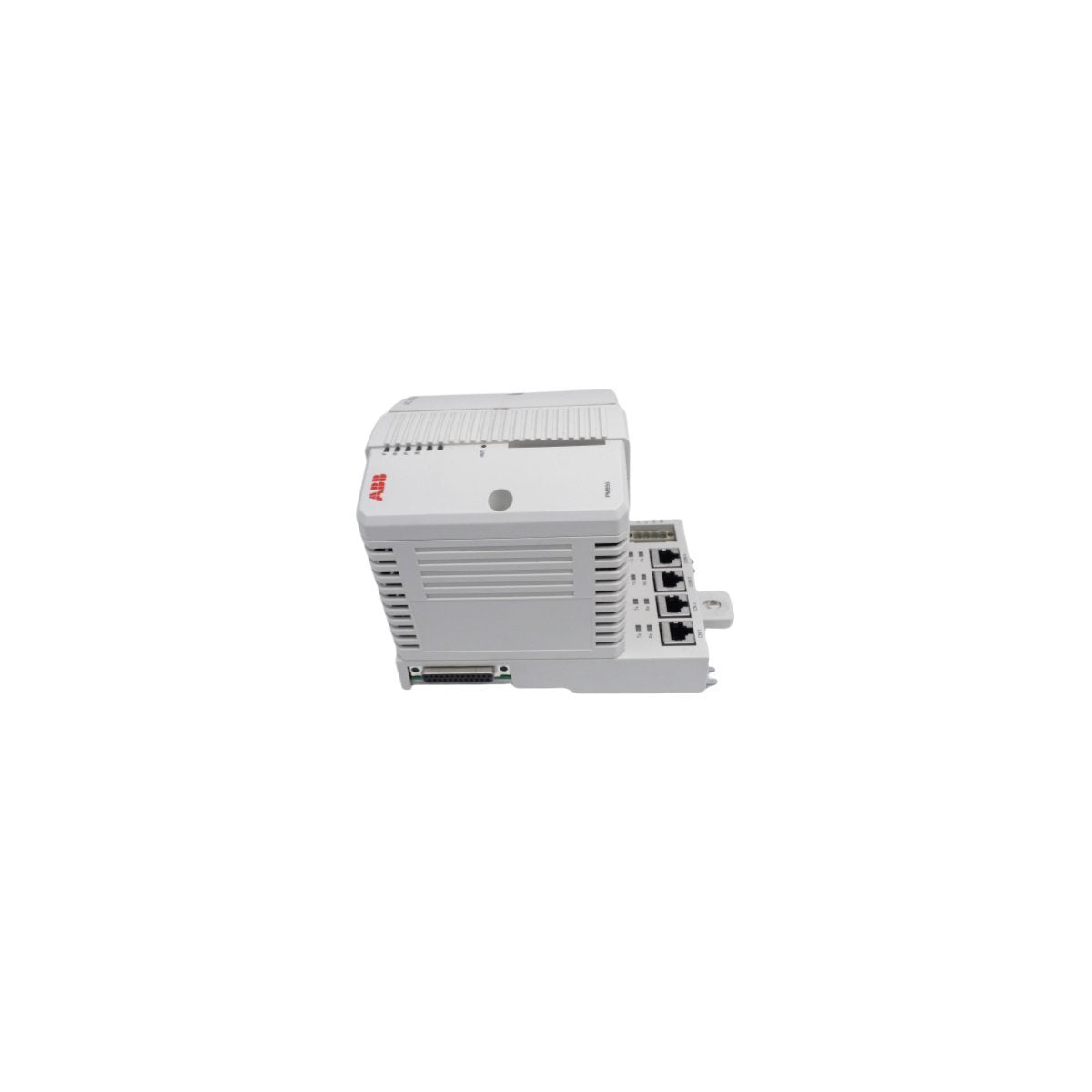

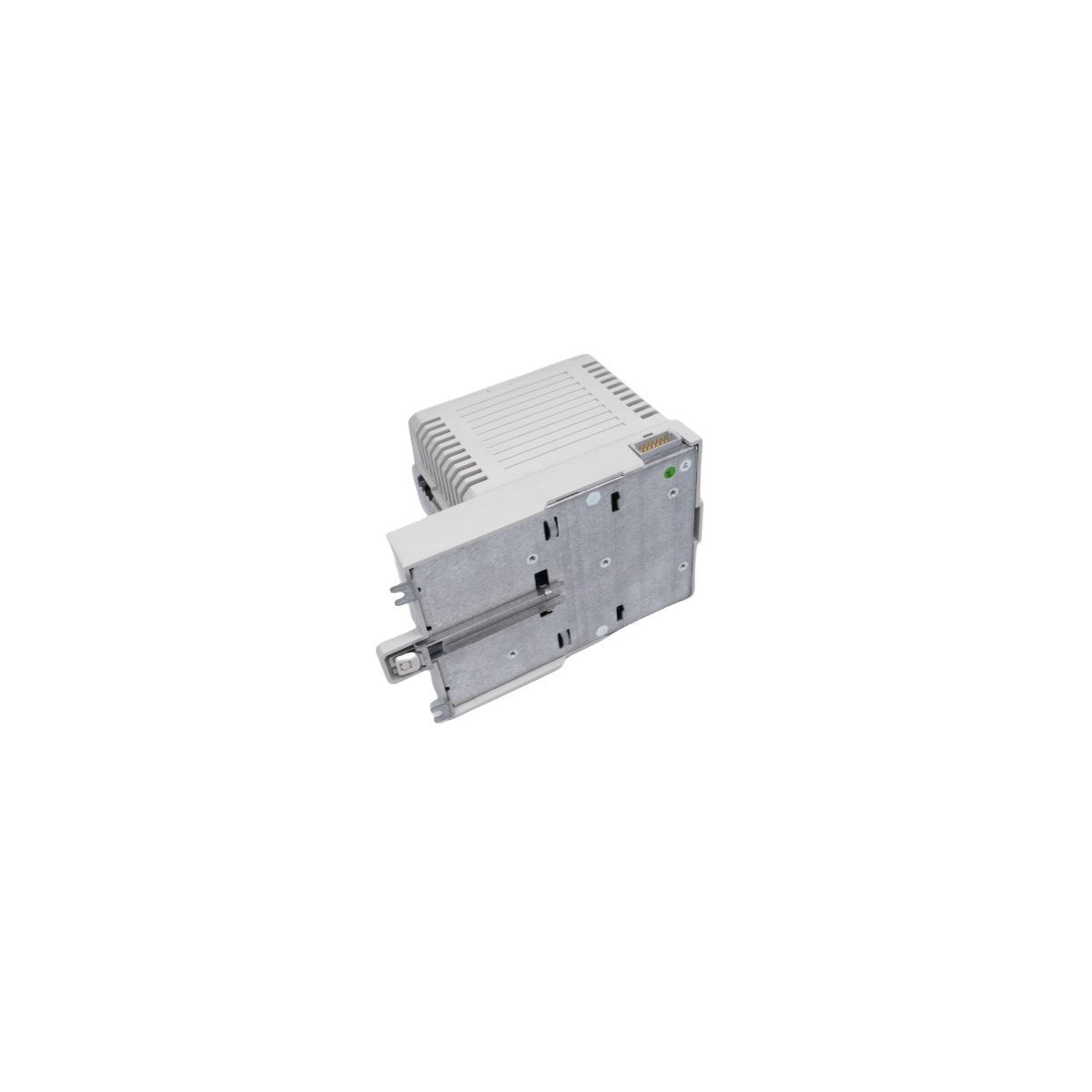

The ABB PM856K01, identified by the order reference 3BSE018104R1, is a high-performance central processing kit designed for the AC 800M controller series. This unit acts as the primary computational brain for industrial automation systems, managing complex control logic, signal processing, and real-time data orchestration. Engineered for the 800xA and Advant OCS ecosystems, the PM856K01 provides a deterministic environment for critical process applications. Its architecture is optimized for high-speed execution of control loops, ensuring that manufacturing and process plants maintain peak efficiency with minimal latency. The kit includes the essential hardware components needed to establish a robust control node on the system network.

Hardware Core and Technical Parameters

The PM856K01 3BSE018104R1 is characterized by its high-density processing capabilities and versatile connectivity:

• CPU Module: PM856A high-speed processor core.

• Memory Capacity: 8 MB of onboard RAM for logic and data storage.

• Redundancy Support: Capable of being configured in redundant pairs for high-availability applications.

• Communication Ports: Built-in RS-232 and support for PROFIBUS-DP/V1 and Ethernet via expansion couplers.

• Product Weight: 0.9 kg (Kit weight).

• Housing Dimensions: 19 x 12 x 13.2 cm.

• System Bus Integration: Seamless interfacing with S800 I/O modules via the ModuleBus.

• Environmental Build: Ruggedized Sweden-origin components for industrial cabinet mounting.

• HS Classification: 8537101190.

Strategic Industrial Applications

The PM856K01 Processor Kit is deployed globally across sectors where precision and uptime are non-negotiable:

• Continuous Process Control: Managing high-speed PID loops in chemical refineries, gas treatment plants, and pharmaceutical production lines.

• System Modernization: Serving as a cost-effective upgrade for legacy ABB controllers, providing more memory and faster processing speeds within existing AC 800M footprints.

• Distributed Automation: Functioning as a decentralized control node in water treatment facilities and power distribution centers using PROFIBUS-DP/V1 fieldbus networking.

• Mission-Critical Safety Systems: Utilized in redundant configurations to provide fault-tolerant control in energy and mining operations where system failure is not an option.

FAQ

Q: What is the main difference between the PM856K01 and other processors in the AC 800M range?

A: The PM856K01 offers 8MB of memory, placing it as a mid-to-high range solution that balances cost with enough computational power for moderately complex industrial tasks.

Q: Does this kit include the baseplate for mounting?

A: The PM856K01 kit typically includes the processor module and a battery for memory backup; however, the TP830 baseplate is usually sold separately or as part of a larger assembly.

Q: Can I use the PM856K01 for redundant controller setups?

A: Yes, this processor unit supports full hardware redundancy. When paired with a second PM856K01 and the appropriate synchronization hardware, it ensures no loss of control during a module failure.

Q: How is the memory protected during a total power loss?

A: The unit features an integrated battery backup system that ensures all process data and application programs are retained in RAM until power is restored.

Q: Is this processor unit compatible with Profibus-DP?

A: Native connectivity is achieved by adding a CI854A communication interface, allowing the PM856K01 to master Profibus-DP/V1 networks for field device integration.
