Product Overview

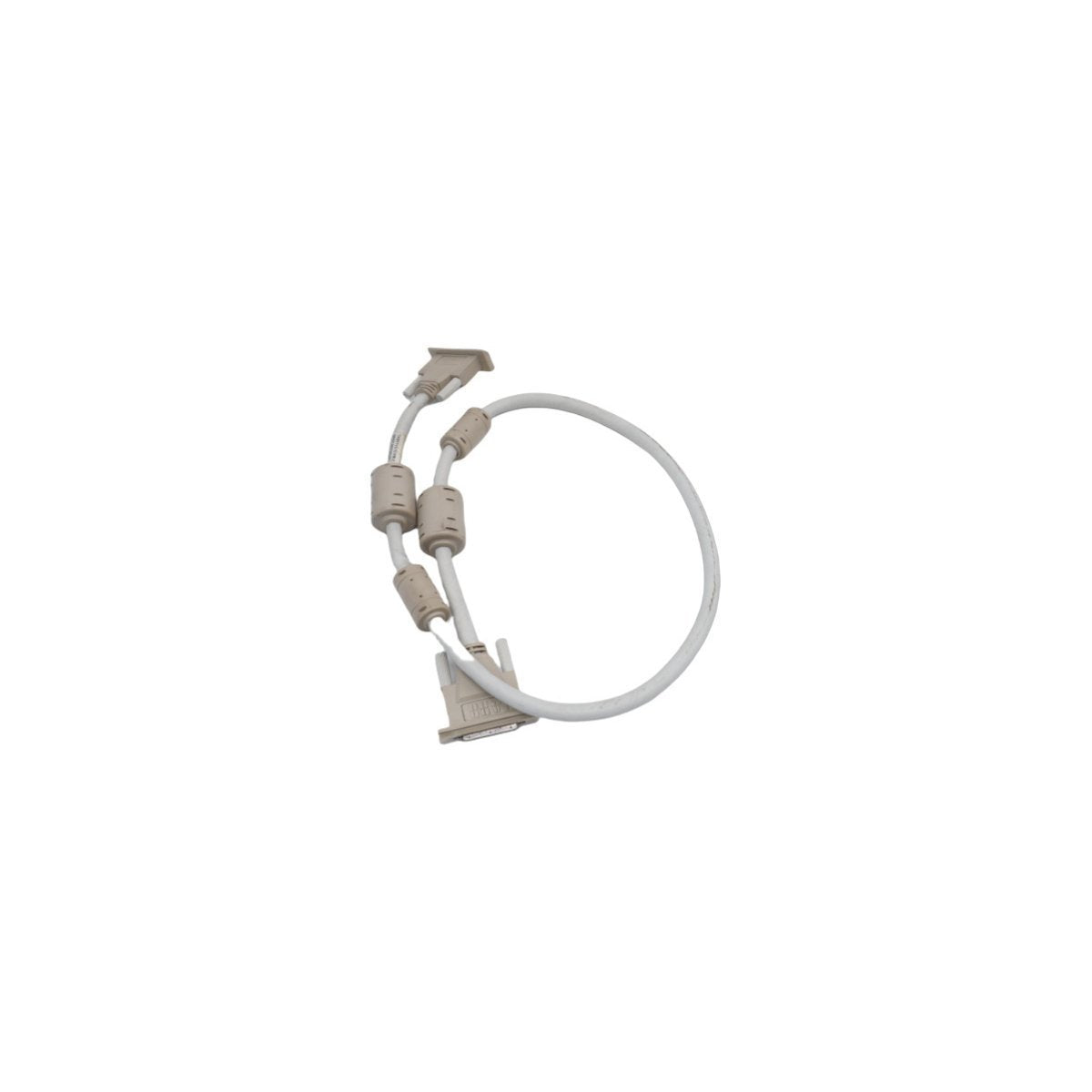

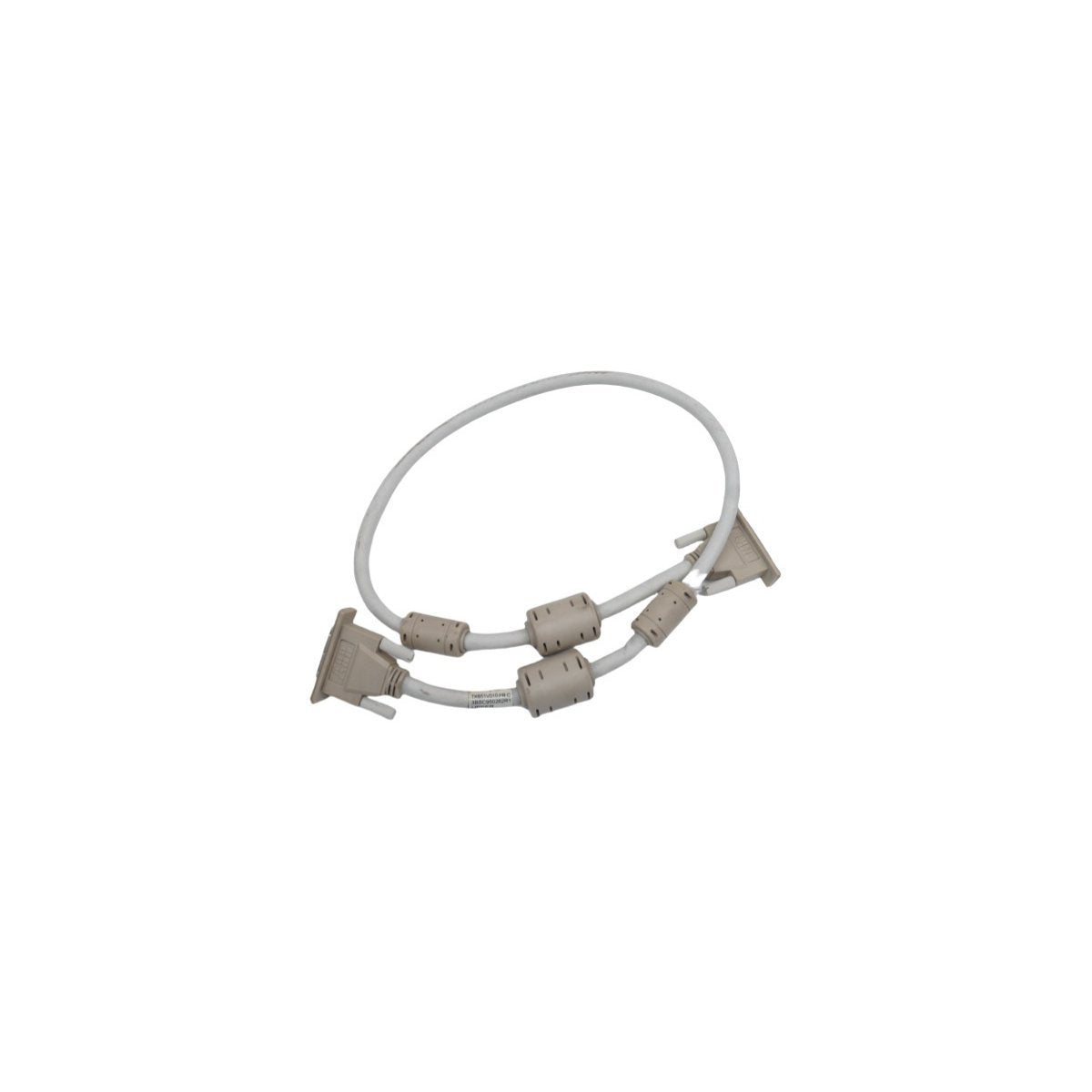

The ABB TK851V010, also identified by part number 3BSC950262R, is a high-quality prefabricated interconnection cable specifically engineered for the AC 800M controller family. This specialized link is designed to provide high-integrity data paths between processor units and peripheral communication interfaces. By utilizing factory-terminated connectors, the TK851V010 eliminates the risks associated with manual field wiring, such as signal attenuation or improper shielding. It is a critical component for ensuring the deterministic performance of a Distributed Control System (DCS), maintaining stable bitrates and shielding against industrial electromagnetic interference (EMI).

Hardware Infrastructure & Connectivity Specs

• Product Designation: TK851V010

• Ordering Code: 3BSC950262R

• Equipment Compatibility: AC 800M Controller Range

• Interface Type: Prefabricated Multi-core Communication Link

• Total Length: 1.0 Meter (100 cm)

• Construction: Industrial-grade shielding with molded strain relief

• Unit Weight: 0.42 kg

• Chassis Dimensions: 100cm x 5.8cm x 3cm

• Compliance Standards: Built to meet international CE and safety requirements

• Country of Origin: Sweden

Strategic Deployment & Industrial Utility

The TK851V010 3BSC950262R is predominantly deployed in large-scale automation architectures found in power plants, oil refineries, and chemical processing facilities. It is primarily utilized to bridge AC 800M CPUs with Ethernet router interfaces or specialized communication modules, ensuring that real-time process data flows uninterrupted from the controller to the HMI layer. Because of its prefabricated nature, it is ideal for rapid cabinet assembly and system hot-swaps during maintenance windows. The robust insulation and vibration-resistant connectors make it suitable for high-stress environments, such as marine propulsion control or mining machinery, where mechanical stability and electrical reliability are paramount for safe operations.
