Product Overview

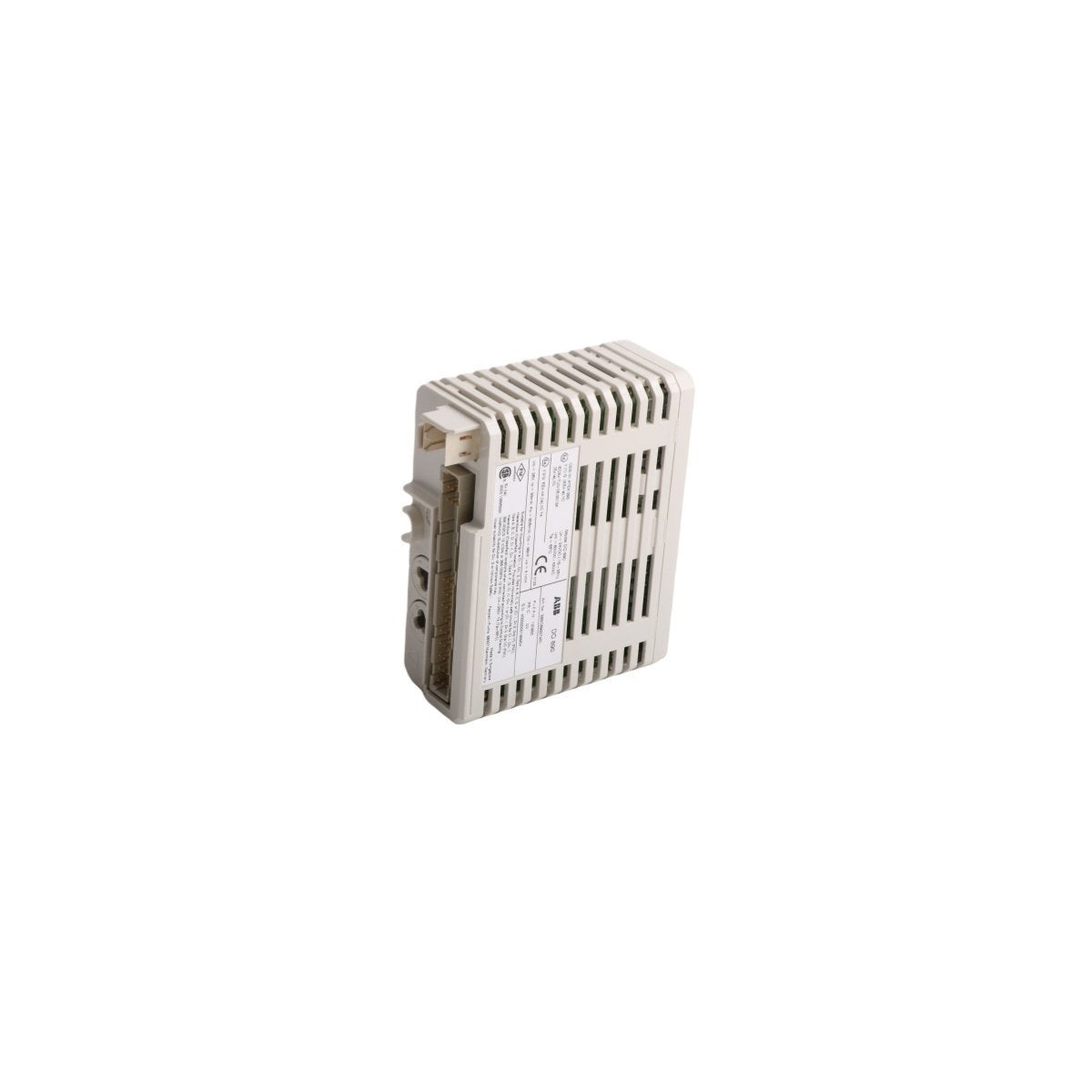

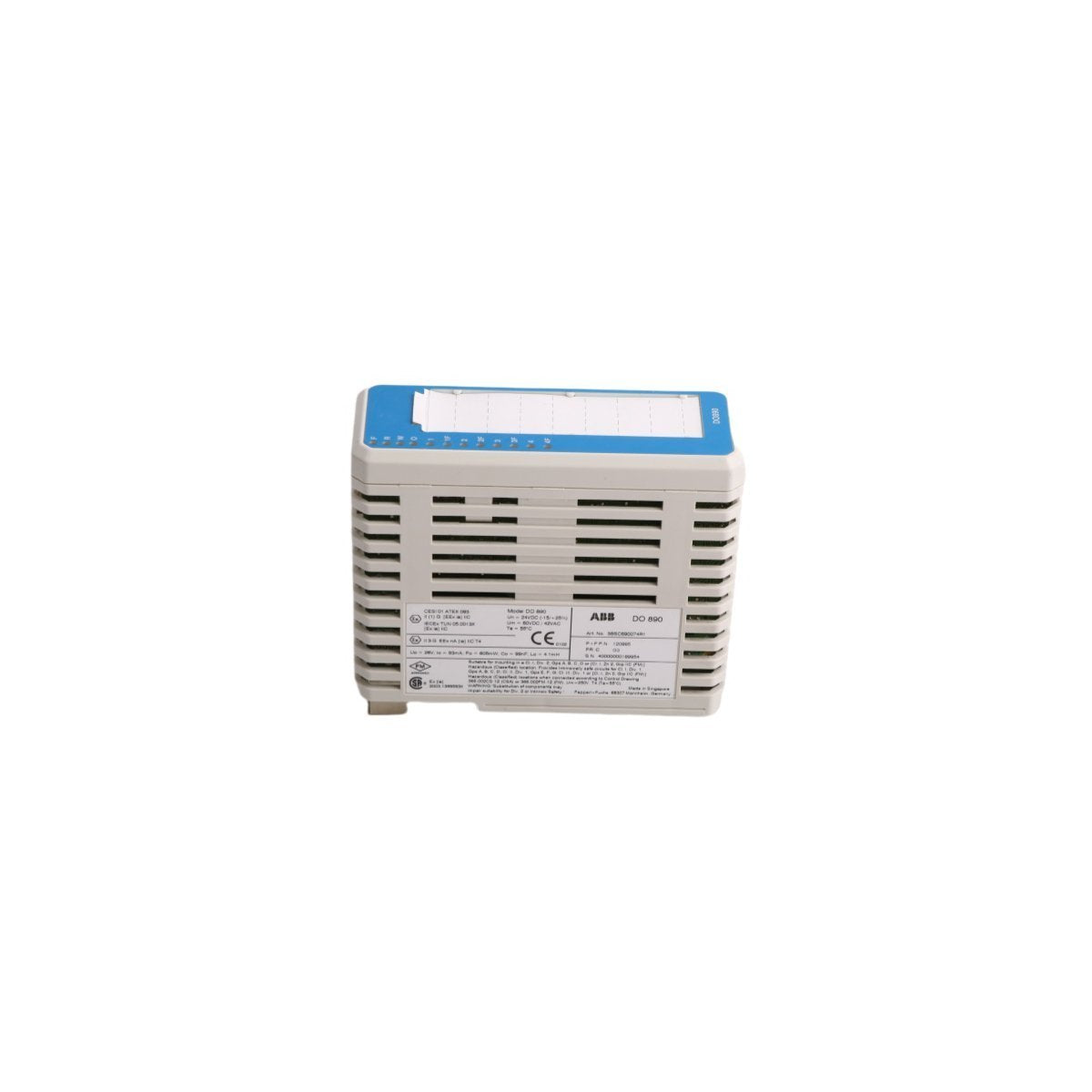

The ABB DO890, part number 3BSC690074R1, is a high-integrity 4-channel digital output module specifically engineered for the S800 I/O system. This module is distinguished by its built-in Intrinsic Safety (IS) interface, allowing it to drive field devices located in hazardous areas (Zone 0, 1, or 2) without the need for external barriers. By integrating galvantic isolation and energy-limiting circuitry directly into the card, the DO890 provides a streamlined solution for controlling solenoids, valves, and acoustic alarms in explosive atmospheres. It functions as a critical node within an ABB Distributed Control System (DCS), offering high-resolution diagnostics and short-circuit protection for each individual channel.

Technical Configuration and Hardware Data

• Channel Density: 4 isolated output channels (Intrinsically Safe)

• Ordering Code: 3BSC690074R1

• Product Family: S800 I/O System

• Safety Class: Designed for hazardous area interfacing (Ex certified)

• Diagnostic Capabilities: Individual channel monitoring for open circuits and short circuits

• Physical Weight: 0.24 kg

• Module Dimensions: 4.5cm x 10.5cm x 12.0cm

• Operating Logic: Advanced real-time processing with low-latency signal switching

• Environmental Build: Sweden-manufactured ruggedized chassis for industrial durability

Hazardous Area Utility and Industrial Use

The DO890 is primarily deployed in high-risk processing environments where explosive gases or vapors are frequently present. In the oil and gas sector, it is utilized for controlling pneumatic valves on offshore platforms and wellheads, ensuring that electrical signals remain below the ignition energy threshold. Chemical processing plants leverage the DO890 for managing flame-proof actuators and hazardous-area notification lights. Its modular S800 architecture allows for "hot-swapping" under power, which is vital for continuous process industries like pharmaceutical manufacturing and refining, where system downtime must be avoided even during maintenance or expansion of the I/O rack.
