Product Overview

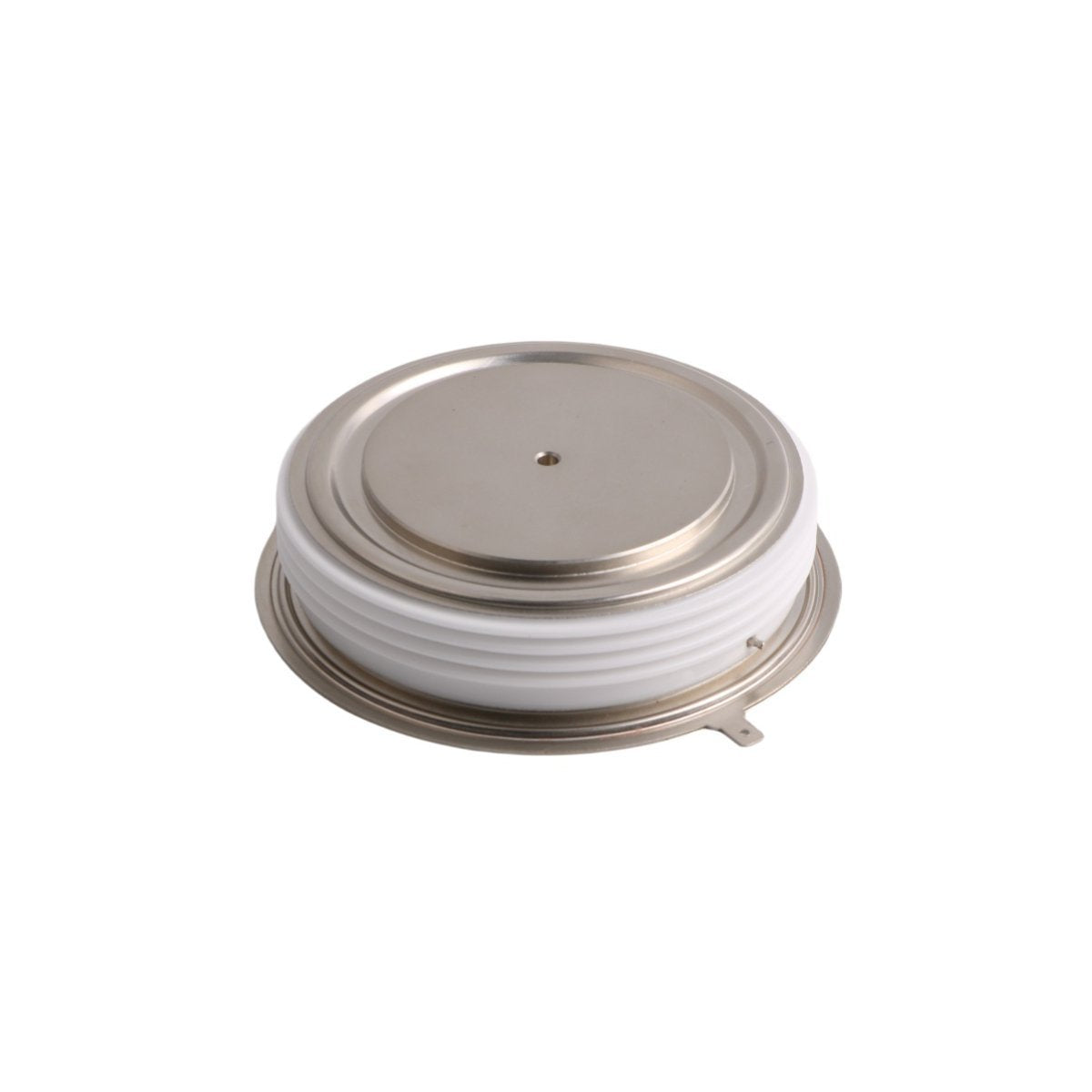

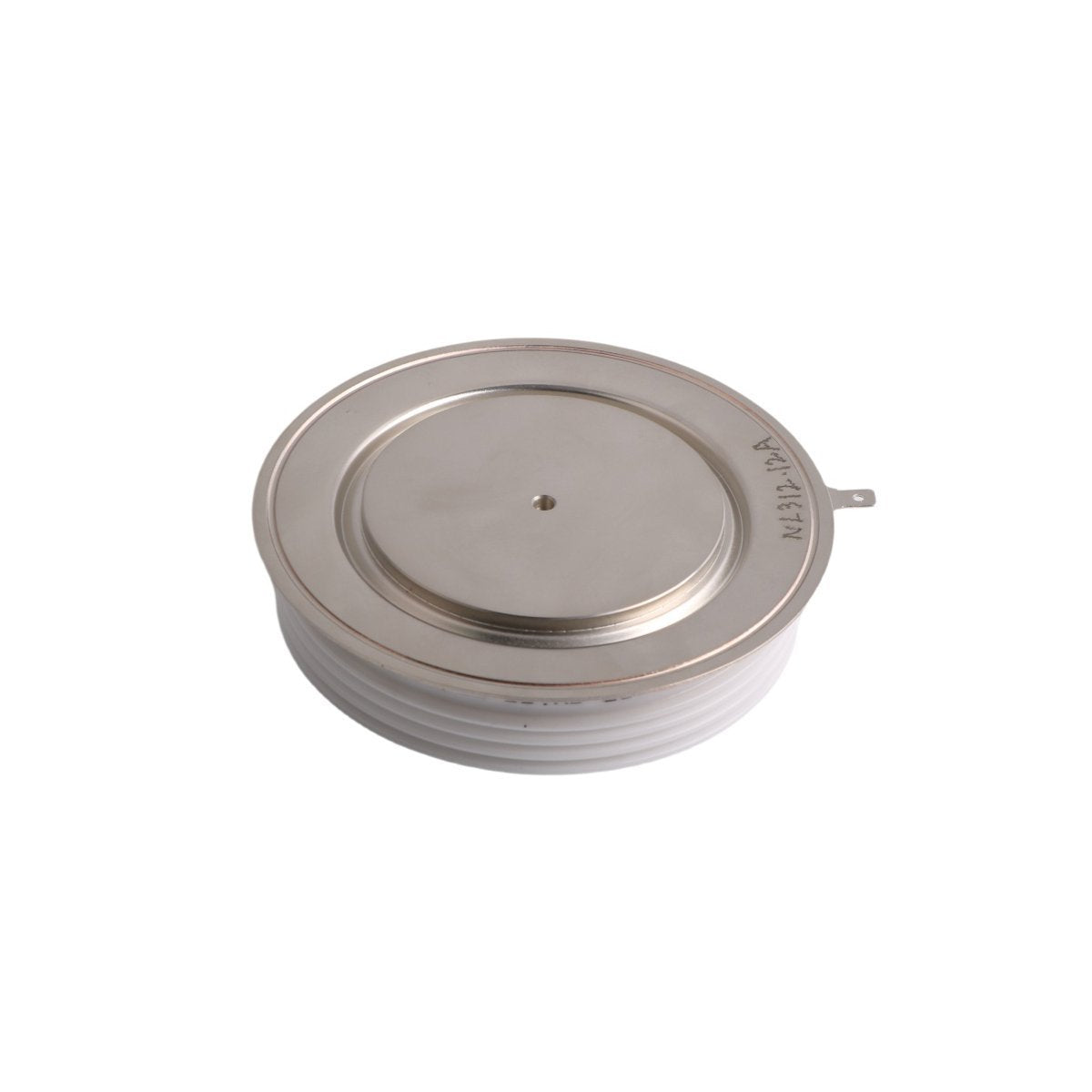

The ABB 3BHL000986P3016, also designated by the engineering reference 5STP1752H0002, is a premier Integrated Gate-Commutated Thyristor (IGCT) designed for high-capacity power electronic conversion. This module is a critical component for medium-voltage applications, combining the high-current density of a thyristor with the high-speed switching performance of a transistor. Specifically engineered for extreme electrical stress, the 5STP1752H0002 offers superior blocking voltage and surge current resilience. It is an essential building block for modern energy infrastructure, providing the high-efficiency switching required for power grid stabilization and large-scale industrial motor control.

Electromechanical Properties and Thermal Profile

• Module Identification 3BHL000986P3016 / 5STP1752H0002

• Blocking Voltage Rating 1700V

• Nominal Current Capacity 2000A

• Peak Surge Current 20kA (1ms pulse)

• Switching Performance Optimized for frequencies up to 500Hz

• Gate Trigger Threshold 1.5V to 2.5V

• Critical di/dt 500A/μs

• Thermal Resistance 0.02 K/W (Junction-to-Case)

• Operating Temperature Range -40°C to +125°C

• Hardware Mass 2.56 kg

• Casing Dimensions 35 x 29 x 6.5 cm

• Manufacturing Origin Sweden

Strategic Grid and Industrial Utility

The 3BHL000986P3016 5STP1752H0002 is utilized in high-power topologies where signal integrity and thermal management are paramount:

• HVDC Transmission Serving as the core switching element in high-voltage direct current systems for long-distance power transport.

• FACTS Applications Implementing Flexible AC Transmission Systems to enhance grid reliability and power quality through reactive power compensation.

• Medium-Voltage Drives Providing high-torque motor control in heavy industries such as mining, steel production, and marine propulsion.

• Renewable Energy Converters Facilitating high-efficiency power conversion for large-scale wind and solar installations.

• Grid Crowbar Protection Acting as a high-speed safety bypass in wind turbines to protect sensitive electronics during grid disturbances.

Q: What is the primary advantage of IGCT technology over standard thyristors?

A: The IGCT, like the 5STP1752H0002, allows for much faster switching speeds and reduced conduction losses, making it significantly more efficient for high-frequency power conversion in modern DCS and grid systems.

Q: How does the 0.02 K/W thermal resistance affect performance?

A: This exceptionally low thermal resistance allows for rapid heat dissipation from the silicon junction to the housing, enabling the module to handle massive current loads without exceeding its safe operational temperature limits.

Q: Is this module suitable for use in extreme climates?

A: Yes, with an operating range extending from -40°C to +125°C, the 3BHL000986P3016 is designed for reliable performance in both sub-zero utility stations and high-heat industrial plant environments.

Q: What is the significance of the 20kA surge current rating?

A: This rating indicates the module's ability to survive momentary, massive electrical spikes (such as those caused by faults or short circuits) for up to 1 millisecond without hardware failure, ensuring system robustness.

Q: Can this IGCT module be integrated into the Advant OCS 800xA platform?

A: While the IGCT is a power semiconductor, it is frequently used within the power conversion stages of systems managed by the 800xA architecture, particularly in large motor drives and grid stabilization controllers.
