Product Overview

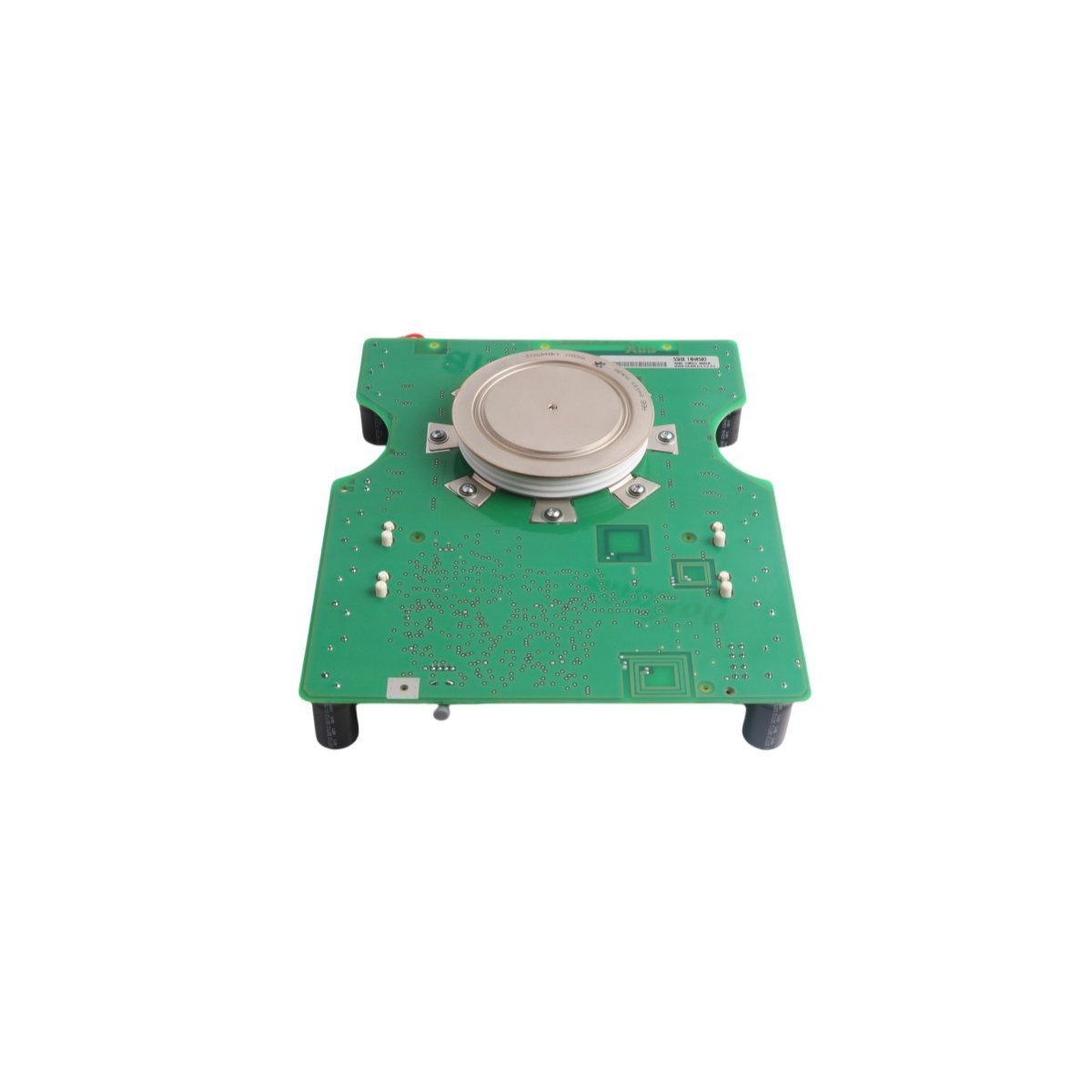

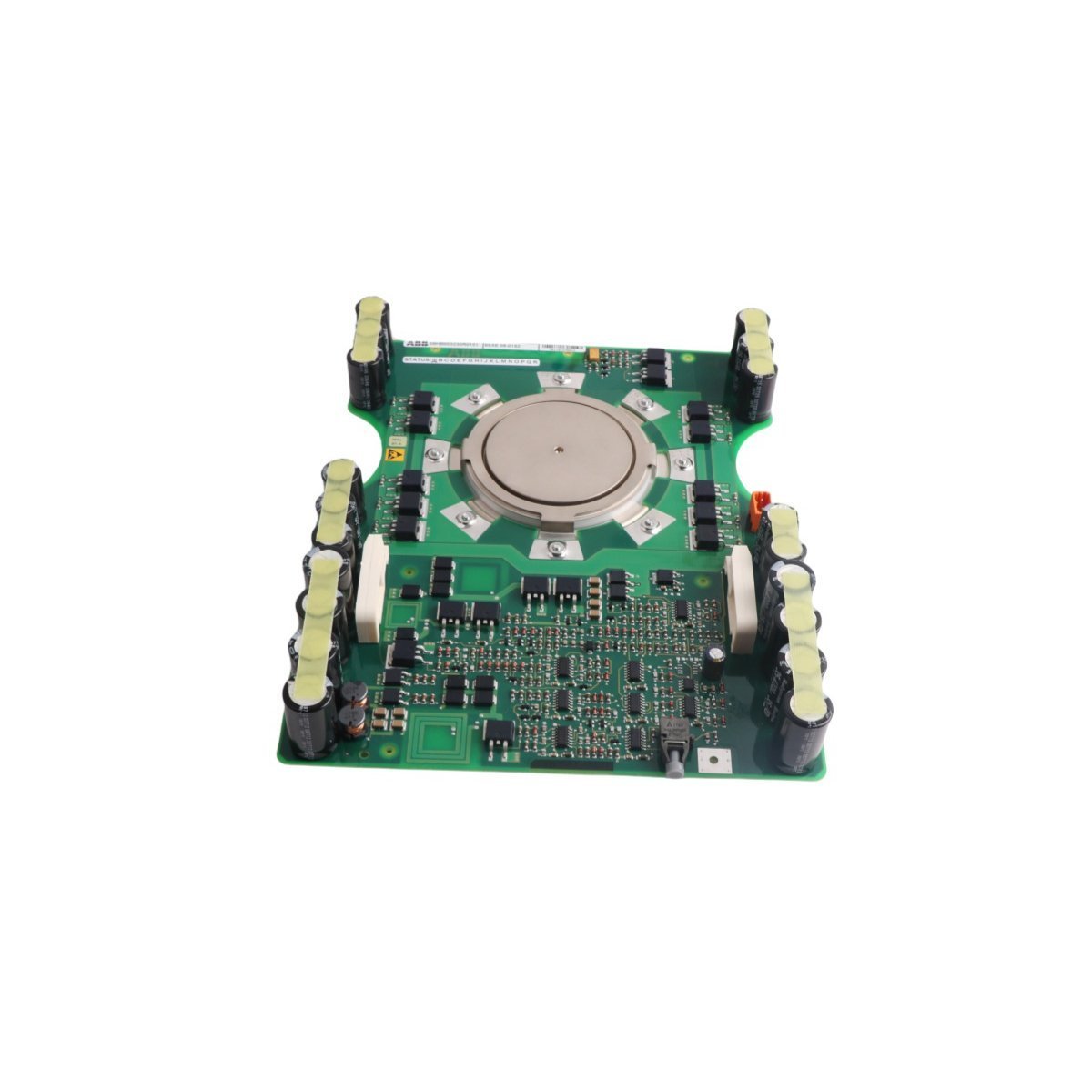

The 3BHL000392R0101 is a sophisticated Integrated Gate-Commutated Thyristor (IGCT) control module engineered by ABB for high-capacity power electronics and industrial automation. This unit serves as a critical command interface, managing the precise switching of high-power semiconductors with extreme accuracy. By integrating advanced stored charge extraction and high-speed logic, the board ensures synchronized gate firing and protection. It is designed to act as a central processing node in complex drive systems, coordinating motion planning and high-level decision-making while maintaining the electrical integrity of the power stage through built-in safety feedback loops.

Technical Architecture and Hardware Specs

• Component Class IGCT Gate Driver and Control Board

• Turn-on Pulse Peak 500A at +20V (plus or minus 5 percent)

• Turn-off Plateau -20V Stable

• Switching Performance di/dt tolerance exceeding 2kA per microsecond during turn-off

• Timing Precision Jitter tolerance restricted to within plus or minus 30ns

• Logic Interface +24V DC input with 200mA operating current

• Operating Thermal Range -40 to +85 Degrees Celsius

• Onboard Memory Configurable 4MB to 6MB RAM options

• Redundancy Dual 3.6V lithium battery backup for uninterrupted logic state retention

• Net Weight 1.22 kg

• Module Dimensions 24 x 19 x 5.3 cm

• Manufacturing Origin Sweden

Professional Industrial Applications

The 5SHX1060H0001 and 5SXE05-0152 series are indispensable in high-power automation environments where precision and thermal resilience are non-negotiable. Typical use cases include:

• Medium Voltage Drives Providing the gate control logic for large-scale VFDs used in mining and heavy manufacturing.

• Industrial Robotics Serving as the main controller for high-speed robotic systems requiring dual Run Chain safety protection.

• Energy Management Managing power conversion in grid-tie inverters and large-scale UPS systems where energy efficiency below 3mJ per cycle is required.

• Critical Safety Monitoring Utilizing integrated motor temperature sensors and safety circuit inputs to prevent hardware failure in hazardous processing zones.

Q: Does this IGCT board include integrated safety features?

A: Yes, it is equipped with dual Run Chain safety logic and motor temperature monitoring circuits to ensure fail-safe operation in industrial environments.

Q: How does the unit maintain data during a power failure?

A: The board utilizes a redundant battery backup system consisting of two 3.6V lithium batteries to preserve critical logic and memory states.

Q: What makes this board suitable for time-critical automation?

A: Its exceptionally low jitter tolerance of plus or minus 30ns ensures that high-speed switching commands are executed with the precision required for synchronized motion.

Q: Is the 3BHL000392R0101 compatible with extreme outdoor climates?

A: With an operational temperature range extending from -40 to +85 Degrees Celsius, the module is specifically built to handle unconditioned industrial cabinets and extreme weather.

Q: What is the primary function of the stored charge extraction?

A: The stored charge extraction (greater than or equal to 100 micro-Coulombs) ensures rapid and clean turn-off performance of the power semiconductors, reducing electrical stress and heat.
