Product Overview

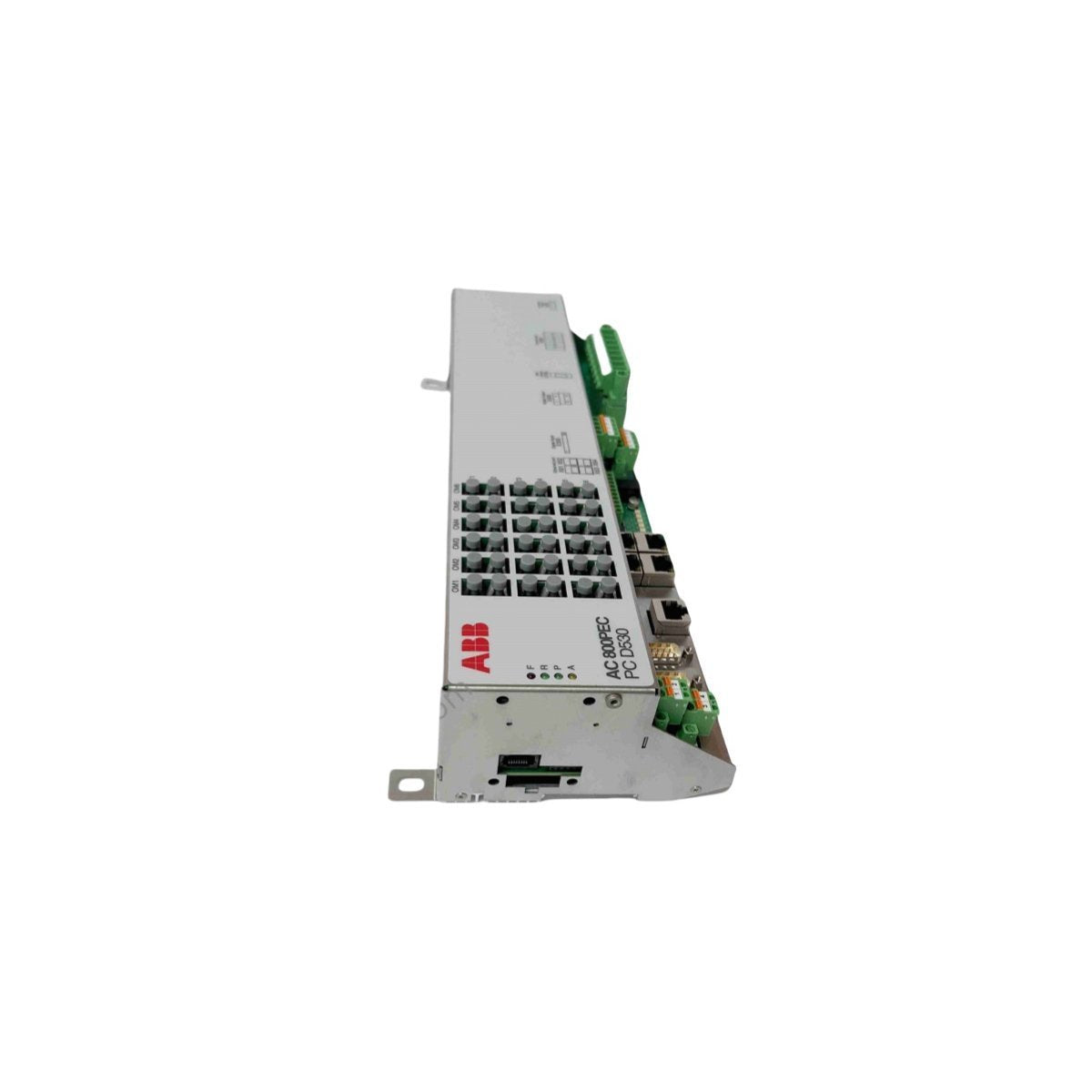

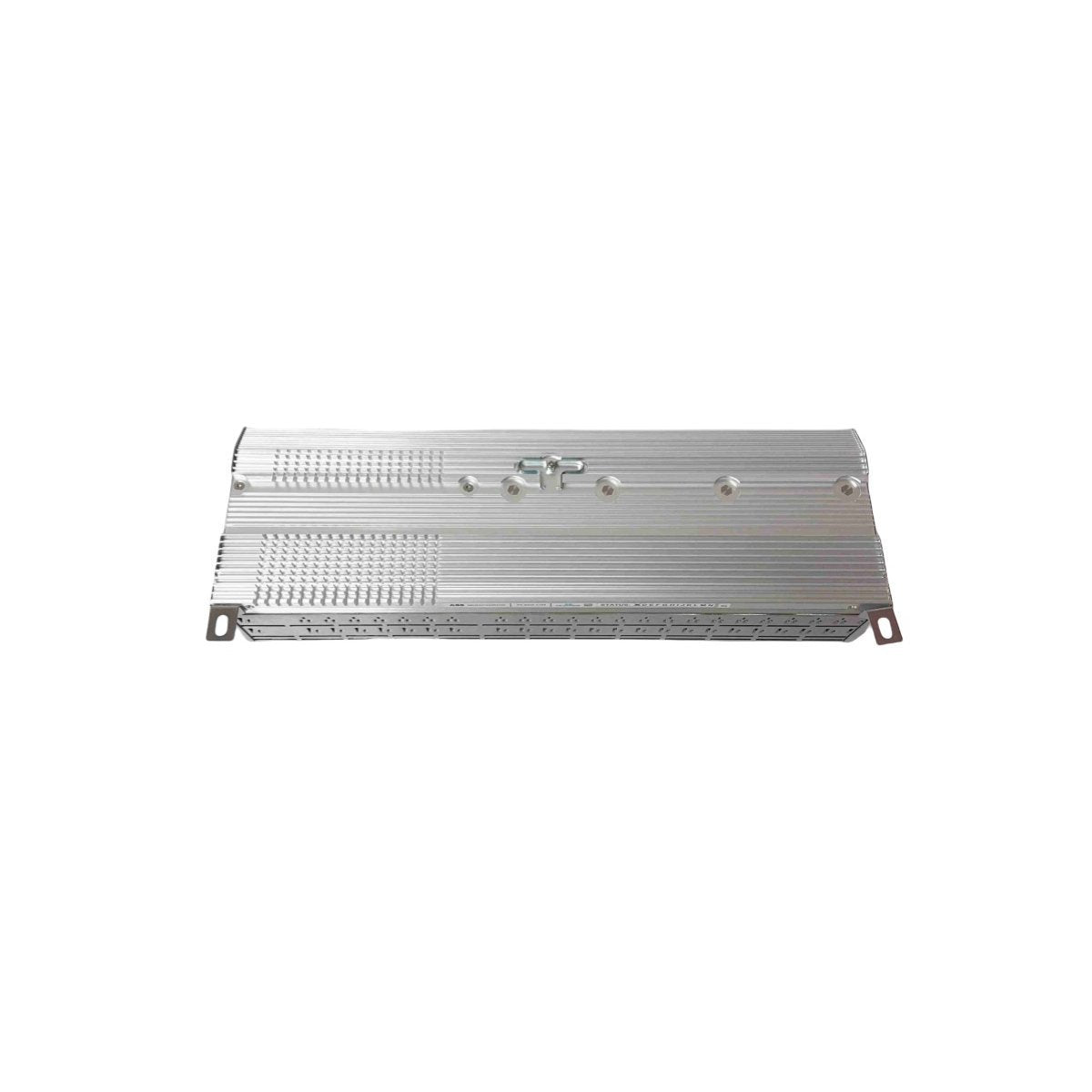

The ABB 3BHE041343R0102, identified as the PCD530 A102, is a sophisticated communication control processor specifically developed for UNITROL Excitation Systems and high-end industrial DCS applications. This module acts as the central intelligence for data management, facilitating the high-speed exchange of information between the excitation system and the supervisory control network. By integrating a high-frequency dual-core processor with extensive memory resources, it provides the deterministic performance required for real-time monitoring and precise regulation of power electronics in utility-scale energy environments.

Technical Characteristics

Designed to handle the rigorous data demands of modern power plants, the PCD530 A102 emphasizes processing power and network resilience.

High-Performance Processing The module is powered by a 1.2GHz dual-core PowerPC architecture, allowing for parallel processing of control algorithms and communication stacks. With 1GB of DDR3 RAM and a 32MB data buffer, the card maintains a message processing rate of up to 10,000 packets per second, ensuring that control loops remain responsive even during high network traffic.

Network Reliability and Latency Engineered for zero-packet-loss environments, the module supports Parallel Redundancy Protocol (PRP), which reduces latency to under 50μs. It is capable of managing up to 256 simultaneous TCP/IP sessions, providing a robust backbone for extensive device connectivity across a plant-wide Ethernet infrastructure.

Long-term Operational Stability Operating on a standard 24V DC input with a typical 12W draw, the module is built for energy-efficient, continuous operation. It features an onboard real-time clock backed by a 10-year battery life, ensuring accurate sequence-of-events recording and time-stamping for system diagnostics.

Technical Specifications

• Brand: ABB

• Model Number: 3BHE041343R0102

• Specific Model: PCD530 A102

• Product Series: UNITROL Excitation Systems

• Product Type: Communication Control Module

• Processor: Dual-core PowerPC 1.2GHz

• Memory: 1GB DDR3 RAM / 8GB Flash

• Power Supply: 24V DC (12W Typical)

• Dimensions: 38 x 14.2 x 7.35 cm

• Weight: 1.54 kg

• HS Code: 8537101190

• Country of Origin: Sweden

Application Areas

The 3BHE041343R0102 is a vital component for UNITROL excitation control logic in hydroelectric, gas, and steam turbine power stations. It is utilized wherever high-speed Ethernet routing and synchronized data acquisition are required to maintain grid stability. Its advanced storage and processing capabilities make it ideal for complex control tasks that require large-scale data buffering and low-latency communication between distributed control nodes.
