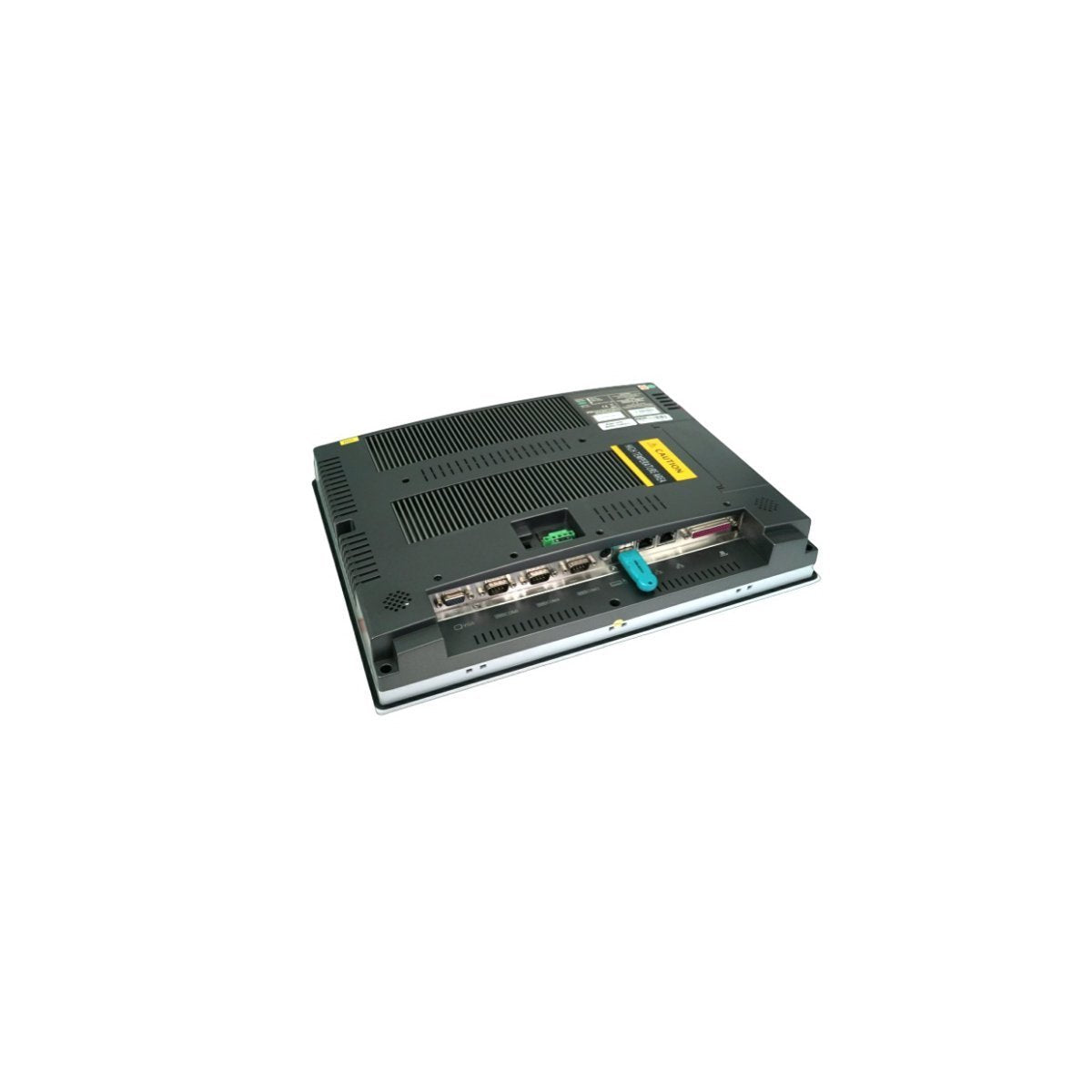

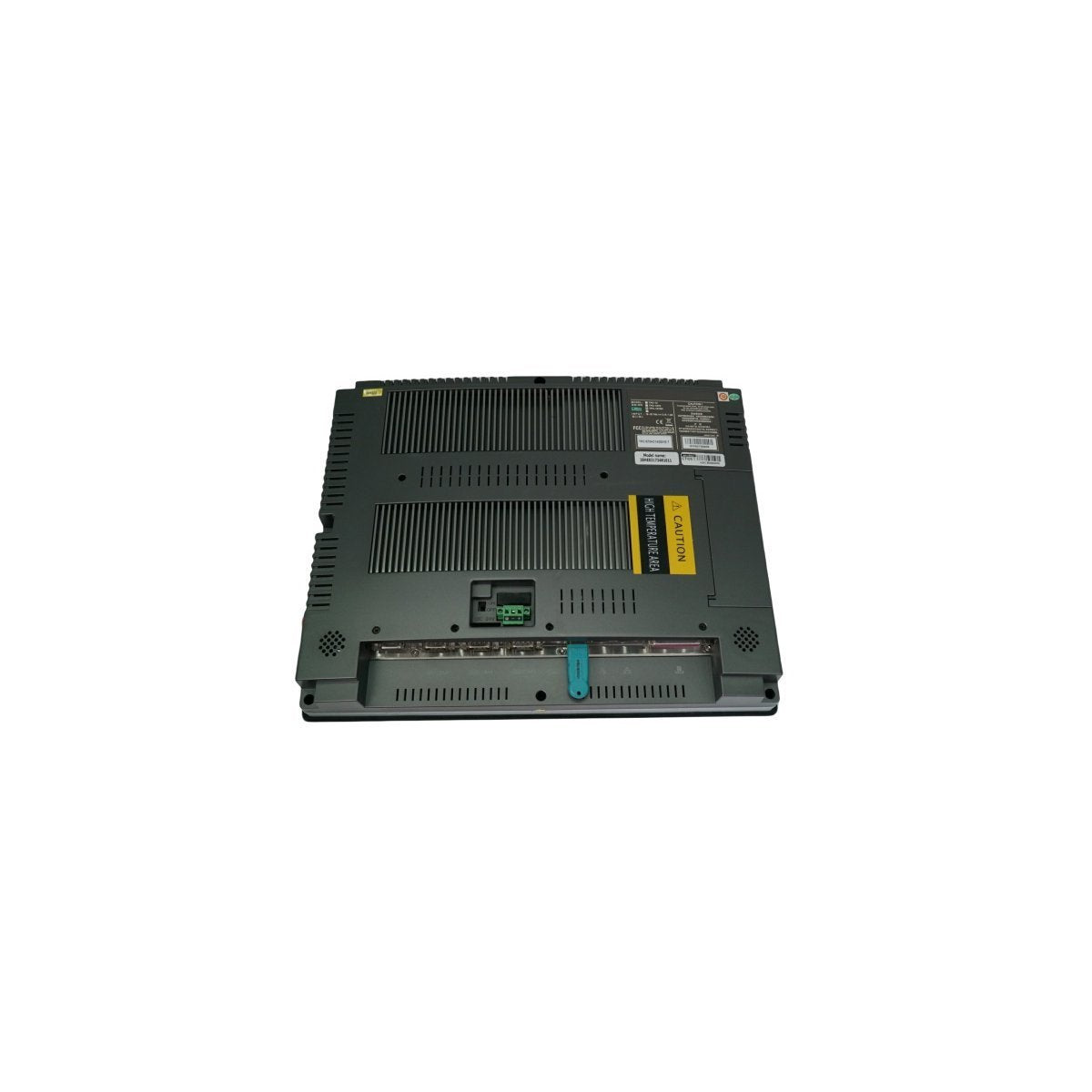

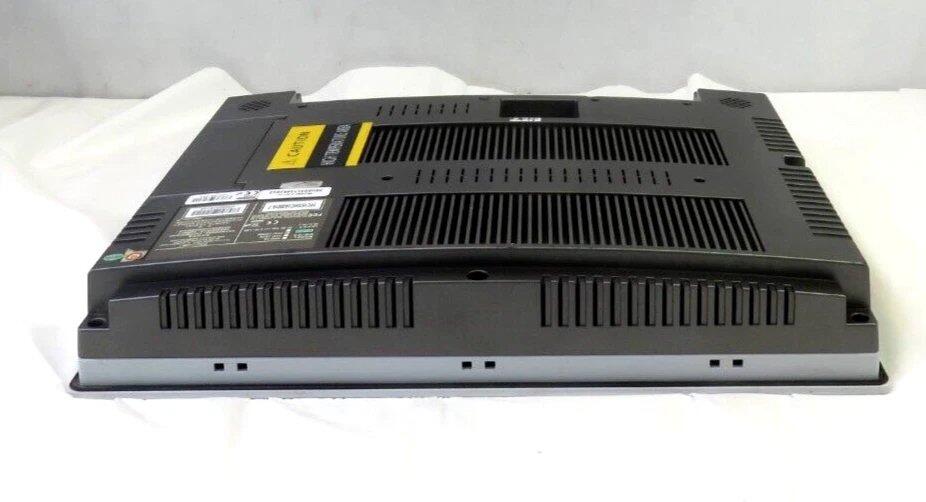

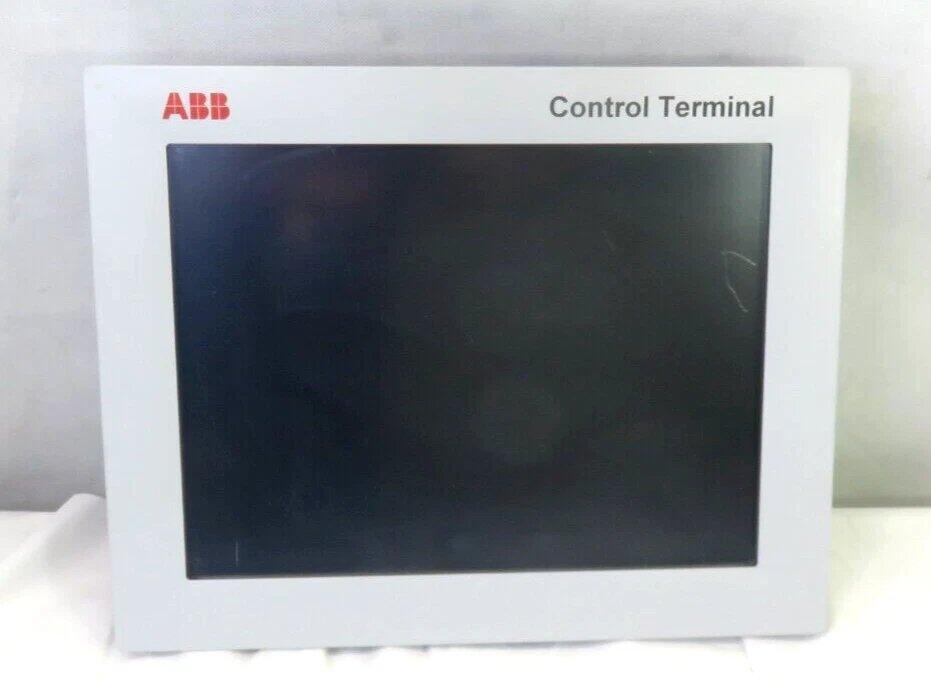

Product Overview

The ABB TPC-1570H, identified by order number 3BHE031734R1011, is a high-performance Human Machine Interface (HMI) designed to provide a robust visualization layer for Distributed Control Systems (DCS). This industrial-grade touch panel serves as the primary interaction point for operators, offering high-resolution graphical feedback and precise command input capabilities. Engineered to bridge the gap between complex backend automation and front-end plant management, the TPC-1570H combines a ruggedized physical build with a powerful computational core, ensuring that real-time data monitoring and system adjustments are performed with zero latency, even in the most demanding factory floor environments.

Technical Architecture and Hardware Specifications

The TPC-1570H 3BHE031734R1011 is built upon a resilient hardware framework tailored for continuous industrial operation:

• Processing Core: Intel Atom E3827 Dual-Core processor for high-speed data handling.

• Operating System: Windows Embedded Standard 7 (WES7) for extensive software compatibility.

• Display Interface: 15-inch high-definition capacitive multi-touch screen.

• Operational Temperature Range: Rated for stable performance between -20°C and 60°C.

• Expansion Capabilities: Integrated dual expansion ports for customized I/O or communication module integration.

• Physical Weight: 5.24 kg.

• Chassis Dimensions: 38.3 x 6.8 x 30.8 cm.

• Communication Networking: Dual Gigabit Ethernet ports with router functionality support.

• Construction: Heavy-duty front panel protection against dust, moisture, and vibration.

Strategic Industrial Applications

This high-performance panel is deployed across various heavy industries to streamline control processes:

• Oil and Gas Refineries: Used for local station monitoring where wide temperature fluctuations and exposure to harsh elements are common.

• Automated Manufacturing: Serves as a centralized control hub for robotic assembly lines, utilizing multi-touch capabilities for complex schematic navigation.

• Power Generation: Integrated into DCS networks to provide real-time visualization of turbine and generator parameters.

• Water and Wastewater Treatment: Facilitates the monitoring of localized pumping stations through its robust Ethernet networking and remote access features.

FAQ

Q: Does the TPC-1570H support multi-touch gestures like pinching and zooming?

A: Yes, the 3BHE031734R1011 features a capacitive multi-touch display that allows operators to use intuitive gestures, significantly improving navigation through complex industrial dashboards.

Q: Is the Windows Embedded Standard 7 OS customizable for specific proprietary software?

A: The WES7 platform provides a flexible environment that supports most Windows-based industrial automation software, allowing for seamless integration of specialized ABB or third-party SCADA packages.

Q: How does the unit handle extreme cold or high-heat environments?

A: The module is specifically designed with an industrial-grade thermal management system, allowing it to start and operate reliably in temperatures as low as -20°C and as high as 60°C.

Q: What are the options for mounting this touch panel in a control room?

A: The TPC-1570H is designed for versatile installation, supporting standard panel mounting into console cutouts or VESA-compliant arm mounting for adjustable operator positioning.

Q: Can this HMI serve as a communication bridge between different network segments?

A: Yes, with its dual Ethernet ports and routing capabilities, the TPC-1570H can facilitate data flow between the local machine network and the higher-level plant management network.
