Product Overview

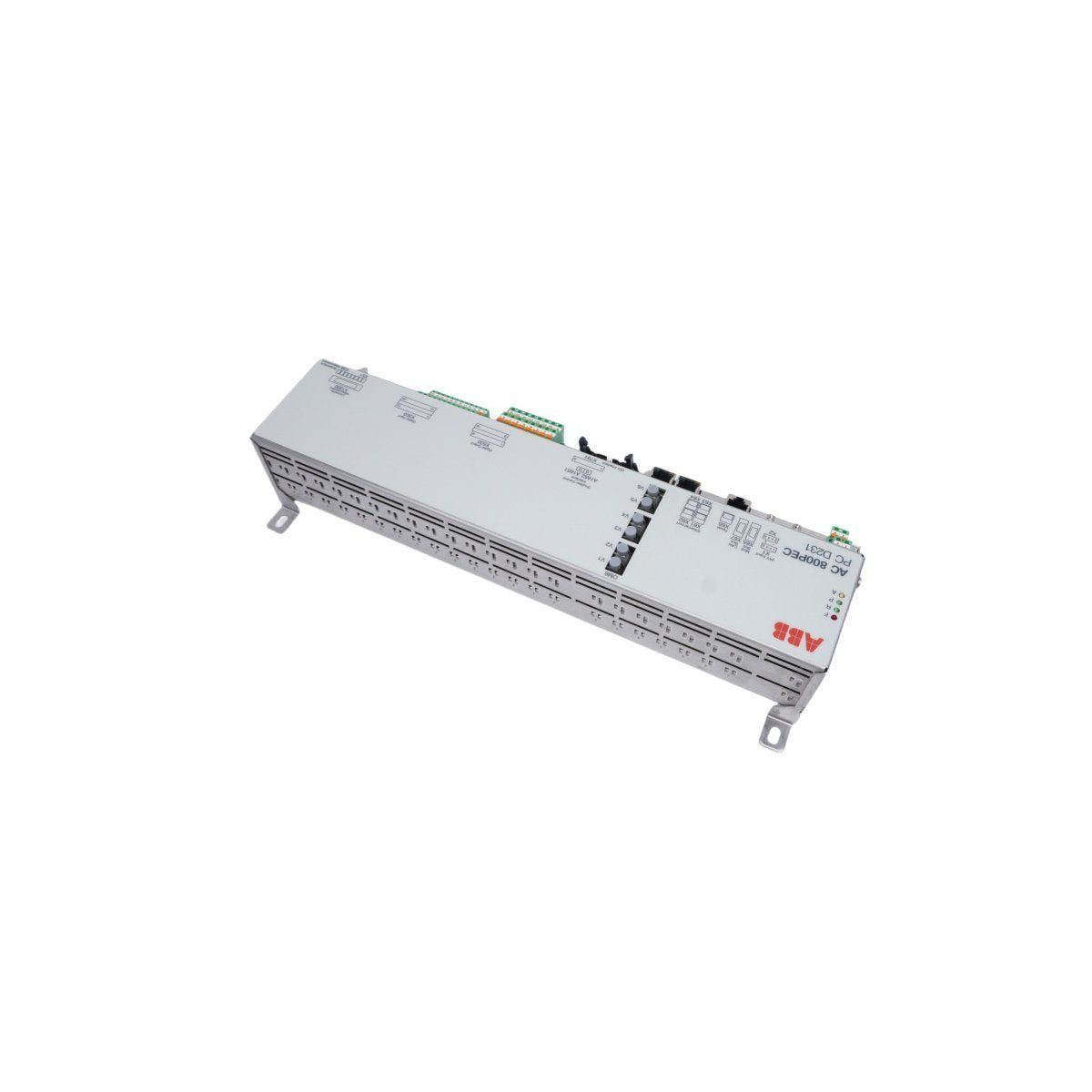

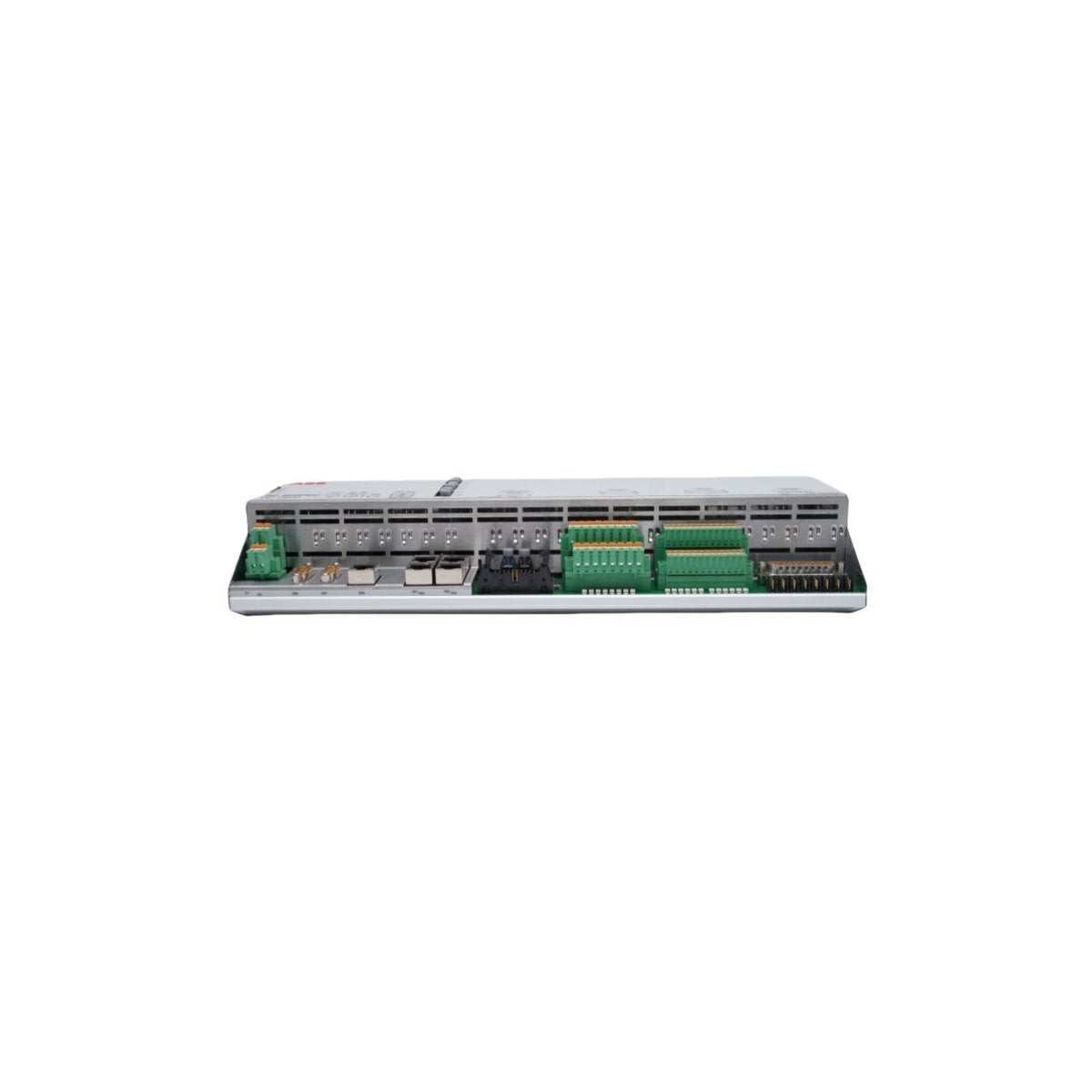

The ABB 3BHE025541R0101, model designation PCD231B, is a sophisticated Converter Control Interface developed for the UNITROL® Excitation series. This module serves as the primary intelligence link between the digital control logic and the power converter bridge, facilitating precise firing pulse generation and feedback processing. By integrating high-speed signal management with robust electrical isolation, the PCD231B ensures that the excitation current remains stable and responsive under shifting grid conditions. It is an essential component for high-availability Distributed Control Systems (DCS), engineered to maintain system equilibrium in critical power generation environments.

Technical Architecture & Core Parameters

• Interface Model: PCD231B Converter Control Unit

• Part Number: 3BHE025541R0101

• Product Category: Exciter Control / Communications I/O

• System Family: UNITROL® Series

• Network Capabilities: Ethernet-based routing and advanced industrial protocol support

• Unit Weight: 1.32 kg

• Chassis Dimensions: 37.6cm x 14.0cm x 7.5cm

• Compliance Standards: Fully certified for CE and UL global safety requirements

• Country of Origin: Sweden

• Physical Build: Heavy-duty enclosure for thermal stability and noise rejection

Industrial Applications and Site Deployment

The PCD231B is predominantly implemented in large-scale utility operations, specifically within the excitation cubicles of hydroelectric, steam, and gas turbine generators. Its primary function is to manage the interface for power converters, ensuring accurate voltage regulation and reactive power control. In heavy industrial settings—such as aluminum smelting or large-scale mining—this module is utilized to coordinate the performance of synchronous motors, mitigating the risk of unplanned outages through real-time diagnostics and rapid fault detection. The robust construction allows for installation in demanding power plant environments where electromagnetic interference and vibration are prevalent, providing a reliable gateway for data exchange within the broader plant automation network.
