Product Overview

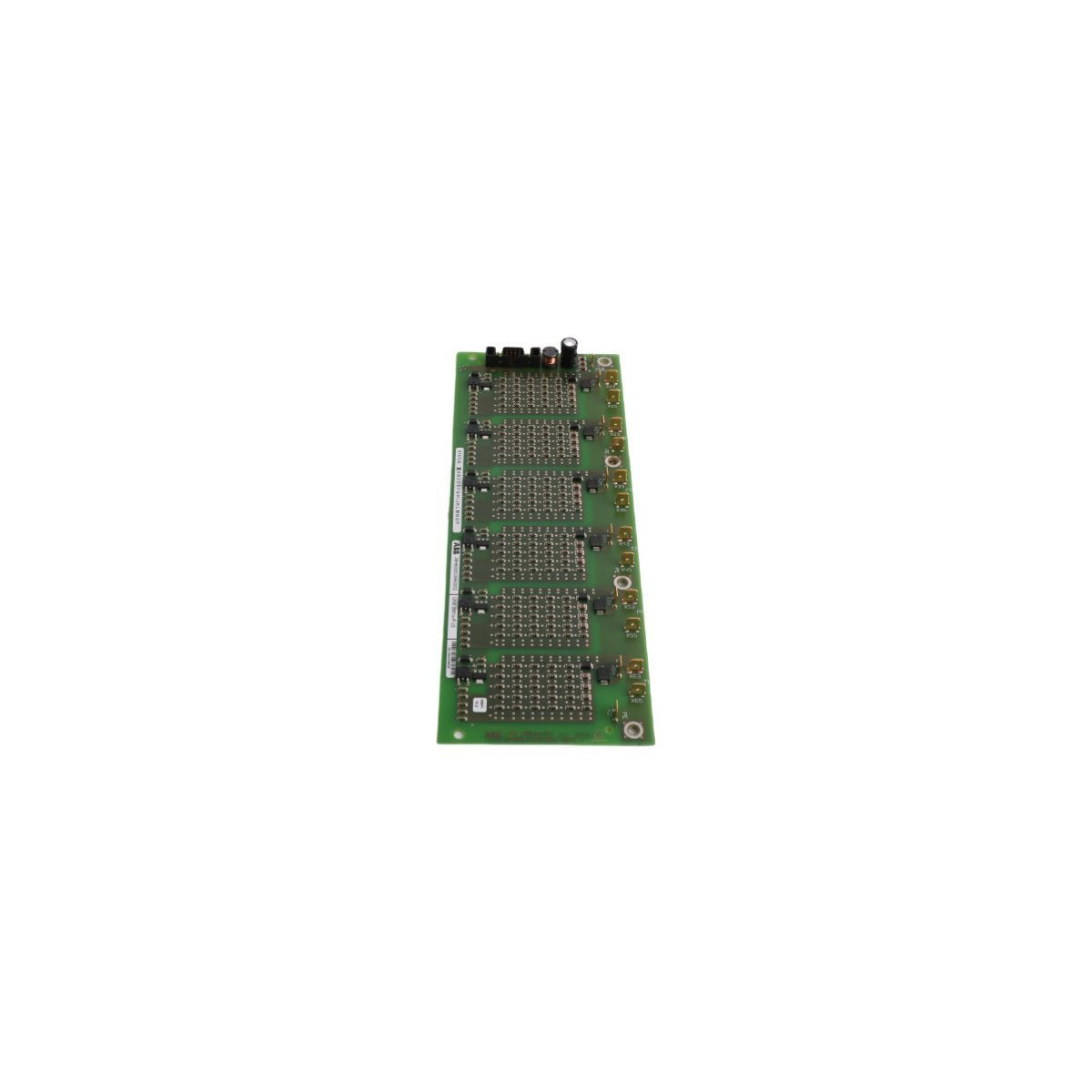

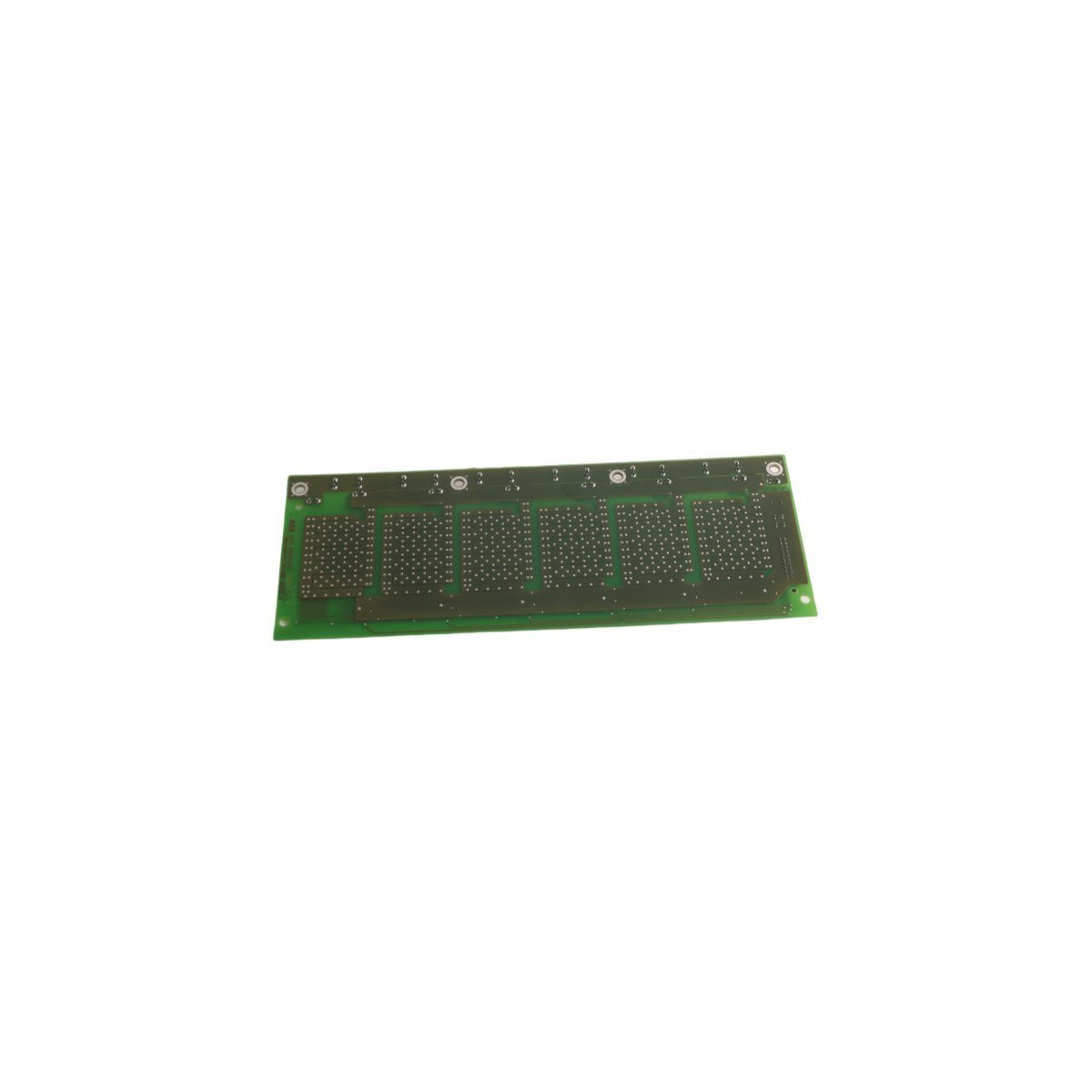

The UNS0881A-P,V2 (Order Number 3BHB006338R0002) is a precision-engineered Gate Driver Interface (GDI) module designed by ABB for integration within the UNITROL Excitation Systems. This high-performance PCB serves as the critical intermediary between control logic and power semiconductors, ensuring the accurate triggering of gate signals. By providing galvanic isolation and signal amplification, the module protects sensitive control circuitry while maintaining the high-speed switching required for efficient power conversion. Its design is optimized for the demanding electrical environments of power generation and heavy industrial drives, focusing on signal purity and thermal stability.

Technical Configurations and Physical Attributes

• Model Designation: UNS0881A-P,V2

• Identification Code: 3BHB006338R0002

• Hardware Function: Gate Driver Interface (GDI)

• Weight: 0.14 kg

• Dimensions: 26.8 x 9.8 x 2 cm

• Product Series: UNITROL Excitation / DCS

• Compliance Standards: Certified CE and UL compliant

• Origin: Sweden

• Lifecycle: Active Service Status

The board is manufactured using high-grade dielectric materials to prevent electrical tracking and is designed to interface seamlessly with ABB’s PLC architectures. Its slim profile allows for high-density mounting in control cabinets where spatial efficiency is paramount.

Strategic Industrial Implementations

The 3BHB006338R0002 UNS0881A-P,V2 is essential for systems requiring high-reliability power modulation. Major applications include:

• Excitation Systems: Managing the field current of synchronous generators in hydroelectric, thermal, and nuclear power plants.

• Static Frequency Converters: Providing gate control for large-scale power electronics used in grid stabilization.

• Industrial Rectifier Units: Operating within high-power DC supplies for aluminum smelting or chemical electrolysis.

• Heavy-Duty Drive Control: Serving as the gate interface for high-voltage motor control systems in mining and marine propulsion.

FAQ

Q: What is the specific role of the "V2" designation in the UNS0881A-P,V2 model?

A: The V2 indicates the second version of the hardware revision, which typically includes optimized component layouts for better thermal management and enhanced signal noise immunity compared to earlier iterations.

Q: Does this module require an external power supply for the gate drive signals?

A: The module typically draws power from the system's backplane or a dedicated power distribution board within the UNITROL rack to generate the necessary isolated gate voltages.

Q: Is this board compatible with both UNITROL 5000 and 6000 systems?

A: While the 3BHB006338R0002 is a standard part for specific UNITROL excitation frameworks, you should verify the exact firmware compatibility and terminal mapping in your system manual before installation.

Q: What are the indicators for a board failure in a live system?

A: System diagnostics usually report gate drive faults or synchronization errors; however, the board itself may show visible status through LED indicators or fail-safe logic that triggers a protective shutdown of the power stage.

Q: Can this gate driver interface be used with non-ABB power semiconductors?

A: This module is specifically tuned for the impedance and switching characteristics of ABB-certified power modules; using it with third-party components is not recommended without a full engineering review.
