Product Overview

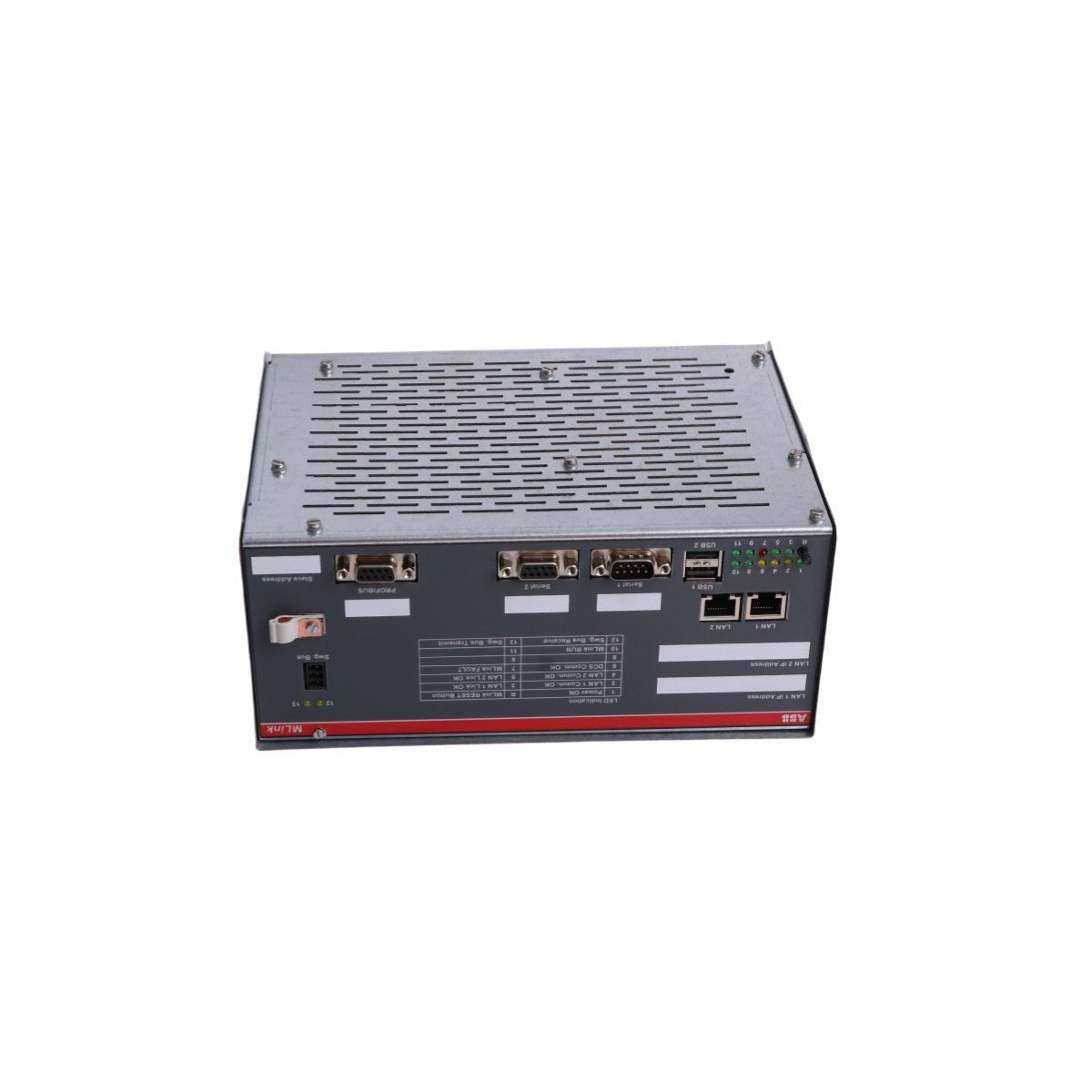

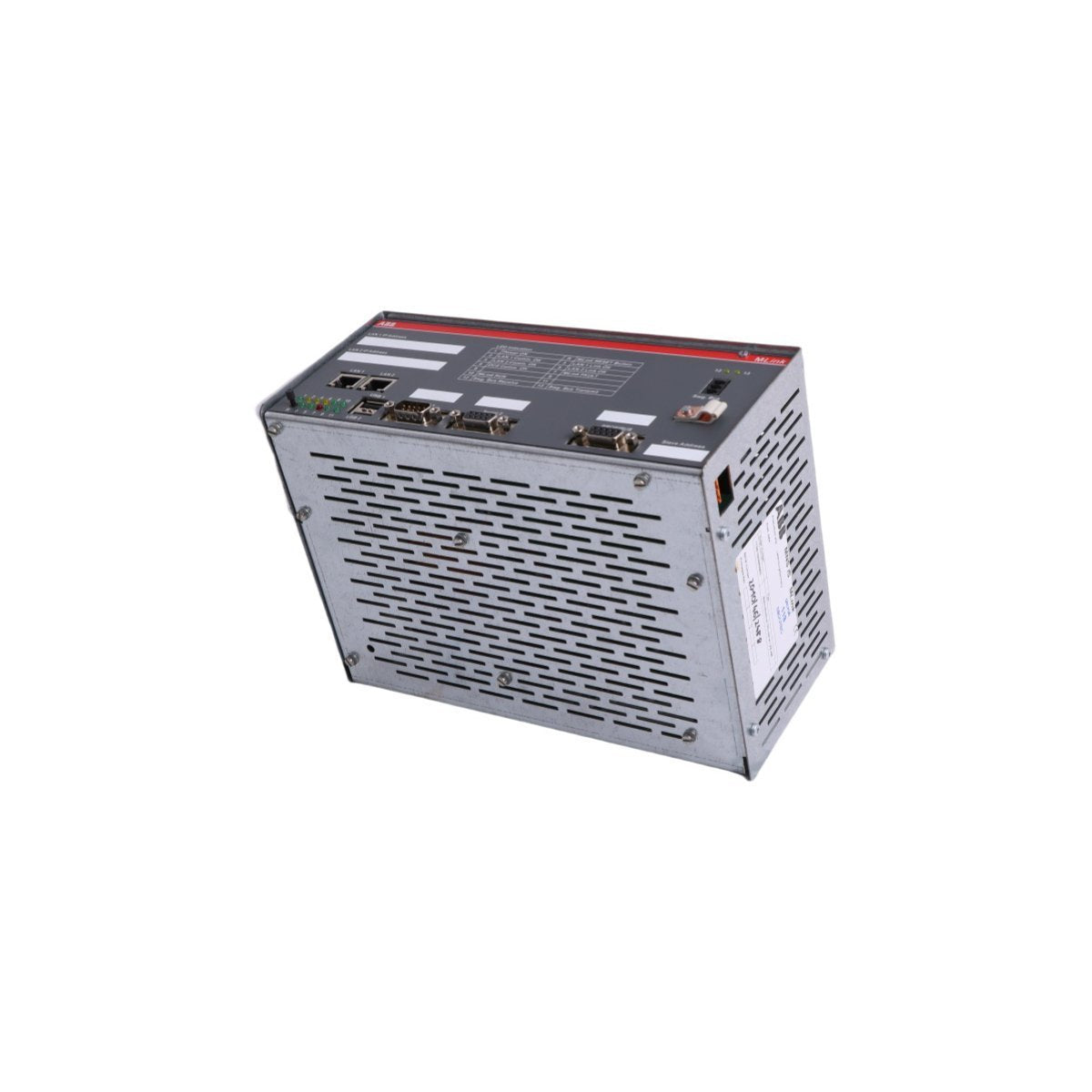

The ABB 1TGE102009R4800 functions as a sophisticated MLink communication gateway designed to bridge the gap between disparate industrial networks. It resolves the common challenge of interoperability in complex automation environments by facilitating high speed data translation between Modbus TCP and serial RS 485 protocols. This MLink Control Unit acts as a critical node in Distributed Control Systems, allowing modern Ethernet based controllers to exchange real time information with legacy field devices. By providing a secure and deterministic communication path, it ensures that data from sensors and actuators remains accessible across the entire enterprise architecture, supporting the requirements of high availability industrial operations.

Essential Hardware Parameters

Model Code Decomposition

The designation 1TGE102009R4800 Baslc-Modbus TPC serial RS 485 identifies the specific functional profile of the gateway:

• 1TGE: Identifies the module within the ABB specialized electronics and interface hardware family.

• 102009: The core hardware platform code, signifying its specific circuit architecture and internal processor capacity.

• R4800: Refers to the internal software and firmware revision. The 4800 series is optimized for high volume data handling in multi protocol environments.

• Baslc: Indicates the Basic license or baseline configuration for MLink functionality.

• Modbus TPC serial RS 485: Explicitly defines the dual communication interface capability, supporting both Ethernet based TCP and traditional two wire RS 485 serial links.

Installation Strategy and Wiring

To ensure network stability and hardware protection, follow these professional installation protocols:

• Mechanical Mounting: Install the unit on a standard 35mm DIN rail. Ensure the module is mounted vertically to utilize the passive convection cooling gaps. Maintain at least 50mm of clearance from adjacent high power modules to prevent thermal interference.

• Power Input Wiring: Connect the 85-264V AC supply to the designated terminals. Use 1.5 to 2.5 mm2 stranded wire and ensure the protective earth terminal is securely bonded to the system ground.

• Serial RS 485 Link: Use high quality shielded twisted pair cables for RS 485 connections. To prevent signal reflections on long cable runs, ensure a 120 ohm termination resistor is applied at both physical ends of the network segment.

• Ethernet Configuration: Use Cat5e or higher shielded Ethernet cables for the Modbus TCP port. To minimize electromagnetic interference, keep data cables at least 10cm away from high voltage power lines within the cabinet.

FAQ Frequently Asked Questions

Does the 1TGE102009R4800 support simultaneous protocol conversion?Yes. The unit is designed to handle Modbus TCP and Modbus RTU serial communications concurrently, allowing it to act as a master gateway for multiple downstream serial devices while reporting back to an Ethernet based DCS.

What is the significance of the 10A current rating?This rating refers to the internal power distribution and switching capacity of the MLink unit, allowing it to maintain stable operation and manage high load communication cycles without overheating or voltage drops.

Can this unit be used in outdoor cabinets?The module is rated for operation down to -25 degrees Celsius, making it suitable for unheated outdoor cabinets in most climates, provided the enclosure is rated for the appropriate environmental ingress protection.
