Product Overview

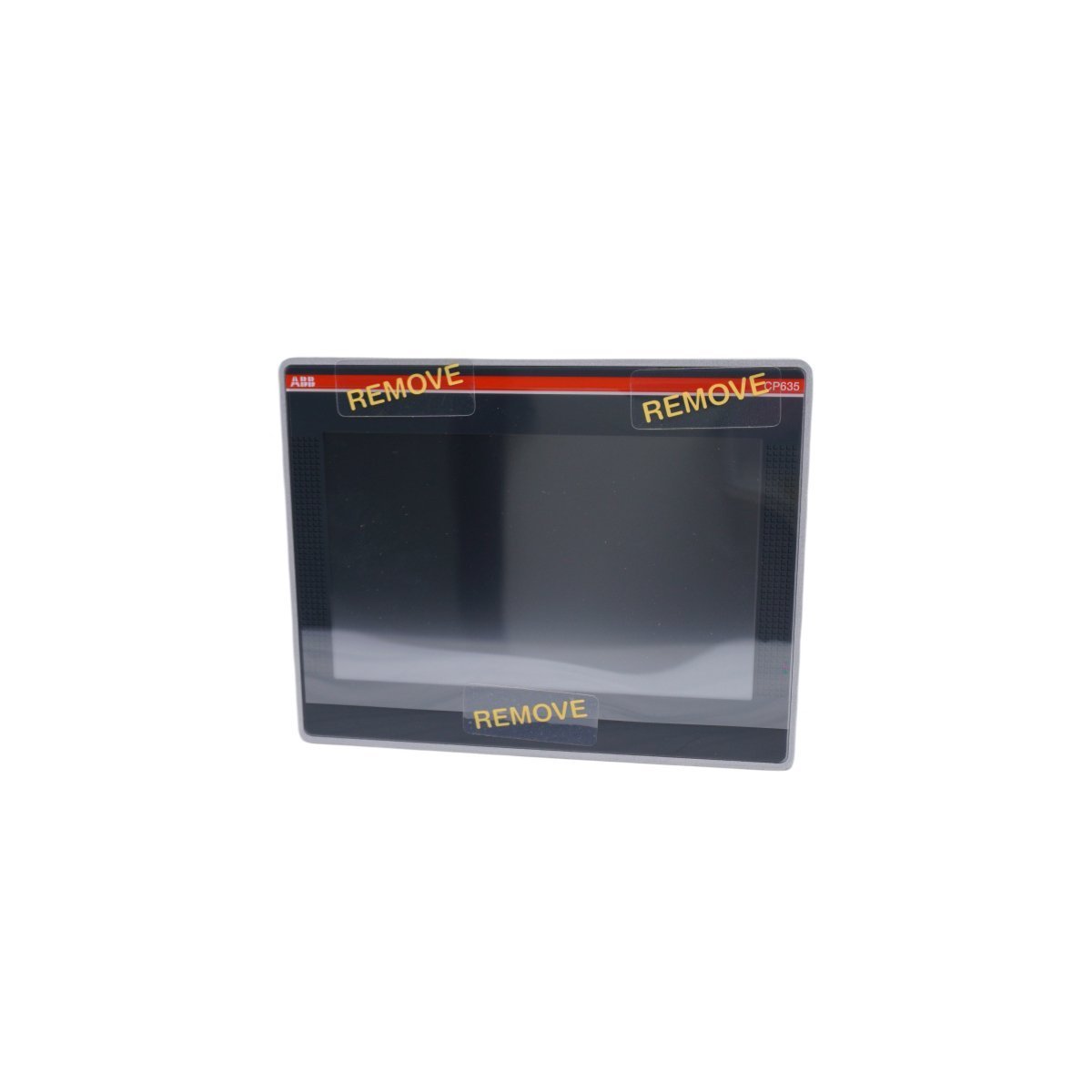

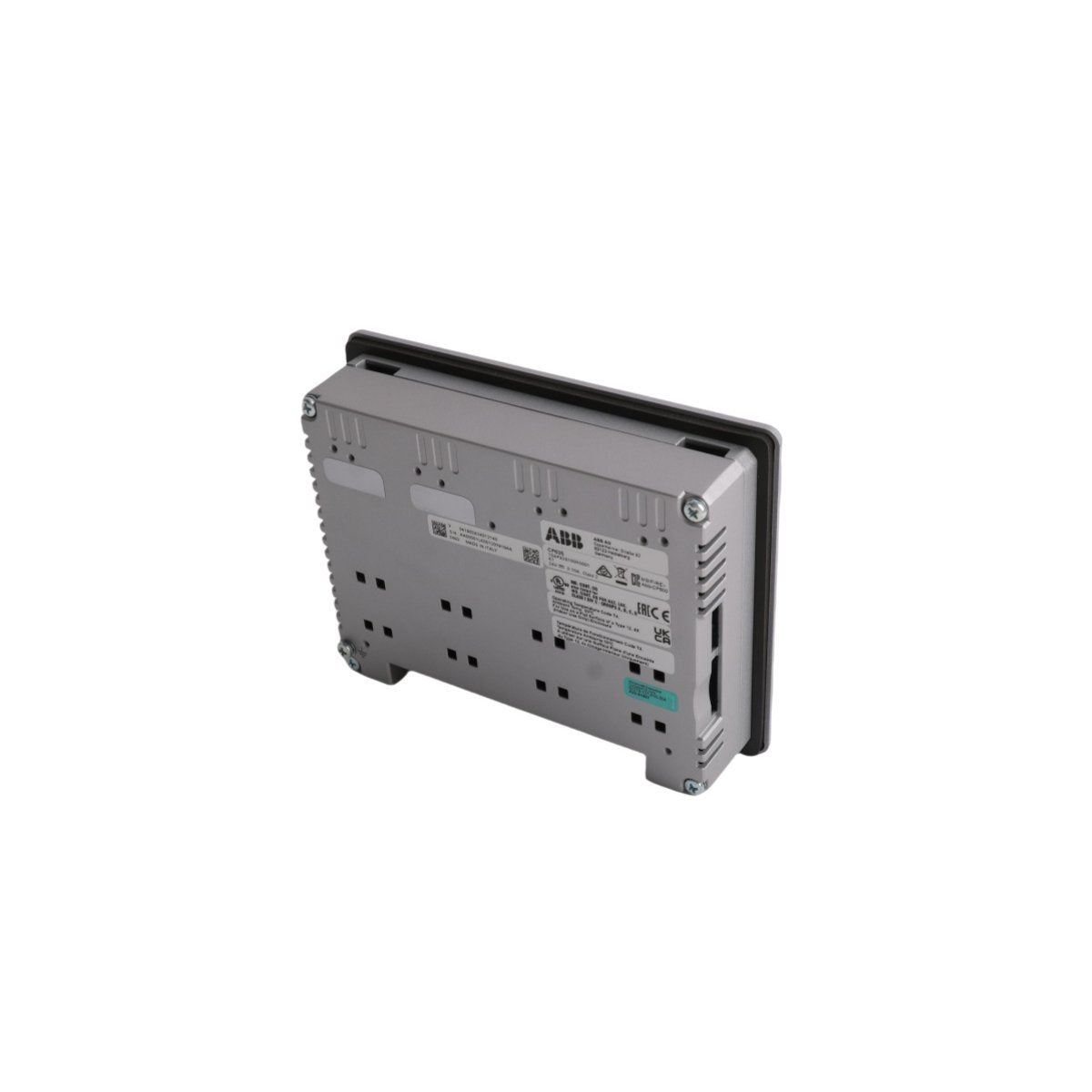

The ABB 1SAP535100R0001, belonging to the CP635 series, is a high-performance Human Machine Interface (HMI) engineered for sophisticated industrial visualization. This 7-inch TFT touch screen serves as a critical bridge between operators and automated systems, providing a high-resolution 800x480 pixel display for clear data representation. Designed for longevity in challenging environments, it features a durable resistive touch interface and a robust front construction with IP65-rated protection against dust and moisture. Its integration within the ABB ecosystem—specifically with the AC500 PLC range and Automation Builder software—ensures a streamlined configuration process for complex automation architectures.

Engineering Specifications and Hardware Details

• Display Technology: 7-inch TFT color screen with 800 x 480 WVGA resolution

• Input Method: Analog resistive touchscreen for reliable operation with gloves

• Networking and Ports: Integrated Ethernet (Profinet compatible) and serial communication interfaces

• Environmental Rating: IP65 front panel protection for wash-down or dusty environments

• System Compatibility: Fully supported by ABB PB610 Panel Builder 600 or Automation Builder

• Physical Mass: 0.3 kg

• External Dimensions: 8.1 x 7.3 x 13.4 cm

• Origin: Sweden

• Operational State: Active production model

Sector-Specific Deployment

The CP635 is a versatile interface solution utilized across various high-precision industries:

• Material Handling: Managing conveyor synchronization and sorting logic in logistics hubs.

• Food and Beverage: Controlling packaging machinery where the IP65 rating protects against sanitation protocols.

• Discrete Manufacturing: Serving as the primary interface for specialized OEM machinery and assembly lines.

• Infrastructure Management: Integrating with DCS and PLC networks for building automation and water treatment monitoring.

Frequently Asked Questions

Q: Is the 1SAP535100R0001 compatible with the AC500 PLC series?

A: Yes, this control panel is specifically designed for seamless integration with ABB AC500 and AC500-eCo PLC families using standard communication protocols.

Q: What software is required to program the CP635 HMI?

A: Configuration and screen design are typically handled through the ABB Automation Builder software suite or the PB610 Panel Builder 600 tool.

Q: Can this touch screen be used in environments where operators wear heavy work gloves?

A: Yes, the resistive touch technology relies on pressure rather than electrical conductivity, making it fully functional with gloved hands or in the presence of moisture.

Q: Does the unit support mounting on a standard DIN rail?

A: While primarily designed for traditional panel mounting to maintain its IP65 rating, modular mounting adapters are available for varied industrial cabinet setups.

Q: What is the primary communication interface for remote data exchange?

A: The panel features a built-in Ethernet port that supports various industrial protocols, including Profinet, for high-speed data transmission to the controller.
