Product Overview

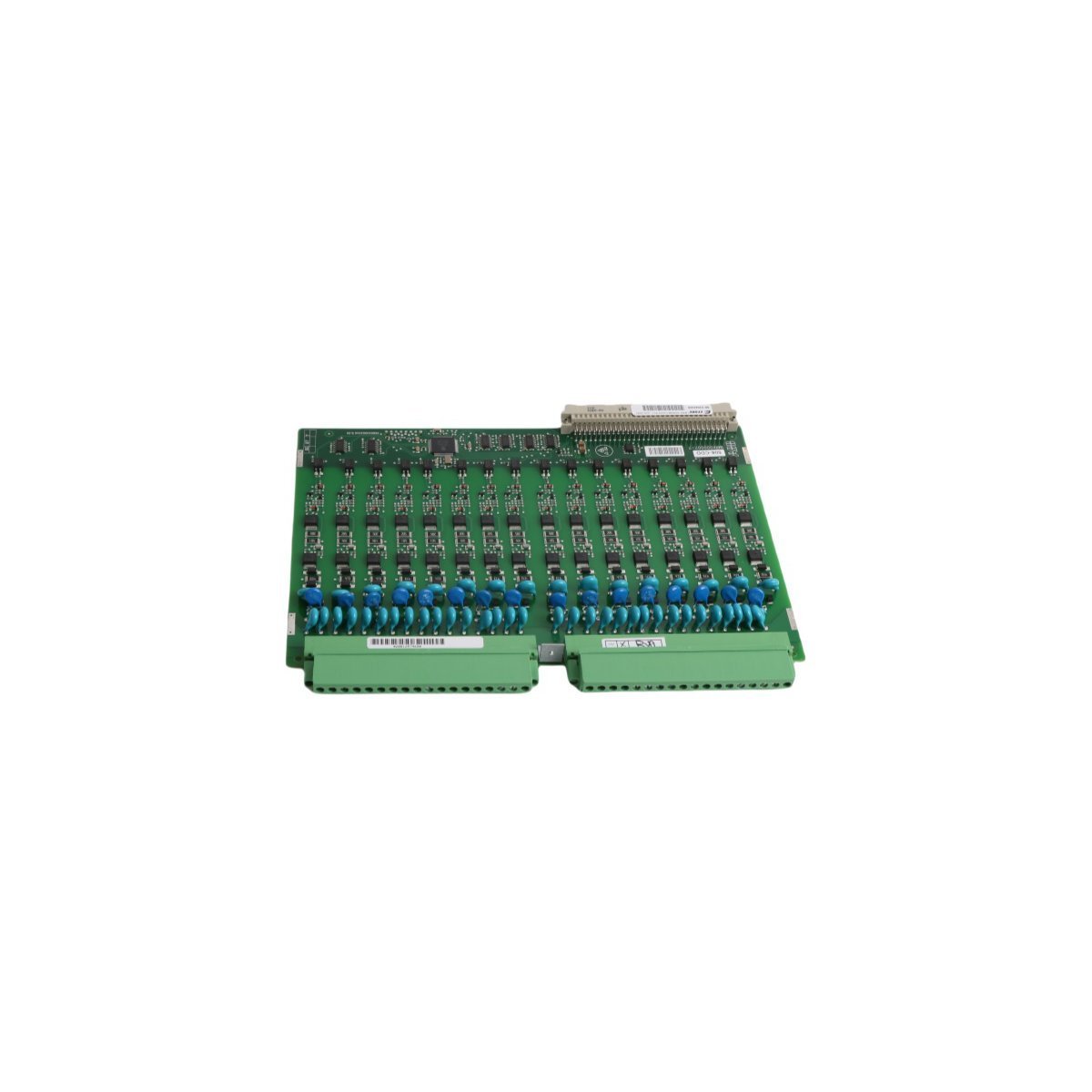

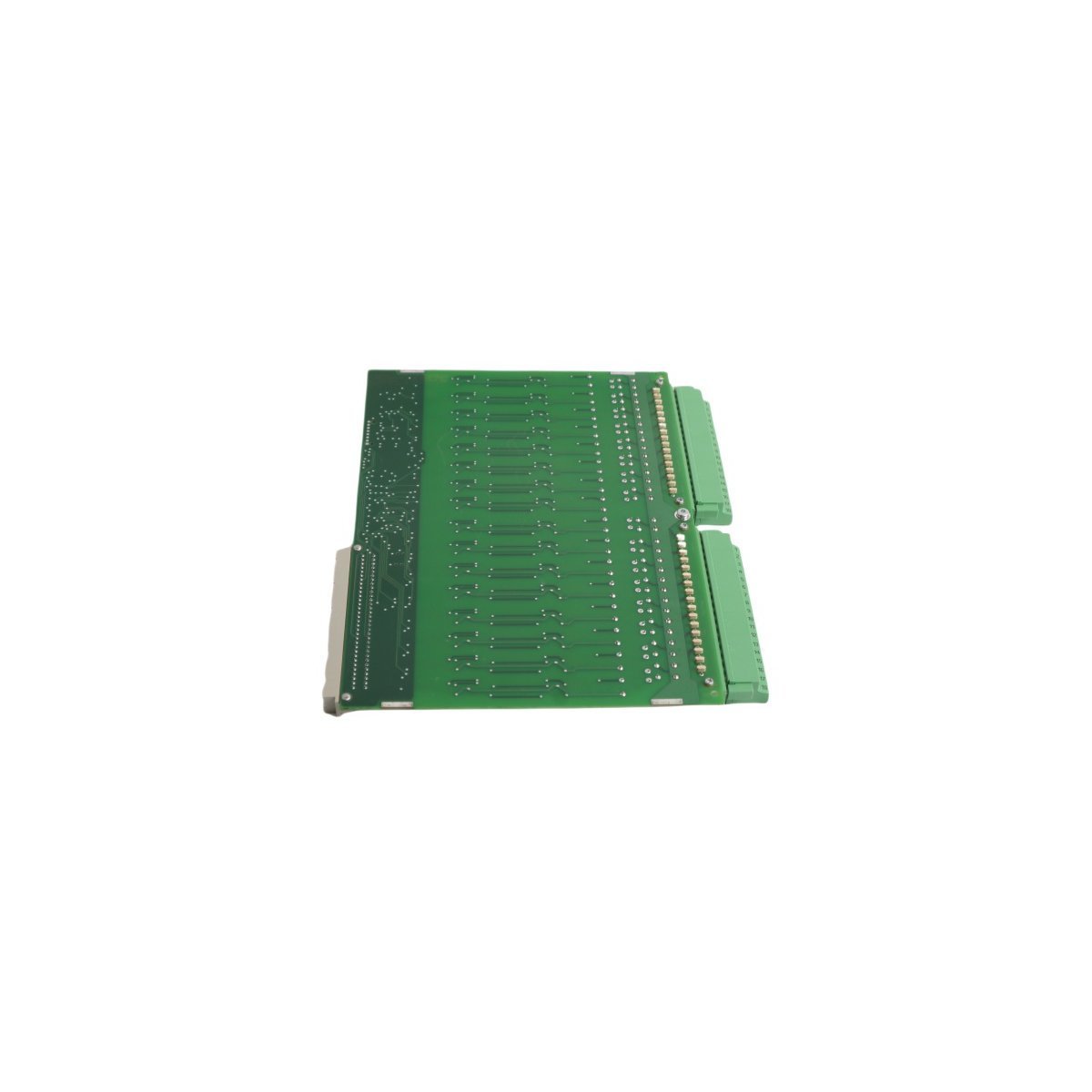

The ABB 1MRK000508-BDR06 is a high-performance interface component designed for the Relion series and broader Bay Control System architectures. While often utilized in high-density data acquisition environments, this specific R06 revision is engineered as a robust output solution to facilitate reliable command execution within Distributed Control Systems (DCS). It provides a bridge between logic processing and field-level actuation, ensuring that control signals are translated into physical actions with extreme precision and minimal latency. The module is built to withstand the electromagnetic interference typical of substation and heavy industrial environments.

Technical Specifications and Hardware Parameters

• Manufacturer ABB

• Model Designation 1MRK000508-BDR06

• Module Function Binary Output / Signal Execution

• Channel Density 16 Channels

• Logic Response Time < 2 ms

• Operating Temperature -20°C to +60°C

• Storage Temperature -40°C to +85°C

• MTBF > 100,000 Hours

• Communication Protocol Modbus RTU / Ethernet Compatible

• Physical Dimensions 23.3cm x 19cm x 2cm

• Unit Weight 0.34kg

• Country of Origin Sweden

Primary Deployment Scenarios

This module is a critical asset for power utility automation and large-scale industrial processing plants. It is primarily deployed within bay control units to manage circuit breaker operations, isolator positioning, and interlocking sequences. Its high-speed switching capability makes it suitable for real-time protection schemes where signal integrity is non-negotiable. Furthermore, its compatibility with Ethernet-based routing and Modbus protocols allows it to serve as a reliable node in modernized DCS networks, supporting both legacy hardware and next-generation smart grid infrastructure.

FAQ

Q: What is the primary difference between the 1MRK000508-BDR06 and standard input modules?

A: The BDR06 variant is specifically configured as an output module, meaning it transmits command signals from the controller to end-devices, whereas input modules purely monitor external field states.

Q: Is this module compatible with older ABB Advant or 800xA systems?

A: Yes, it is designed for integration within the Bay Control System framework and can communicate via standard industrial protocols to interface with various DCS generations.

Q: Does the module require specialized cooling due to its high-density design?

A: No, the hardware is rated for passive cooling within a standard industrial enclosure, provided the ambient temperature remains within the specified range of -20 to +60 degrees Celsius.

Q: What is the significance of the R06 revision in the part number?

A: The R06 signifies a specific hardware revision or firmware compatibility layer, ensuring the board meets the latest safety and communication standards required for active industrial service.
