Product Overview

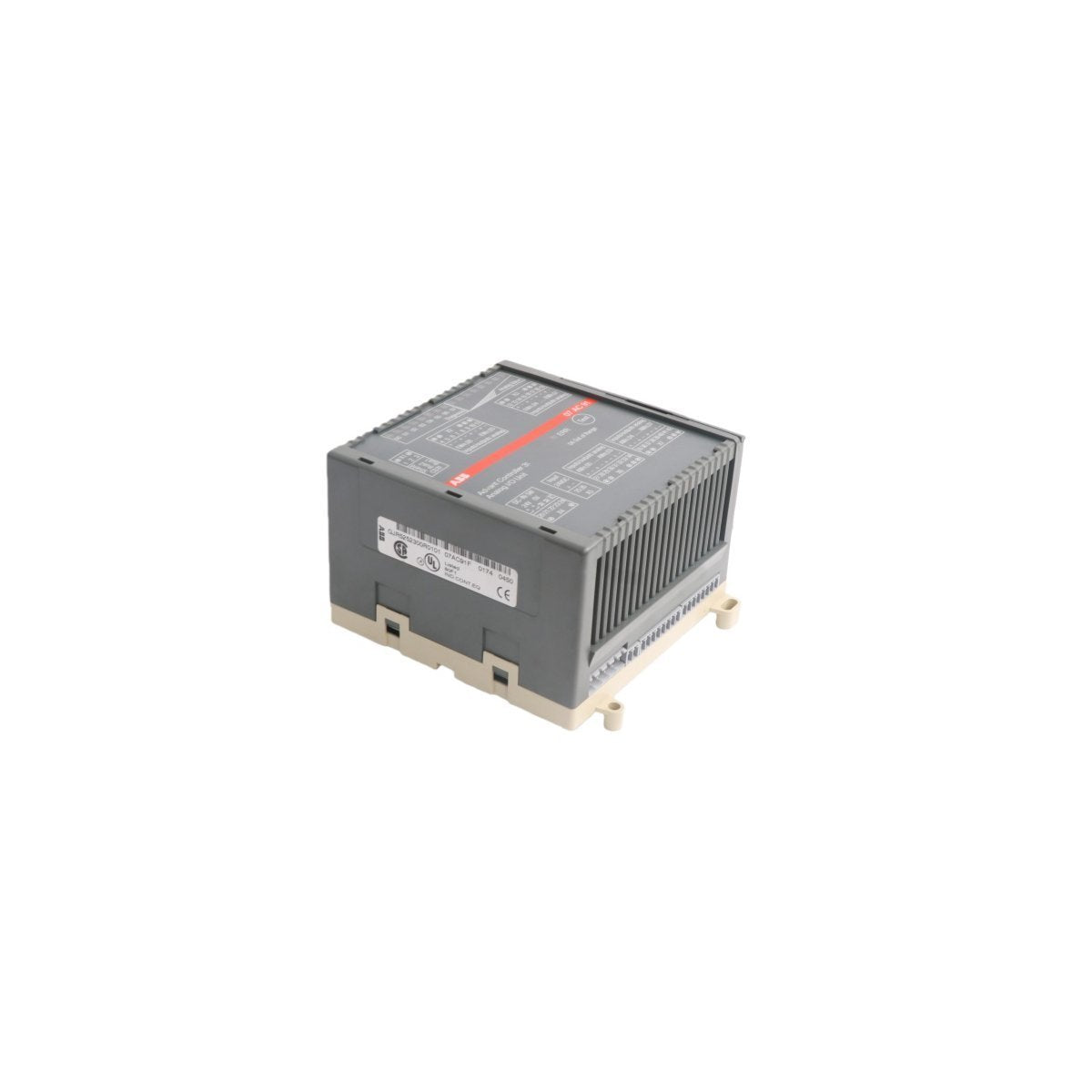

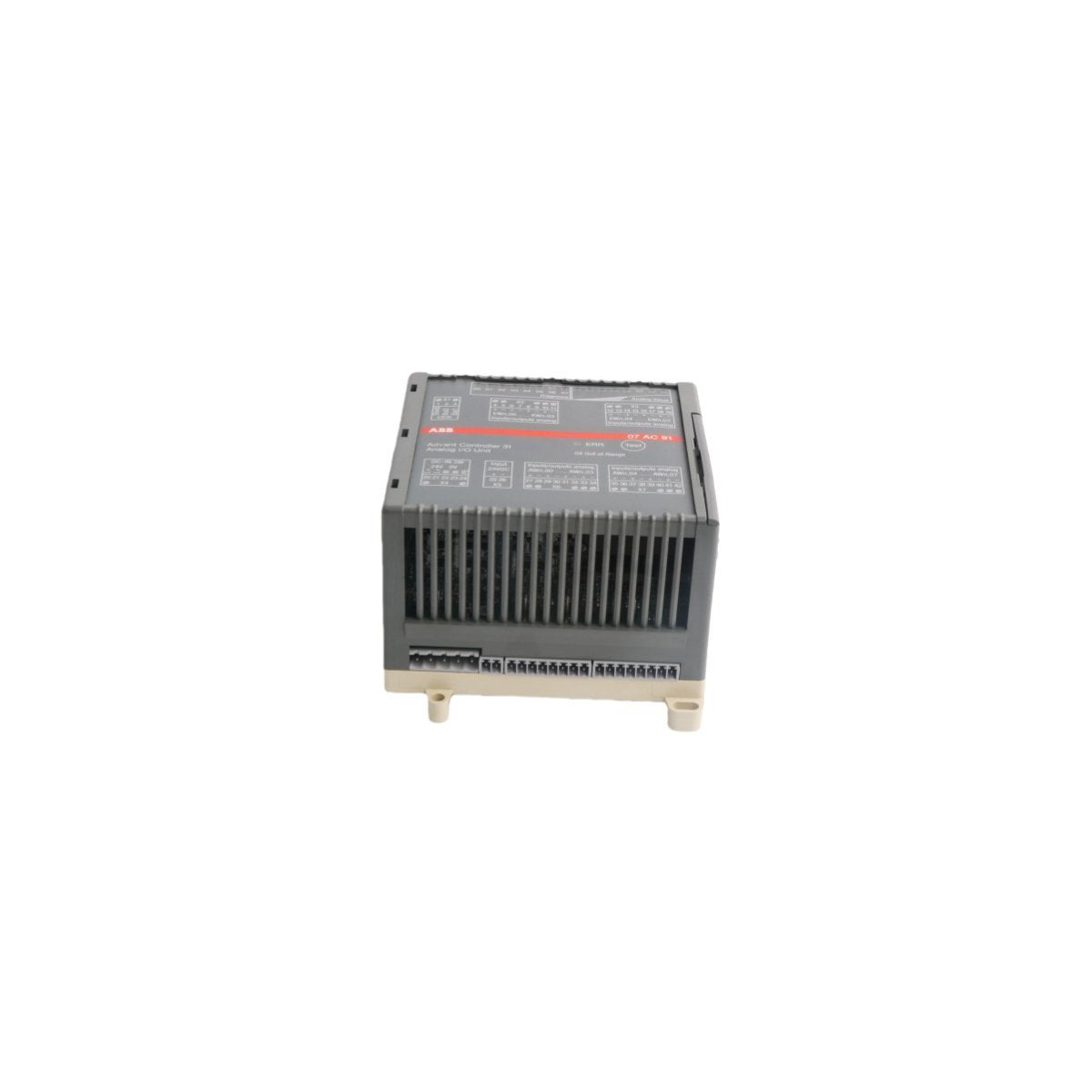

The ABB 07AC91, also identified by order code GJR5252300R0101, is a high-performance remote analog processing unit designed for the Advant Controller 31 (AC31) ecosystem. Functioning as a critical node on the CS31 system bus, this module translates physical analog signals from field sensors into digital data for the controller, while simultaneously converting control commands back into analog outputs for actuators. It is engineered to provide a bridge between complex field instrumentation and centralized Distributed Control Systems (DCS), ensuring high-fidelity signal transmission and robust processing in demanding industrial environments.

Technical Hardware Specifications

The 07AC91 is characterized by its adaptable resolution settings and rugged electrical architecture:

• Channel Density: 16 configurable analog channels.

• Resolution Modes: Supports 12-bit (8 inputs / 8 outputs) or 8-bit (16 channels in pairs) operation.

• Signal Compatibility: Configurable for both voltage (±10V, 0-10V) and current (0-20mA, 4-20mA) signals.

• Isolation: Galvanic isolation between the CS31 bus and internal analog circuitry to prevent ground loops.

• Power Requirements: Standard 24 V DC supply voltage.

• Physical Mass: 1.22 kg.

• Module Dimensions: 24 x 19 x 5.3 cm.

• Configuration Interface: Integrated DIL switches for manual address and mode setting.

• Installation: Standard DIN rail mounting with pluggable terminal blocks for simplified wiring.

Industrial Implementation and Deployment

This module is utilized extensively in sectors requiring precise process variable monitoring:

• Process Automation: Interfacing with pressure, temperature, and flow transmitters in chemical and water treatment plants.

• Legacy System Expansion: Providing critical I/O expansion for existing Advant Controller 31 installations where localized analog processing is required.

• Motion and Valve Control: Driving proportional valves and actuators through its configurable analog output channels.

• Remote Monitoring: Functioning as a decentralized station on the CS31 bus to reduce long-distance analog cabling and minimize signal interference.

FAQ

Q: Is the 07AC91 compatible with the newer ABB AC500 series?

A: While the AC31 platform is older, the 07AC91 can often communicate with AC500 controllers if they are equipped with a CS31 bus master, allowing for gradual system modernization.

Q: How do I change the resolution of the analog channels?

A: The resolution (switching between 8-bit and 12-bit modes) is configured using the physical DIL switches located on the module housing prior to commissioning.

Q: Does this module require an external power supply for the analog loop?

A: Yes, the module operates on a 24 V DC supply, and depending on the field device type (2-wire vs 4-wire), external loop power may be required for the sensors.

Q: What happens if there is a communication fault on the CS31 bus?

A: The 07AC91 features onboard diagnostics; in the event of a bus failure, the module can be configured to hold last values or move to a predefined safe state to protect the process.

Q: Are the input channels protected against electrical surges?

A: The module includes electrical isolation between the system bus and the analog circuits, providing a significant layer of protection against transients and industrial noise.
