Product Overview

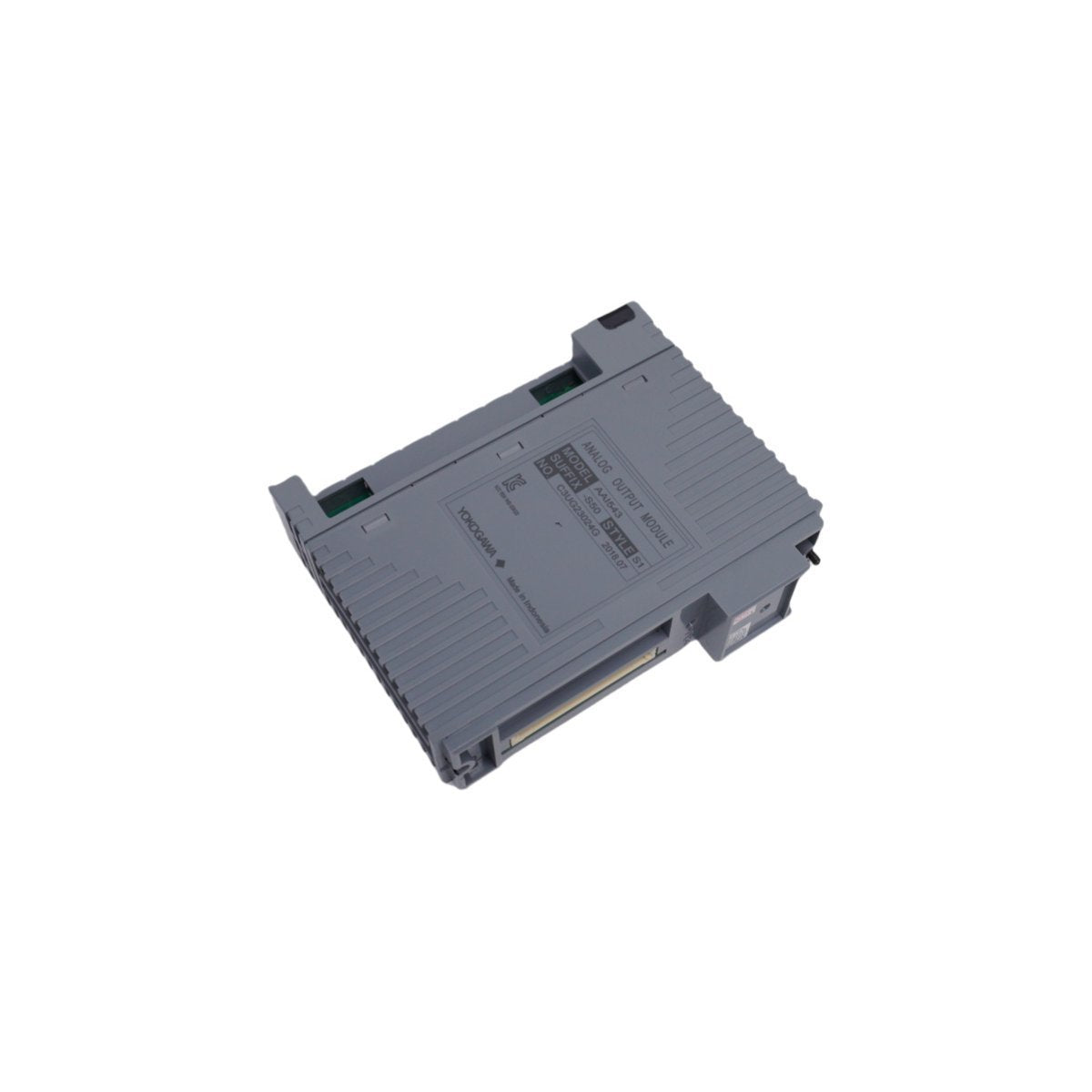

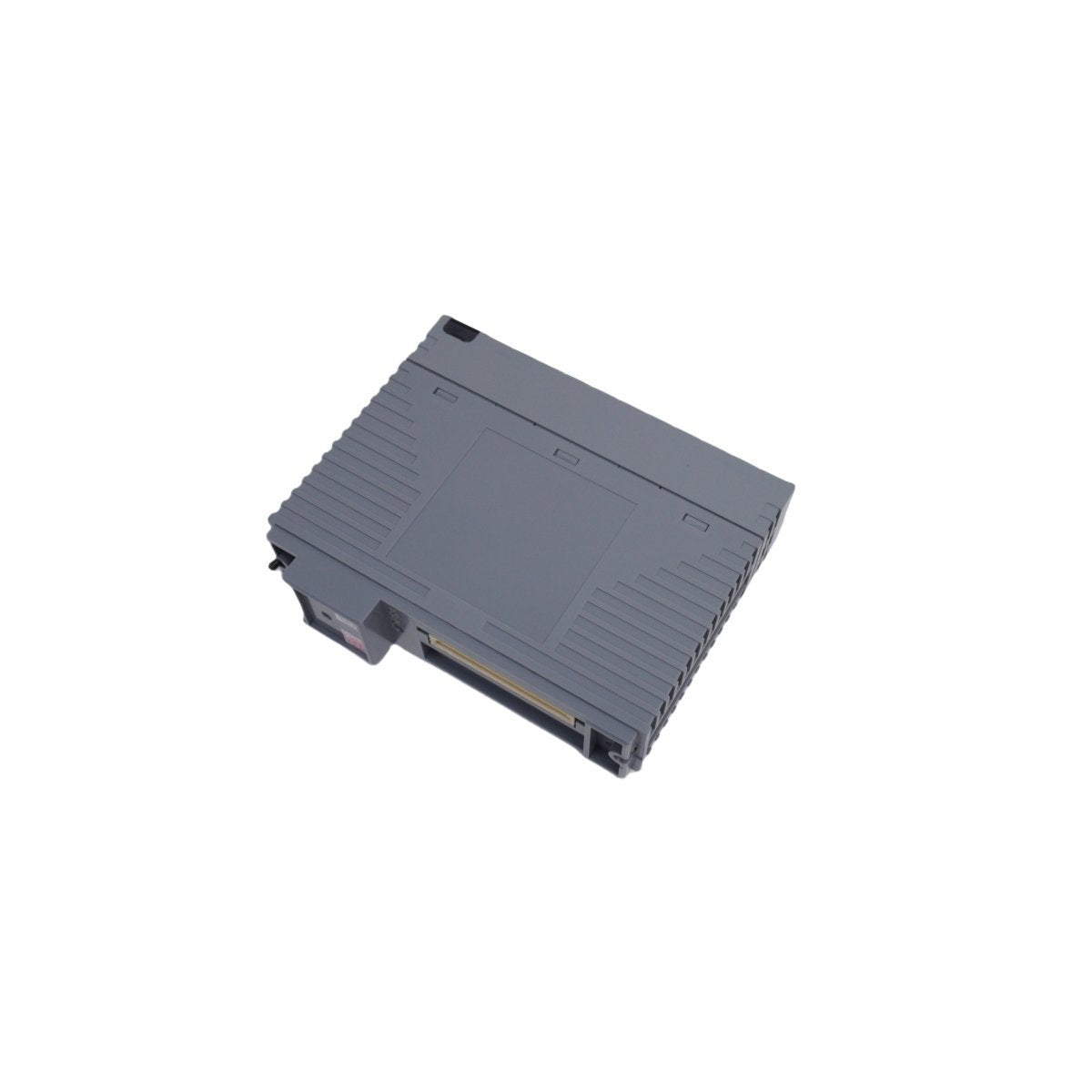

The Yokogawa AAI543-S50 is a high-performance analog output module designed for the FIO (Field network I/O) subsystem of the CENTUM VP and CS 3000 Distributed Control Systems. This module provides 16 channels of 4-20 mA current output, enabling precise command control over field actuators, control valves, and positioners. A standout feature of the AAI543-S50 is its integrated HART communication capability, which allows the DCS to bi-directionally communicate with smart field devices. By capturing both primary process variables and secondary diagnostic data, this module serves as a cornerstone for advanced asset management and predictive maintenance strategies in modern industrial facilities.

Technical Characteristics

The AAI543-S50 is engineered for high-fidelity signal transmission and industrial safety:

Precision Signal Output and Control Each of the 16 channels delivers a highly accurate 4-20 mA signal with a standard accuracy of ±0.1%. This ensures that control valves and other modulating field equipment respond with deterministic precision to the controller's logic.

Integrated HART Digital Communication The module features a dedicated I/O image area that stores HART variables. Field Control Stations (FCS) can access this data using standard function blocks, making it simple for engineers to monitor device health, calibration status, and secondary sensor data without additional complex hardware.

Robust Channel Isolation To maintain system integrity, the AAI543-S50 incorporates full electrical isolation between channels and between the field-side and system-side circuitry. This protection prevents ground loops and electrical noise from propagating through the network, which is critical in large-scale industrial architectures.

Safety and Environmental Resilience Designed for mission-critical applications, the module is SIL2 capable and carries global hazardous area certifications, including ATEX and IECEx. It is rated for an extended operating temperature range of -20°C to +70°C, ensuring stable performance in extreme process environments.

Online Maintenance and Reliability The hot-swappable architecture allows for the replacement of modules without process interruption when used in redundant configurations. This capability significantly reduces mean time to repair (MTTR) and enhances overall plant availability.

Technical Specifications

• Brand: Yokogawa

• Model Number: AAI543-S50

• Product Type: Analog Output (AO) Module

• Number of Channels: 16 (Isolated)

• Output Signal: 4 to 20 mA DC

• Communication Protocol: HART (Digital Communication supported)

• Accuracy: ±0.1% of span

• System Compatibility: CENTUM VP / CS 3000 (FIO System)

• Operating Temperature: -20 to 70°C

• Weight: 0.32 kg

• Dimensions: 3.2 x 10.6 x 13 cm

• Origin: Japan

Application Areas

The Yokogawa AAI543-S50 is widely deployed in sectors requiring precise modulating control:

• Oil and Gas: Controlling pneumatic valve positioners in refining and transport.

• Chemical Processing: Managing flow control valves for reagent dosing.

• Power Generation: Actuating steam turbine governors and feed water regulators.

• Pulp and Paper: Precise modulation of consistency and pressure control loops.
