Product Overview

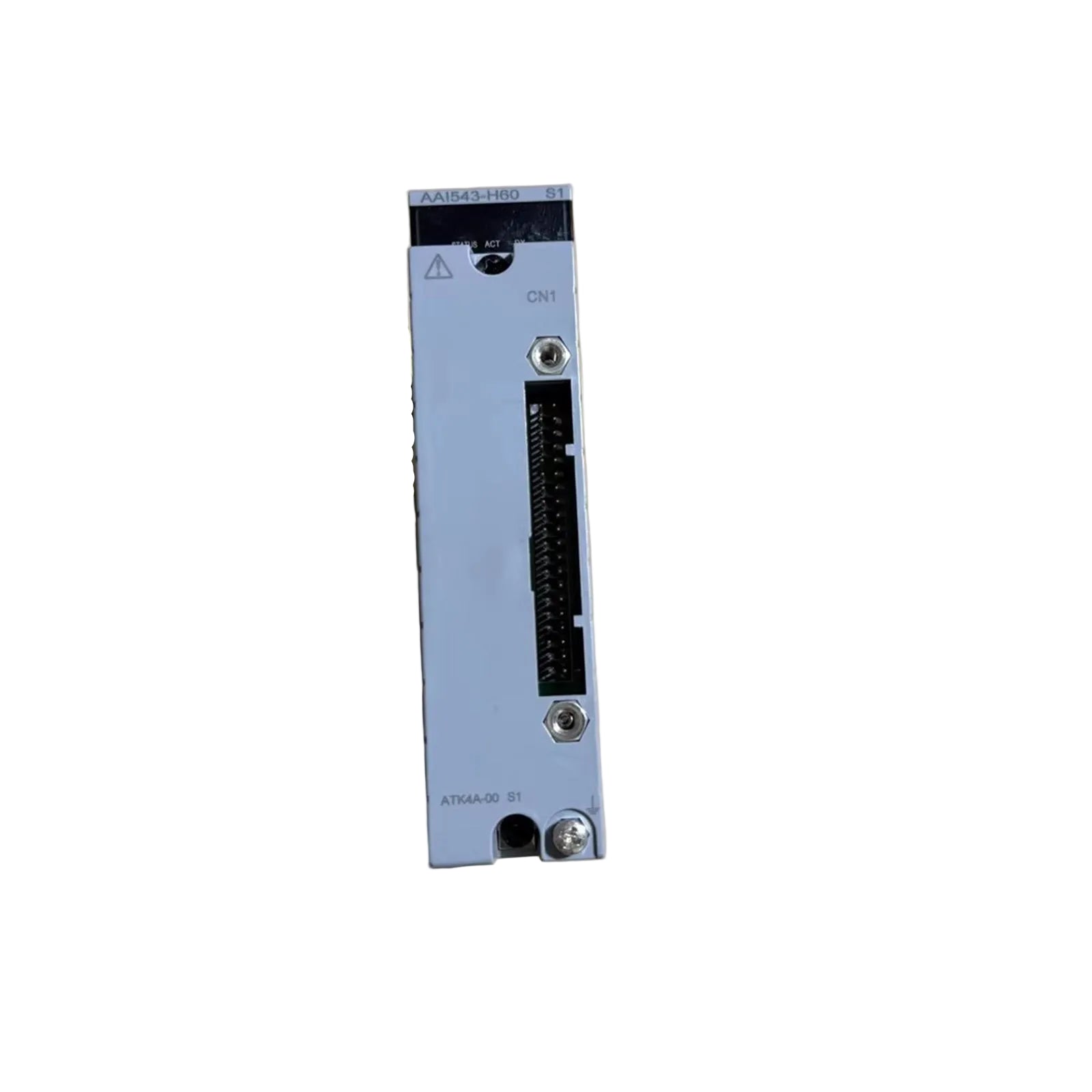

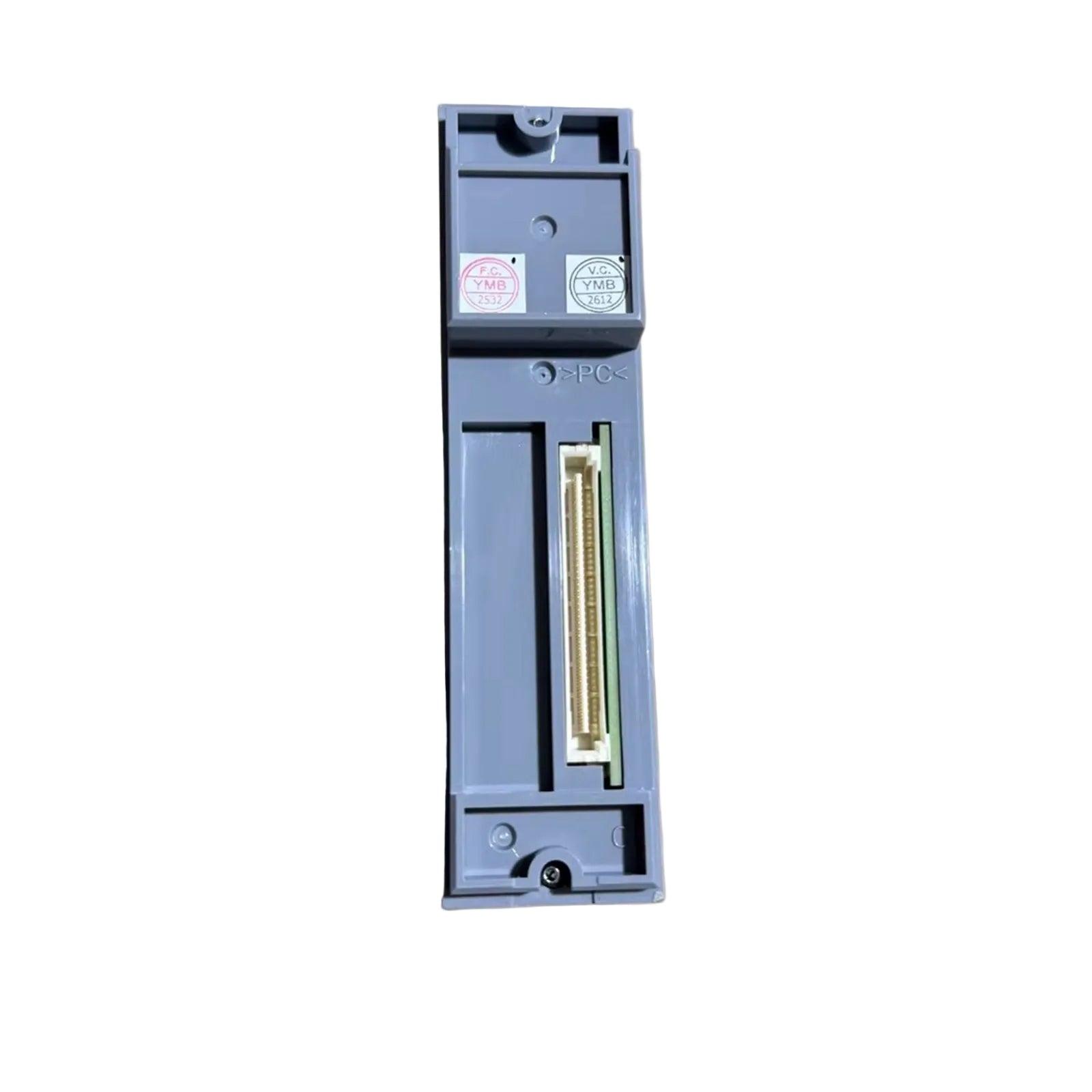

The Yokogawa AAI543-H60 is a high-density analog output module designed for the CENTUM VP and CS 3000 distributed control systems. This module serves as the critical link between the digital control logic and field-level actuators, converting internal processor commands into precise 4 to 20 mA signals. Engineered for high-availability environments, it supports dual-redundant configurations to ensure continuous process control. The AAI543-H60 is specifically designed for system integration via signal cables, providing a streamlined installation process for modern automation cabinets.

Critical Performance Attributes

The hardware profile of the AAI543-H60 is built to withstand rigorous industrial demands while maintaining signal integrity.

• Output Channels: 16 isolated channels

• Signal Range: 4 to 20 mA DC

• Allowable Load Resistance: 0 to 750 Ω

• Output Accuracy: ±0.1% of full scale

• Step Response Time: 40 ms (for 1% to 99% change)

• Withstanding Voltage: 1500 V AC between output and system

• Suffix Code H60: Includes signal cable interface adapter and no explosion protection

• Current Consumption: 450 mA maximum (at 5 V DC)

• Module Weight: 1.0 kg (1000g)

• Physical Dimensions: 130 mm x 45 mm x 130 mm

• Manufacturing Origin: Japan

Practical Engineering Applications

This module is deployed in complex industrial infrastructures where precise actuation and system reliability are mandatory.

• Valve Actuation: Precise modulation of control valves in chemical refineries to maintain specific pressure and flow setpoints.

• Variable Speed Drives: Providing speed reference signals to VFDs in water treatment and power generation facilities.

• Secondary Controller Integration: Interfacing with third-party PLC systems or specialized local controllers that require analog setpoint inputs.

• Boiler Control: Managing fuel and air ratios in burner management systems by controlling dampers and fuel supply valves.

FAQ

Q: Does the AAI543-H60 support HART communication pass-through?

A: Yes, this specific module is designed to support HART digital communication over the 4-20 mA analog signal, allowing for remote calibration and diagnostics of smart field devices.

Q: What is the benefit of the H60 suffix on this Yokogawa model?

A: The H60 suffix indicates that the module comes equipped with a dedicated signal cable interface adapter. This is ideal for installations using prefabricated cables, which reduces manual wiring time and minimizes potential connection errors.

Q: Can I use this module in a dual-redundant setup?

A: Absolutely. The AAI543-H60 is fully compatible with redundant configurations. When two modules are installed in paired slots, the system ensures bumpless failover to maintain the output signal if one module malfunctions.

Q: What happens to the output if the module loses communication with the processor?

A: The module can be configured to hold its last value or move to a predefined "safe" value (high or low) depending on the safety requirements of your specific control loop.

Q: Is this module suitable for installation in Class I, Div 2 areas?

A: No, the H60 designation is the standard type without explosion protection. For hazardous area installations, please consult the Yokogawa catalog for modules with the appropriate safety certifications and intrinsic safety barriers.
