Product Overview

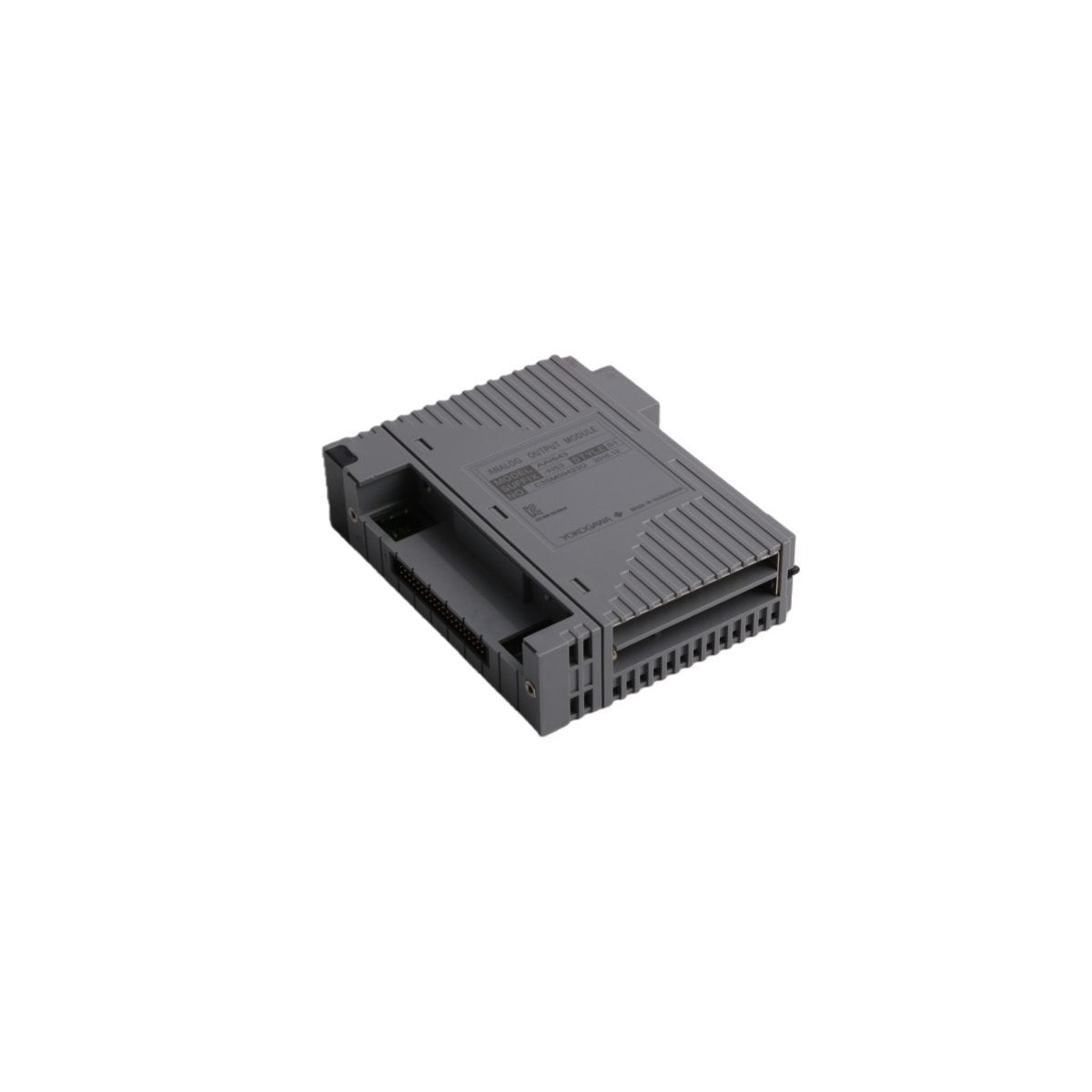

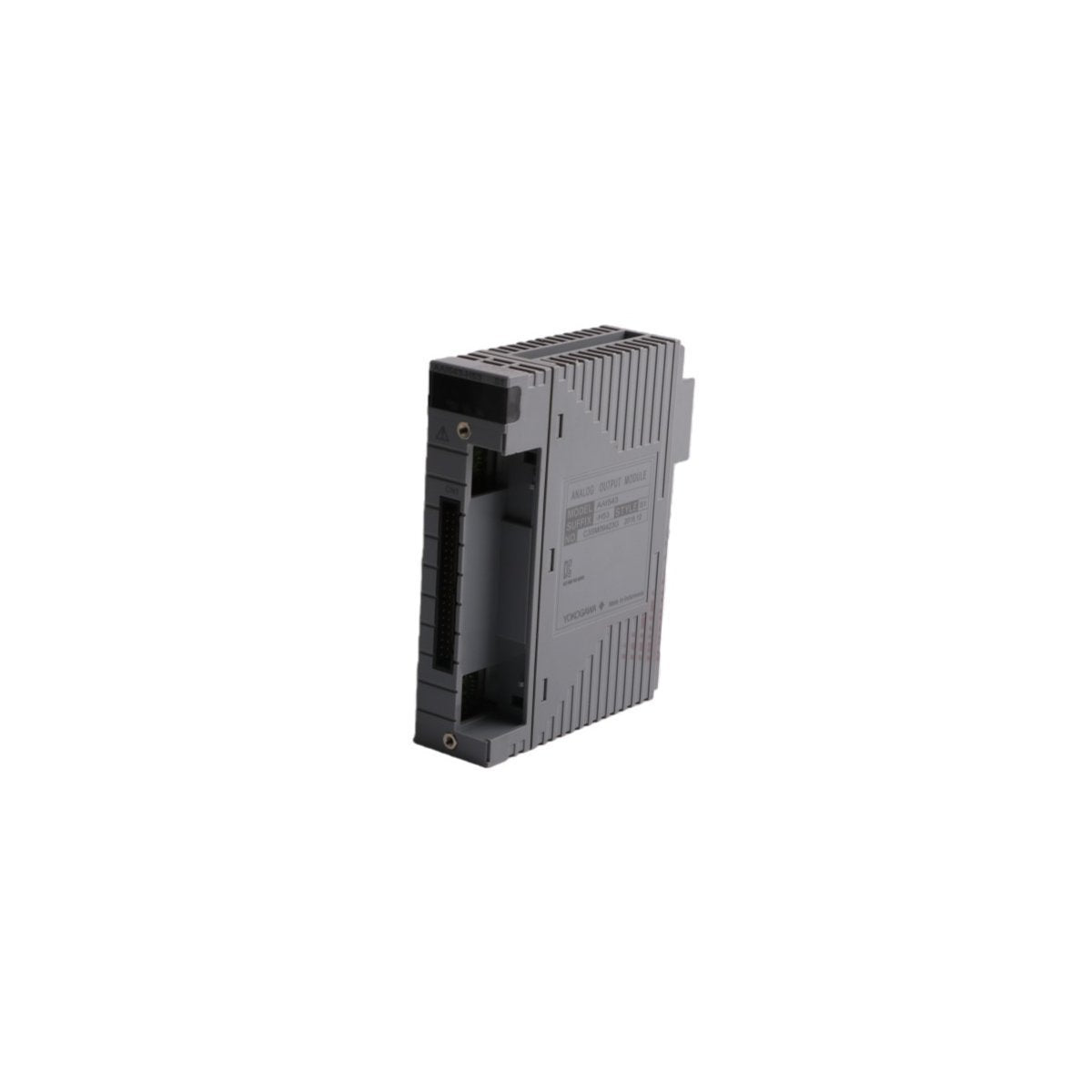

The Yokogawa AAI543-H53 is a high-density, 16-channel analog output module designed for use within the CENTUM VP and CENTUM CS 3000 Distributed Control Systems (DCS). This module serves as a critical interface for translating digital control logic into precise 4-20 mA current signals required to drive field actuators, valves, and positioners. Engineered for deterministic performance, it provides high-accuracy control loops essential for maintaining process stability in complex industrial environments. The module is built to withstand high levels of electrical noise while delivering real-time updates to final control elements.

Technical Characteristics

This module is distinguished by its precision engineering and robust diagnostic capabilities, ensuring maximum uptime for critical assets.

High-Speed Response and Precision The AAI543-H53 features a rapid data update cycle of just 10 ms, allowing for nearly instantaneous adjustments in dynamic processes. With an accuracy rating of ±48 µA and minimal thermal drift (±16 μA per 10°C), it maintains tight control tolerances even under fluctuating ambient temperatures in control rooms or field enclosures.

Electrical Protection and Isolation To ensure system integrity, the module provides 1500V AC galvanic isolation between the output circuits and the system ground. This prevents ground loops and protects the sensitive DCS backplane from field-side electrical surges. It supports a broad load resistance range from 0 to 750 Ω, providing compatibility with a wide variety of field instrumentation.

Advanced Fault Diagnostics The module includes integrated open-circuit detection. If the output current drops below 0.65 mA, the system immediately flags a fault, allowing maintenance teams to identify broken wires or failed actuators without manual loop testing. Furthermore, its hot-swappable architecture permits module replacement during active operation, eliminating the need for costly process shutdowns.

Technical Specifications

• Brand: Yokogawa

• Model Number: AAI543-H53

• Product Type: Analog Output (AO) Module

• Number of Channels: 16 (Isolated)

• Output Signal Range: 4 to 20 mA DC

• Update Period: 10 ms

• Accuracy: ±48 µA

• Isolation Voltage: 1500V AC

• Temperature Drift: ±16 μA / 10°C

• Load Resistance: 0 to 750 Ω

• Weight: 0.3 kg

• Dimensions: 3.3 x 10.7 x 13 cm

• Country of Origin: Japan

Application Areas

The Yokogawa AAI543-H53 is extensively utilized in sectors requiring high-reliability automation, including:

• Oil and Gas: Modulating control valves on separators and pipelines.

• Power Generation: Managing feedwater pumps and steam bypass systems.

• Chemical Processing: Regulating reactor feed rates and pressure control loops.

• Water Treatment: Controlling chemical dosing and variable frequency drives (VFDs).
