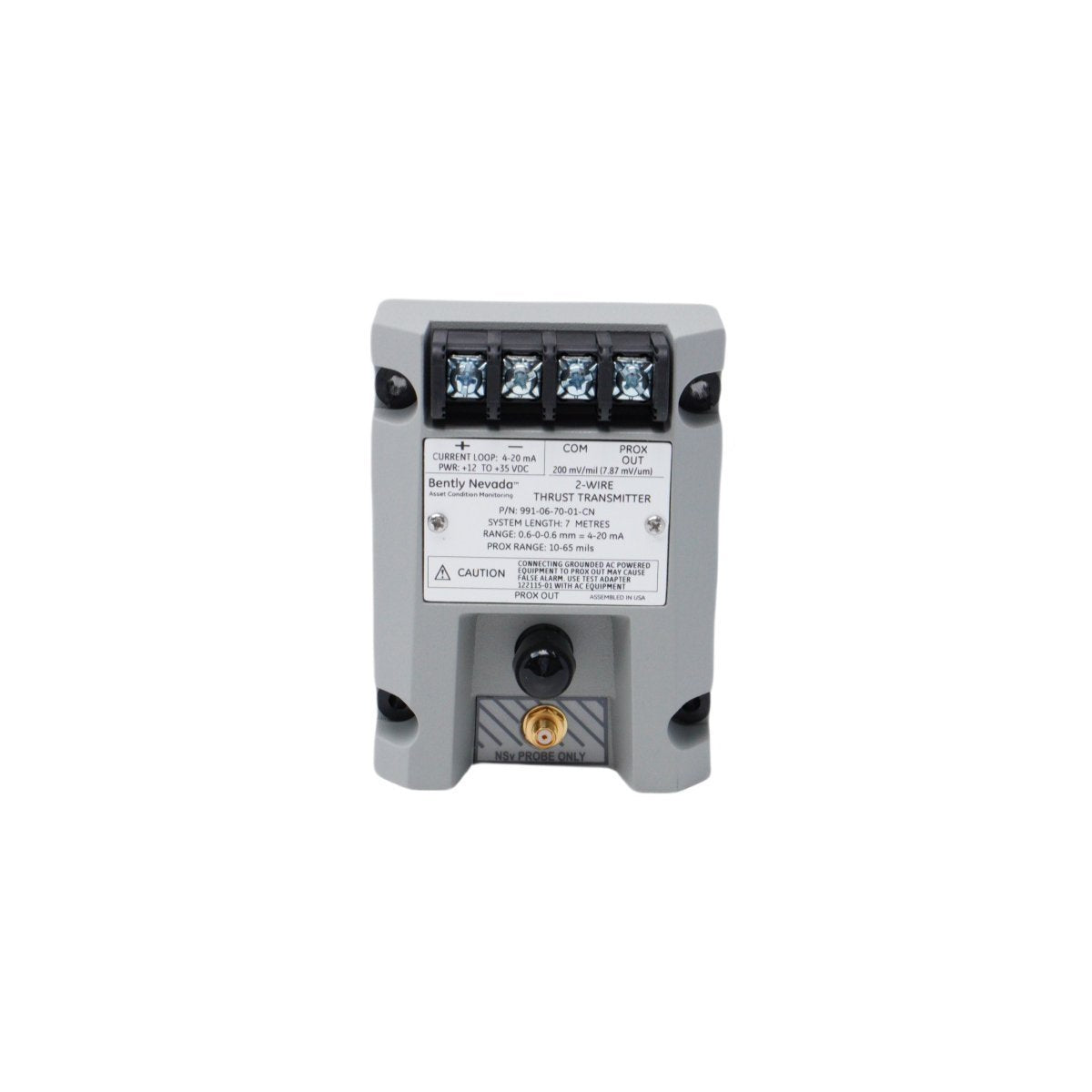

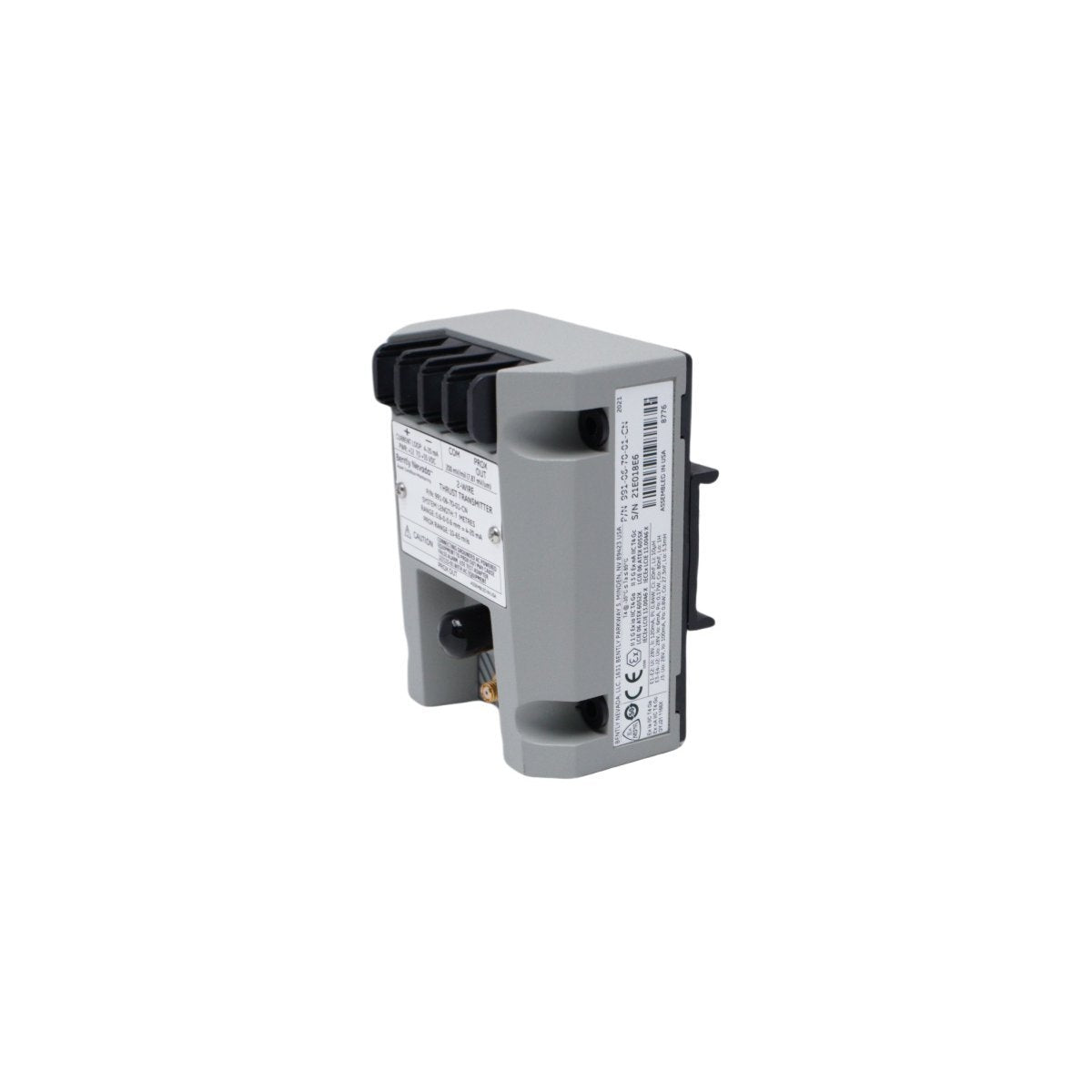

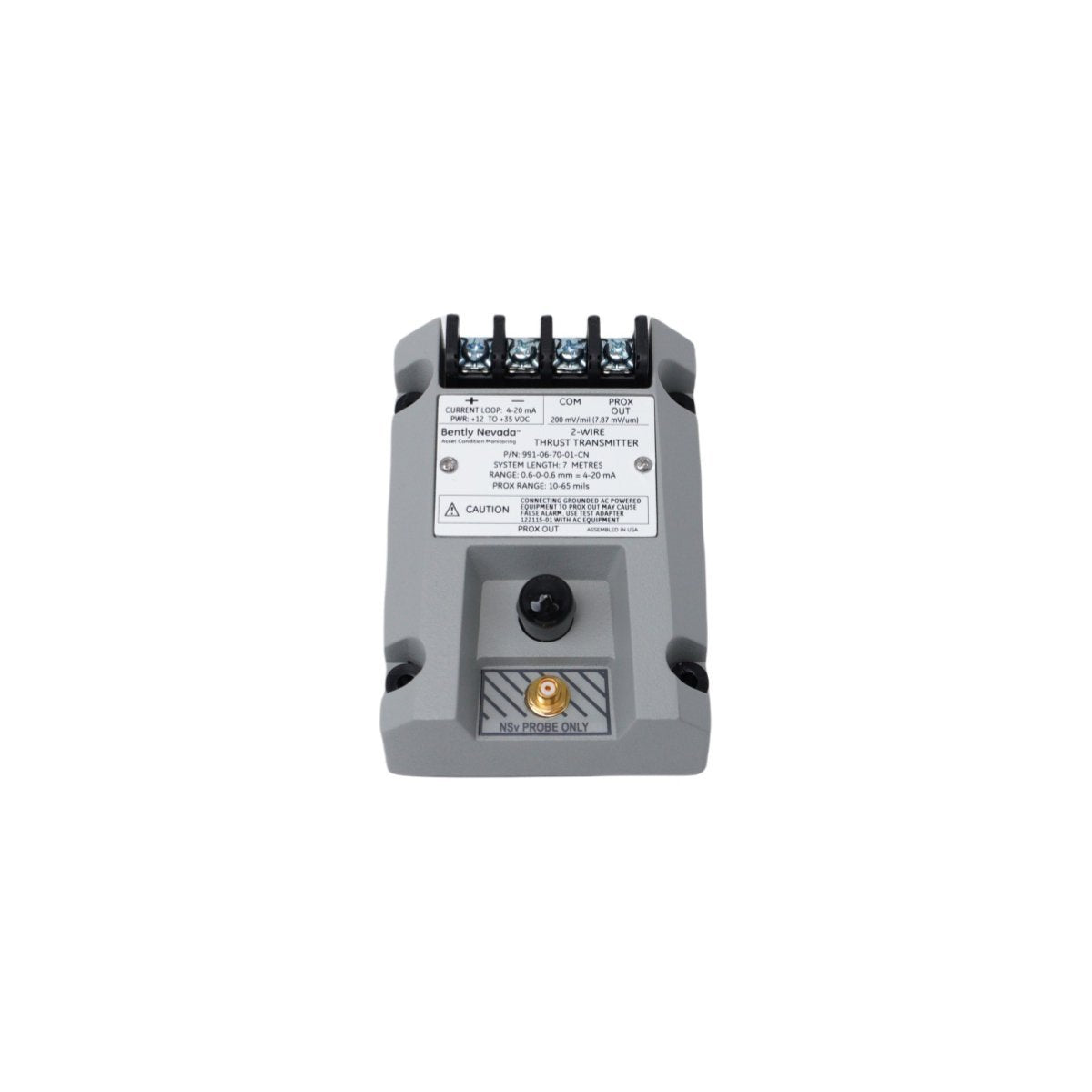

The Bently Nevada 991-06-70-02-01, also cataloged as the 991-06-70-02-01 Thrust Transmitter, operates as a dedicated hardware component for axial position signal conditioning within rotating machinery monitoring platforms.

Suffix Breakdown & Model Matrix

The part number 991-06-70-02-01 is decomposed according to the Bently Nevada 991 Thrust Transmitter configuration standard:

• 991: Base Model (Thrust Transmitter)

• 06: Full-Scale Range (0.0 to 1.5 mm / 0 to 60 mils)

• 70: Transducer System Compatibility (Standard 3300 XL 8 mm system)

• 02: Mounting Options (DIN-rail mounting)

• 01: Agency Approval (Multiple approvals, including CSA/NRTL/C and ATEX/IECEx options)

Note: This device provides a proportional 4-20 mA output signal based on the shaft axial displacement measured by the integrated eddy-current probe system.

Hardware Specifications

TSI Mechanical Monitoring Characteristics

The 991 transmitter utilizes eddy-current probe scaling to convert axial shaft displacement into a linearized 4-20 mA current loop. During system commissioning, gap voltage validation against -10 VDC targets at the transducer interface is required to ensure the axial probe is positioned within the linear operating range. Rotor dynamics monitoring is maintained by the transmitter's capability to track axial movement, with internal circuitry providing cross-talk suppression to ensure output stability in proximity to other vibration monitoring sensors.

Ordering Info

• One (1) 991-06-70-02-01 Thrust Transmitter

• Connector block/terminal kit

• Technical integration manual

Field Installation Guidelines

• Mounting: Secure the transmitter to a standard DIN-rail inside a protective housing; ensure adequate spacing for thermal dissipation.

• Wiring: Connect the 24 VDC power supply and the 4-20 mA current loop to the designated terminals; use shielded twisted-pair cabling for noise immunity.

• Grounding: Bond the transmitter common to the system instrument ground to maintain signal integrity.

• Calibration: Verify the transmitter zero and span settings correspond to the physical axial travel range of the monitored shaft.

• Signal Check: Use a calibrated current source to verify the 4-20 mA loop response before connecting to the final monitoring or control system.

Frequently Asked Questions

• Q: Does the 991 transmitter require an external oscillator?

  A: No, the 991 series transmitter integrates the necessary oscillator circuitry to power the probe and process the raw displacement signal directly.

• Q: How do I adjust the 4-20 mA output range?

  A: The output range is factory-set based on the part number suffix; field adjustment of the range requires specific calibration equipment and internal adjustment procedures.

• Q: Is this device compatible with standard 3300 XL probes?

  A: Yes, the 991 transmitter is compatible with 3300 XL 8 mm proximity probe systems as specified by the "70" option in the part number string.

• Q: Can the 991 transmitter be hot-swapped?

  A: While the transmitter can be replaced, ensure power is isolated before disconnecting wiring to prevent electrical faults or erroneous signals in the control loop.

• Q: How does the device handle loop failures?

  A: The transmitter is designed to drive the output current to a non-zero value (typically below 4 mA or above 20 mA) to indicate a fault condition depending on the configuration.

• Q: Can I use this for radial vibration monitoring?

  A: No, the 991 is specifically designed for axial thrust measurement; radial vibration monitoring requires dedicated vibration transmitter models.

• Q: What is the maximum distance for the 4-20 mA signal transmission?

  A: The transmission distance depends on the loop resistance and wire gauge; generally, distances up to 1000 meters are achievable with standard instrumentation cabling.

• Q: How do I perform a functional test of the unit?

  A: Simulate shaft movement by adjusting the gap at the probe or using a proximity probe calibrator and monitor the change in the 4-20 mA output current.
