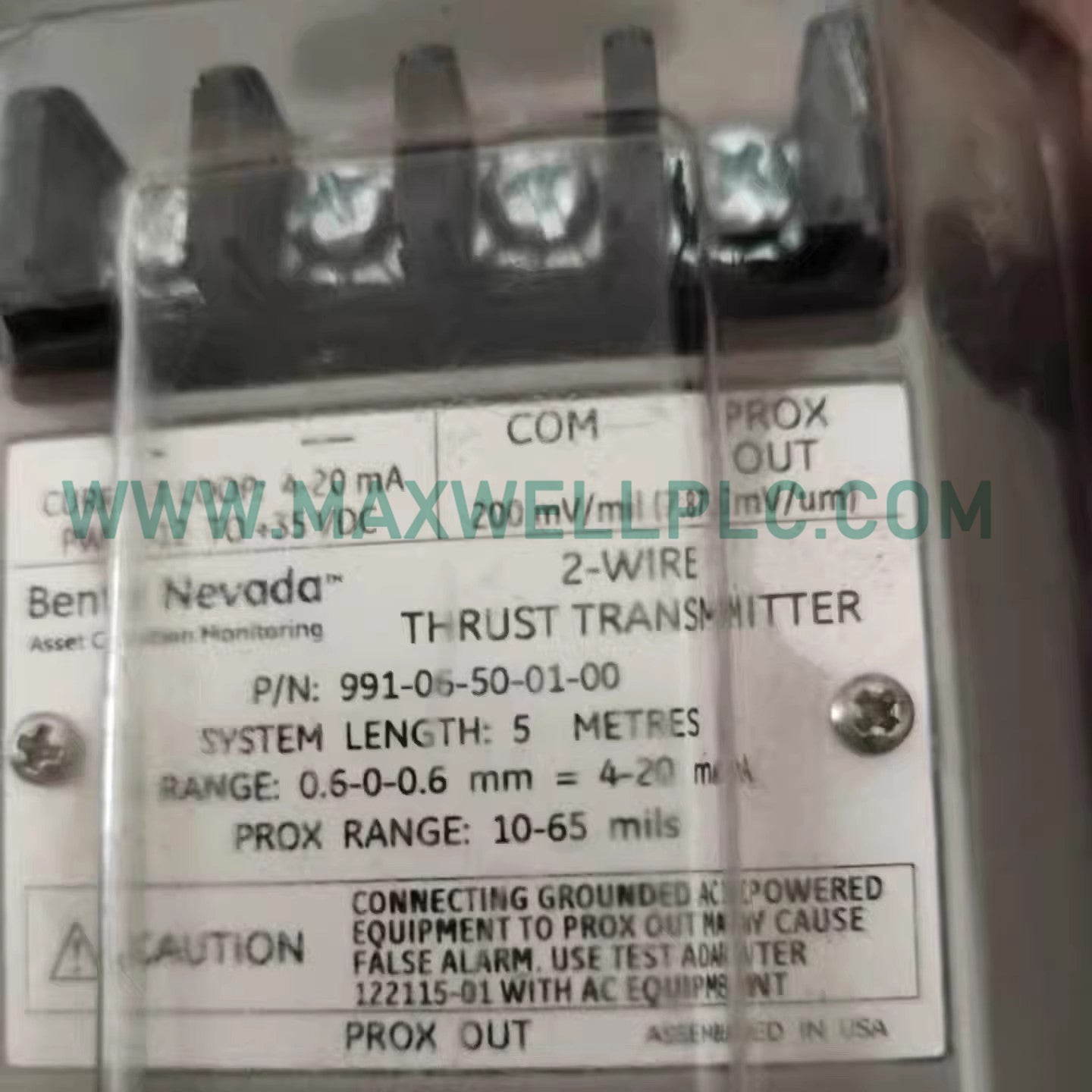

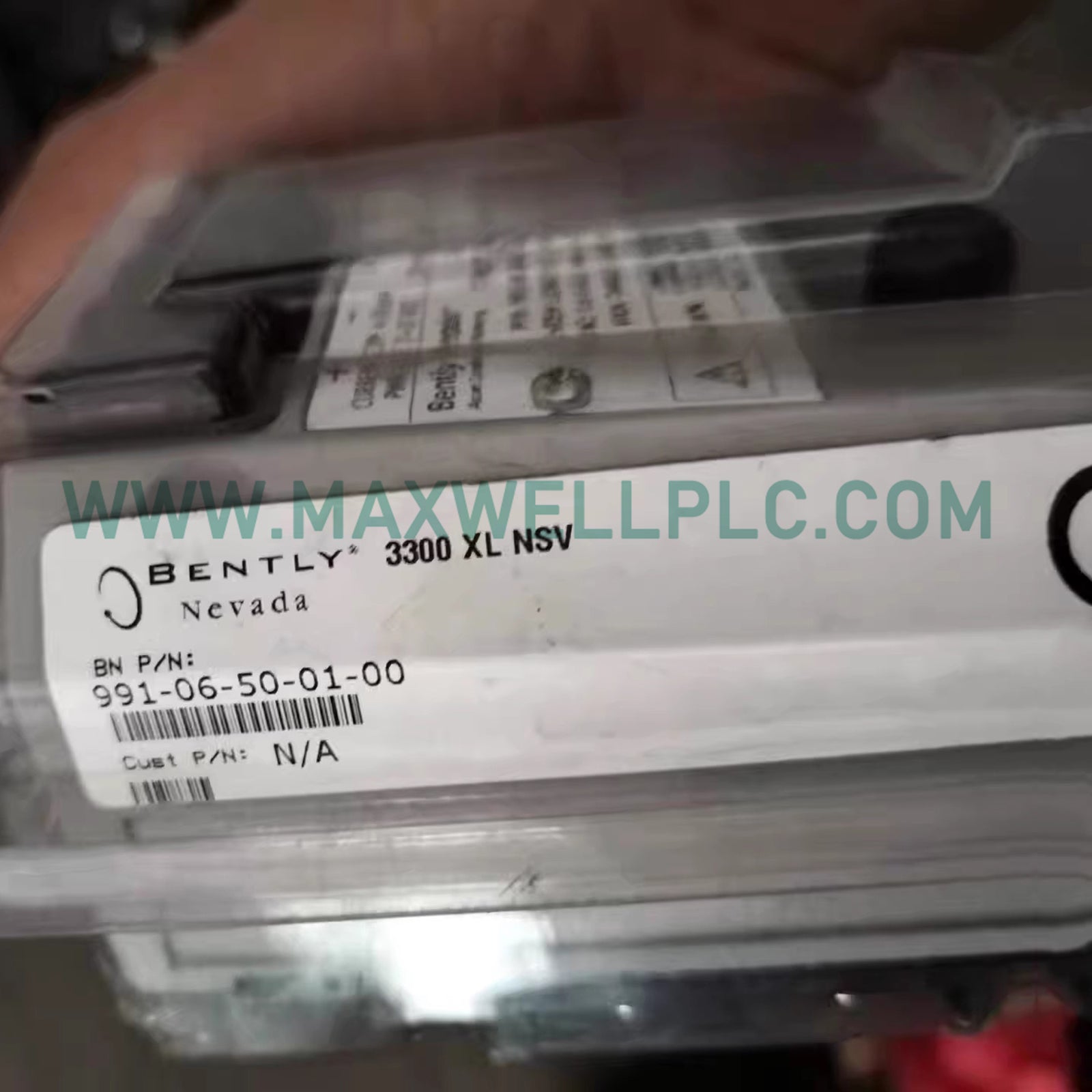

The Bently Nevada 991-06-50-01-01, also cataloged as the 991 Thrust Transmitter, operates as a dedicated hardware component for physical shaft axial displacement monitoring within machinery protection platforms.

Hardware Configurator Key

• 991: Thrust Transmitter build configuration

• 06: Reference calibration variant identifier

• 50: 5.0 meters (16.4 feet) total system cable length compatibility

• 01: 35 mm DIN rail clips included for mounting

• 01: CSA Division 2 hazardous area agency approval certification

Technical Parameters Matrix

Transducer System Calibration and Rotor Dynamics

The processing hardware converts eddy-current probe scaling metrics directly into an analog current loop configuration. Field technicians perform gap voltage validation (-10 VDC targets) at the coaxial input point to confirm the sensor element operates inside its specific linear zone. This conversion circuit layout provides immediate tracking of rotor dynamics, sending continuous thrust position logs while internal filters preserve cross-talk suppression parameters to prevent interference from adjacent proximity instrumentation.

Inventory Shipment Content

• 1 Bently Nevada 991-06-50-01-01 Thrust Transmitter

• 2 Factory Pre-installed 35 mm DIN Rail Mounting Clips

Physical Orientation and Termination Directives

Mounting Frame Layout

• Snap the transmitter frame base onto a standard symmetrical 35 mm DIN rail layout path inside the protective field cabinet.

• Ensure adjacent components do not obstruct ventilation slots to prevent localized heat accumulation within the enclosure.

Coaxial and Field Signal Wiring

• Screw the miniature coaxial terminal pin from the 5.0 meter extension cable directly to the dedicated sensor receptacle port.

• Route the loop-powered output cable through independent grounded metallic shielding lines to eliminate high-frequency noise insertion.

Technical Engineering FAQ

• What are the input supply parameters for loop excitation?

  The internal circuits require an external DC excitation potential spanning +12 to +35 VDC measured at the input pins.

• Is hot-swapping or live wire connection permitted on this transmitter?

  No, all loop power lines must be isolated before separating terminal strips to block electrical transients.

• What total loop impedance can the electronic stage support?

  The transmitter drives loop networks up to 1,000 ohms maximum when using a 35 VDC input source.

• What is the purpose of the 23 mA current limiting threshold?

  The current limiter prevents over-range loop saturations during sensor faults or extreme physical structural deflections.

• How is the hardware calibrated for field operation?

  The device maps eddy-current probe scaling input parameters to a fixed industrial standard 4-20 mA output span.

• Does this specific part code support hazardous location installations?

  Yes, the 01 approval suffix designates full certification criteria under CSA Division 2 standards.

• What mounting hardware configuration is supplied with this module?

  The product comes equipped with option 01 which provides factory-fitted 35 mm DIN rail clips.

• What are the specific weight and dimensions for logistical planning?

  The transmitter has a net mass of 0.44 kg and physical block measures 7.3 x 6 x 10 cm.
