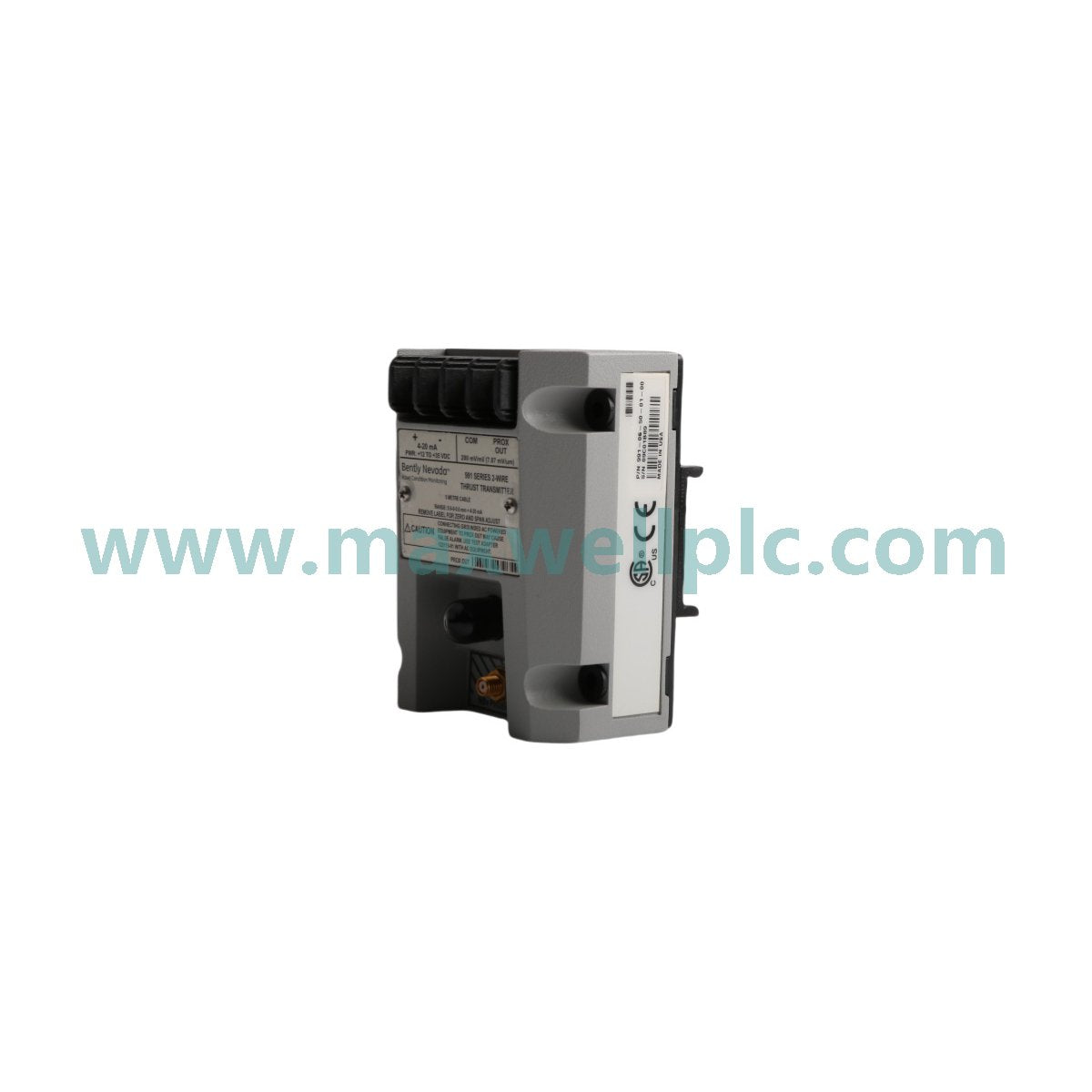

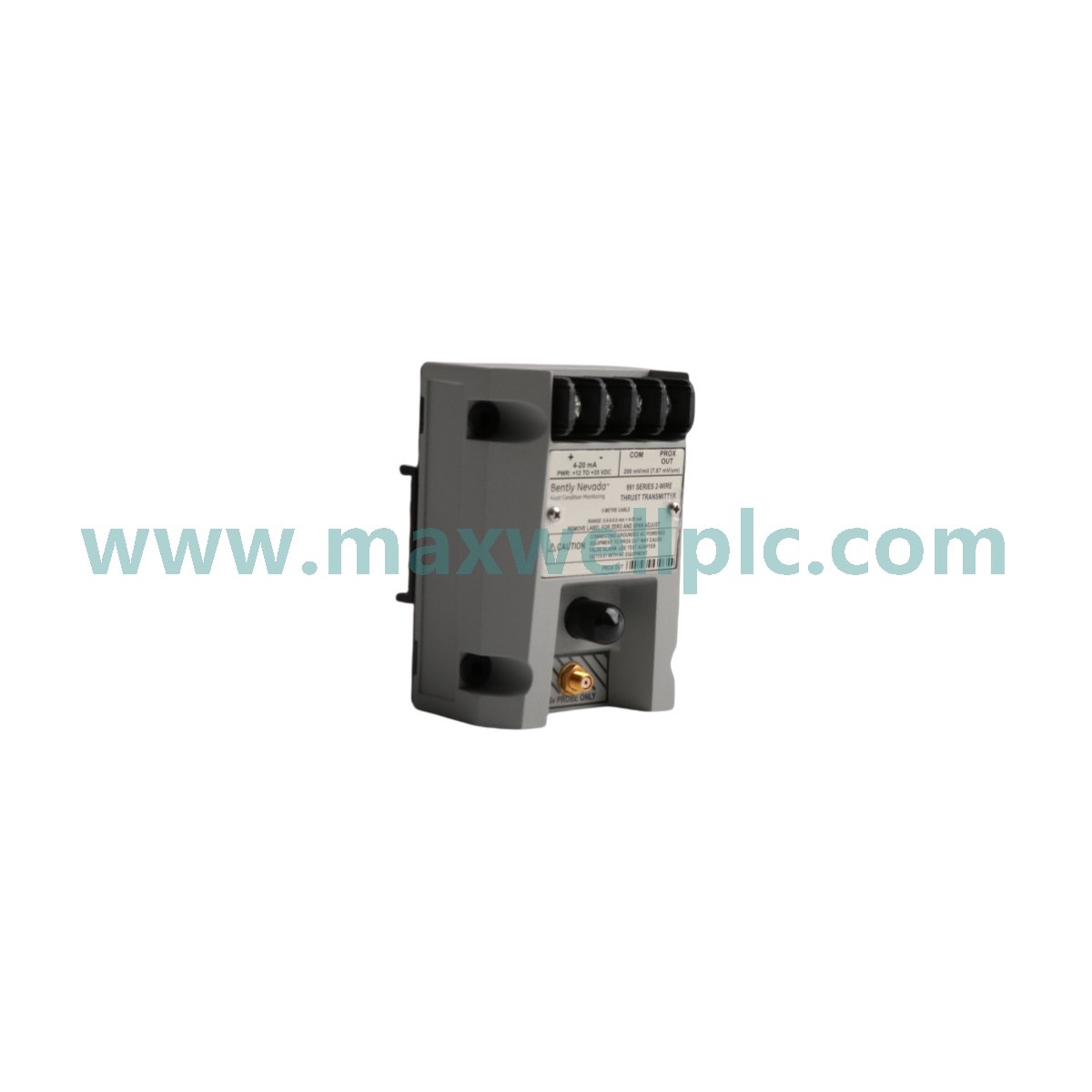

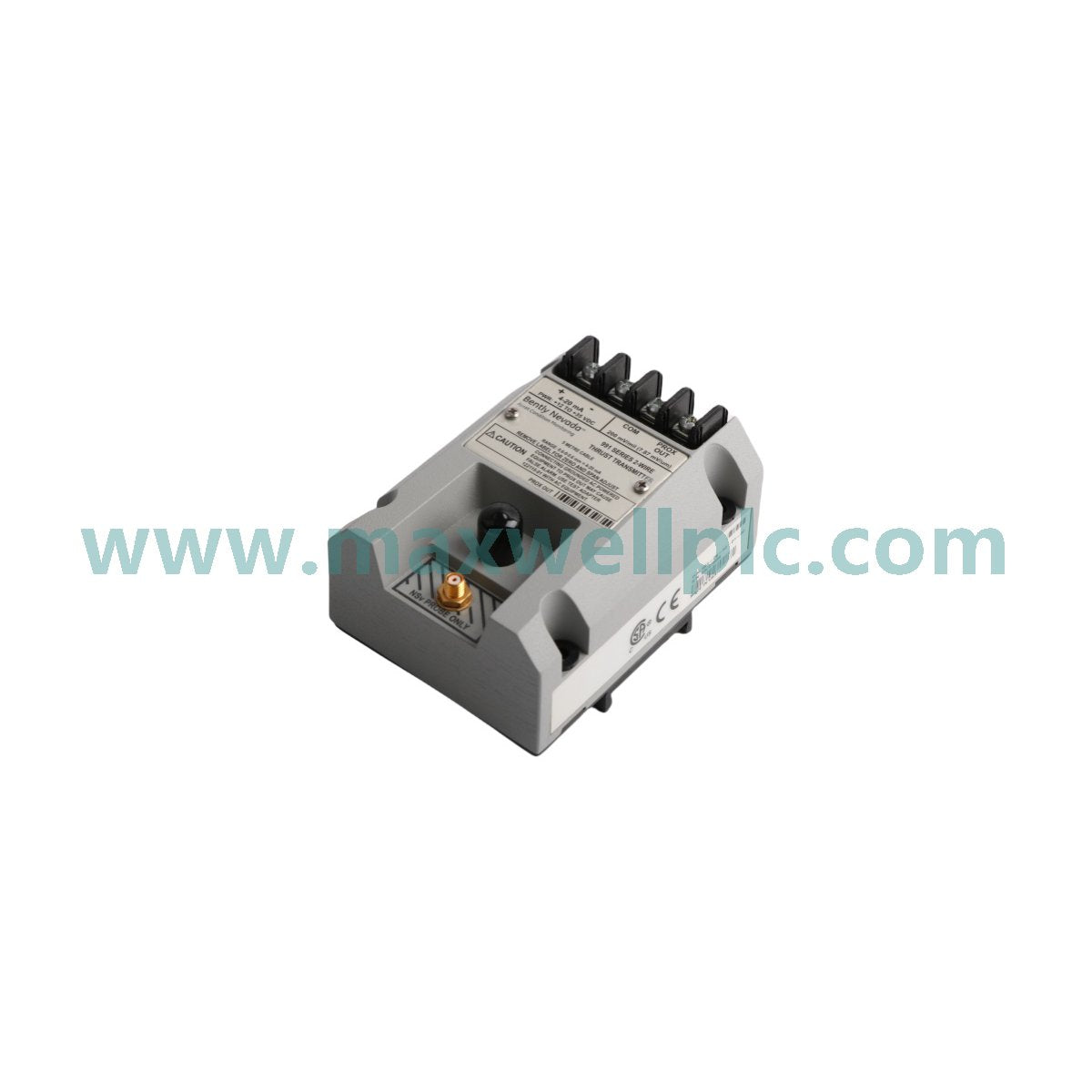

Configured for axial position measurement in rotating machinery, the Bently Nevada 991-06-50-01-00 (991-06-50-01-00 Thrust Transmitter) provides direct physical execution of transducer signal conditioning for integration into TSI monitoring platforms.

Suffix Breakdown

• 991: Base transmitter model.

• 06: Mounting thread and housing configuration.

• 50: Measurement range and sensitivity specification.

• 01-00: Communication protocol and agency approval options.

Hardware Specifications

Mechanical Monitoring & TSI Integration

The 991-06-50-01-00 transmitter utilizes eddy-current sensing to detect axial rotor displacement. Eddy-current probe scaling is factory-set to match the target material, ensuring linear voltage output relative to the axial gap. During setup, installers must perform gap voltage validation, targeting -10 VDC as the center point of the linear range to optimize measurement accuracy. The module incorporates internal signal filtering to provide cross-talk suppression, ensuring that measurements remain isolated from interference when multiple transducers are utilized for redundancy or thrust-balance monitoring.

Ordering Info

• One (1) 991-06-50-01-00 Thrust Transmitter.

• Integrated cable assembly.

• Installation documentation and mounting hardware kit.

Field Installation Guidelines

• Mounting: Utilize appropriate flange or threaded mounts to fix the transmitter housing; ensure the probe tip is positioned according to the required axial gap specification.

• Shielding: Route the communication and signal cabling away from high-voltage AC lines to prevent induced electrical noise in the Modbus signal path.

• Grounding: Connect the transmitter housing to the machine casing or a dedicated system ground to maintain a stable reference and protect against electromagnetic interference.

• Communication: Verify Modbus RTU register configuration via the host control system to ensure data polling matches the transmitter address and baud rate settings.

Frequently Asked Questions

• Is the transmitter hot-swappable? Field replacement is possible; however, ensure system power is managed according to facility safety protocols before disconnecting the Modbus or signal leads.

• How is the axial gap validated? Use a depth micrometer or shim gauge to set the physical gap; verify the output voltage correlates to the target specification provided in the documentation.

• Can the cable length be altered? No, the transmitter is calibrated for the specific cable length provided; altering the cable will introduce impedance errors in the sensor signal.

• What is the significance of the Modbus RTU protocol? It enables the transmitter to provide digital values directly to PLCs or DCS, facilitating real-time monitoring without additional A/D conversion modules.

• How are faults detected? The transmitter monitors the transducer signal health; "Not OK" status bits are transmitted via Modbus to indicate open or short circuit conditions.

• Is the probe tip replaceable? The probe tip is integrated; if the tip sustains physical damage, the entire transmitter unit typically requires replacement.

• Does it require external power for the sensor? The unit provides the necessary excitation voltage to the integrated probe; no external transducer supply is required.

• What mounting orientation is required? The transmitter should be mounted to monitor axial movement; ensure the probe is perpendicular to the target thrust collar surface.
