Product Overview

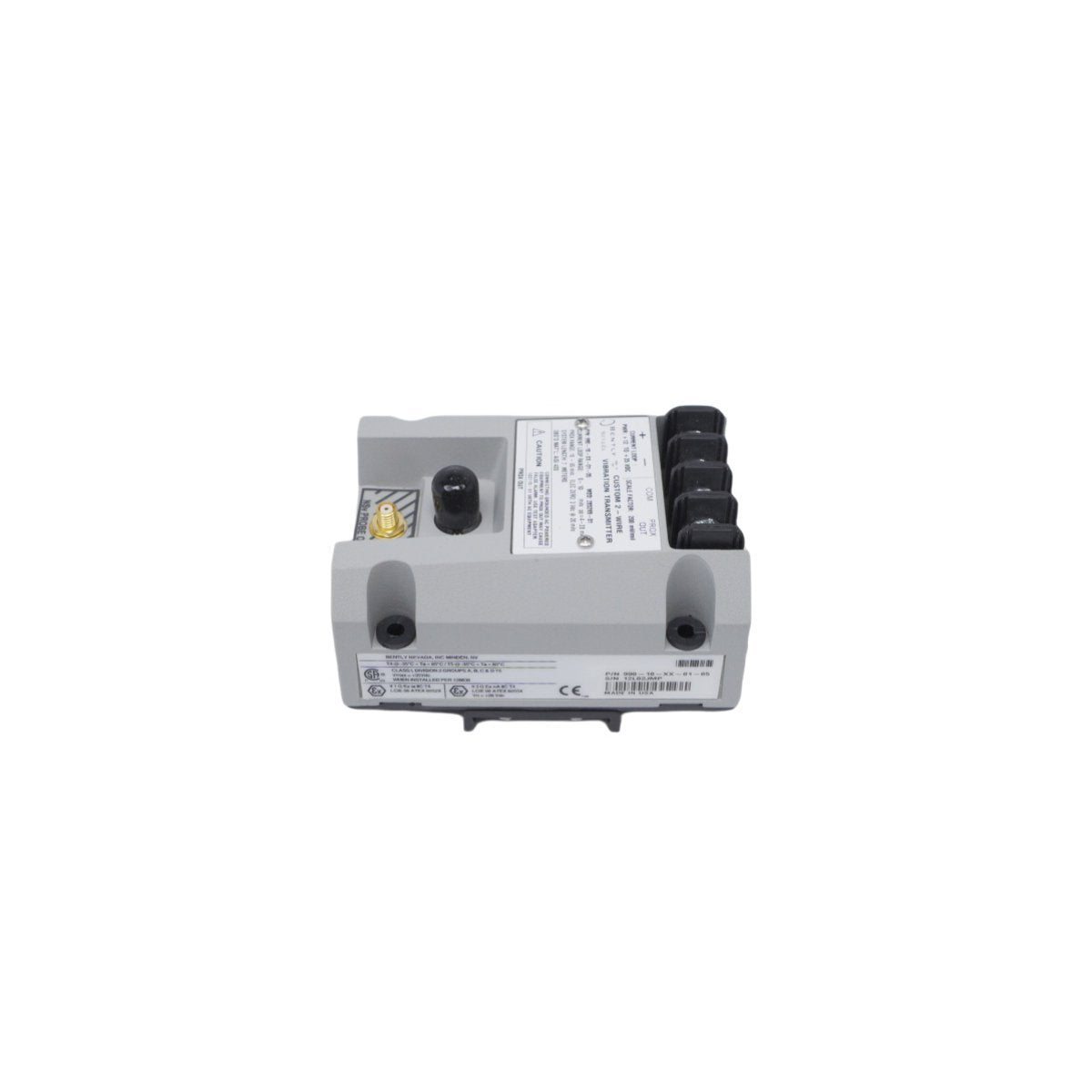

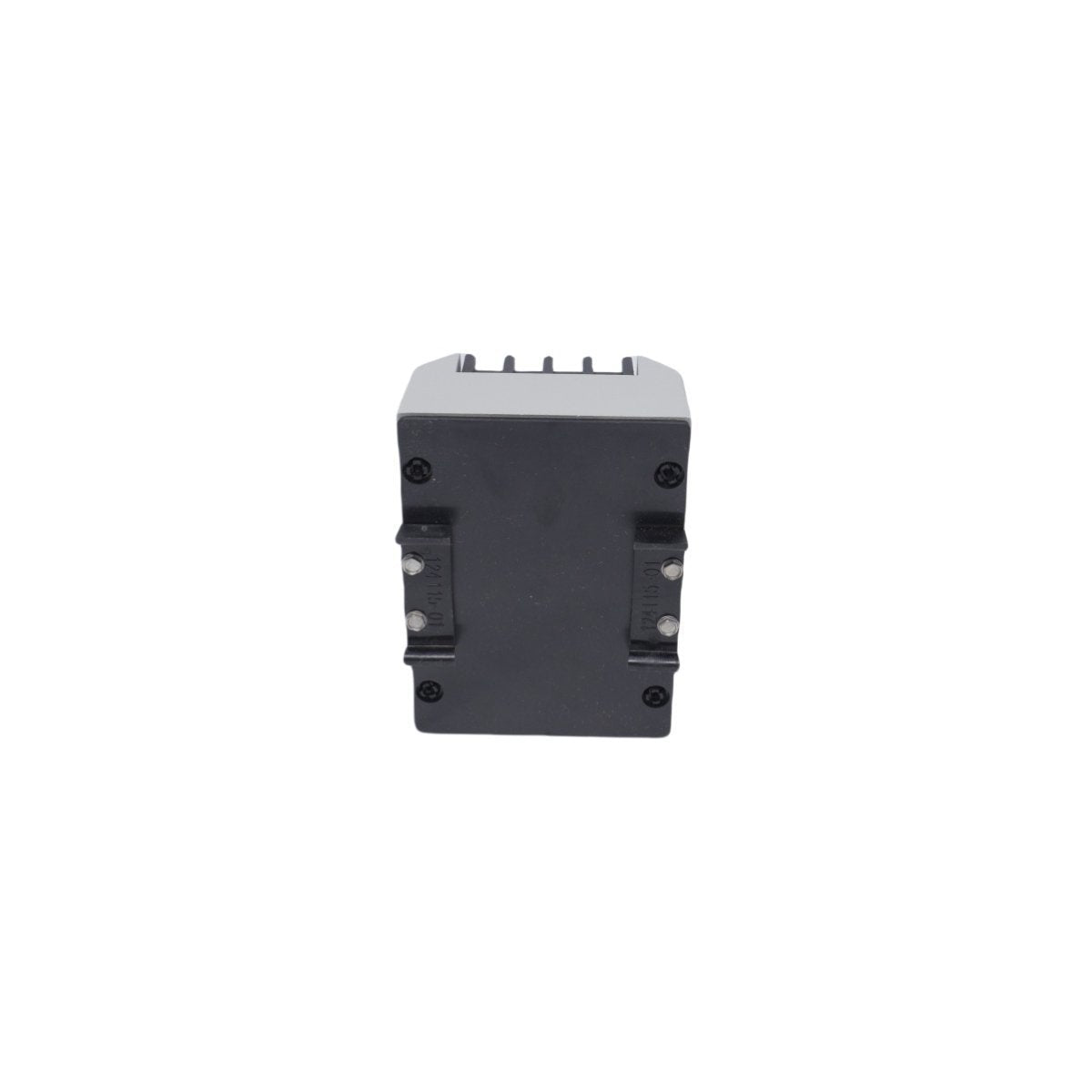

The Bently Nevada 990-10-XX-01-05 (including MOD:285269-01) is a high-precision 2-wire vibration transmitter designed to provide a direct 4-20 mA interface between a proximity probe and a control system. Unlike traditional rack-based monitoring systems, this device integrates the functions of a proximitor and a signal conditioner into a single, compact unit. It is engineered to provide continuous radial vibration or axial thrust position data to Programmable Logic Controllers (PLCs) or Distributed Control Systems (DCS) without the need for a separate monitor rack. This makes it an ideal solution for Balance of Plant (BoP) equipment where cost-effective yet reliable machinery protection is required.

Key Technical Characteristics and Hardware Parameters

The 990 transmitter is built to survive the extreme conditions of industrial machinery decks while maintaining signal linear integrity.

• Model Number 990-10-XX-01-05

• Modification Part MOD:285269-01

• Transducer Compatibility Designed for use with 3300 XL 8mm proximity probes

• Output Signal 4 to 20 mA DC (Proportional to vibration or position)

• Dynamic Signal Includes a "Prox Out" buffered BNC/terminal signal for dynamic waveform analysis

• System Wiring 2-wire loop-powered configuration

• Measurement Range Typically 0-5 mils (radial) or 10-0-10 mils (thrust), depending on specific XX configuration

• Operating Temperature -40°C to +100°C (-40°F to +212°F)

• Ingress Protection Designed for installation in IP67 or NEMA 4X rated enclosures

• Mounting DIN rail mount or bulkhead flange options

• Physical Weight 0.46 kg

• Unit Dimensions 10.0 x 7.3 x 6.0 cm

Industrial Applications and Operational Use Cases

The 990-10 transmitter is a preferred choice for assets that require protection but do not justify a full 3500 series rack installation.

• Centrifugal Pumps and Motors Providing continuous 4-20 mA vibration feedback to a PLC for automated alarms and machinery health trending.

• Cooling Tower Fans Monitoring vibration in remote cooling cells where long cable runs to a central rack would be impractical.

• Small Industrial Turbines Serving as the primary vibration interface for auxiliary power units and mechanical drive turbines.

• Hydroelectric Governors Measuring axial thrust position or shaft vibration in small-scale hydro-power generation.

• Integrated Condition Monitoring Utilizing the buffered dynamic output to connect portable data collectors for high-resolution FFT and spectral diagnostics without disconnecting the 4-20 mA loop.

By utilizing the 990-10-XX-01-05, industrial facilities can achieve API 670 compliant measurements at a lower per-point cost, effectively expanding their predictive maintenance coverage to include essential secondary assets.
