Product Overview

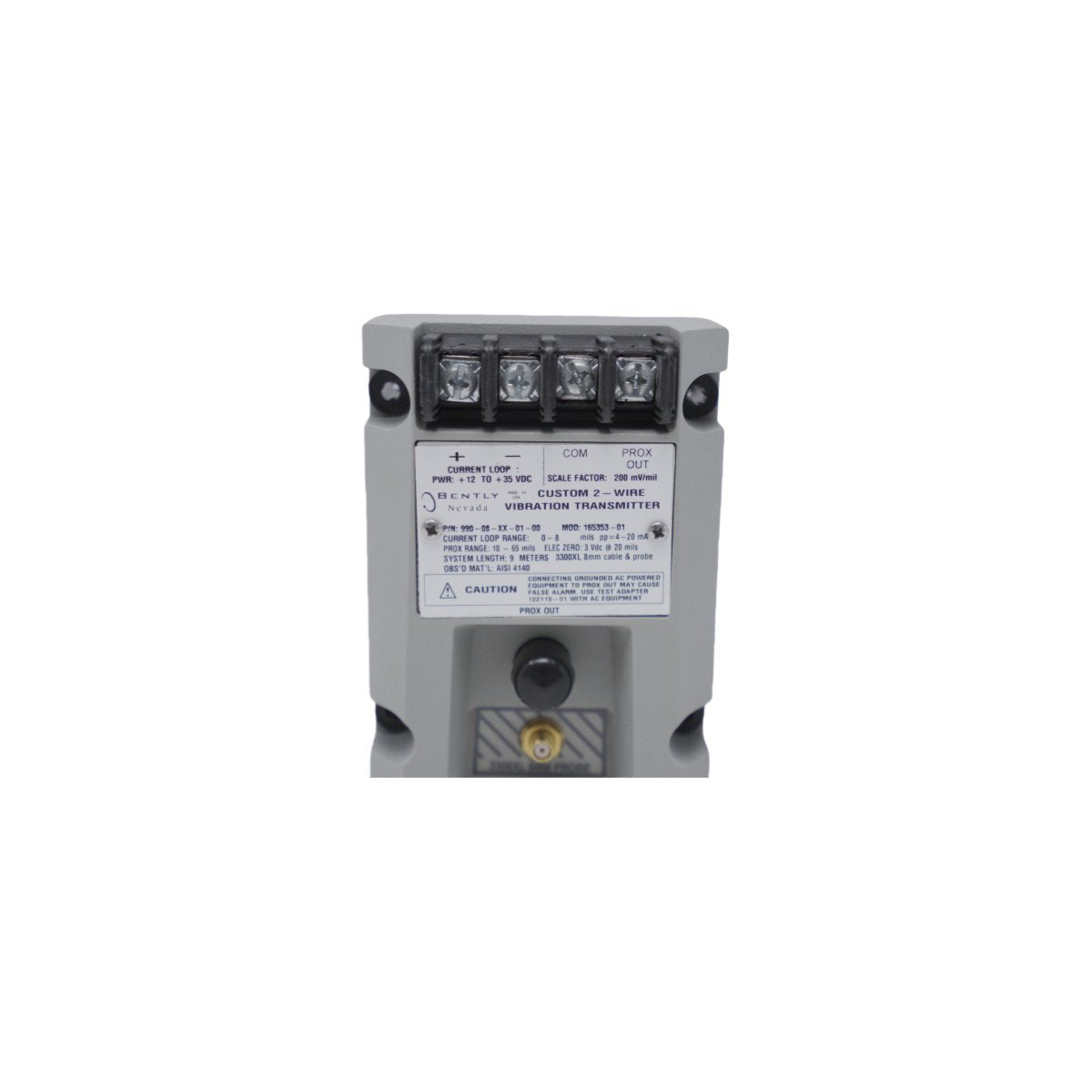

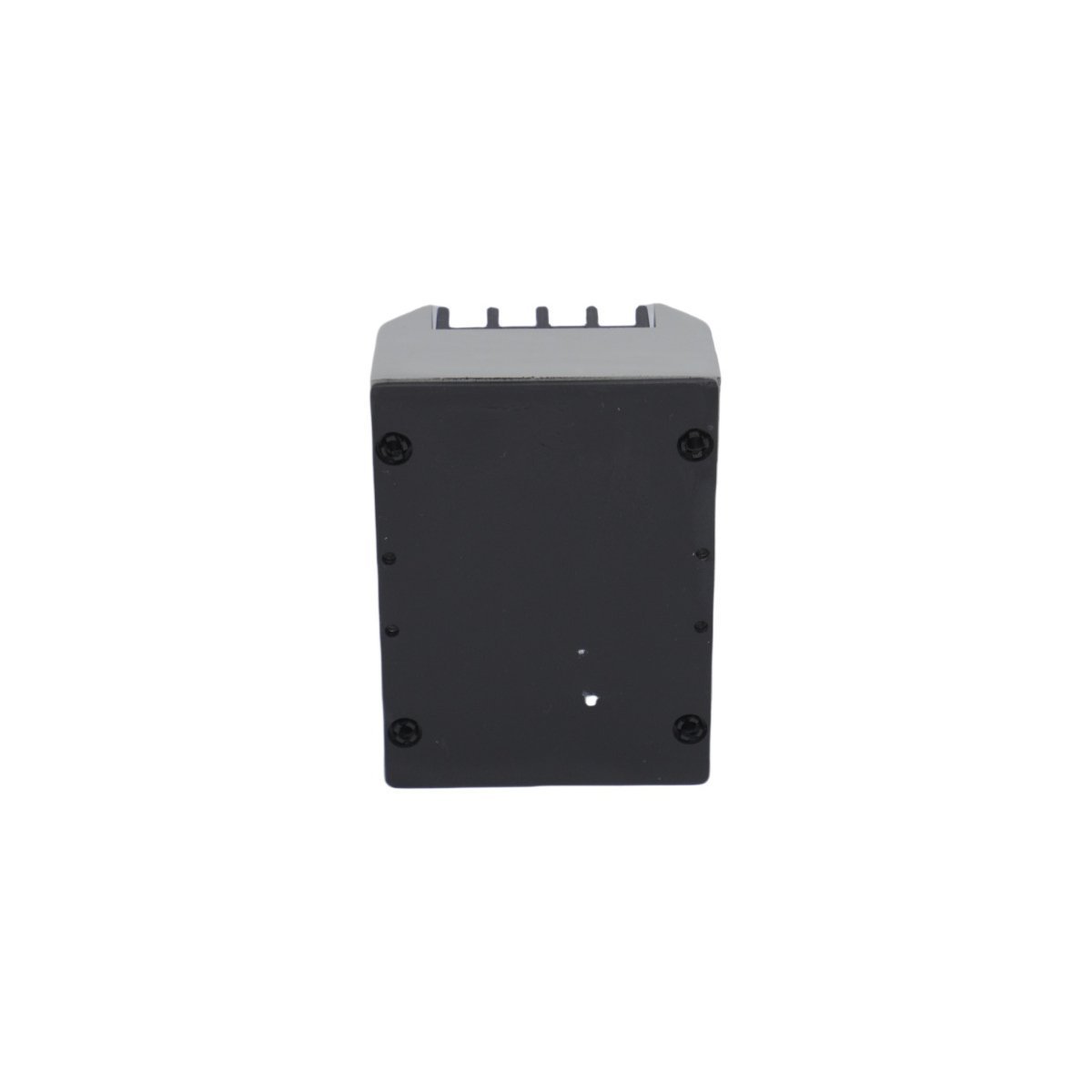

The Bently Nevada 990-08-XX-01-00 (including the MOD:165353-01 variant) is a high-performance, loop-powered vibration transmitter designed to provide essential machinery protection for centrifugal pumps, motors, and fans. This 2-wire device integrates the functionality of a proximity probe proximitor and a signal conditioner into a single, compact unit. It converts the displacement signal from a proximity transducer into a standard 4-20 mA DC output, allowing for direct communication with a Distributed Control System (DCS) or Programmable Logic Controller (PLC). This architecture eliminates the need for a dedicated monitoring rack, providing a cost-effective solution for Balance of Plant (BoP) equipment while maintaining the rigorous accuracy expected of Turbine Supervisory Instrumentation (TSI).

Key Technical Characteristics and Hardware Parameters

The 990 series is engineered to deliver reliable data even in high-interference industrial environments, featuring robust electrical isolation and a ruggedized housing.

• Model Identification 990-08-XX-01-00

• Modification Number MOD:165353-01

• Transducer Compatibility Calibrated for use with Bently Nevada 3300 XL 8mm proximity probes

• Output Signal 4 to 20 mA DC (Proportional to peak-to-peak vibration or thrust position)

• Dynamic Signal Output Includes a buffered "Prox Out" BNC/terminal connection for dynamic waveform analysis and FFT diagnostics

• Full-Scale Range Defined by the "XX" option (typically 0-5 mils or 0-10 mils radial vibration)

• Operating Temperature -35°C to +85°C (-31°F to +185°F)

• Protection Rating Designed for IP67/NEMA 4X environments when installed in a suitable enclosure

• Safety Approvals CSA/NRTL/C (Class I, Division 2) hazardous area certified (Option -01)

• Physical Weight 0.5 kg

• Unit Dimensions 9.8 x 7.3 x 5.8 cm

Operational Use Cases and Industrial Applications

The 990-08-XX-01-00 is a versatile transmitter used extensively where localized monitoring is preferred over rack-based systems.

• Centrifugal Pump Protection Continuous surveillance of radial vibration to detect early signs of cavitation, unbalance, or bearing degradation.

• Cooling Tower Fan Assemblies Monitoring vibration in remote locations where long-distance signal transmission to a PLC is required.

• Small Industrial Turbines Providing a reliable 4-20 mA interface for axial thrust position or radial displacement on auxiliary turbines.

• Large Electric Motors Tracking shaft-to-bearing clearances to ensure operational safety and prevent internal mechanical contact.

• Predictive Maintenance Integration Using the buffered dynamic signal to connect portable data collectors for high-resolution fault signature identification without disrupting the primary protection loop.

By utilizing the 990-08-XX-01-00 MOD:165353-01, facilities can implement a comprehensive asset management strategy that bridges the gap between traditional machinery protection and modern digital analytics.
