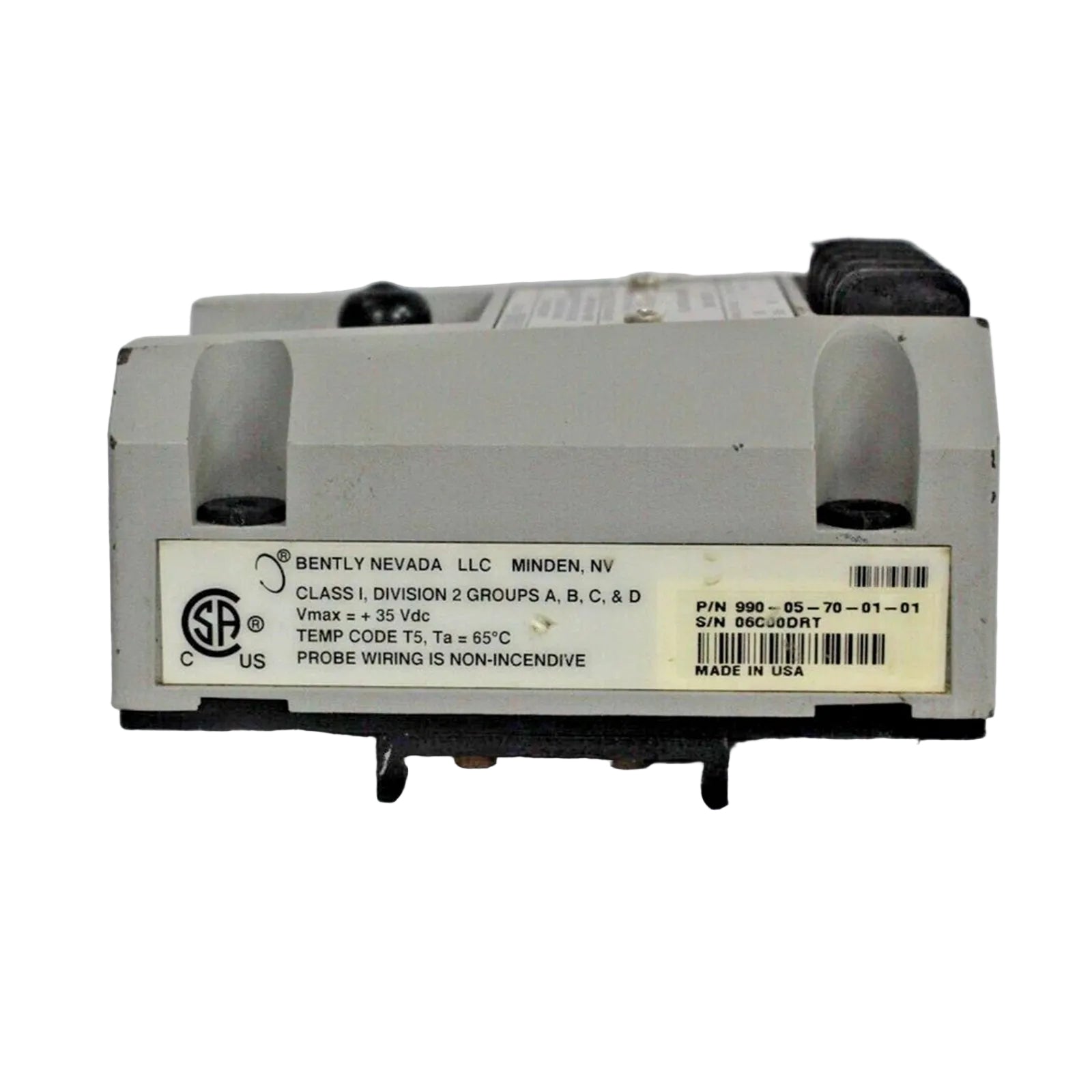

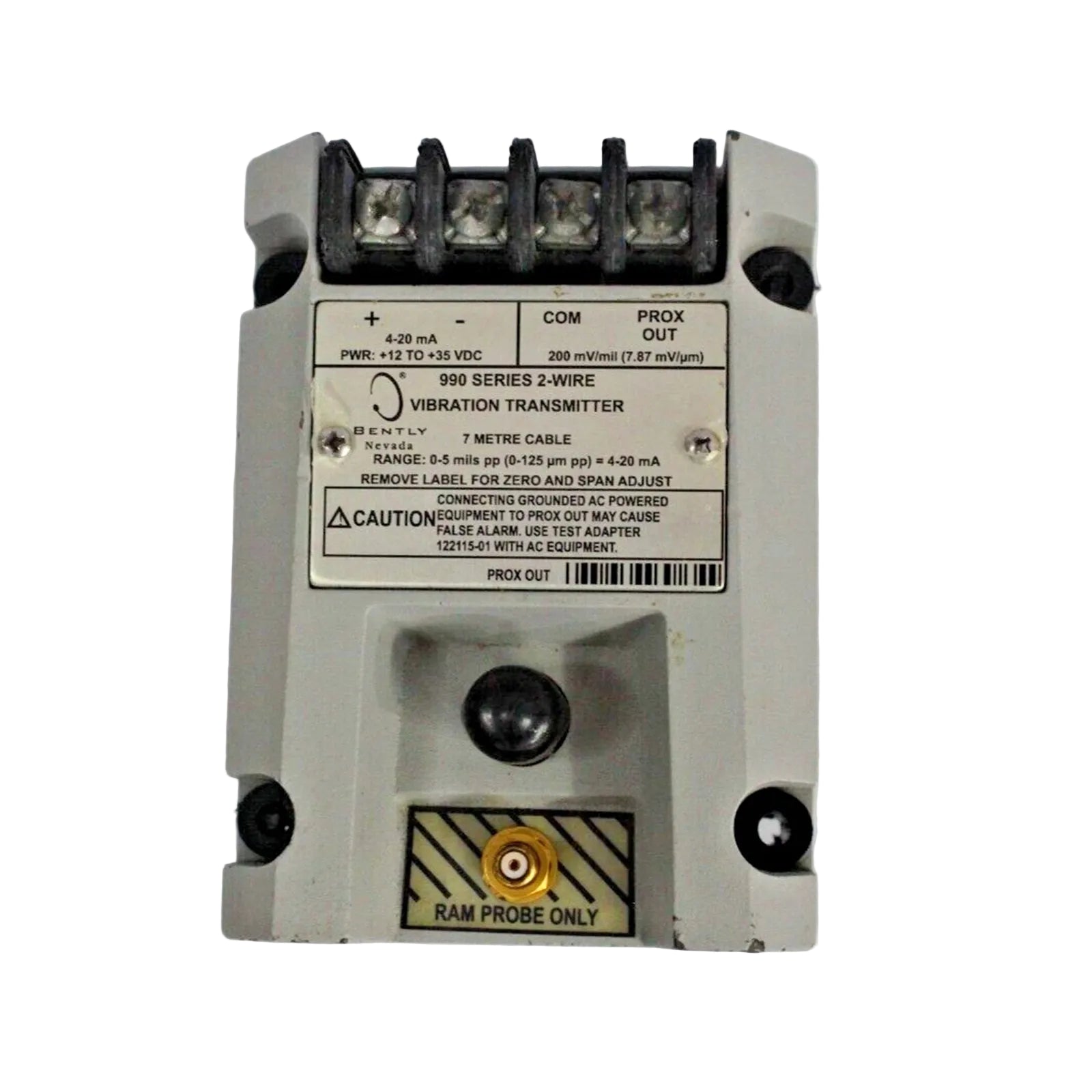

The Bently Nevada 990-05-70-01-01, also cataloged as the 990 Vibration Transmitter, operates as a dedicated hardware component for eddy-current proximity probe signal processing within Turbine Supervisory Instrumentation (TSI) networks. The device accepts input from a proximity transducer system and processes the physical shaft displacement into a proportional 4-20 mA current loop output for direct integration with PLC or DCS platforms.

Option Selection Profile

• Full Scale Range Option (05): 0-5 mils pp (0-125 um pp) peak-to-peak displacement.

• System Length Option (70): 7.0 meters (23.0 feet).

• Mounting Option (01): 35 mm DIN rail clips.

• Agency Approval Option (01): CSA Division 2 certification.

Component Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The transmitter contains integrated signal conditioning circuitry calibrated for eddy-current probe scaling matching a 7.0 meter proximity sensor system. It converts raw high-frequency RF signals into a normalized linear voltage curve before executing peak-to-peak detection for rotor dynamics analysis. Accurate gap voltage validation remains a prerequisite during field setup; the installer must verify that the underlying probe remains centered in its linear measurement band to prevent output saturation and maintain precision cross-talk suppression between adjacent orthogonal sensor axes.

Engineering Technical FAQ

Q: What is the behavior of the 4-20 mA loop output if the connected eddy-current probe cable short-circuits?

A: In the event of a transducer failure, such as a shorted or open cable, the transmitter activates internal current limiting. The loop current will typically drive to a fault-indicative level near 23 mA or drop below 3.6 mA, allowing the connected DCS or PLC to trip a transducer status alarm.

Q: Can a 5.0 meter proximity probe system be used directly with this 7.0 meter calibrated transmitter?

A: No. The internal oscillator circuitry is tuned strictly to a 7.0 meter total electrical length. Connecting a 5.0 meter probe system will corrupt the eddy-current probe scaling, resulting in significant measurement errors and invalidating the 4-20 mA loop scaling.

Q: How affects the loop supply voltage the maximum allowable loop resistance for the 4-20 mA circuit?

A: The maximum loop resistance is voltage dependent. At the upper limit of 35 VDC, the maximum loop resistance is 1000 ohms. At lower supply voltages, such as 24 VDC, the maximum allowable loop resistance decreases linearly according to Ohm's law constraints to maintain minimum operational voltage at the transmitter terminals.

Field Installation Guidelines

• DIN Rail Mounting: Clip the unit securely onto standard 35 mm DIN rails inside an enclosed, environmental-grade junction box to mitigate dust and moisture exposure.

• Terminal Wiring: Connect the loop power lines using twisted, shielded pair wiring. Terminate terminal connections securely to prevent intermittent current disruptions that register as false vibration spikes in the process control network.

• Shielding Termination: Ensure the proximity probe outer shield connects directly to the transmitter coaxial ground. Ground the 4-20 mA loop cable shield exclusively at the receiver side (DCS/PLC rack) to avoid establishing parasitic ground loops.

• Loop Resistance Verification: Measure the total resistance of the signal loop, including the safety barriers and field wire run, to confirm that the sum total stays below 1000 ohms when utilizing a 35 VDC loop source.

Package Inclusions and Kit Composition

• Standard Shipment Contents: One 990-05-70-01-01 vibration transmitter module fitted with factory-installed 35 mm DIN rail clips and terminal block interface.

• Exclusions: This hardware assembly does not ship with proximity probes, extension cables, or external power supplies; these components must be sourced independently.
