Product Overview

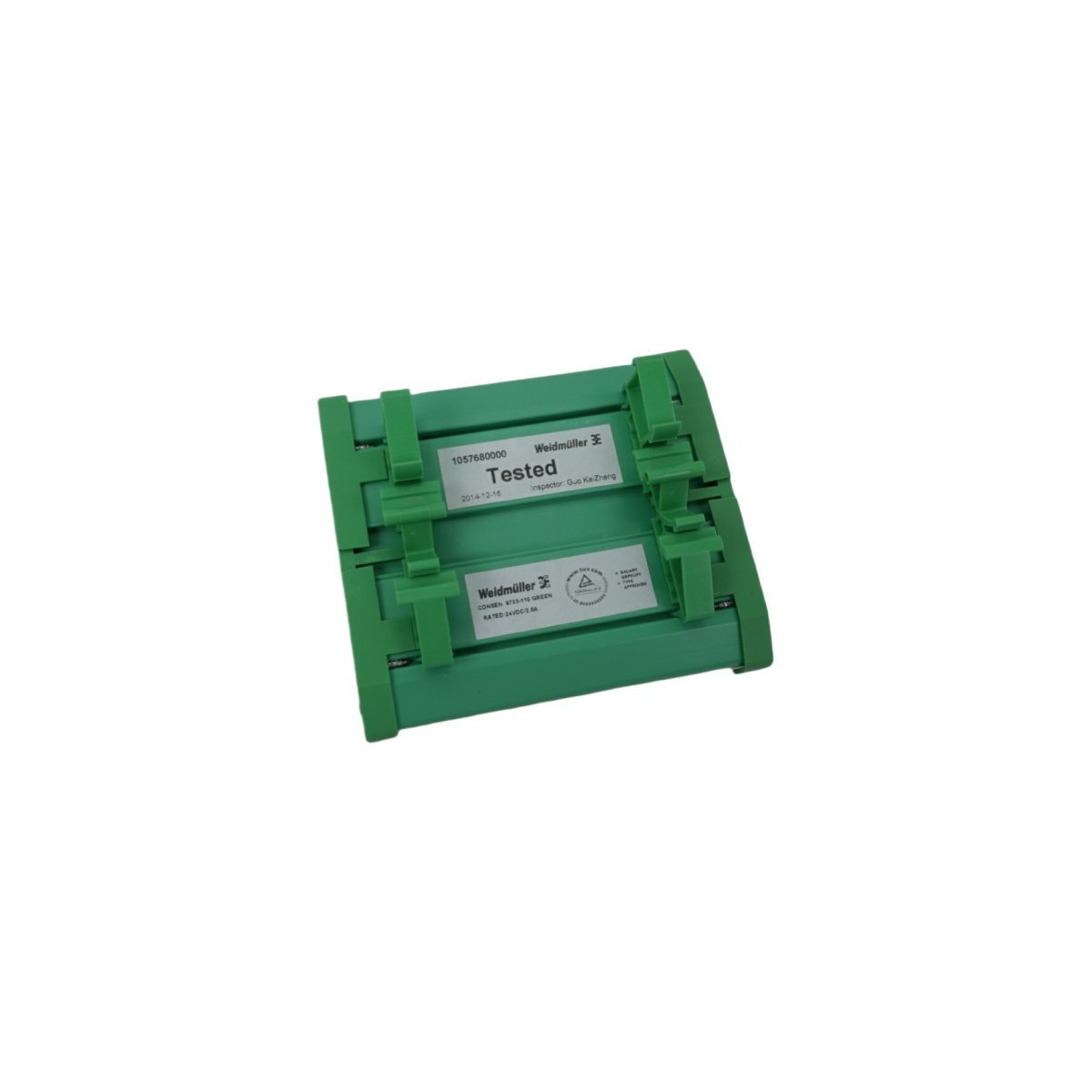

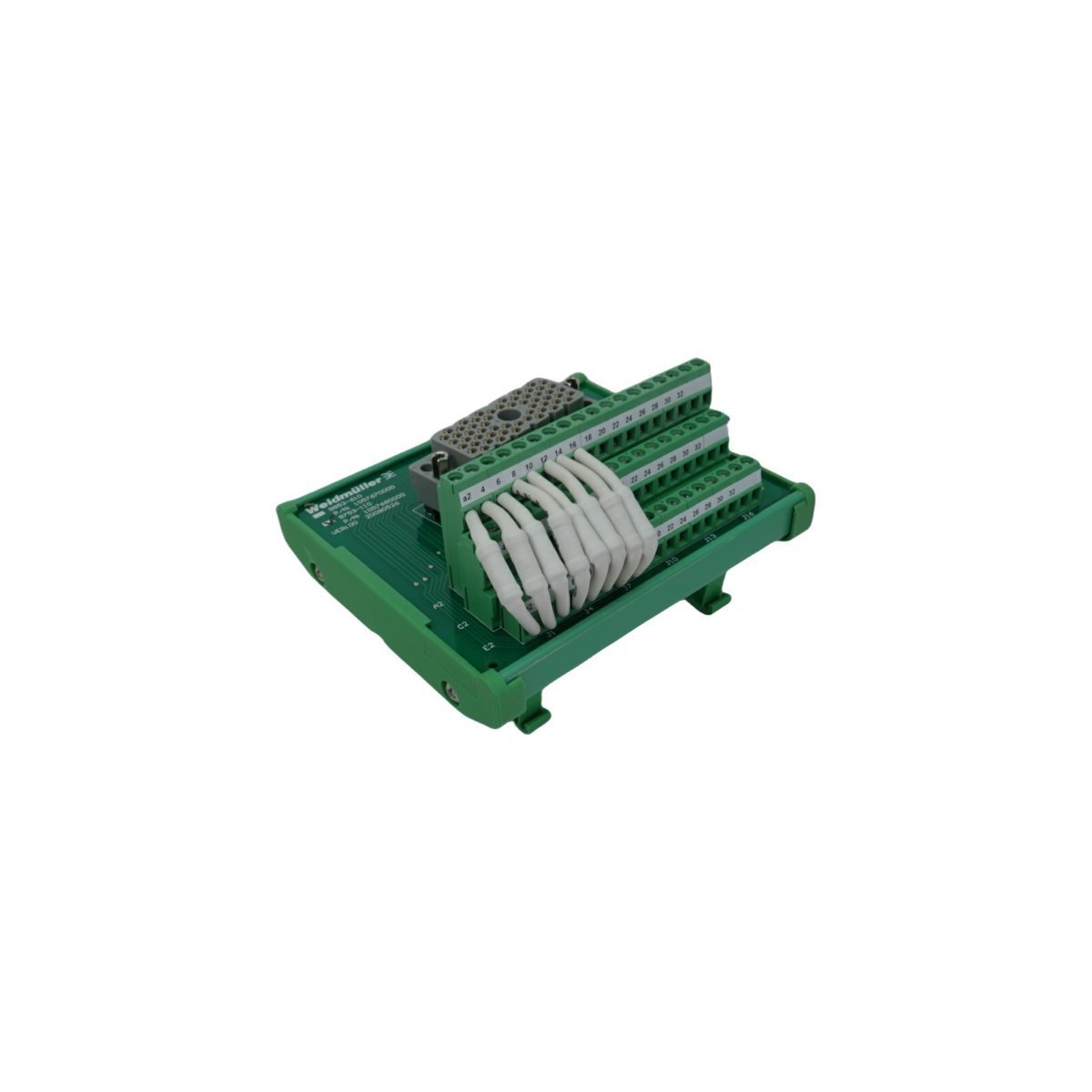

The Triconex 9753-110 is a high-performance External Termination Panel (ETP) specifically engineered for Tricon v9 and v10 Triple Modular Redundant (TMR) safety systems. This unit functions as a ruggedized bridge between field-mounted voltage sensors and the primary I/O modules of the safety controller. By centralizing field wiring connections, the 9753-110 simplifies installation and maintenance while maintaining high signal fidelity for critical process variables. Designed to meet the stringent requirements of Safety Instrumented Systems (SIS), this termination panel ensures that voltage signals—such as those from pulse tachometers or high-speed sensors—are transmitted with minimal loss and maximum electromagnetic interference (EMI) protection.

Essential Hardware Metrics and Physical Properties

The 9753-110 is built to withstand long-term deployment in unconditioned industrial environments, featuring a compact footprint without compromising electrical integrity.

• Chassis Construction: Fabricated from high-grade industrial steel for superior physical protection and longevity.

• Thermal Endurance: Engineered for stable operation across a broad temperature gradient from -40°C to +85°C.

• Signal Support: Optimized for voltage-based inputs and pulse signals, facilitating high-speed data acquisition.

• System Integration: Fully compatible with Tricon v9 through v10 backplane architectures.

• Reliability Profile: Features an industry-leading Mean Time Between Failures (MTBF) for reduced lifecycle costs.

• Mounting Design: Space-efficient layout optimized for high-density DIN rail or panel-mount cabinet installations.

Industrial Utility and Strategic Applications

This termination panel is a vital component in sectors where the integrity of voltage-based process data is essential for safety and uptime.

Emergency Shutdown (ESD) SystemsThe 9753-110 is frequently utilized in ESD loops within the oil and gas industry. It provides the landing points for critical voltage signals that trigger safety interlocks, ensuring that the system can respond to process excursions with deterministic accuracy.

Rotating Machinery ProtectionIn power generation and refining, this panel manages inputs from speed sensors and pulse-width modulation (PWM) transmitters. Its robust design allows it to handle the high-frequency signals associated with turbine overspeed protection and compressor monitoring.

High-Availability Chemical ProcessingFor chemical manufacturing facilities, the 9753-110 serves as a scalable interface for diverse sensor arrays. Its ability to operate in extreme humidity and temperature makes it ideal for remote instrument enclosures located near the process units.

System Retrofits and ExpansionsDue to its broad compatibility with Triconex I/O modules, the 9753-110 is a preferred choice for brownfield expansion projects. It allows for the clean integration of new voltage-based instrumentation into existing safety architectures without requiring a complete system overhaul.
