Product Overview

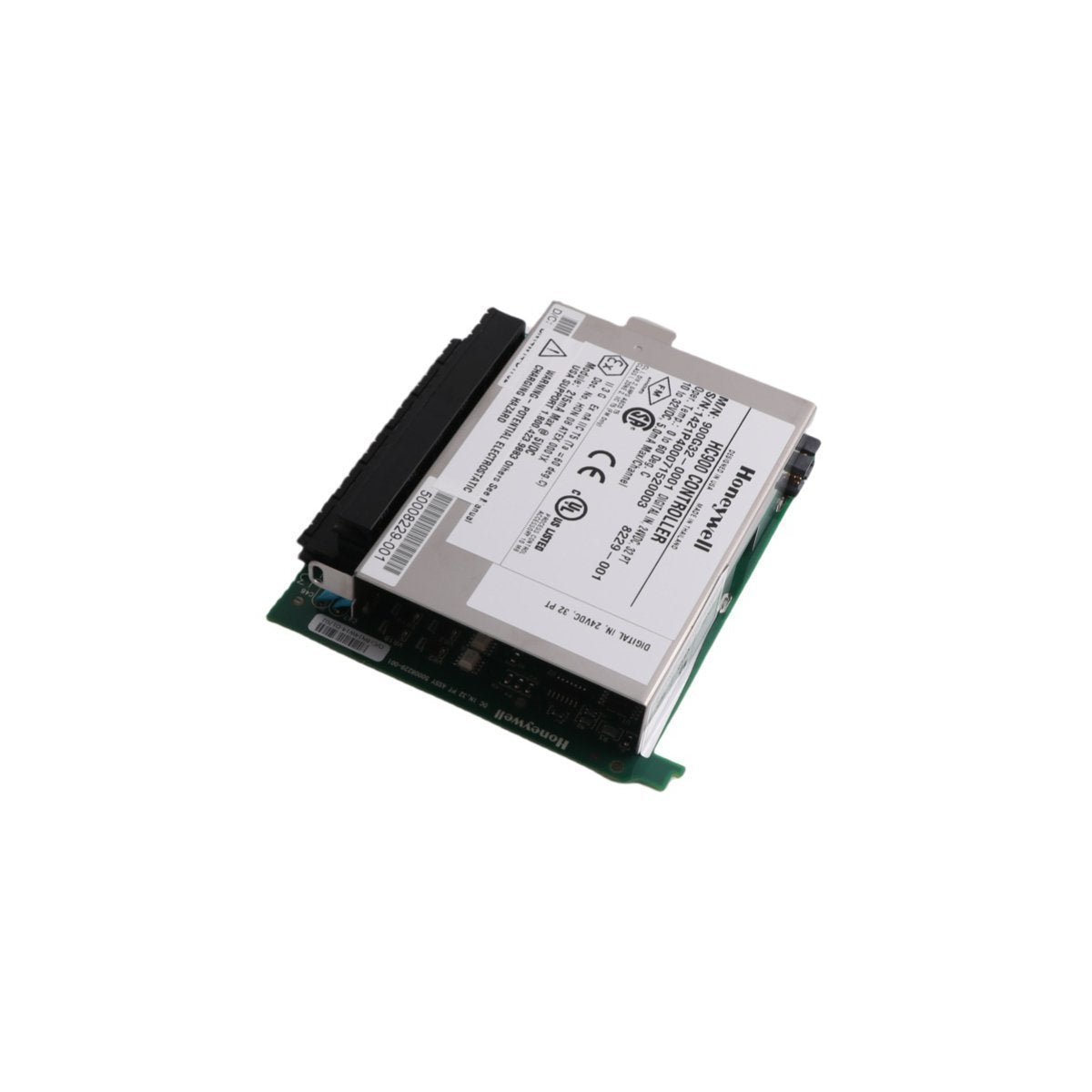

The Honeywell 900G32-0301 is a high-density discrete signal acquisition module specifically engineered for the ControlEdge HC900 and Experion PKS controller families. This 32-channel interface provides a robust bridge for monitoring a vast array of binary field states, such as switch positions, relay contacts, and proximity sensor feedbacks. By utilizing a dual-group isolation architecture, the 900G32-0301 ensures that electrical transients in one bank do not propagate to another, maintaining the signal integrity required for mission-critical industrial monitoring. Its integration within the Honeywell ecosystem allows for sophisticated logic handling, including per-channel software inversion and comprehensive status reporting to the central CPU.

Technical Infrastructure and Hardware Parameters

Designed for maximum cabinet efficiency, the 900G32-0301 combines a slim physical profile with advanced diagnostic capabilities to ensure 24/7 operational transparency.

Industrial Deployment and Connectivity Utility

The 900G32-0301 is a foundational asset for facilities where high-density discrete monitoring is critical for process safety and automated sequencing.

• Machinery State Feedback: Capturing limit switch and auxiliary contact signals from motors and conveyors in high-volume manufacturing lines.

• Refinery Safety Interlocks: Monitoring dry contacts from emergency push-buttons and localized trip sensors in volatile processing zones.

• Energy Management Systems: Interfacing with circuit breaker status contacts and fault indicators in utility-scale power distribution cabinets.

• Water Treatment Sequencing: Coordinating the open/closed feedback from motorized gate valves across large-scale filtration and pumping stations.

• Remote Terminal Unit (RTU) Expansion: Serving as a reliable, high-density input hub for distributed SCADA systems where cabinet space is at a premium.
