Product Overview

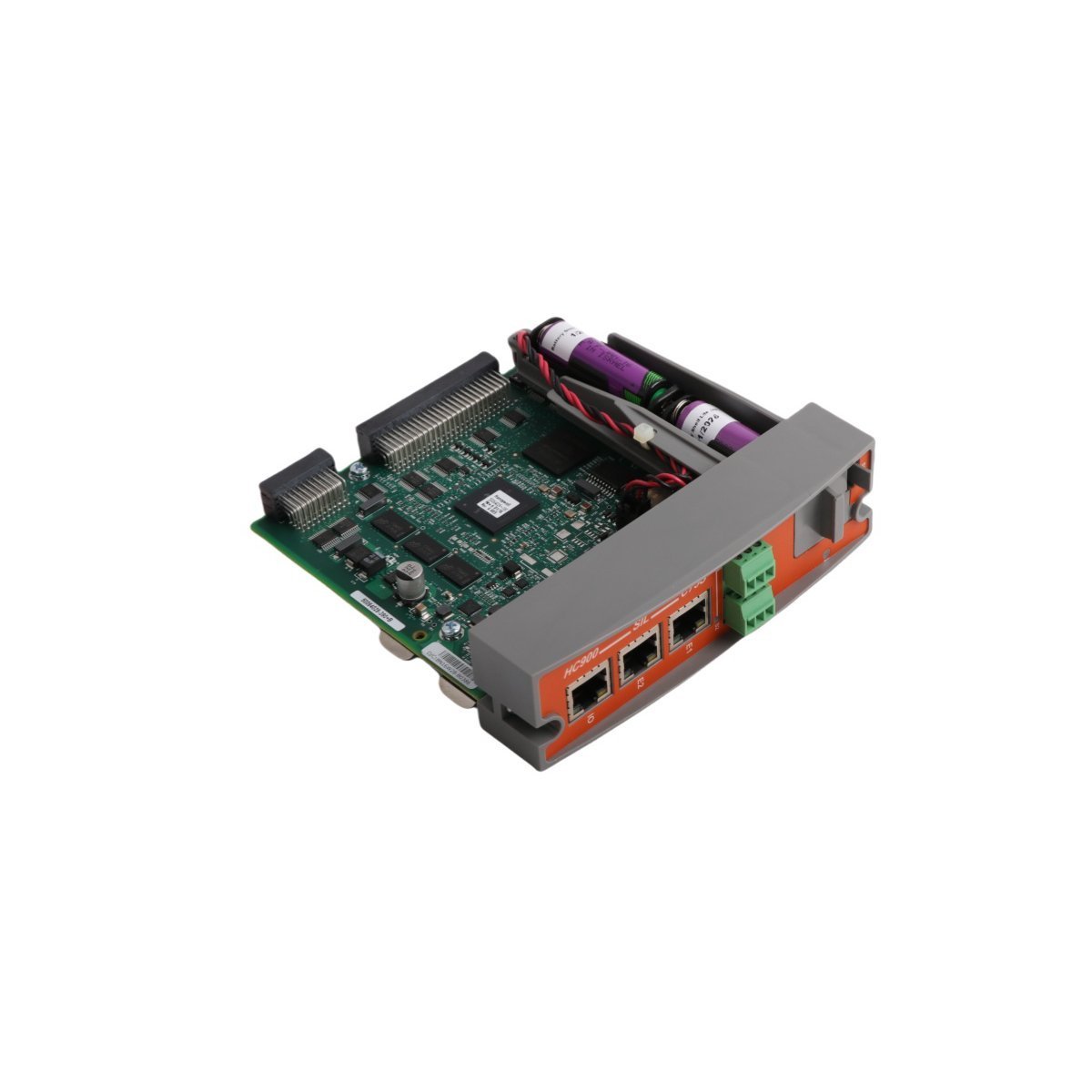

The Honeywell 900C75-0560 is a high-capacity Redundant CPU module designed for the ControlEdge HC900 process automation controller family. Serving as the primary logic solver for complex control strategies, this C75 CPU provides the computational intelligence required for hybrid control applications, ranging from basic regulatory loops to sophisticated sequence management. Unlike standard I/O modules, the 900C75-0560 manages the entire control infrastructure, including high-speed communication with I/O racks and supervisory systems like Experion PKS. It is engineered to support redundant configurations, ensuring that a secondary processor can take over control in sub-millisecond timeframes should the primary unit encounter a fault. This level of hardware resilience makes it a cornerstone for industrial operations where process downtime poses significant safety or financial risks.

Architectural Benchmarks and Logic Specifications

The 900C75-0560 is characterized by its high-speed execution engine and its ability to manage a vast array of digital and analog data points with deterministic precision.

• Controller Class: C75 Redundant CPU Processor

• System Platform: Honeywell ControlEdge HC900 / Experion PKS

• Redundancy Logic: Supports dual-processor bumpless transfer for high-availability

• Memory Architecture: Large user memory capacity for extensive function block execution

• Communication Interface: Dual Ethernet ports for peer-to-peer and supervisory networking

• Processing Speed: Optimized for rapid logic scans and high-resolution analog processing

• Diagnostics: Advanced internal self-checking with real-time LED status reporting

• Security: Integrated hardware security features to protect against unauthorized logic changes

• Physical Weight: 0.4 kg

• Module Scale: 3.7 x 14.2 x 16.6 cm

• Manufacturing Origin: USA

• Customs Trade Code: HS 8537101190

Strategic Industrial Implementations

This ControlEdge CPU is the preferred processing unit for sectors requiring a blend of discrete logic and precise analog regulation.

• Critical Thermal Processing: Managing complex temperature profiles and burner management (BMS) in large-scale industrial furnaces and kilns.

• Chemical and Specialty Batching: Coordinating precise dosing sequences and reactor pressure control where logic synchronization is vital.

• Water and Wastewater Management: Acting as a centralized logic hub for dispersed pump stations and filtration systems requiring redundant reliability.

• Power Generation Infrastructure: Supervising auxiliary systems and steam management in utility plants where continuous operation is mandatory.

• Hybrid Process Control: Providing a unified platform for both PLC-style high-speed discrete logic and DCS-style analog loop control in pharmaceutical manufacturing.
