Product Overview

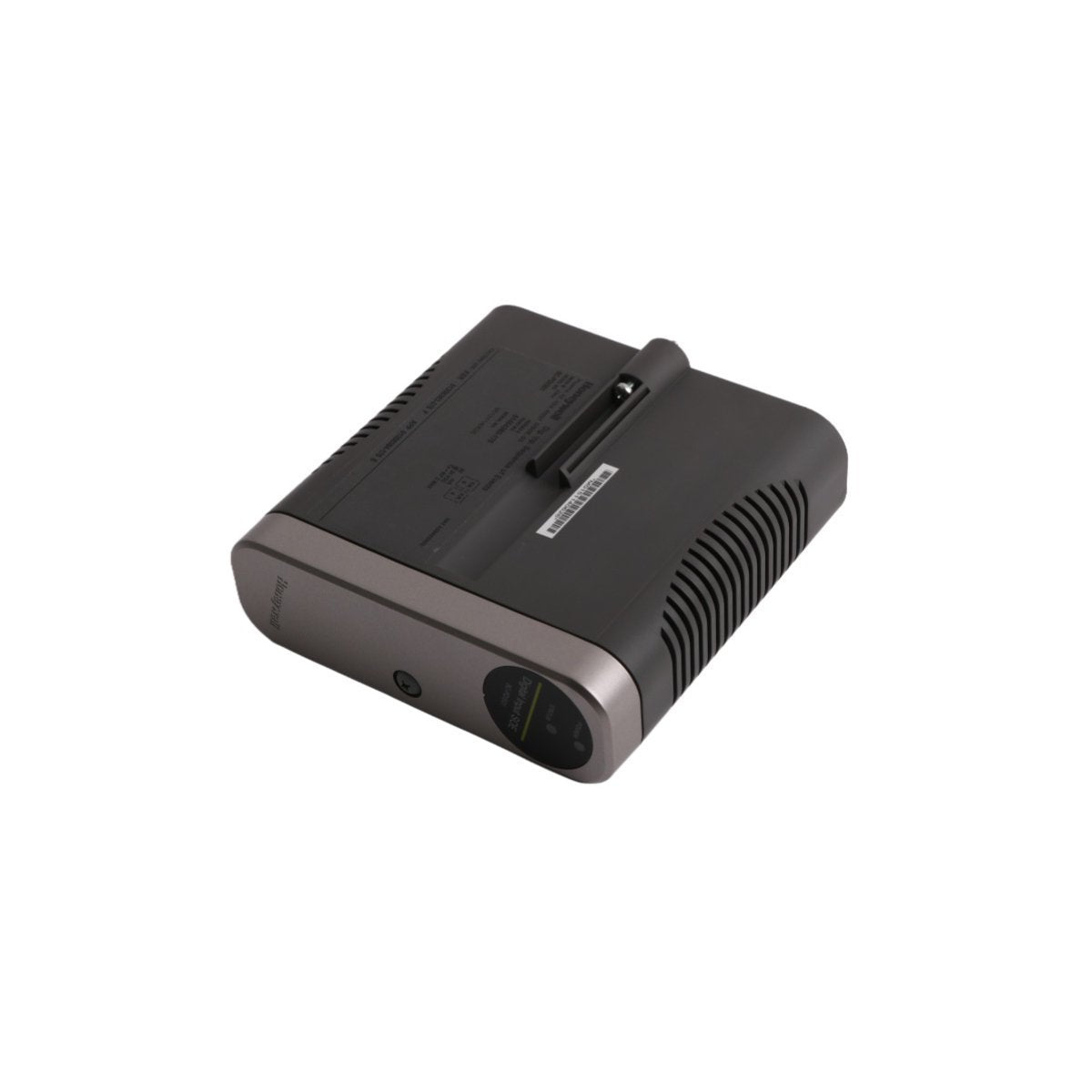

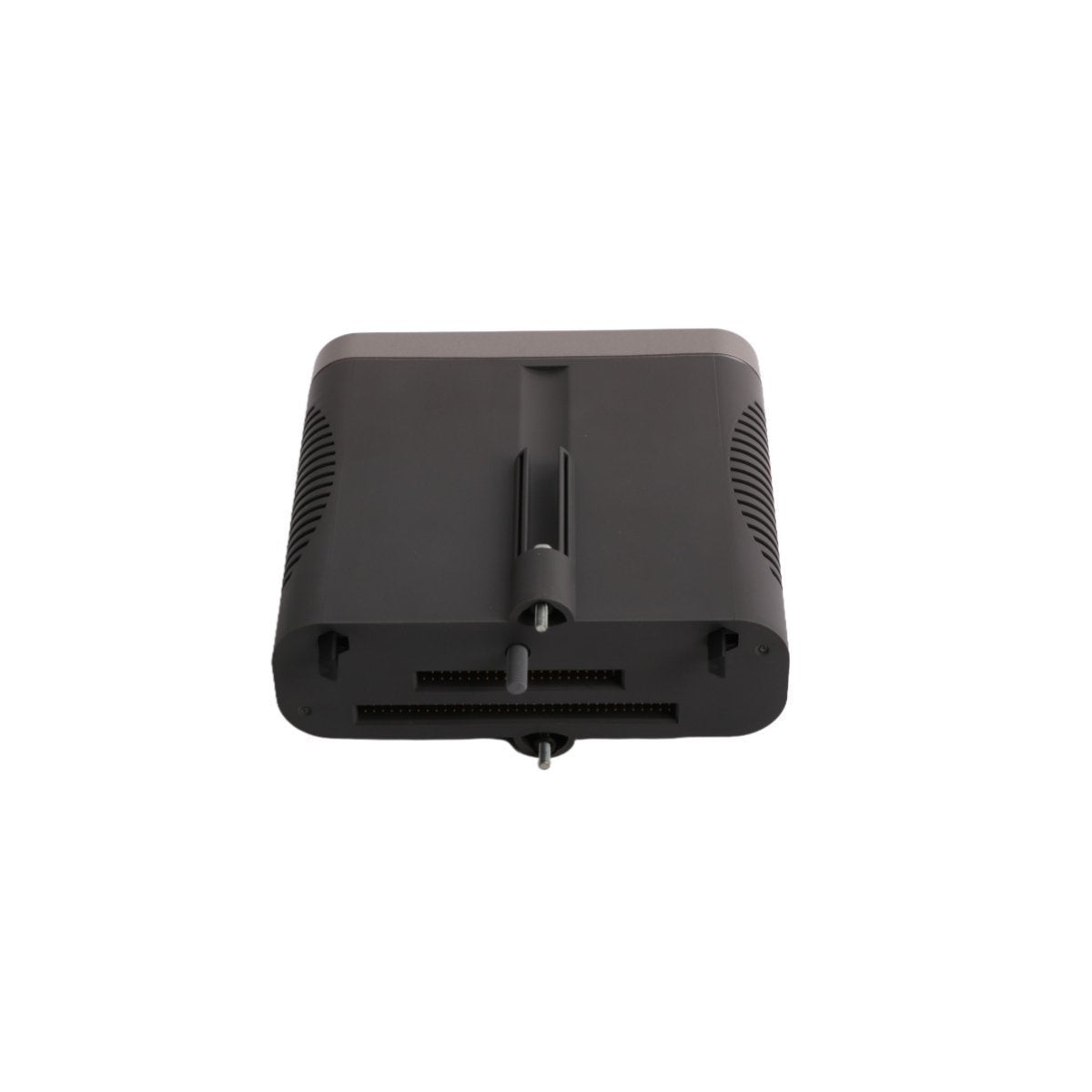

The Honeywell 8C-PDIPA1 (Part Number 51454471-375) is a high-precision Digital Input Pulse Module designed for the Experion PKS Series 8 I/O family. This specialized interface is engineered to capture high-speed pulse signals from field instrumentation, such as flow meters, tachometers, and encoders. Unlike standard digital input modules, the 8C-PDIPA1 is optimized to translate rapid frequency or pulse counts into meaningful engineering units for the C300 controller.

Integrated into the Series 8 architecture, the module provides the deterministic data acquisition necessary for time-sensitive calculations. Its design focuses on signal purity, utilizing advanced digital signal processing to eliminate electrical noise and debouncing issues that often plague high-speed pulse counting in heavy industrial environments. By providing a rugged, isolated interface, the 8C-PDIPA1 ensures that critical velocity and volumetric data are delivered to the DCS with absolute integrity.

Technical Characteristics and Hardware Parameters

The 8C-PDIPA1 is built for durability and precision, featuring high-speed conversion circuitry and robust safety mechanisms.

• Module Function: High-speed digital pulse accumulation and frequency measurement

• Resolution: 16-bit processing for high-fidelity data acquisition

• Input Isolation: Galvanic isolation between channels and system logic to protect the C300 controller

• Signal Processing: Integrated digital filtering and high-speed analog-to-digital conversion

• Safety Features: Internal watchdog timer for continuous operational monitoring

• Power Requirements: 24V DC nominal supply

• Compatibility: Native integration with Honeywell Experion PKS Series 8 and C300 controllers

• Configuration: Fully programmable via standard Honeywell Experion software tools

• Weight: 0.4 kg

• Dimensions: 7 x 14 x 14.5 cm

• Origin: USA

Industrial Applications and Operational Use Cases

This pulse module is essential for applications where rotational speed or cumulative flow measurement is a primary process variable:

• Turbine and Motor Monitoring: Capturing high-frequency pulses from tachometers to monitor shaft speed and detect overspeed conditions in critical rotating machinery.

• Volumetric Flow Measurement: Integrating pulse outputs from positive displacement or turbine flow meters to calculate totalized flow in oil and gas custody transfer.

• Packaging and Conveying: Utilizing pulse inputs from encoders to track position and synchronize speed across high-speed manufacturing lines.

• Utility Metering: Consolidating pulse data from water, gas, or steam meters for plant-wide energy management and sustainability reporting.

• Laboratory Data Acquisition: Providing high-resolution frequency monitoring for specialized testing and research environments.
