Product Overview

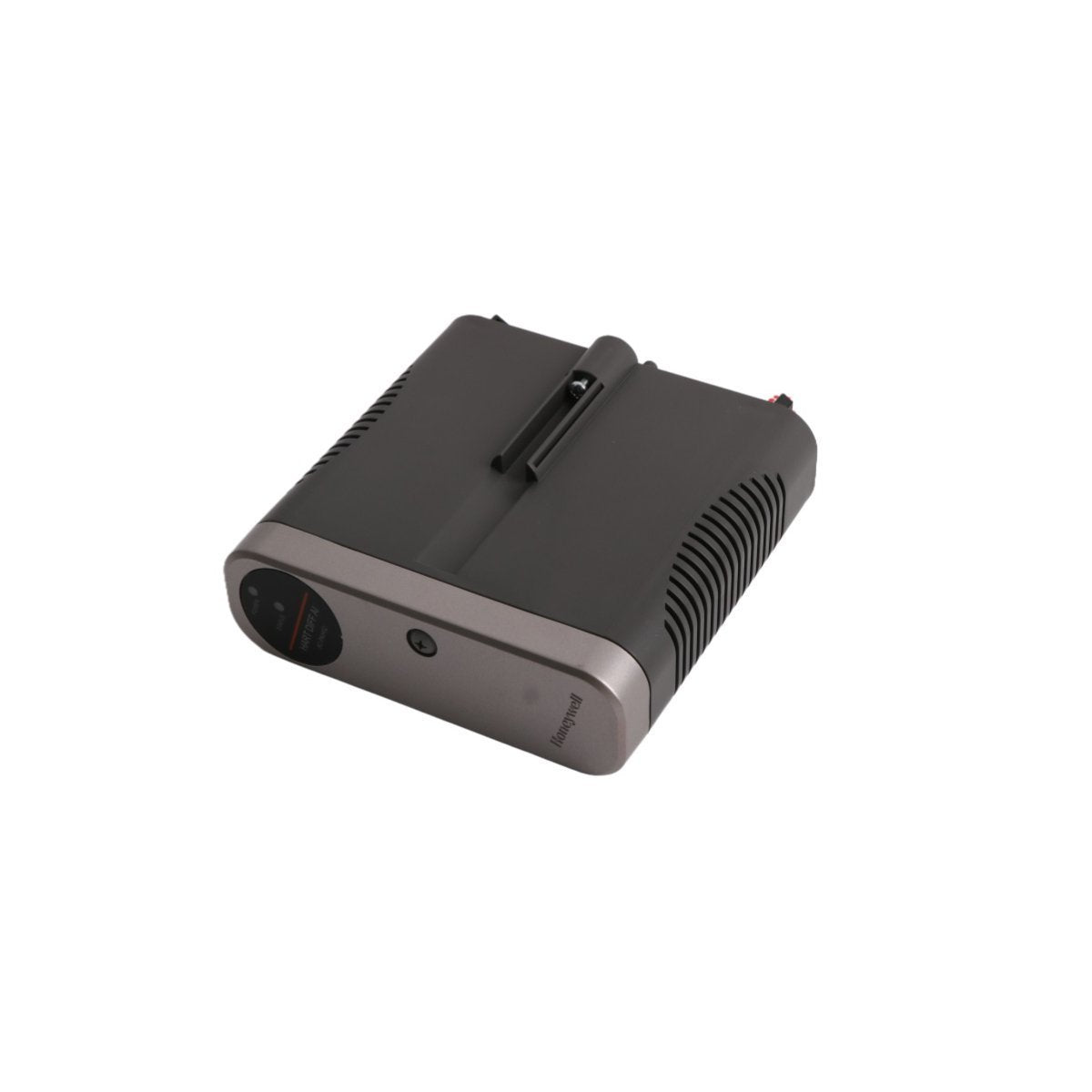

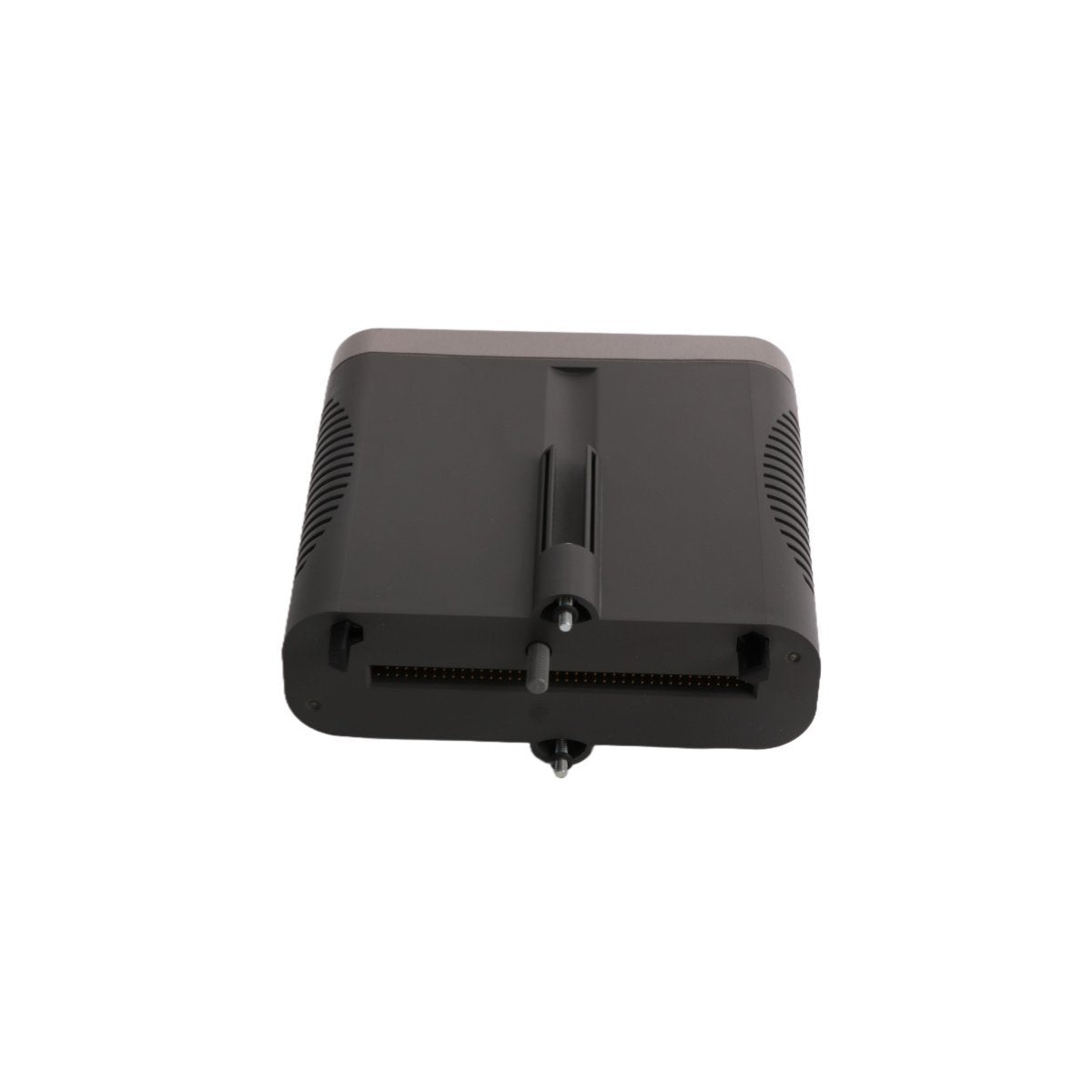

The Honeywell 8C-PAIH54 (Part Number 51307070-275) is a high-performance Analog Input module designed for the Experion PKS Series 8 I/O architecture. This module is engineered to provide precise data acquisition for a wide array of field transmitters, converting physical process variables into digital information for the C300 controller. It is specifically optimized for high-density environments where accuracy and signal integrity are paramount for process safety and efficiency.

Featuring advanced signal conditioning and high-voltage isolation, the 8C-PAIH54 protects the control network from field-side electrical interference. Its support for the HART protocol allows for seamless communication with intelligent field devices, enabling operators to access secondary variables and diagnostic data over existing 4-20 mA wiring. The module is built with conformal coating as standard, ensuring long-term durability in corrosive or humid industrial atmospheres.

Key Technical Characteristics and Hardware Parameters

The 8C-PAIH54 is defined by its versatile input capabilities and ruggedized design, suitable for the most demanding process control requirements.

• Input Channel Type: High-level Analog Input with HART support

• Signal Compatibility: Supports 4-20 mA current loops and 1-5 VDC voltage inputs

• Resolution: 16-bit analog-to-digital conversion (corrected from legacy 12-bit references for Series 8 standards)

• Accuracy: ±0.025% of Full Scale (at 25°C)

• Galvanic Isolation: Provides up to 2500V protection to ensure equipment safety

• Protocol Integration: Full bidirectional HART digital communication per channel

• Environmental Protection: Conformal coated PCB for G3 harsh environment compliance

• Operating Temperature: Rated for extreme performance from -40°C to +85°C

• Redundancy: Fully compatible with redundant I/O module configurations

• Weight: 0.4 kg

• Dimensions: 7 x 14 x 14.5 cm

• Origin: USA

Industrial Applications and Operational Use Cases

The 8C-PAIH54 is a fundamental component for monitoring critical process variables across various asset-intensive sectors:

• Oil and Gas Production: Precise measurement of wellhead pressure, temperature, and flow rates in upstream and midstream facilities.

• Chemical and Petrochemical Processing: Monitoring sensitive reactor conditions where high accuracy is required for chemical dosing and thermal management.

• Power Generation: Tracking steam pressure and turbine telemetry, providing reliable data for high-speed control loops.

• Refining Operations: Integration with smart HART transmitters to monitor tank levels and distillation column parameters while performing remote device calibrations.

• Industrial Machine Monitoring: Interfacing with vibration and temperature sensors on large pumps and compressors to facilitate predictive maintenance strategies.
