Product Overview

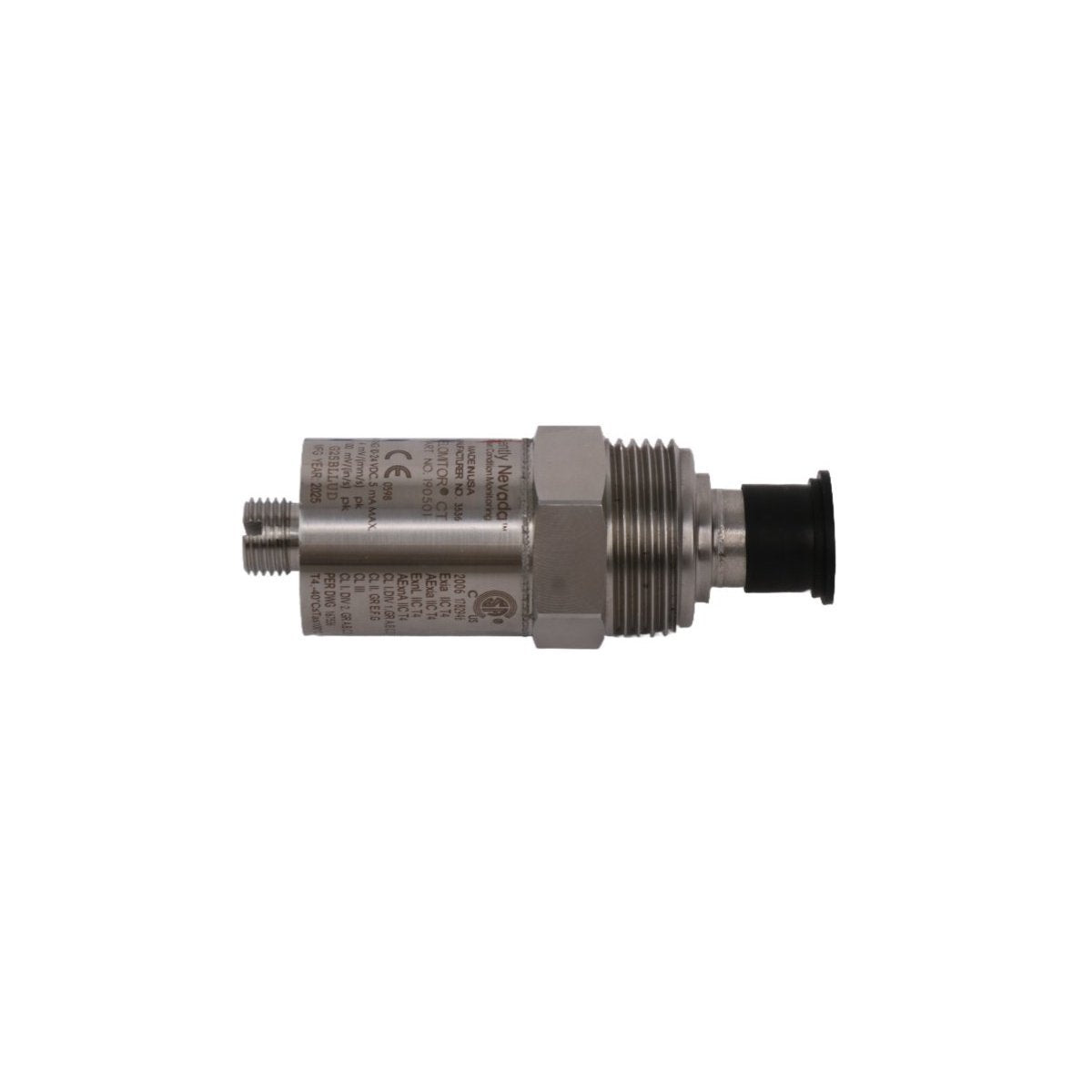

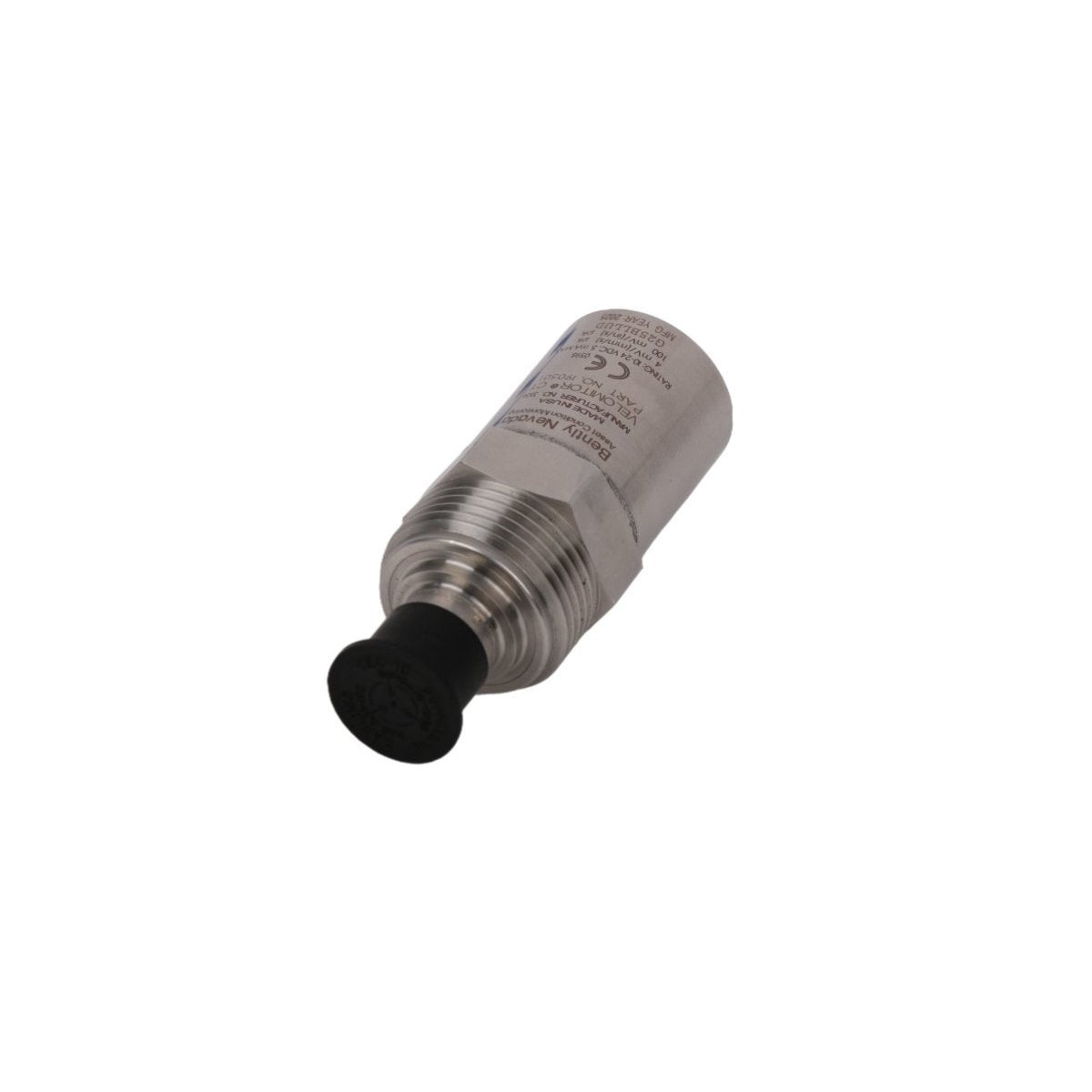

The Bently Nevada 89410-01 is a specialized seismic velocity transducer engineered specifically for the unique vibration profiles of hydroelectric power generation equipment. This precision instrument is designed to capture absolute vibration data in low-frequency ranges where standard sensors often lack the necessary resolution. By utilizing an advanced moving-coil architecture integrated with internal signal conditioning, the 89410-01 provides a stable voltage output that is directly proportional to the vibration velocity of the machine casing or structural support.

Key Technical Characteristics

• Model Number 89410-01

• Transducer Type Low-Frequency Moving-Coil Velocity Sensor

• Frequency Range 0.5 Hz to 1.0 kHz (Optimized for slow-rotation assets)

• Operating Temperature -50°C to +150°C (-58°F to +302°F)

• Isolation Resistance >100 MΩ at 500 Vdc

• Physical Weight 0.22 kg

• Signal Output Analog voltage proportional to velocity

• System Interface Fully compatible with 3500/46M Hydro Monitor modules

• Mounting Designed for seismic (absolute) vibration measurement points

Industrial Applications

The 89410-01 is an essential diagnostic accessory for hydroelectric facilities, primarily used to monitor stator cores, generator frames, and bearing housing supports. Due to its superior sensitivity to low-frequency phenomena, it is the preferred choice for identifying structural resonances and mechanical looseness in large-scale, slow-turning water turbines. While predominantly used as a high-level diagnostic tool for predictive maintenance rather than automated emergency trips, it provides critical data for assessing the long-term structural integrity of hydro-generation assets in demanding, moisture-prone environments.
