Product Overview

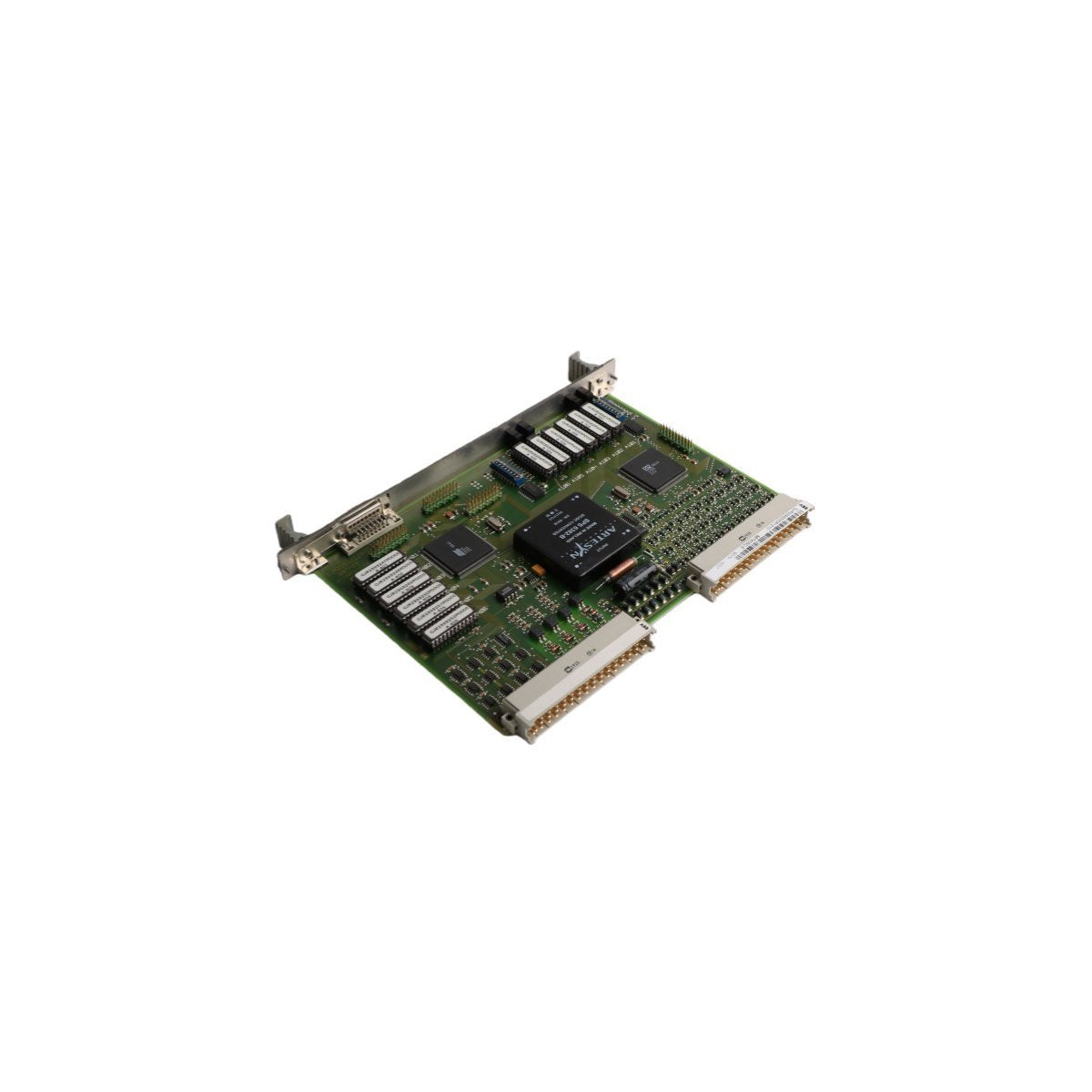

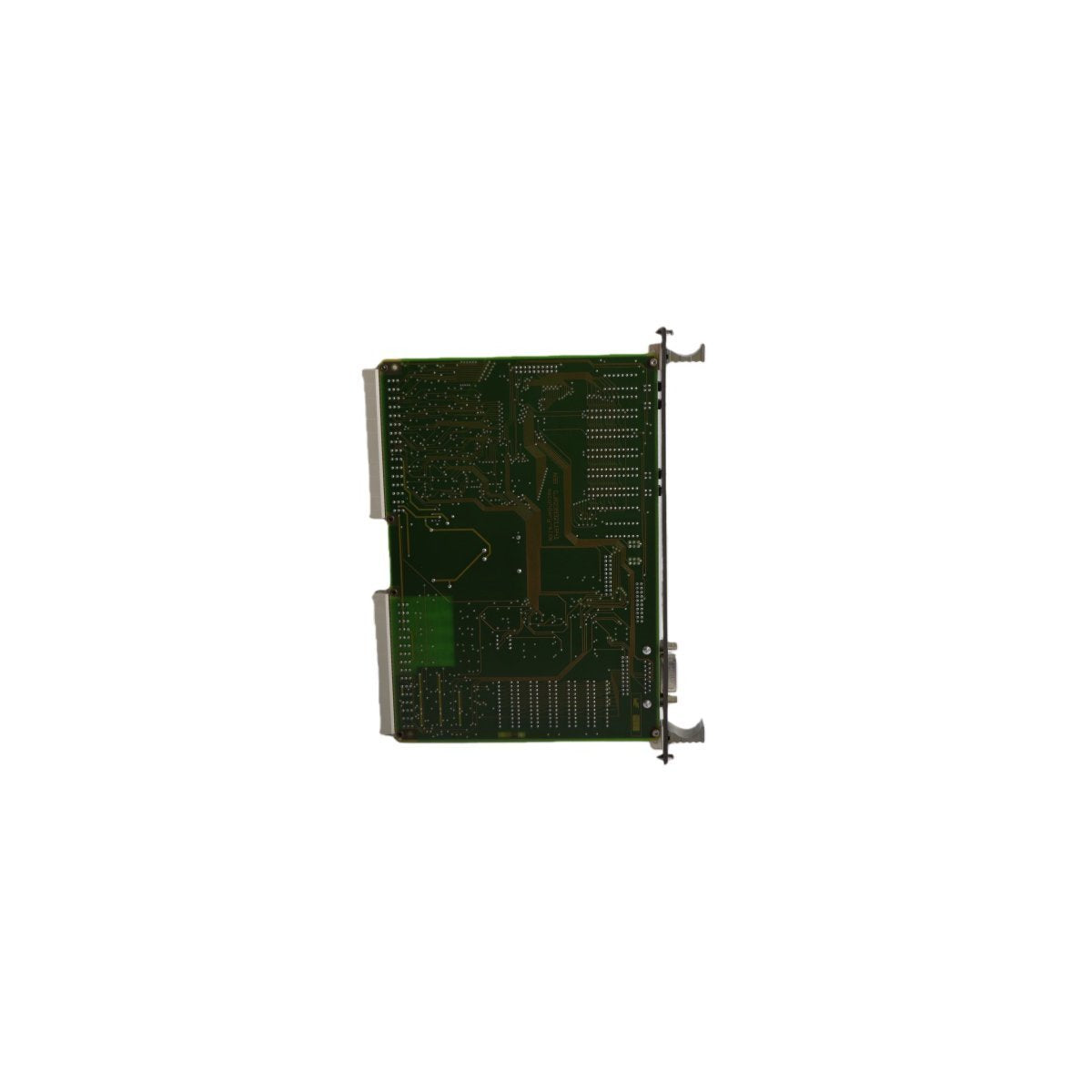

The ABB 88TK05C-E, identified by the technical part number GJR2393200R1210, is a high-integrity Station-Bus Coupler specifically designed for the Procontrol P14 power plant control system. This module serves as the primary communication gateway between localized I/O sub-racks and the centralized station bus. Built with a decentralized intelligence architecture, the 88TK05C-E features its own onboard microprocessor that manages complex data telegrams and executes continuous self-monitoring routines. By facilitating high-speed, deterministic data exchange, this bus coupling module ensures that critical process information from field sensors is accurately transmitted to the higher-level automation layers while providing deep transparency into the communication network's health.

Key Technical Characteristics and Hardware Parameters

The GJR2393200R1210 88TK05C-E is optimized for reliability in harsh industrial environments, featuring advanced diagnostic reporting and ruggedized circuitry.

• Module Type Station-Bus Coupler / Bus Coupling Module

• Part Number GJR2393200R1210

• Model Designation 88TK05C-E

• Control System ABB Procontrol P14

• Diagnostic Compatibility Full integration with the Control Diagnostic System (CDS)

• Onboard Intelligence Independent microprocessor for autonomous telegram processing and self-diagnostics

• Data Transparency Real-time transmission of module status registers to the HMI layer

• Fault Detection Hardware-level identification of bus failures and internal logic errors

• Physical Weight 1.22 kg

• Standard Dimensions 24 x 19 x 5.3 cm

• Origin Sweden

• Environmental Tolerance Rated for high-EMI (electromagnetic interference) environments typical of power generation facilities

Industrial Applications and Operational Use Cases

The 88TK05C-E GJR2393200R1210 is a vital link for large-scale automation where network integrity and rapid troubleshooting are essential for safety.

• Power Plant Automation Coordinating the data flow between turbine controllers and boiler I/O racks via the Procontrol P14 station bus.

• CDS-Integrated Monitoring Utilizing the graphical interface of the Control Diagnostic System to visually locate the module within the cabinet through color-coded status indicators.

• Rapid Fault Resolution Leveraging the module's ability to output specific fault cause descriptions, allowing maintenance teams to bypass manual testing and proceed directly to targeted repairs.

• High-Availability Networks Maintaining redundant communication paths in distributed control architectures for energy distribution and thermal processing.

• System Health Visualization Interfacing with operator consoles to provide a real-time "map" of the station bus, highlighting specific 88TK05C-E units for register-level inspection.
