Product Overview

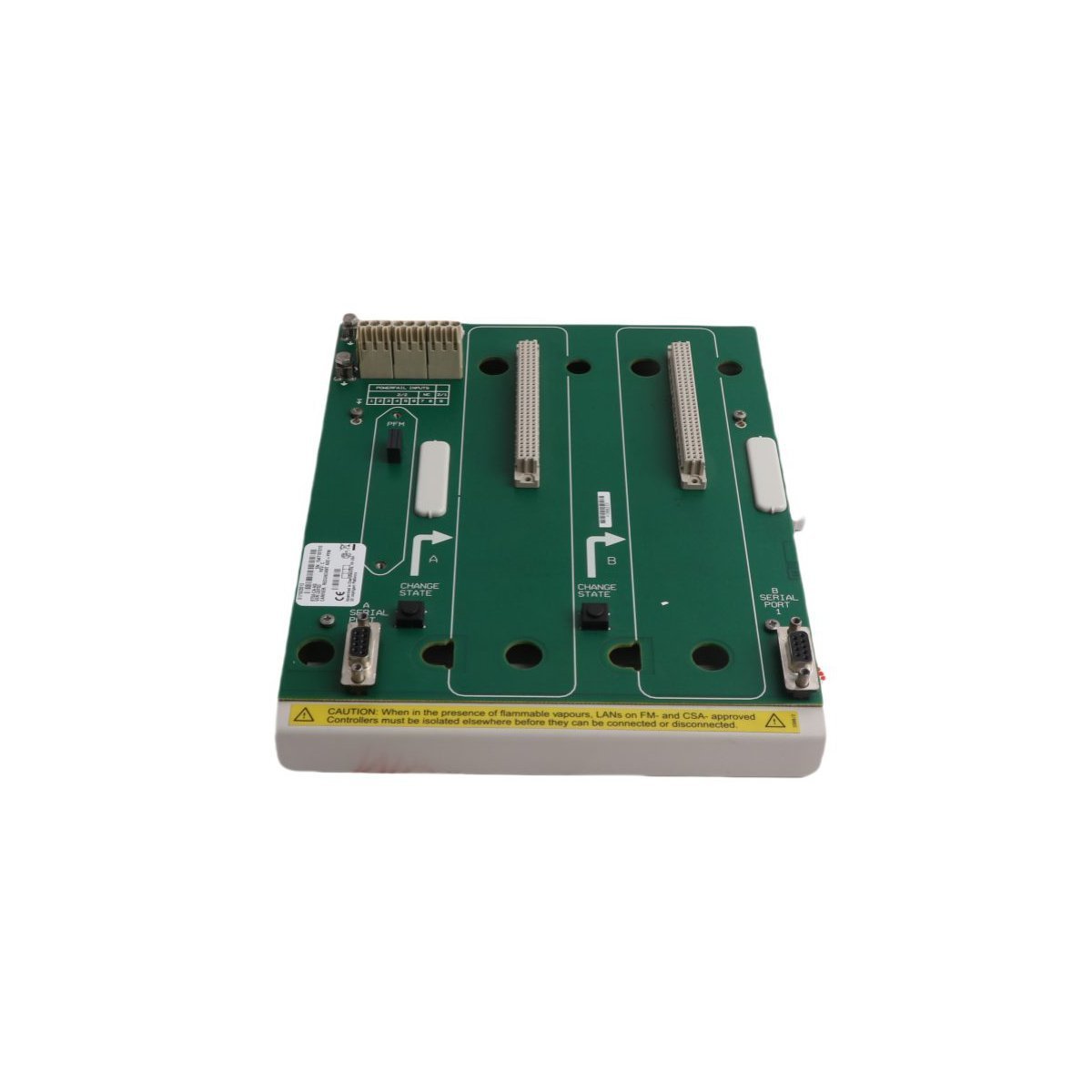

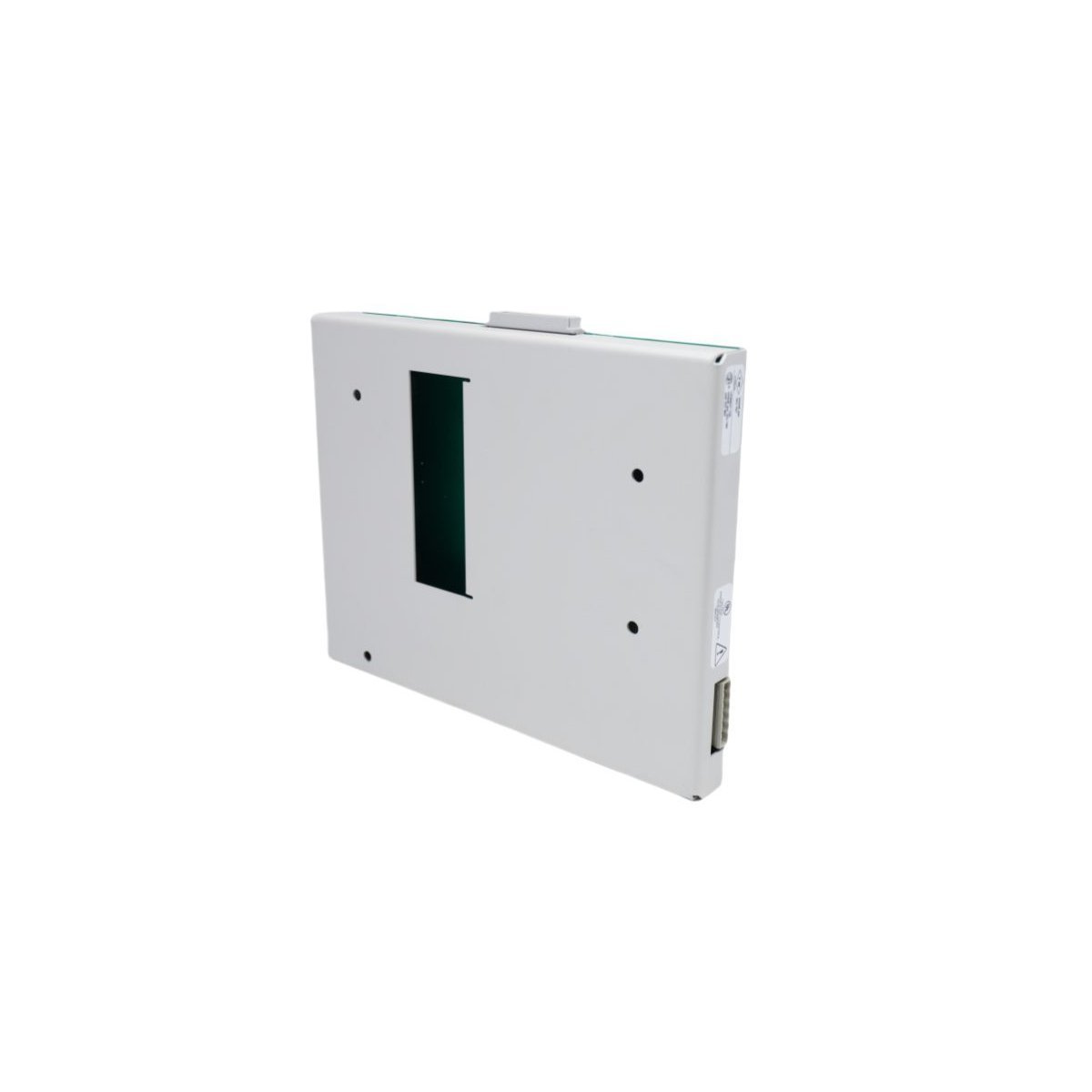

The General Electric 8751-CA-NS serves as a specialized SafetyNet Controller Carrier within the PAC8000 automation architecture. This critical hardware foundation is engineered to host controller modules while providing dedicated circuitry for integrated earth leakage fault detection. By centralizing power distribution and signal routing, the 8751-CA-NS ensures high-integrity monitoring of safety-critical loops. It acts as the physical and electrical backbone for safety controllers, facilitating high-speed data exchange and providing reliable fault isolation to protect both personnel and sensitive industrial assets from electrical malfunctions.

Hardware Configuration and Physical Data

Functional Application and System Integration

The 8751-CA-NS is deployed in complex industrial environments where safety integrity is the highest priority. Its utility is demonstrated in the following scenarios:

• Safety Instrumented Systems (SIS): Providing a secure mounting platform for controllers managing Emergency Shutdown (ESD) protocols.

• Leakage Detection Monitoring: Utilizing built-in earth leakage sensing to identify insulation breakdown in industrial power loops before they lead to system failure.

• Distributed Control Systems (DCS): Functioning as a high-reliability node within the PAC8000 series for real-time process supervision and safety interlocking.

• Hazardous Area Operations: Designed to withstand the thermal and atmospheric stresses of oil and gas processing or chemical manufacturing sites.
