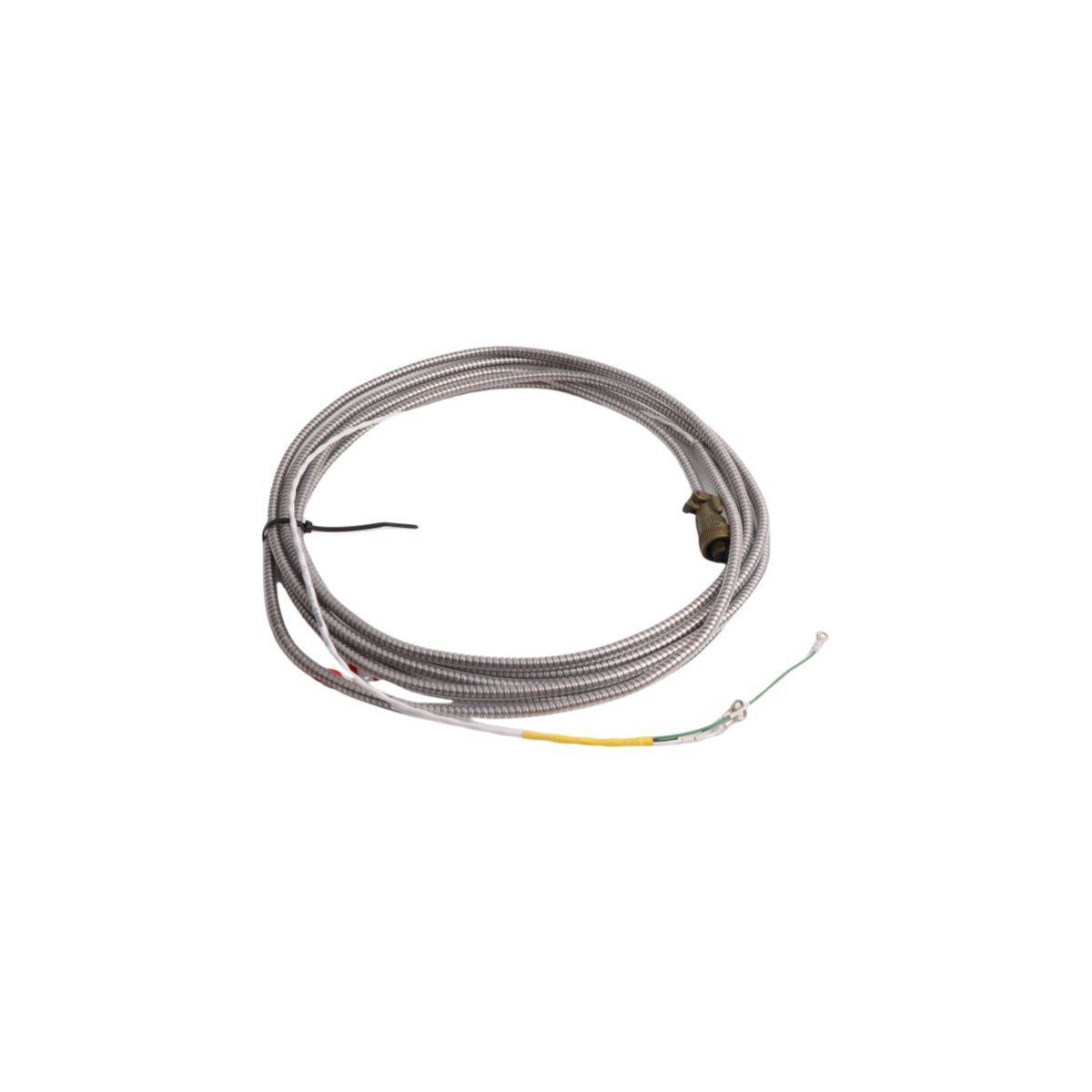

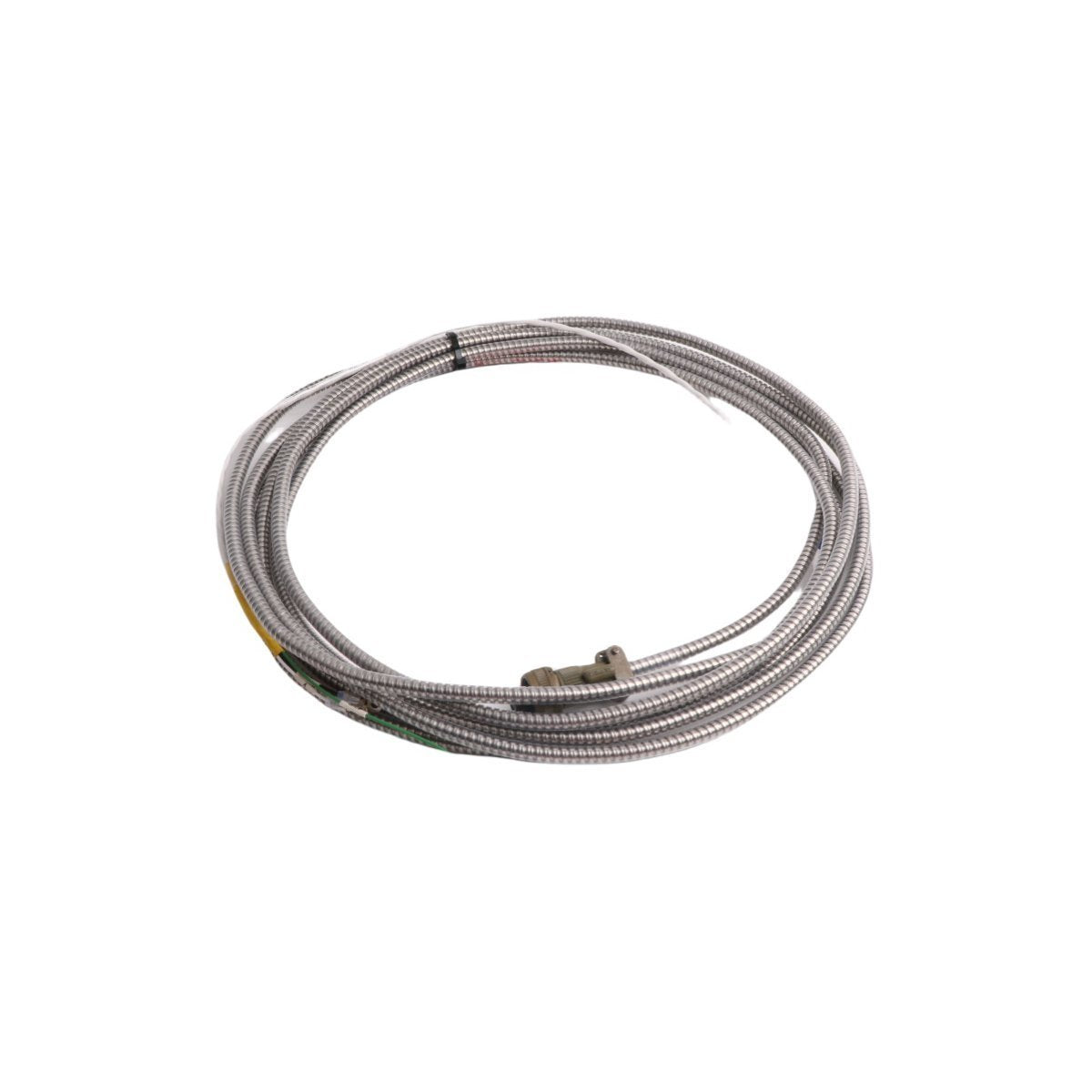

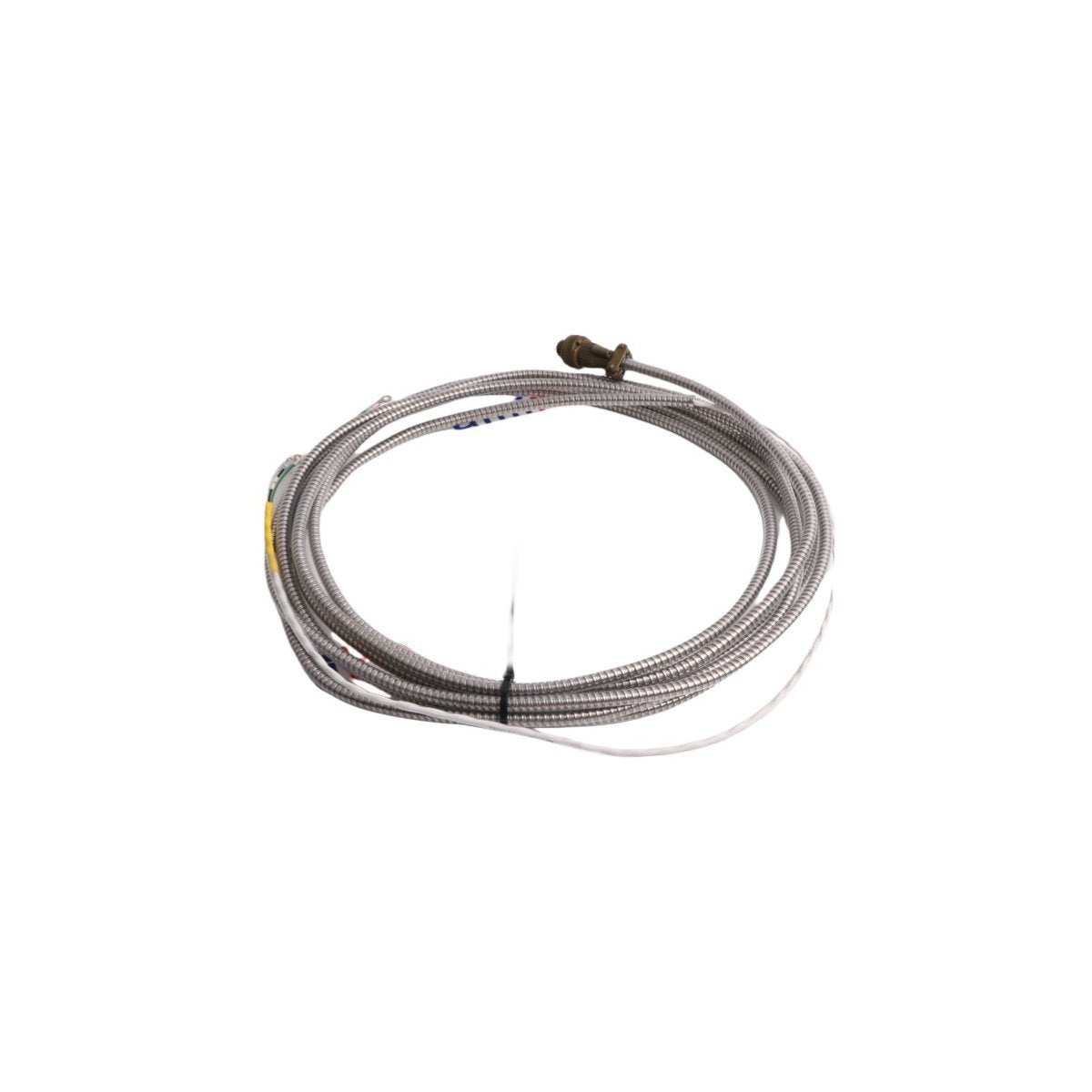

Configured for seismic vibration signal transmission, the Bently Nevada 84661-20 (84661-20 Interconnect Cable) provides direct electrical connectivity for piezoelectric Velomitor sensor signals within industrial monitoring platforms.

Model Suffix Decomposition

• 84661: Base Model (Velomitor Interconnect Cable)

• 20: Cable Length (20 feet)

Hardware Specifications

Mechanical Monitoring & TSI Characteristics

The 84661-20 cable maintains the integrity of the seismic signal generated by Velomitor sensors. By utilizing shielded conductors, the cable prevents high-frequency electromagnetic interference from corrupting the low-level vibration data. Precise impedance control is preserved throughout the signal path, which is critical for maintaining the frequency response accuracy required for rotor dynamics assessment. Cross-talk suppression between adjacent sensor channels is managed through high-quality shielding, ensuring that seismic acceleration data remains isolated during transmission to the monitoring system.

Ordering info

• 1 x 84661-20 Interconnect Cable

• 1 x Connector instruction sheet

Field Installation Guidelines

• Mechanical Routing: Install the cable through grounded metallic conduit to provide mechanical shielding and environmental protection.

• Bend Radius: Adhere to the manufacturer-specified minimum bend radius to prevent internal conductor damage or shield breach.

• Connector Integrity: Verify all terminal connections are clean and free of oxidation; ensure mating parts are fully seated to maintain environmental seal.

• Grounding: Terminate the cable shield at the designated ground reference point of the monitoring module to mitigate ground loop currents.

• Vibration Stress: Secure the cable at intervals using appropriate clamps to prevent mechanical strain on the sensor connector interface.

Frequently Asked Questions

• Q: Can this cable be spliced if it is too short?

  A: Splicing is not recommended as it disrupts the shielding continuity and introduces impedance discontinuities, which degrades vibration signal quality.

• Q: Is this cable compatible with all Velomitor sensors?

  A: It is compatible with standard Velomitor series sensors utilizing the specified connector interface; verify sensor documentation for compatibility.

• Q: What is the purpose of the shielding on this cable?

  A: The shield protects the low-level analog vibration signal from electromagnetic interference and radio frequency noise present in industrial environments.

• Q: How do I test the cable for continuity?

  A: Perform a point-to-point resistance measurement between connector pins; confirm low resistance for signal paths and high resistance between signals and shield.

• Q: Can the cable be used in high-temperature environments?

  A: Yes, the cable is rated for operation up to 200 deg C; ensure installation locations do not exceed this threshold.

• Q: What indicates a failure in the interconnect cable?

  A: Failure is indicated by loss of signal, erratic noise floor, or signal drift observed at the monitoring module input.

• Q: Are the connectors moisture-resistant?

  A: Connectors are designed to resist industrial moisture, but they should be used with appropriate conduit seals in wet or wash-down areas.

• Q: How should the cable be secured to the machine?

  A: Use rubber-lined clamps or cable ties at regular intervals to prevent excessive movement or chafing against vibrating machinery components.
