Product Overview

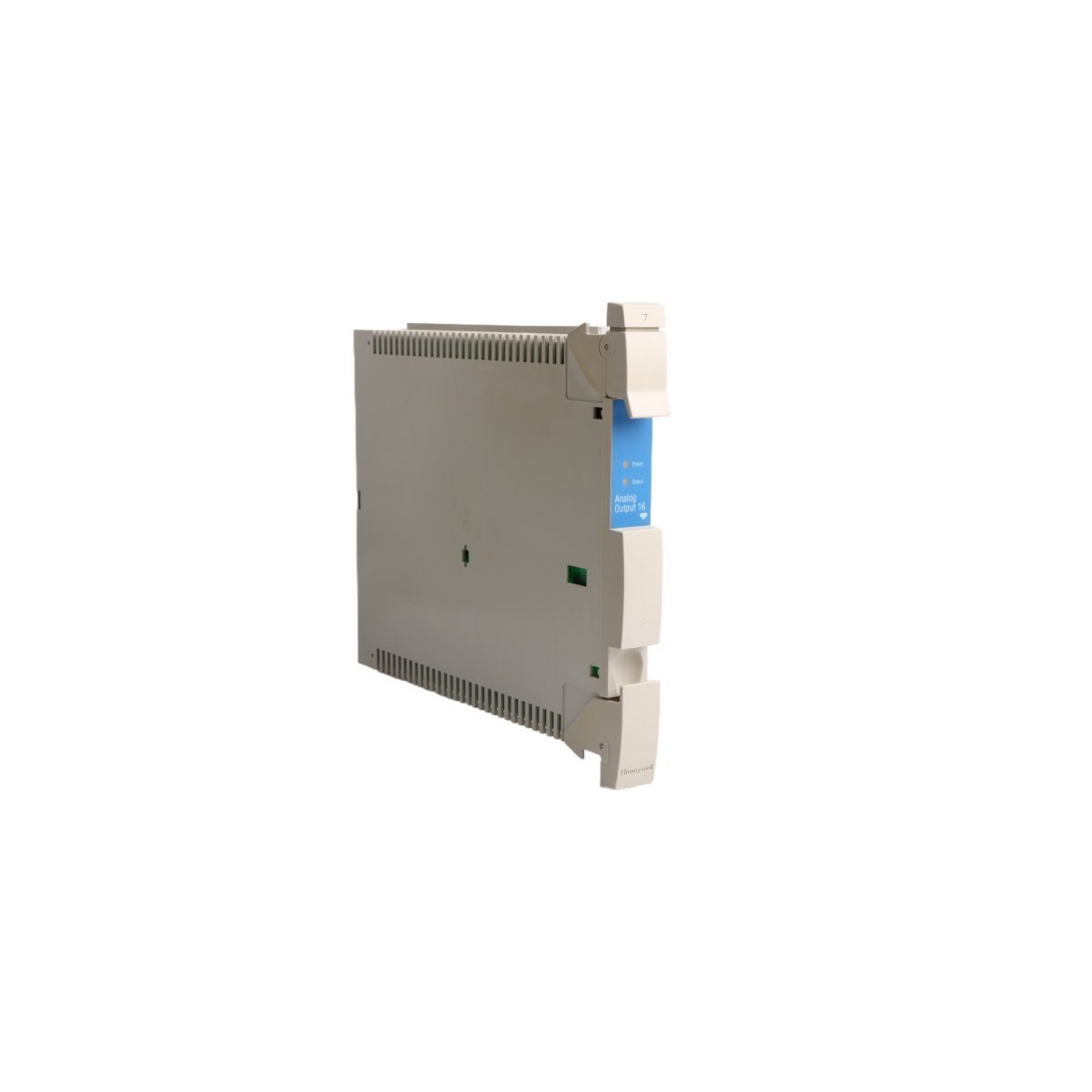

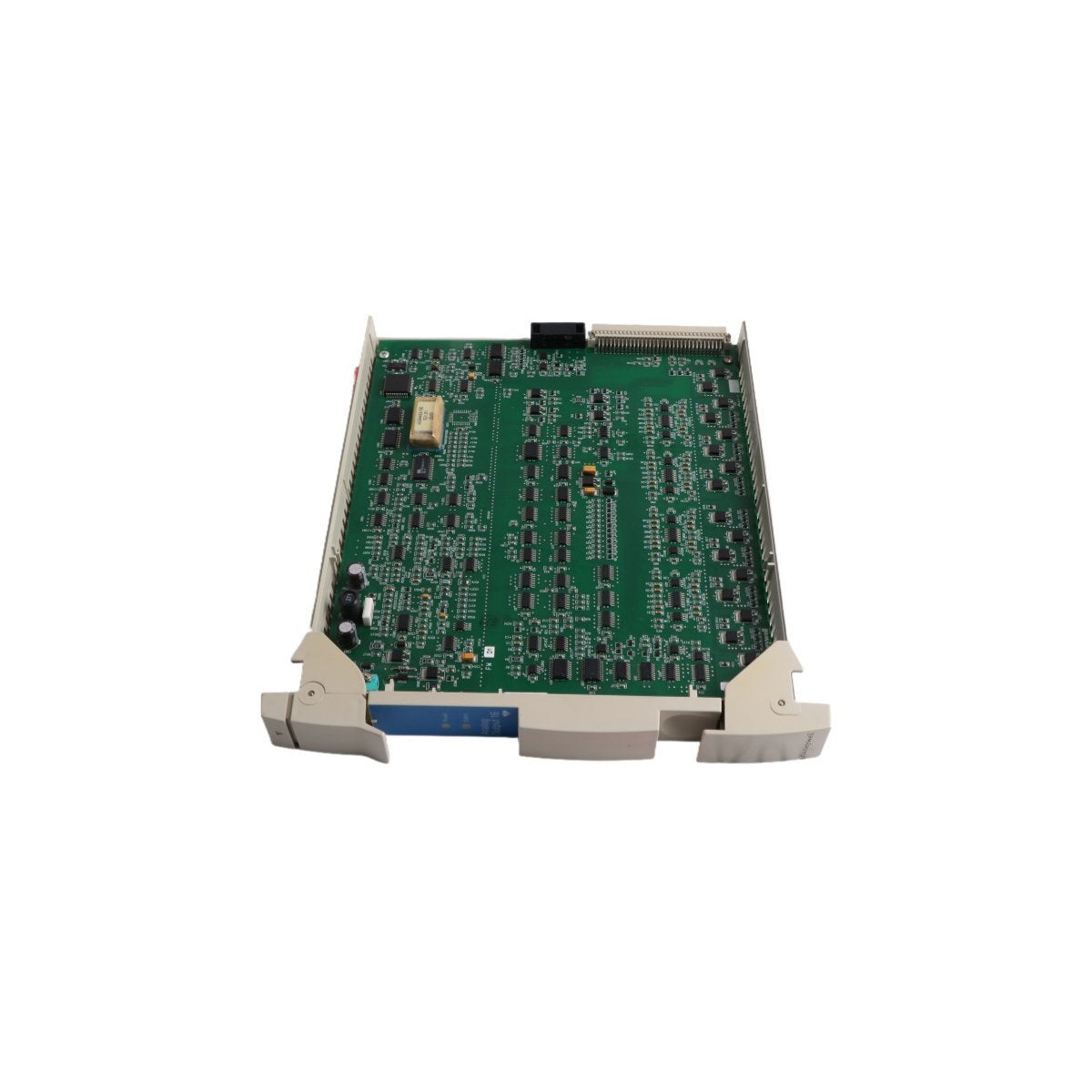

The Honeywell MC-PAOY22 (Part Number 80363969-176) is a high-density Analog Output Processor Card designed for integration within Honeywell Distributed Control Systems (DCS). This module serves as a critical interface between the digital control logic and field-level actuators, providing 16 independent channels of high-precision analog signals. Engineered for mission-critical industrial environments, the card ensures stable signal modulation for valves, motors, and other modulating devices while maintaining a compact form factor for efficient cabinet utilization.

Hardware Parameters and Technical Specifications

The MC-PAOY22 is characterized by its superior signal clarity and field-configurable flexibility. It is designed to minimize electrical interference and maximize output accuracy across diverse process conditions.

• Channel Density: 16 Isolated Analog Output Channels

• Signal Ranges: 4–20 mA current loop or 0–10 VDC voltage output

• Conversion Accuracy: 0.05% of full scale

• Signal Integrity: Low noise floor of 10 μVrms

• Max Current Load: 20 mA per individual channel

• Power Consumption: 10 Watts (Total module draw)

• Physical Profile: 0.4 kg (approx. 0.88 lbs)

• Dimensions: 9.5 x 12.7 x 2.5 cm

• Origin: United States (USA)

• Configuration: Fully field-programmable parameters

Industrial Applications

This analog output processor is a foundational component for industries requiring granular control over continuous processes. Its high reliability makes it suitable for:

• Process Manufacturing: Managing control valve positioning in chemical and pharmaceutical production lines.

• Energy and Power: Regulating fuel flow and turbine speed setpoints in power generation facilities.

• Water Treatment: Controlling variable frequency drives (VFDs) for pump speed and chemical dosing rates.

• Automated Assembly: Providing precise reference voltages for motor controllers and industrial robotics.
