Product Overview

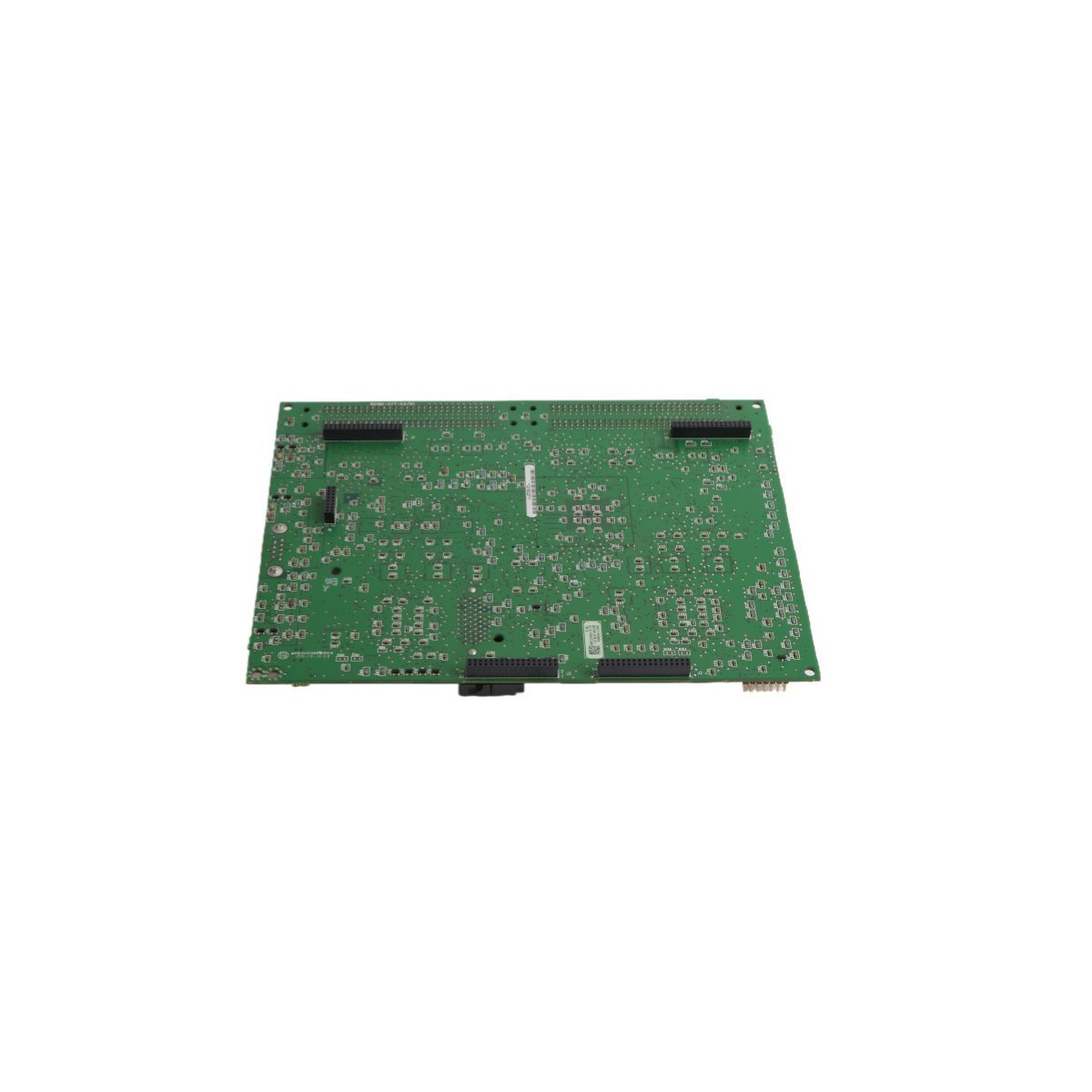

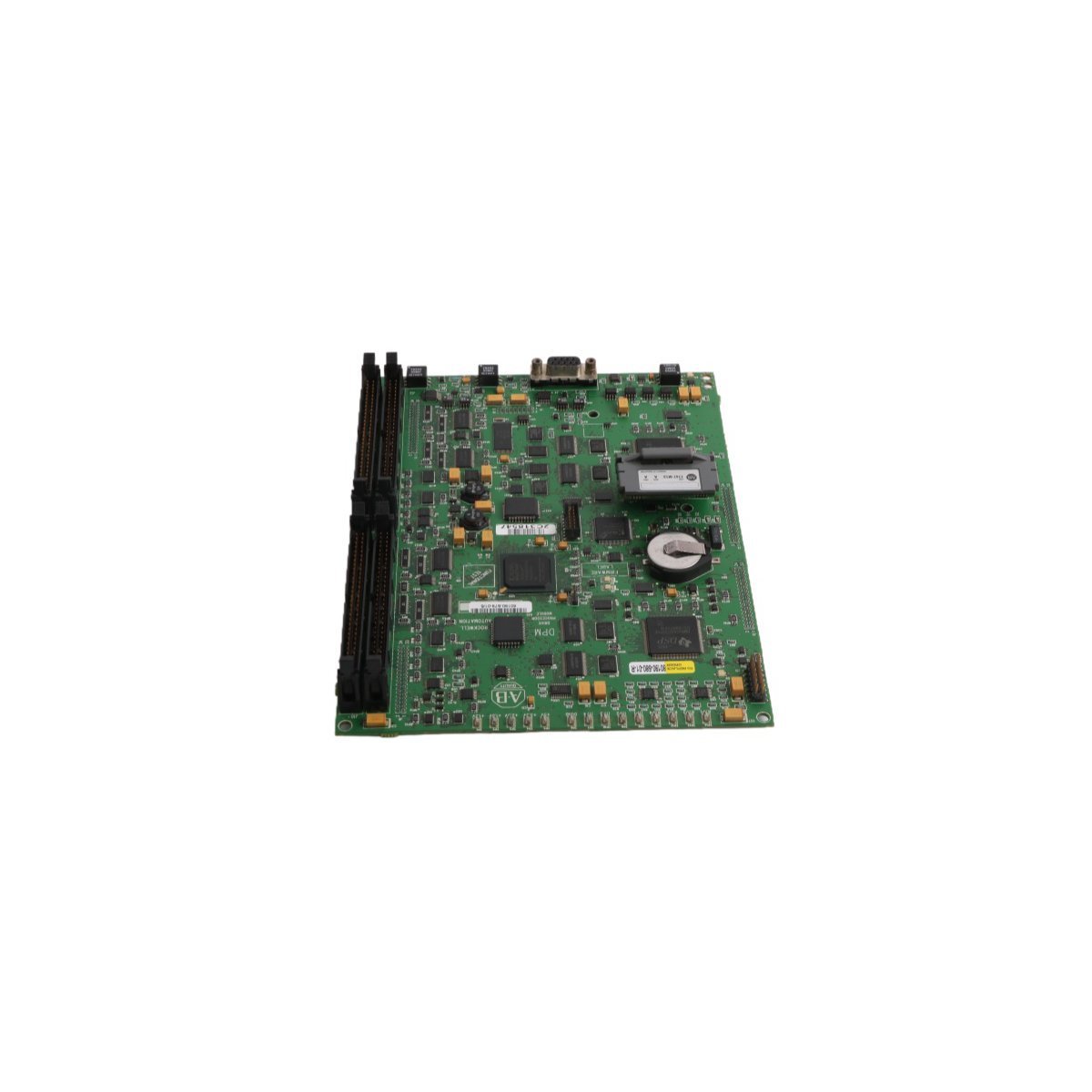

The Allen-Bradley 80190-580-01-R is a sophisticated Drive Processor and Analog Control Board engineered for high-level command execution within industrial motor drive systems. This module serves as the central processing intelligence for the drive unit, translating complex control algorithms into precise electrical outputs. By managing real-time data from various sensors and system inputs, the 80190-580-01-R ensures optimal engine and motor performance, maintaining synchronization and safety across automated production lines.

Designed for seamless integration into Rockwell Automation environments, this PCB-based module facilitates high-speed communication between the drive power stage and the broader PLC network. Its specialized hardware architecture is optimized for heavy-duty industrial applications where millisecond-level processing and high noise immunity are essential for maintaining system uptime.

Hardware Interface and System Architecture

The 80190-580-01-R features a ruggedized physical design equipped with multiple high-density interconnects to support complex system wiring.

• Interconnect Capability: Built with four integrated male board-to-board connectors that provide a secure interface for internal signal routing and power distribution.

• Specialized Logic Header: Includes a dedicated 14-pin header designed for custom system configurations, specialized diagnostics, and expansion port auxiliary connections.

• Analog and Digital Processing: Combines high-speed digital logic with precision analog signal conditioning to ensure accurate feedback loops for velocity, torque, and position control.

• Thermal and Mechanical Durability: Constructed with industrial-grade components capable of withstanding the heat and vibration common in localized drive cabinets and motor control centers (MCC).

Technical Specifications

• Manufacturer: Allen-Bradley (Rockwell Automation)

• Model Number: 80190-580-01-R

• Module Type: Drive Processor / Analog Control Board

• Input/Output: Integrated I/O Port for high-speed data transmission

• Connector Type: 4 On-board Male Connectors; 1 x 14-pin Header

• Operating Temperature: Standard industrial range (0°C to 60°C)

• Humidity Tolerance: 5% to 95% (Non-condensing)

• Physical Dimensions: 14.0 x 17.4 x 28.0 cm

• Weight: 1.12 kg (Approx. 2.47 lbs)

• Manufacturing Origin: USA

Industrial Application and Reliability

The 80190-580-01-R is a vital replacement and upgrade component for specialized drive systems in the following sectors:

• Engine Control Systems: Managing governors and throttle actuators in power generation or marine applications.

• Process Automation: Coordinating high-torque variable frequency drive (VFD) operations in paper, steel, and textile mills.

• Complex Motion Control: Providing the processing power required for multi-axis synchronization in large-scale material handling.

• System Maintenance: Serving as a direct-fit replacement for discontinued or aging drive control units, ensuring long-term legacy system support.
