Product Overview

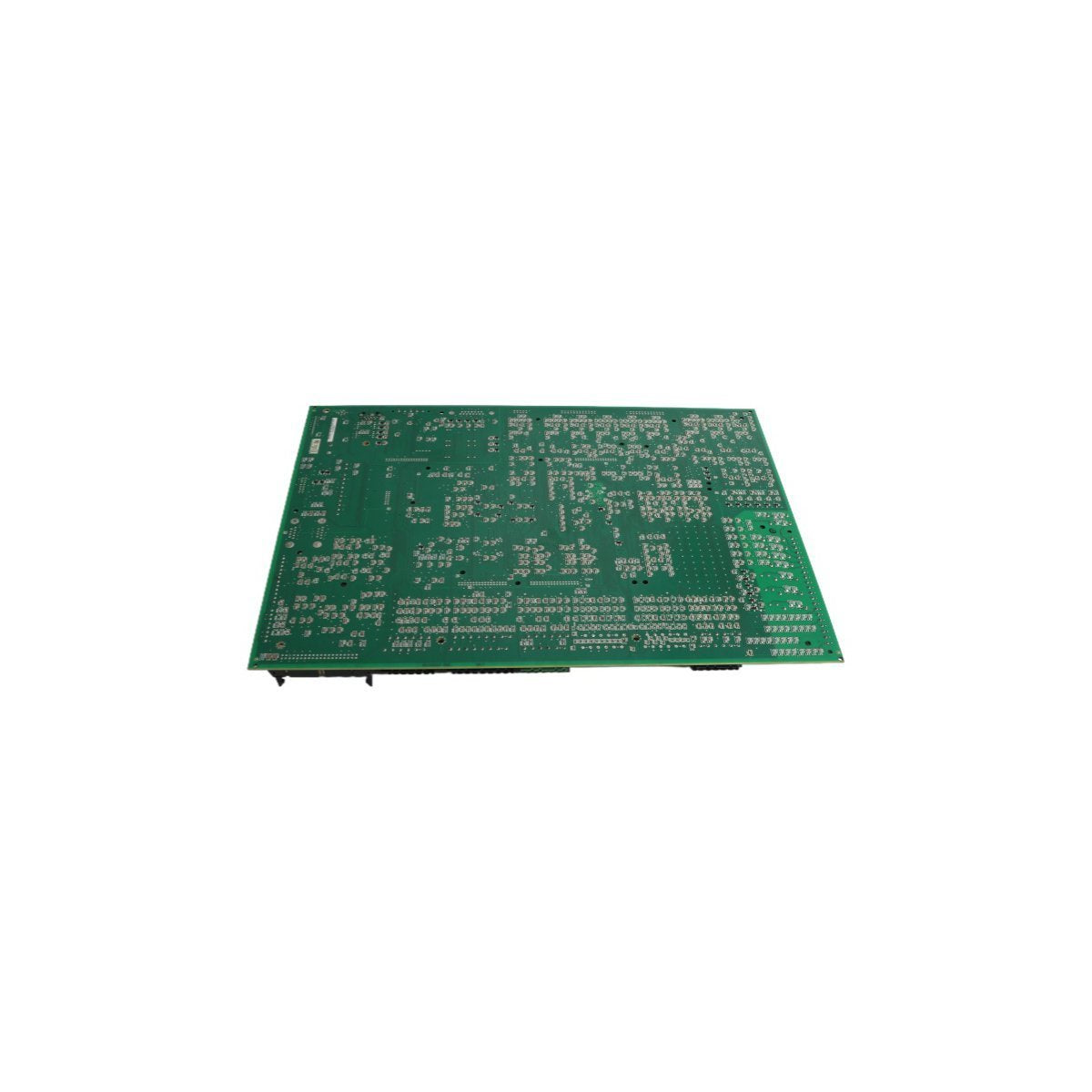

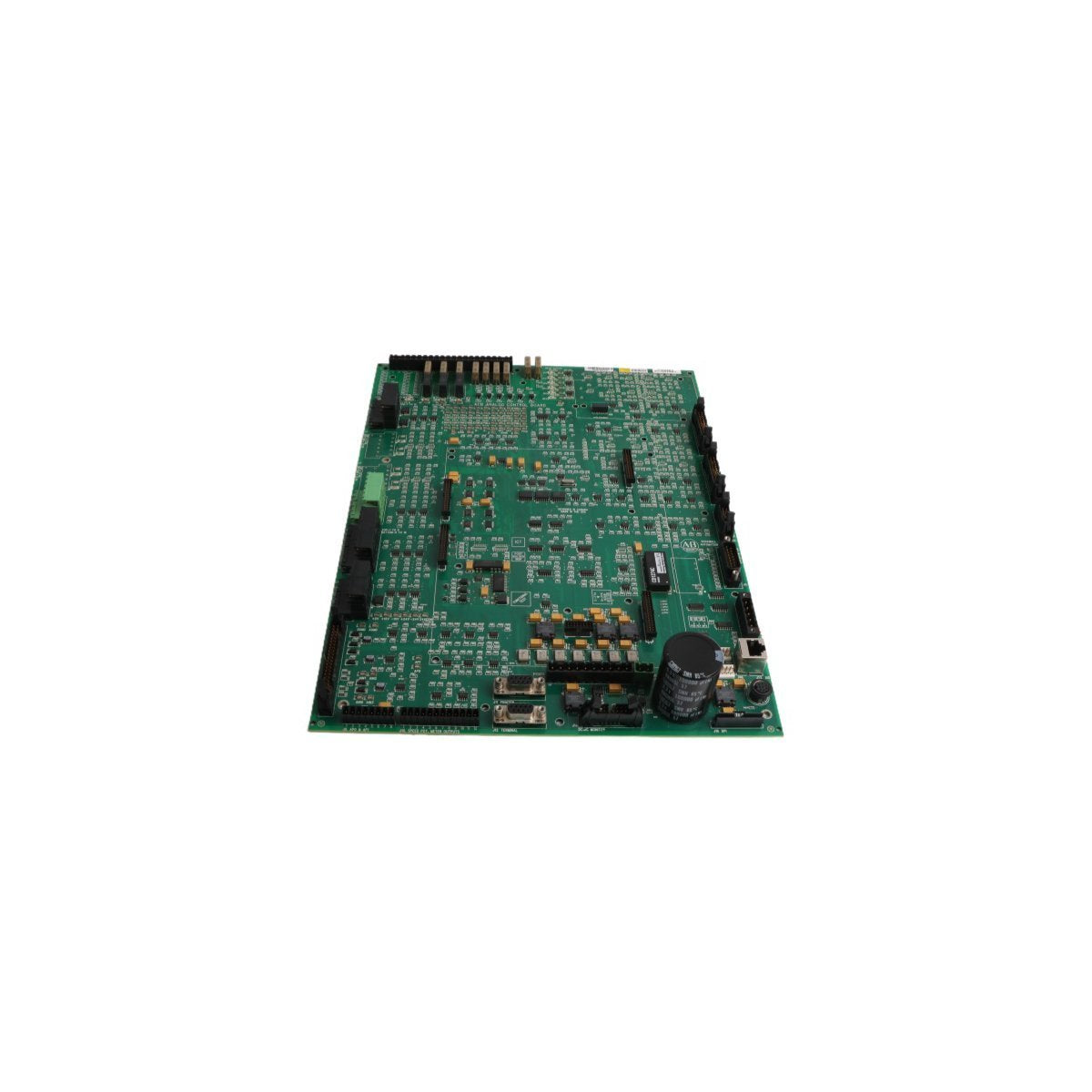

The Allen-Bradley 80190-560-02-R is a highly specialized Analog Control Board (ACB) engineered specifically for the PowerFlex 7000 Medium Voltage (MV) AC drive system. This high-performance PCB acts as a primary interface for analog signal processing and Pulse Width Modulation (PWM) management. By converting complex control logic into precise electrical signals, the 80190-560-02-R enables the drive to regulate motor speed, torque, and power factor with industrial-grade accuracy.

As an essential component of the drive’s control hardware, this board is critical for the stability of large-scale motor applications found in mining, oil and gas, and heavy manufacturing. Although the manufacturer has transitioned this series to a discontinued status, the 80190-560-02-R remains a vital replacement part for maintaining the operational lifecycle of installed PowerFlex 7000 infrastructure, ensuring that high-value assets continue to function without the need for a full system overhaul.

Engineering Functionality and Signal Integrity

The technical architecture of the 80190-560-02-R is optimized for the demanding electrical environments of medium voltage power electronics. It facilitates the clean transmission of analog I/O and provides the necessary processing power to maintain deterministic control loops. Because this board operates within the sensitive control section of an MV drive, its design includes advanced shielding and component selection to mitigate the risks associated with electromagnetic interference (EMI) and high-voltage transients.

Maintenance and diagnostic procedures for the 80190-560-02-R require specialized technical knowledge. Technicians must be proficient in medium voltage safety protocols and possess the appropriate diagnostic equipment to verify signal calibration and PWM output integrity. Proper installation and periodic inspection of this board are fundamental to preventing drive faults and optimizing the efficiency of the connected motor load.

Technical Specifications

• Manufacturer: Allen-Bradley (Rockwell Automation)

• Model Number: 80190-560-02-R

• Module Type: Analog Control Board (ACB)

• Drive Compatibility: PowerFlex 7000 Medium Voltage Series

• Control Method: PWM (Pulse Width Modulation) Signal Management

• Mounting: Internal Drive Control Rack

• Weight: 0.9 kg

• Dimensions: 3.5 x 13.0 x 14.5 cm

• HS Code: 8537101190

• System Category: Medium Voltage Power Electronics

• Country of Origin: USA

Key Technical Characteristics

• Precision PWM Control: Delivers high-resolution modulation signals necessary for smooth medium voltage motor operation.

• Legacy Lifecycle Support: Provides a direct-fit replacement for discontinued original equipment, sustaining the ROI of existing motor drives.

• Industrial Durability: Designed to withstand the thermal and electrical stresses characteristic of MV drive cabinets.

• Analog Integration: Seamlessly processes feedback loops to ensure the drive responds accurately to real-time process changes.
