Product Overview

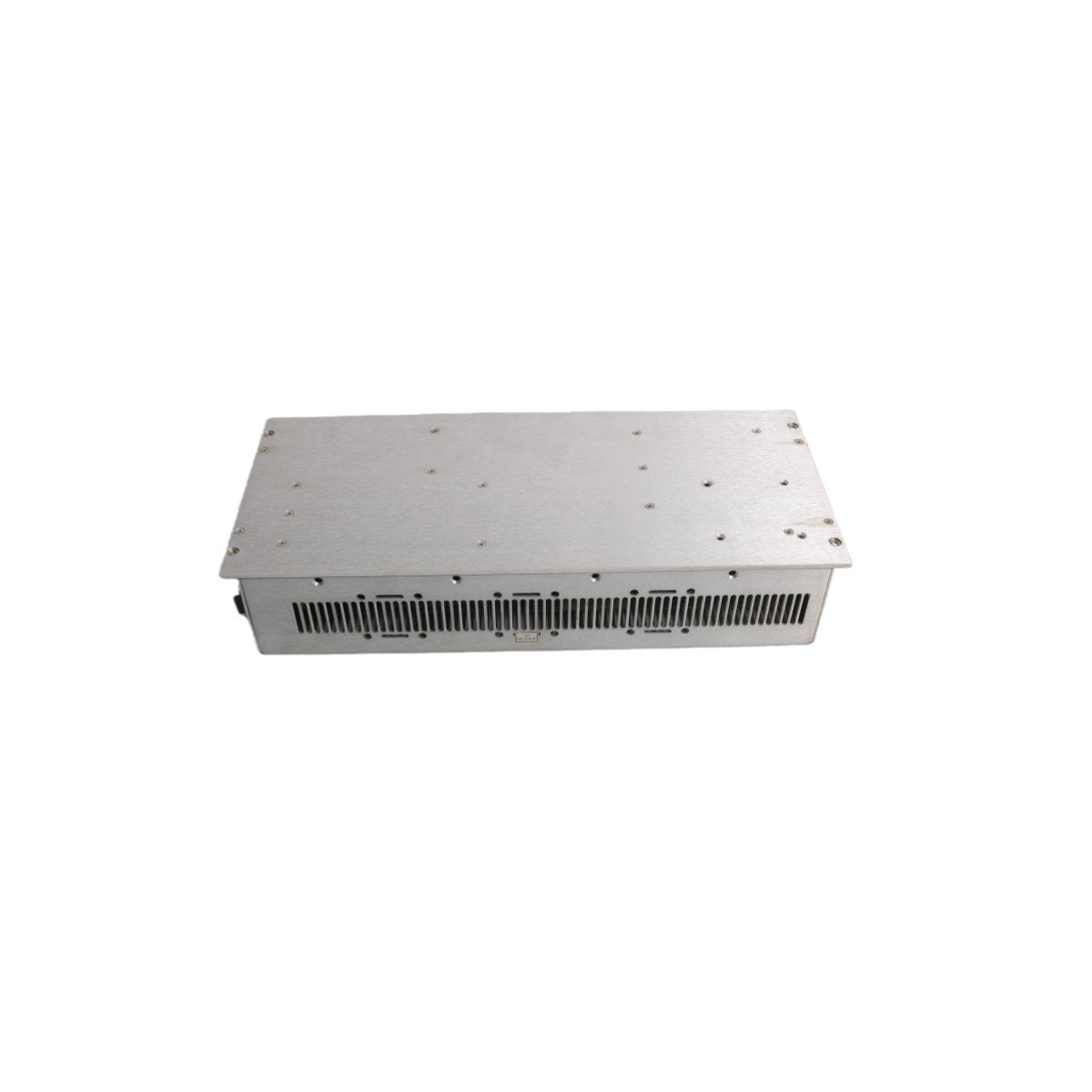

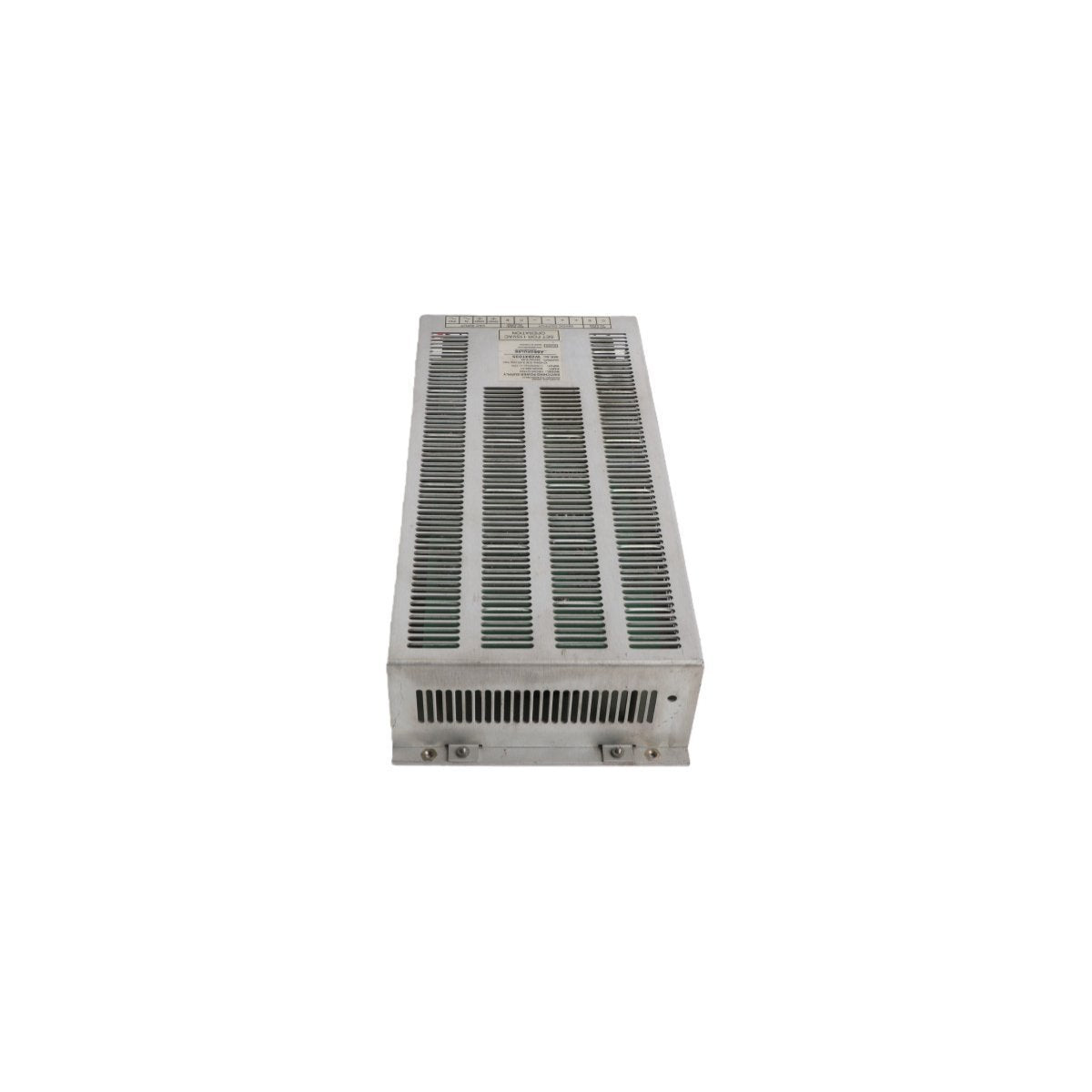

The Allen-Bradley 80026-088-01-R is a high-performance, 300-watt AC/DC switching power supply designed specifically for the PowerFlex® drive family and integrated ControlLogix® systems. This module serves as a centralized power hub, converting standard 120/240V AC line voltage into multiple regulated DC rails. By providing simultaneous outputs of 5V, 12V, and 24V DC, the 80026-088-01-R eliminates the need for multiple independent power sources, streamlining control cabinet architecture and improving overall system reliability.

Engineered for the rigorous demands of industrial automation, this switching power supply maintains a 90% efficiency rating. This high efficiency minimizes thermal load within the enclosure, extending the operational lifespan of sensitive internal electronics. The 80026-088-01-R is a critical component for maintaining the "brain" of a drive system, ensuring that logic controllers, interface modules, and cooling fans receive clean, uninterrupted power.

Key Technical Characteristics

The 80026-088-01-R is distinguished by its protective circuitry and versatile output capabilities.

• Triple-Rail Output: Delivers stabilized 5V DC for logic circuits, 12V DC for auxiliary peripherals, and 24V DC for standard industrial I/O and relay control.

• Global Voltage Compatibility: Features a flexible input stage that accommodates both 120V and 240V AC infrastructures, suitable for international deployment.

• Integrated Surge Mitigation: Built-in hardware-level surge protection shields downstream components from voltage transients and spikes common in heavy industrial environments.

• Optimized Thermal Management: Operates with minimal energy loss, resulting in lower heat dissipation and reducing the requirement for aggressive active cooling.

• Compact Integration: The small-form-factor design allows for easy mounting within dense ControlLogix chassis or PowerFlex drive enclosures without sacrificing valuable space.

Technical Specifications

• Manufacturer: Allen-Bradley (Rockwell Automation)

• Model Number: 80026-088-01-R

• Input Voltage: 120V / 240V AC (Auto-sensing/Switchable)

• Total Power Output: 300 Watts

• DC Output Voltages: 5V DC, 12V DC, 24V DC

• Efficiency: 90%

• Cooling: Passive convection / Internal airflow compatible

• Dimensions: 3.5 x 13.0 x 14.5 cm

• Weight: 0.9 kg (1.98 lbs)

• Status Indication: LED Diagnostic indicators for DC OK status

Applications and System Reliability

As a core component of the PowerFlex drive series, the 80026-088-01-R is vital for the following industrial scenarios:

• Variable Frequency Drives (VFD): Supplying internal control power to PowerFlex drive logic boards and communication adapters.

• PLC Control Panels: Providing 24V DC power for digital I/O loops and 5V DC for backplane logic.

• HMI Powering: Ensuring stable 12V or 24V DC delivery to operator interface terminals to prevent screen flickering or data corruption.

• Motor Control Centers (MCC): Centralizing the power source for various low-voltage control components and small motor starters.
