Product Overview

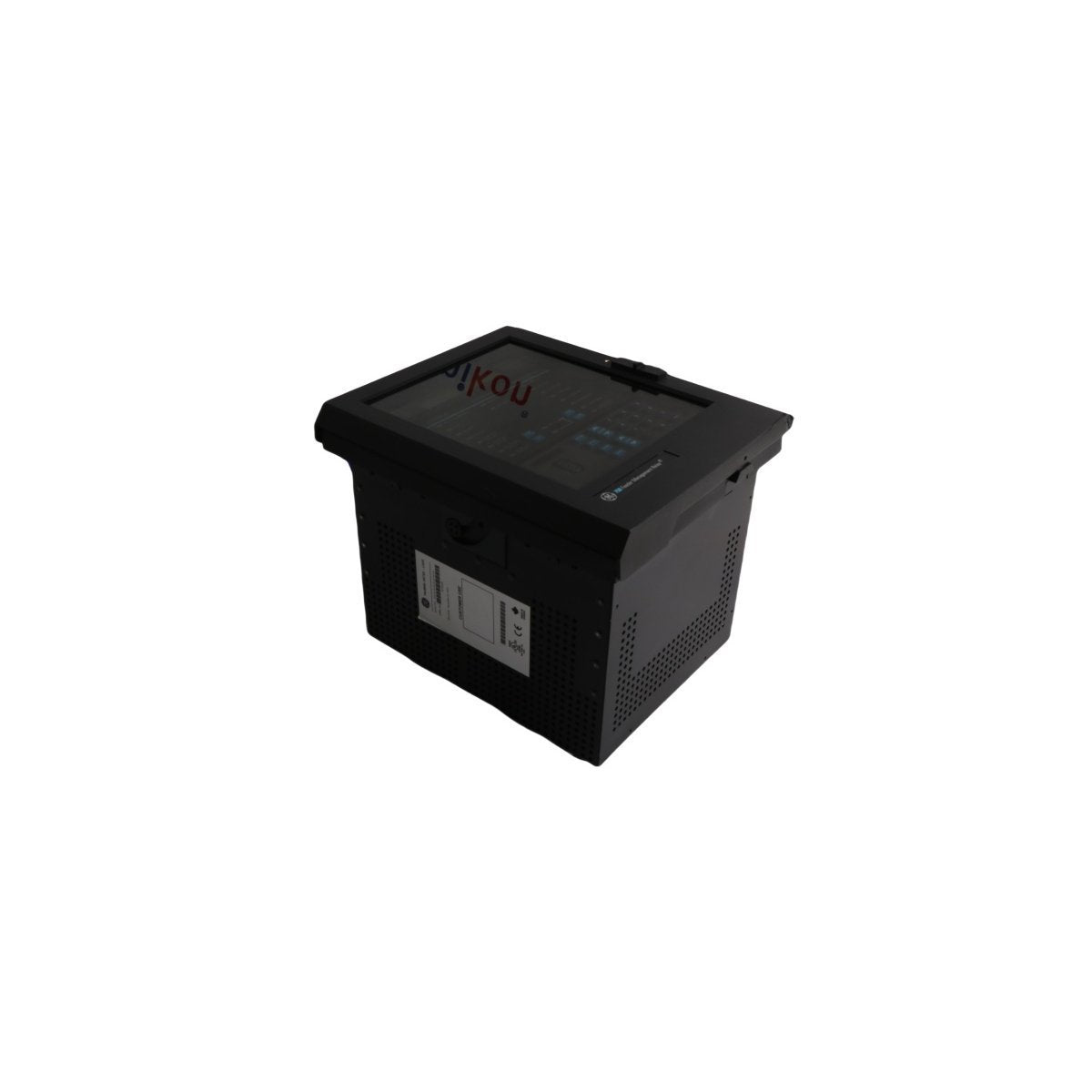

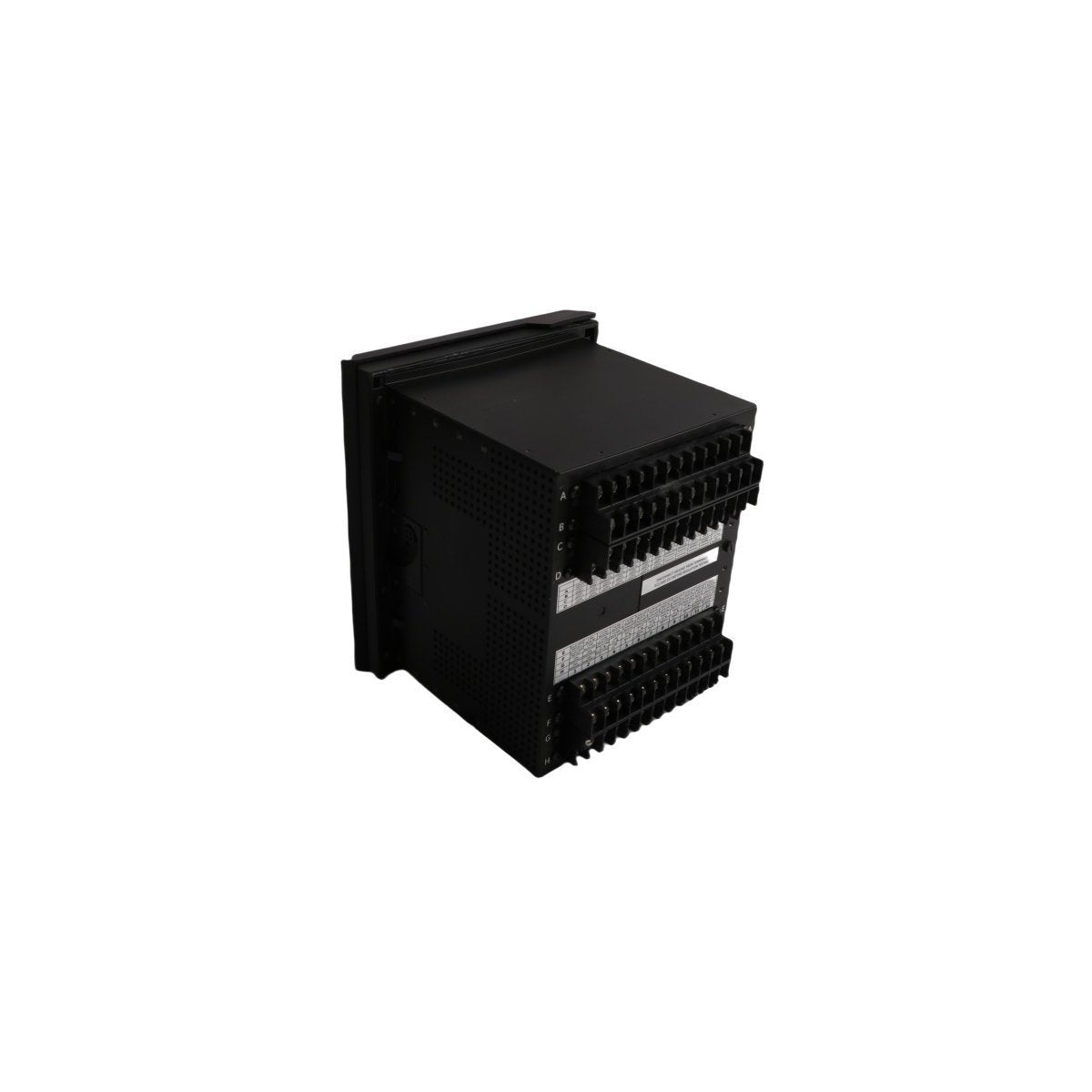

The 750-P5-G5-S5-HI-A1-R-E-H is a GE Multilin SR750 feeder management relay used for protection, control, and monitoring of electrical distribution feeders. It is commonly applied in switchgear and substation-style panels where a single device is required to combine protective elements, metering, event reporting, and operator interface functions.

This relay supports feeder supervision with configurable protection logic and communications for integration into plant control or SCADA environments. The model code identifies the installed hardware options such as current input ratings, supply range, and communications/interface features.

Hardware Parameters

• Brand: GE Multilin

• Product Family: SR750 (Multilin 750/760 Series)

• Device Category: Feeder Management Relay / Protection Relay

• Model / Order Number: 750-P5-G5-S5-HI-A1-R-E-H

• System Type: DCS / Protection & Control Panel

• Condition: Brand New

• Availability: In Stock

• Lifecycle Status: Active

• Product Origin: USA

• Minimum Order Quantity: 1

• HS Code: 8537101190

• Weight: 7.6 kg

• Dimensions: 20.8 × 22.0 × 24.6 cm

• Electrical Inputs and Outputs (as provided):

• Phase Current Inputs: 5 A nominal (model-coded)

• Zero-Sequence Current Inputs: 5 A nominal (model-coded)

• Analog Outputs: 8 channels, 4–20 mA (model-coded option)

• Control Power (as specified):

• 88–300 VDC

• 70–265 VAC, 48–62 Hz

• Protection and Control Functions (typical platform features, availability depends on configuration):

• Feeder protection and monitoring logic

• Synchro-check supervision for voltage/frequency and dead-source conditions

• Reverse power protection

• Restricted earth fault protection

• Automatic transfer and interlocking functions (scheme-dependent)

• Communications (as provided):

• Serial ports: RS232, RS422, RS485

• Protocol support stated: Modbus RTU, Modbus TCP/IP, DNP3 (availability depends on installed communications option)

• Interface Features:

• Enhanced front-panel display for local settings and measured values

• Designed for industrial panel environments where chemical or corrosive exposure may be present (installation dependent)

Industrial Applications

• Distribution feeder protection in industrial plants and utility substations

• Switchgear lineups requiring integrated relay protection and metering

• Tie breaker and transfer schemes where synchro-check and interlocks are used

• SCADA-connected feeder panels using Modbus or DNP3 communications

• Maintenance replacement for SR750 devices in installed Multilin 750/760 fleets
