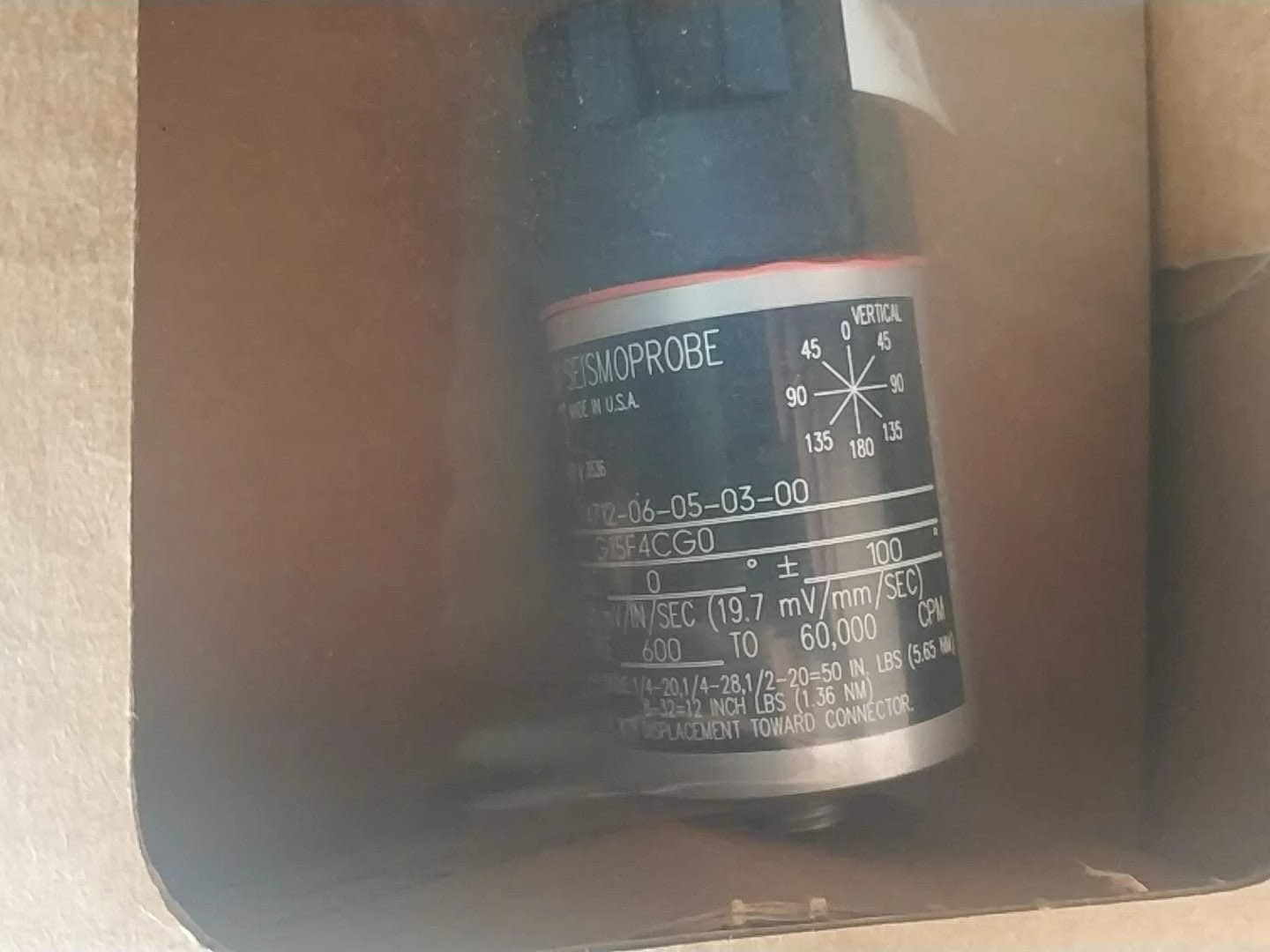

The Bently Nevada 74712-06-05-03-00, also cataloged as the 74712 Seismoprobe Velocity Transducer, operates as a dedicated hardware component for absolute vibration measurement within rotating machinery monitoring systems.

Catalog Designation and Mechanical Construction

The 74712-06-05-03-00 is a two-wire moving-coil velocity transducer. It utilizes an electromechanical design to generate a voltage output proportional to vibration velocity, serving as a primary sensor for casing or structural vibration monitoring. This model is configured for high-temperature applications where solid-state sensors may be prone to failure due to thermal degradation or sensitivity to impulsive excitation.

Hardware Technical Specifications

Rotor Dynamics and TSI Mechanical Monitoring

The sensor is calibrated for standard rotor dynamics monitoring, ensuring accurate absolute vibration capture on fluid-film bearing housings. Integration into Total System Integration (TSI) platforms requires careful signal path management; users must ensure that cable impedance does not influence the transducer's low-frequency response. While this moving-coil design is inherently robust against electrical interference, shielding must be grounded at the monitor end to eliminate ground loops that can skew the velocity output signal.

Ordering Information

• 1 x 74712-06-05-03-00 Seismoprobe Velocity Transducer.

• 1 x 1/2-20 UNF-3A mounting stud.

• 1 x Terminal block assembly for electrical connection.

Field Installation Guidelines

• Mechanical Mounting

• Ensure the mounting surface is flat and free of debris to allow for proper surface contact of the stud.

• Tighten the transducer to the specified torque to prevent resonance amplification at the mounting interface.

• Electrical Termination

• Connect the two-wire output to the signal conditioner or monitoring rack input.

• Verify that the polarity is maintained throughout the wiring run to ensure the correct phase of the vibration signal relative to reference sensors.

• Use twisted-pair, shielded cabling to maintain signal integrity over long distances.

Frequently Asked Questions

• Does this transducer require external power?

  No, it is a self-generating moving-coil device. It generates its own voltage based on the velocity of internal coil movement within the magnetic field.

• How does moving-coil technology compare to accelerometers?

  Moving-coil transducers are less sensitive to high-frequency impulsive excitation and do not require electronic integration, making them suitable for specific low-frequency vibration environments.

• What is the role of the 10 Hz frequency limit?

  The 10 Hz lower limit is the specified corner frequency where the sensor maintains a linear voltage output; measurements below this frequency may show increased attenuation.

• Can I mount this in any orientation?

  Yes, the moving-coil system is designed to operate in any orientation, provided the mounting stud is securely tightened to the vibration source.

• Is the connector terminal block field-replaceable?

  The terminal block is a fixed component of this configuration; ensure wires are stripped to the correct length before insertion to prevent shorts or high resistance.

• Why is there no agency approval on this model?

  The "00" suffix indicates this specific unit is provided without hazardous area certifications; confirm local site safety requirements before installation.

• How do I check for signal linearity?

  Linearity is verified by comparing the transducer output against a known vibration standard or shaker table input within its rated frequency range.

• Is this device compatible with Proximitor sensors?

  This is a velocity transducer, not an eddy-current proximity probe. It is electrically and physically distinct and cannot be used as a direct replacement for displacement-based systems.
