Product Overview

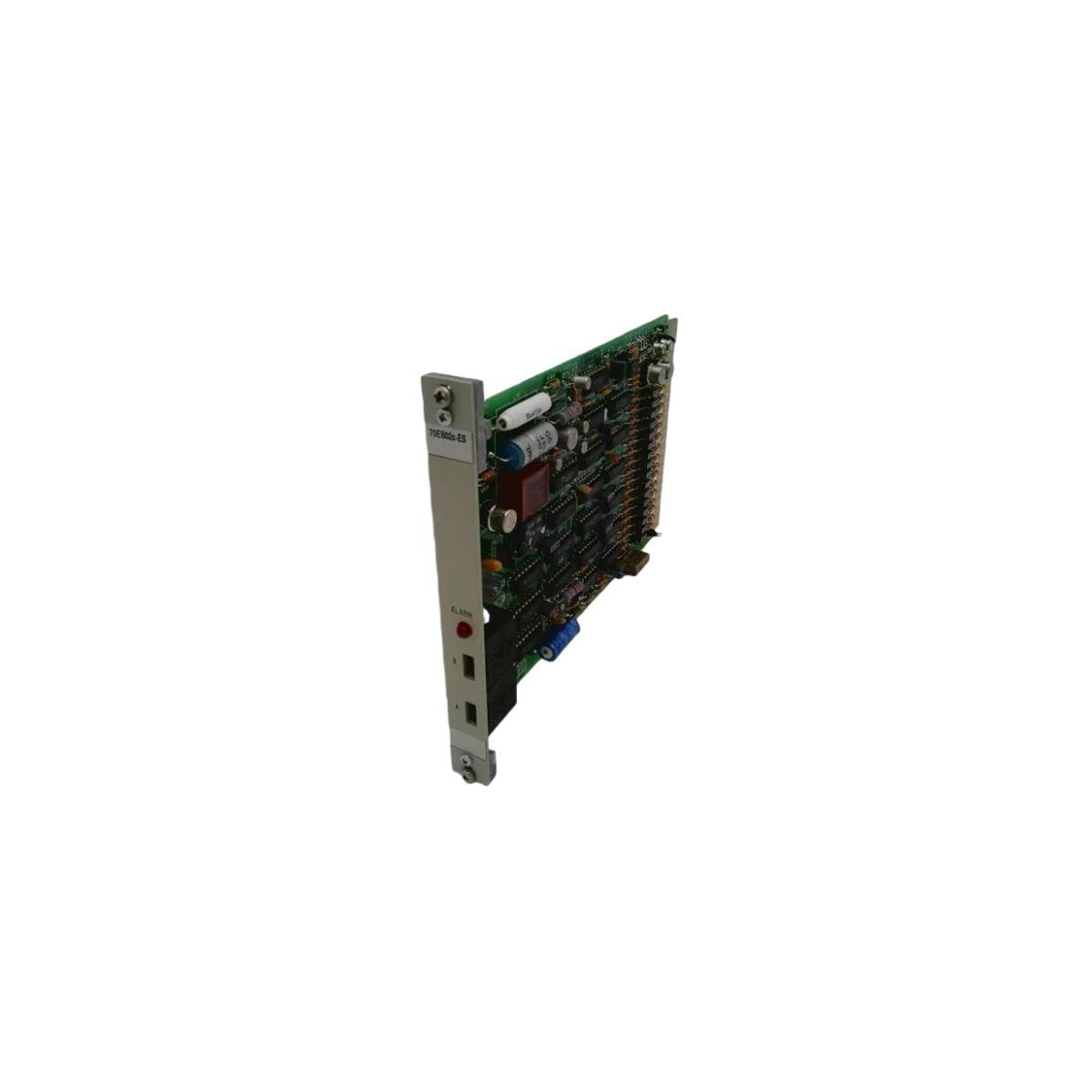

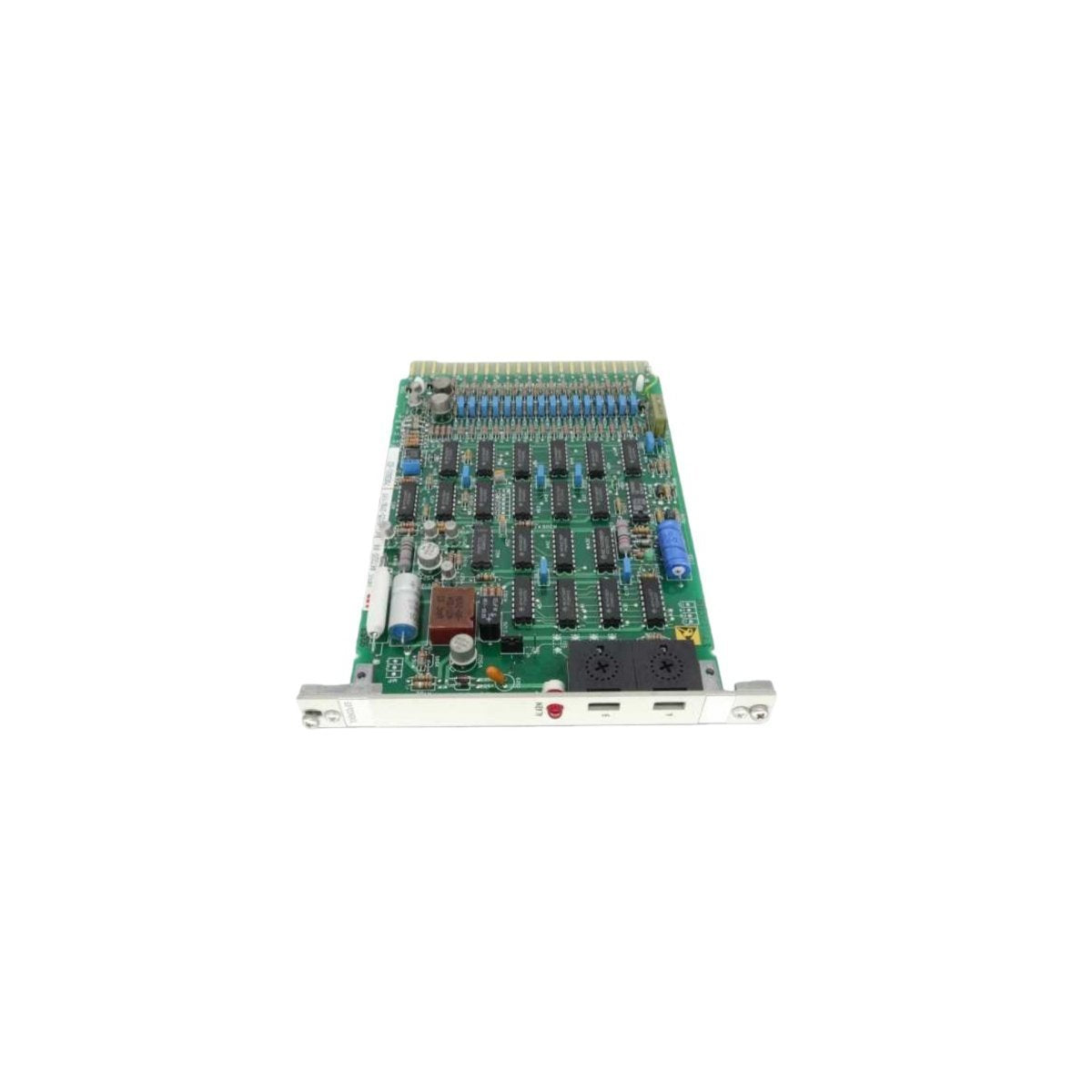

The ABB 70EB02C-ES, identified by the order number HESG447220R4, is a high-performance digital input interface designed for the Procontrol P13 industrial automation platform. This module serves as a critical link for real-time data acquisition, allowing the central control system to monitor the status of various field-level discrete devices. Equipped with 16 independent input channels, the HESG447220R4 is optimized for 24V DC signal environments, offering ultra-fast signal recognition and minimal power consumption. Its integration into the Procontrol P13 bus architecture ensures that mission-critical status changes from sensors and switches are communicated to the processor with near-zero latency, maintaining the operational integrity of high-demand power generation and process control facilities.

Hardware Parameters and Key Technical Characteristics

The HESG447220R4 70EB02C-ES is engineered for precision and longevity, featuring specialized circuitry to handle high-frequency switching and industrial noise.

• Model Number 70EB02C-ES

• Order Code HESG447220R4

• Module Category Digital Input Module / Control Board

• System Family ABB Procontrol P13

• Channel Density 16 Discrete Input Channels

• Input Voltage 24V DC (Nominal)

• Current Consumption Low-draw architecture (approx. 2mA per channel)

• Signal Response Time 0.5 microseconds for rapid state detection

• Bus Interface Direct Procontrol P13 Bus coupling

• Isolation Internal galvanic isolation to protect bus logic from field surges

• Module Weight 1.22 kg (Shipping weight) / 0.23 kg (Unit weight)

• Dimensions 24 x 19 x 5.3 cm

• Manufacturing Origin Sweden

Industrial Applications and Operational Use Cases

The robust digital monitoring capabilities of the 70EB02C-ES HESG447220R4 make it a preferred choice for large-scale utility and industrial infrastructures.

• Power Plant Status Monitoring Tracking the position of high-voltage circuit breakers, disconnectors, and earth switches in electrical substations.

• Safety Interlock Feedback Interfacing with emergency stop buttons and safety gates to provide immediate feedback to the DCS for protective shutdowns.

• Turbine Control Systems Monitoring limit switches and proximity sensors on turbine steam valves to ensure precise mechanical positioning.

• Automated Material Handling Managing input signals from optical sensors and selector switches on high-speed conveyor systems.

• Legacy System Life Extension Serving as a vital replacement component for aging Procontrol P13 installations, ensuring continued system uptime without the need for a total hardware migration.
